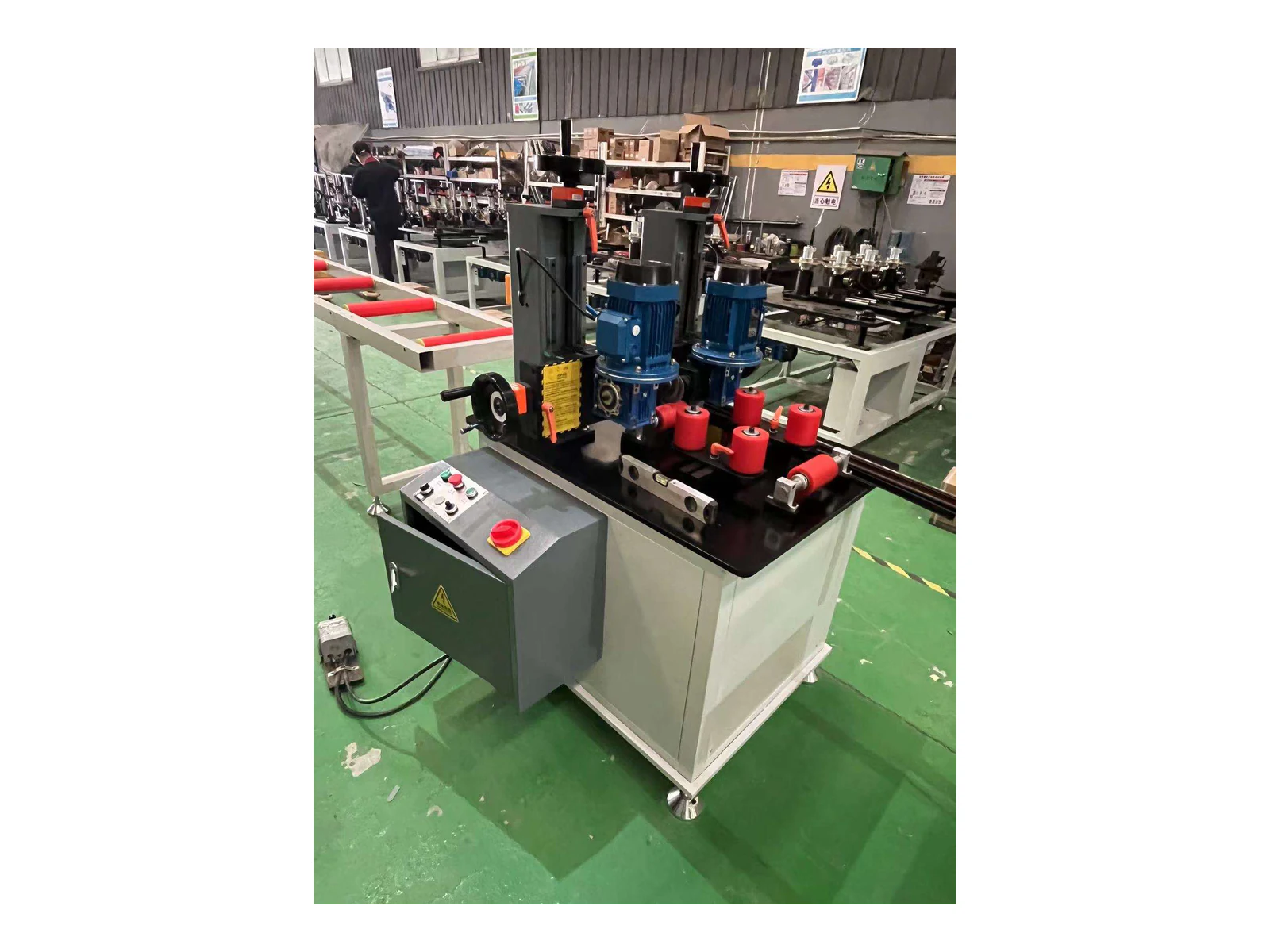

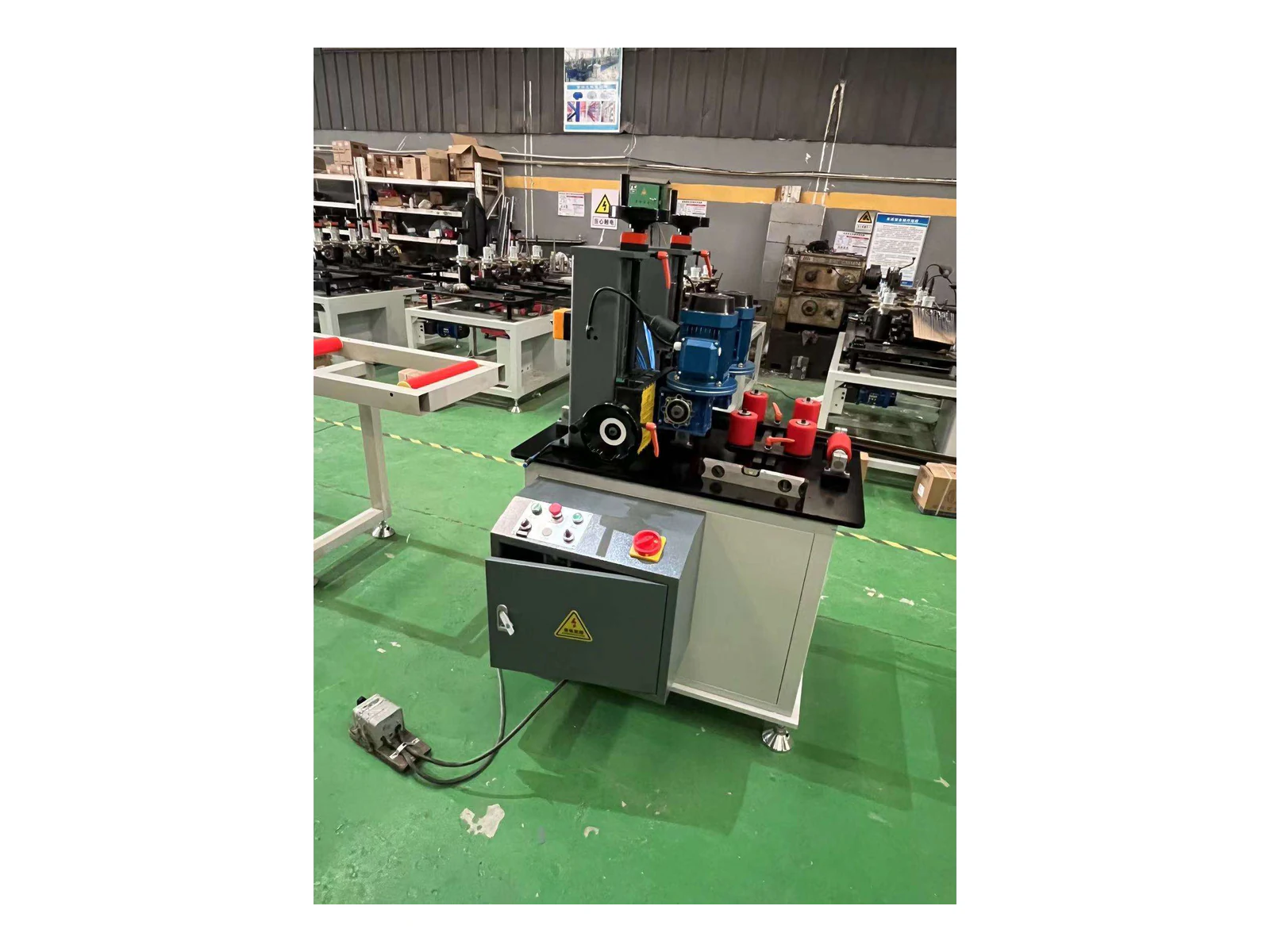

KC-01

Thermal-Break Profile Knurling Machine

Description

Knurling machine for forming teeth in aluminium or plastic thermal-break profile grooves before strip insertion.

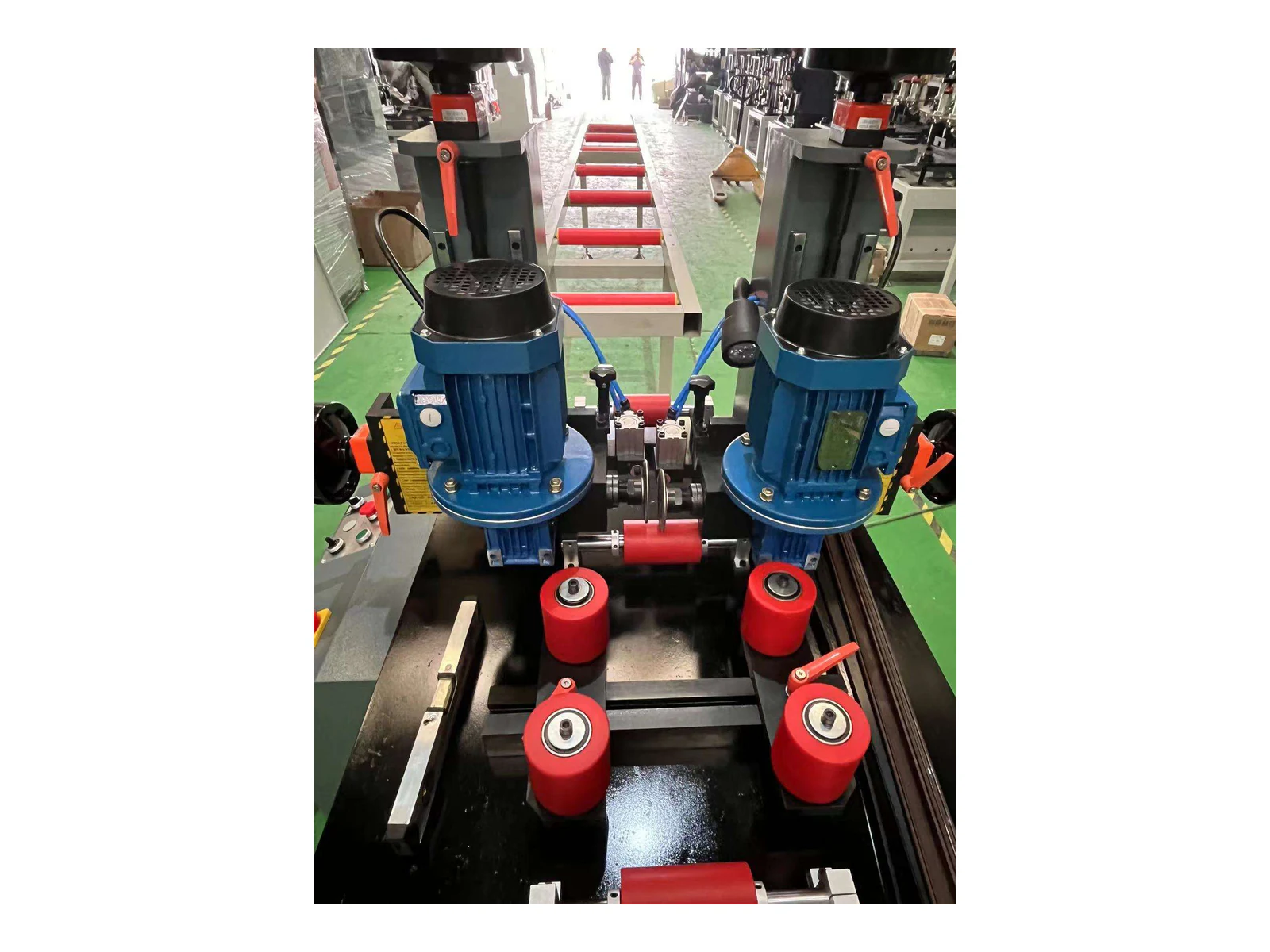

Knurls the internal groove surfaces used for thermal-break strip assembly.
Automatic pneumatic clamping supports profile handling.
Variable-frequency speed control provides stepless adjustment.
Linear guides support automated opening and threading work.

Specifications

Power supply380 V / 50 Hz

Input power1.28 kW

Working speed0-90 m/min

Maximum profile size260 x 210 mm

Overall dimensions900 x 1,100 x 1,560 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Direct answer

What is the KC-01 aluminium profile processing machine?

The KC-01 is an aluminium profile processing machine. It is catalogued as a knurling machine for forming teeth in aluminium or plastic thermal-break profile grooves before strip insertion.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

KC-01 FAQs

What is the KC-01 aluminium profile processing machine?

The KC-01 is an aluminium profile processing machine. It is catalogued as a knurling machine for forming teeth in aluminium or plastic thermal-break profile grooves before strip insertion.

What profiles or operations is the KC-01 designed for?

Knurls the internal groove surfaces used for thermal-break strip assembly.

What is the working range of the KC-01?

Power supply: 380 V / 50 Hz; Input power: 1.28 kW; Working speed: 0-90 m/min. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the KC-01?

Power supply: 380 V / 50 Hz; Input power: 1.28 kW. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the KC-01?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
