LJZ2-CNC-550x3500

Double-Head Arbitrary-Angle CNC Precision Cutting Saw

Description

CNC double-head precision saw for efficient cutting and blanking of aluminium window, door and curtain-wall profiles at programmable angles.

Wide processing range for aluminium window, door and curtain-wall profile cutting.

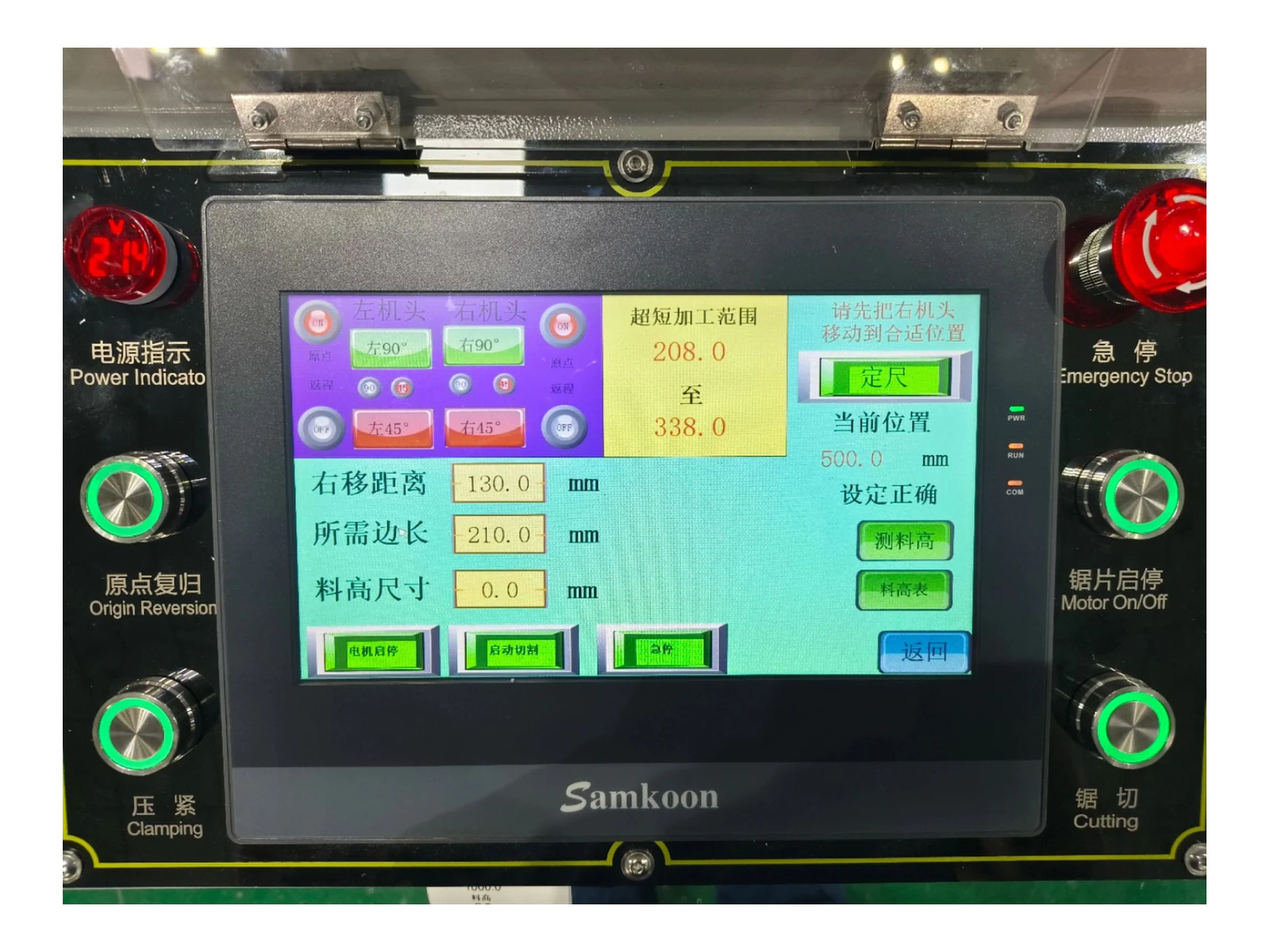

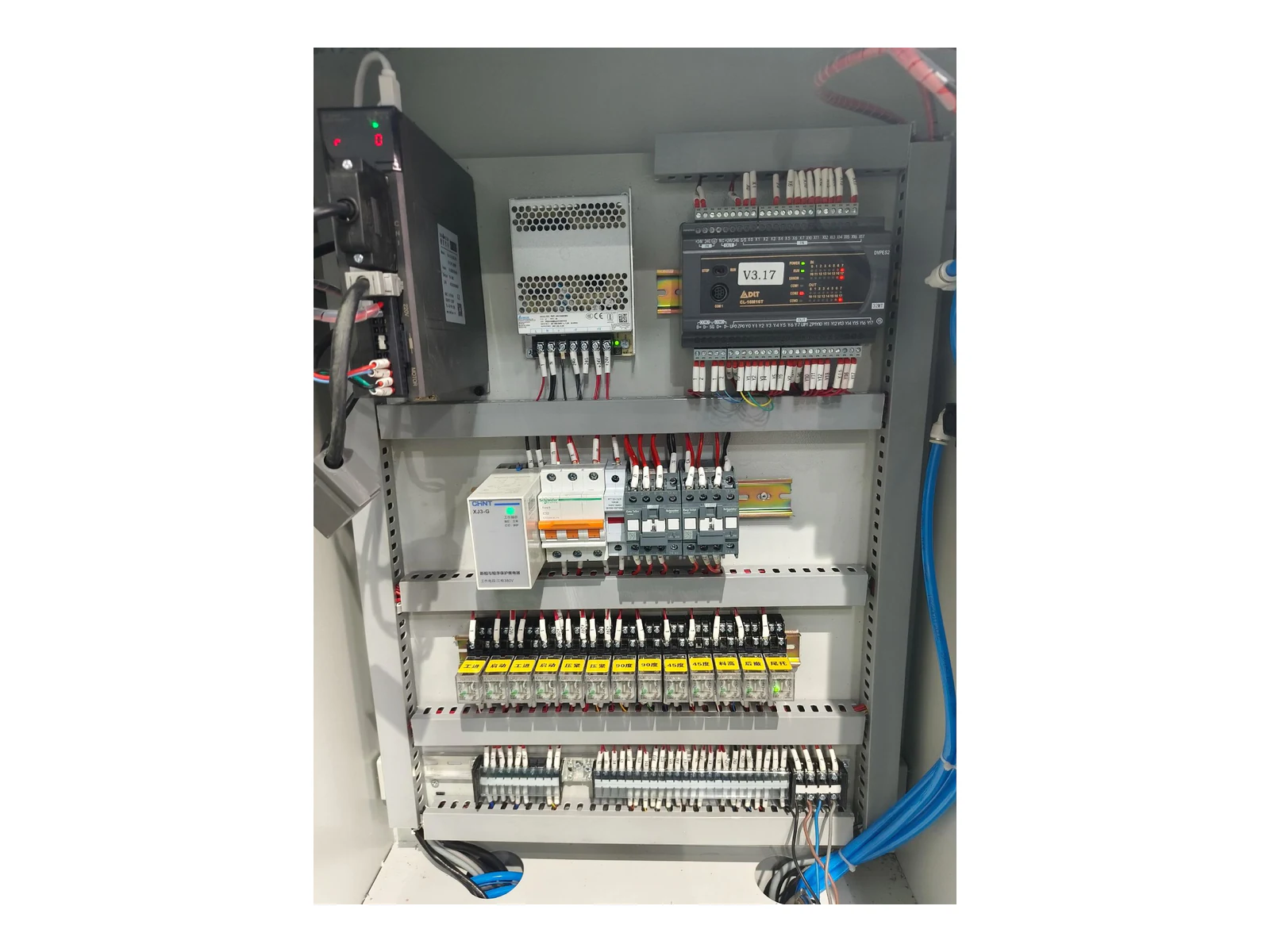

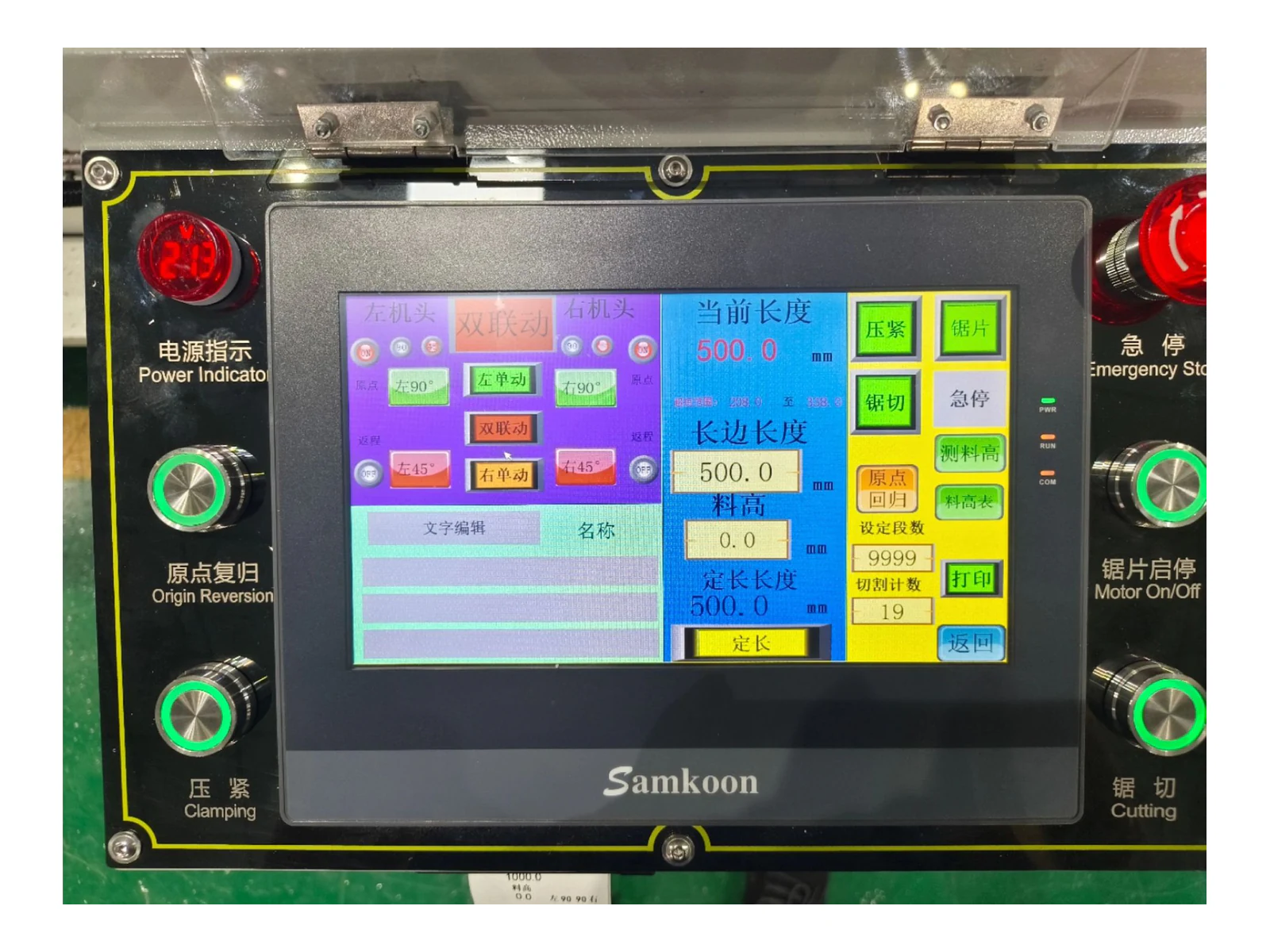

Touch-operated PLC control cuts programmed lengths for different profile specifications.

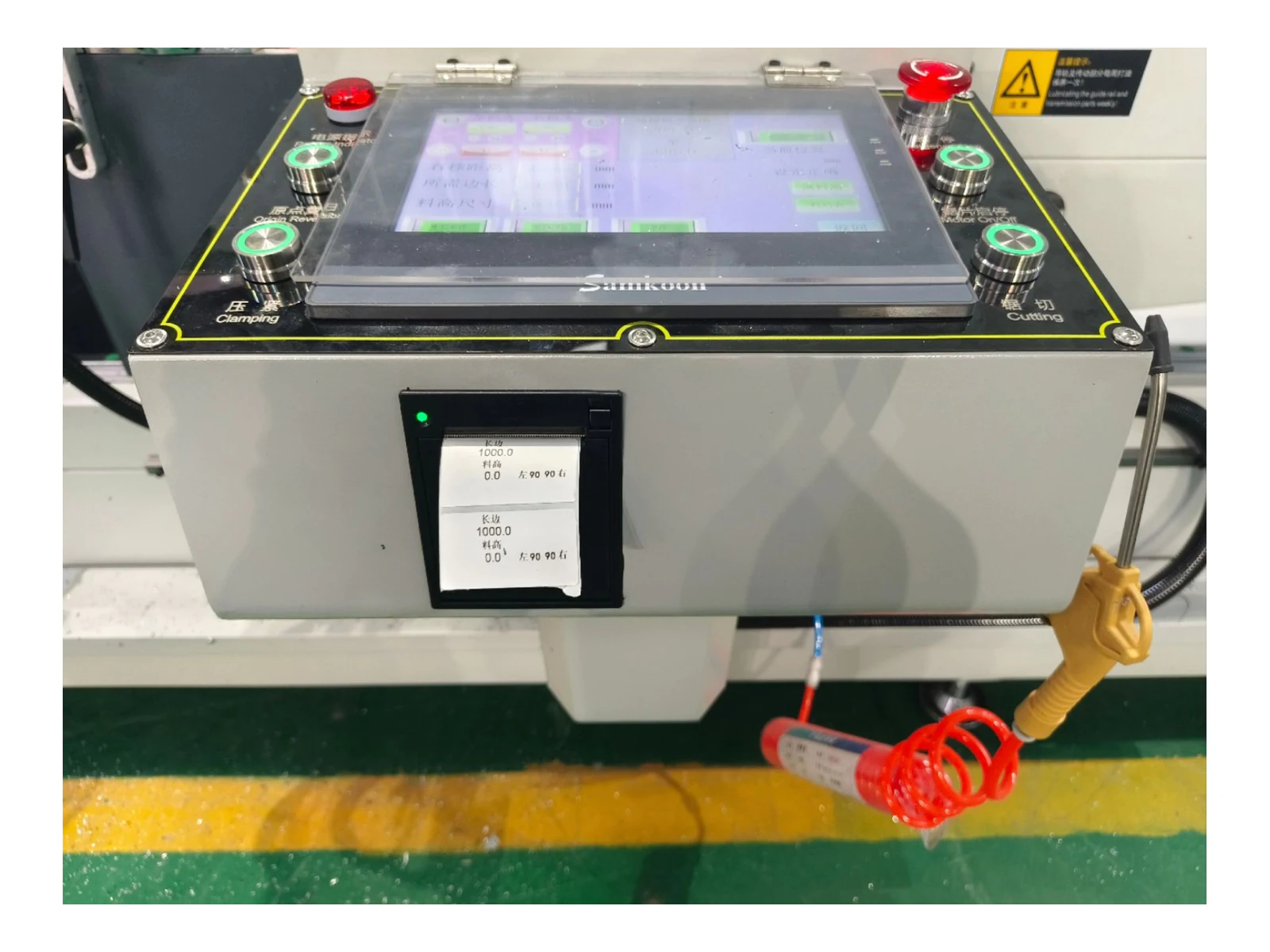

Supports production optimization and automatic barcode printing.
Aged steel structure is designed for rigidity and resistance to deformation.
Aluminium-specific diamond blades and precision spindles support a clean cutting surface.
Pneumatic-hydraulic damping provides uniform blade feed and stable movement.
Imported flat guide rails and linear bearings support accurate positioning.

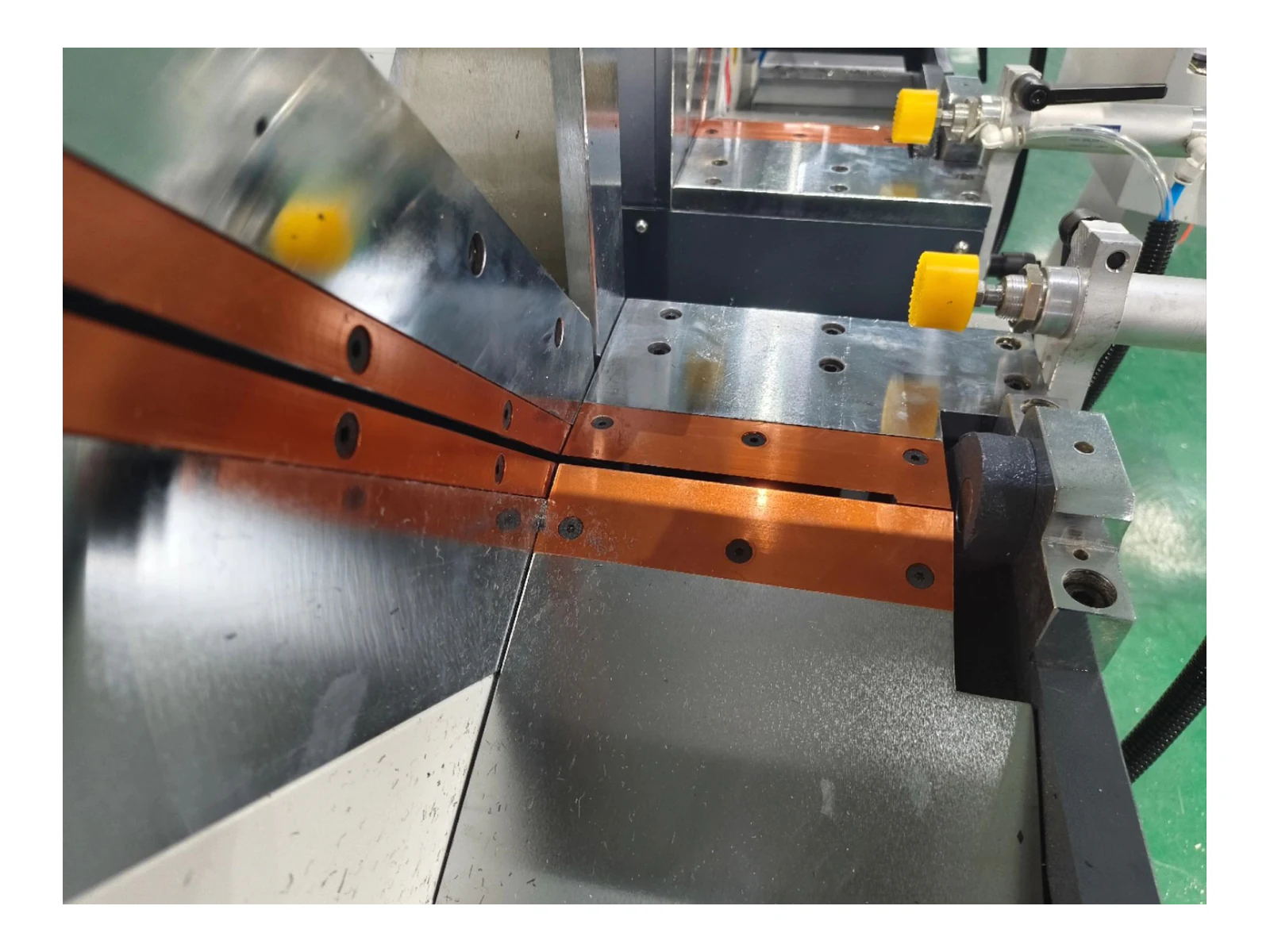

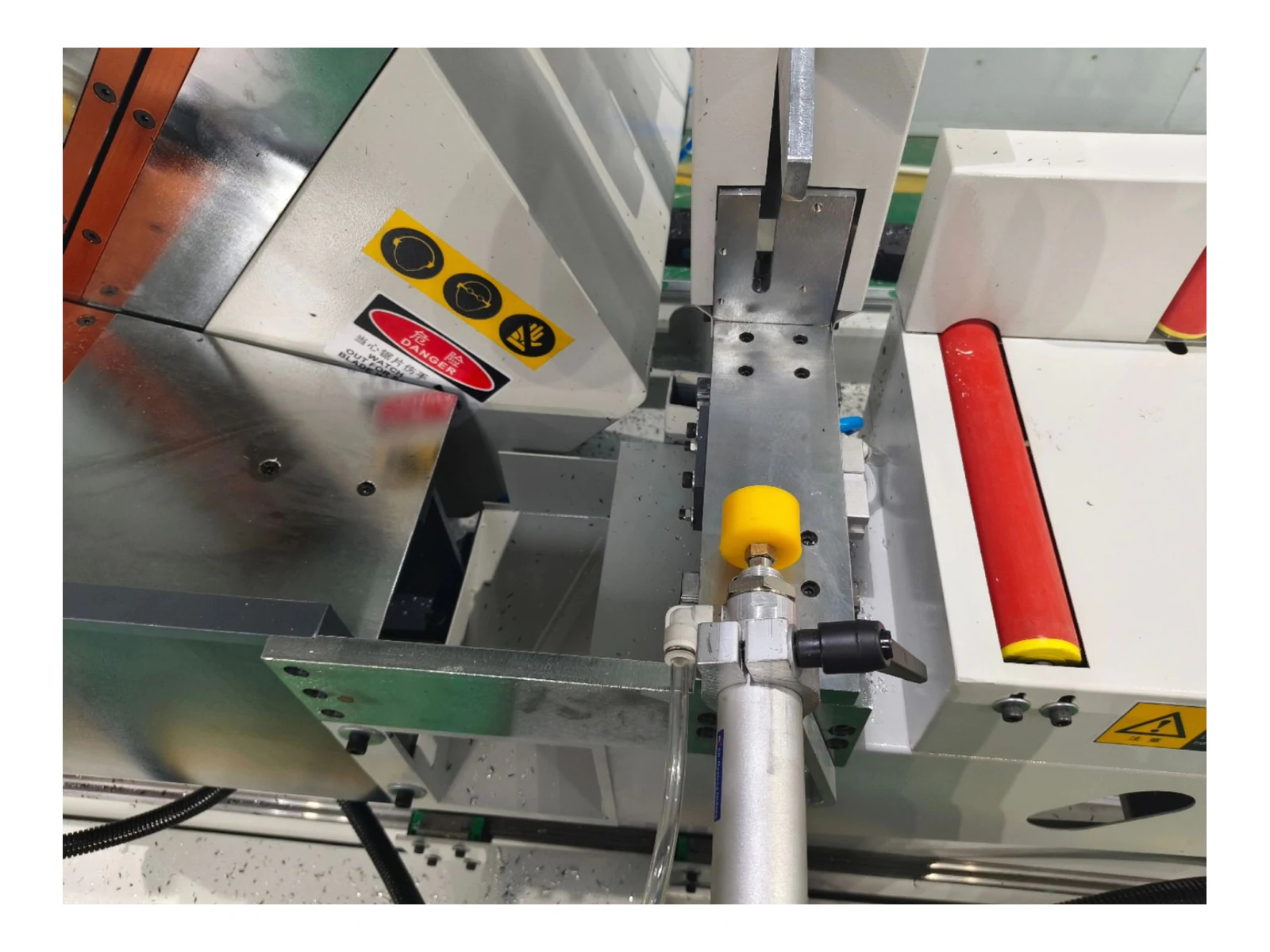

Both heads rotate, position and clamp in two directions for angle work.
Enclosed sawing helps contain dust while the two heads adjust between 30 and 150 degrees.

Specifications

Power supply380 V / 50 Hz

Power6 kW

Saw speed3,850 r/min

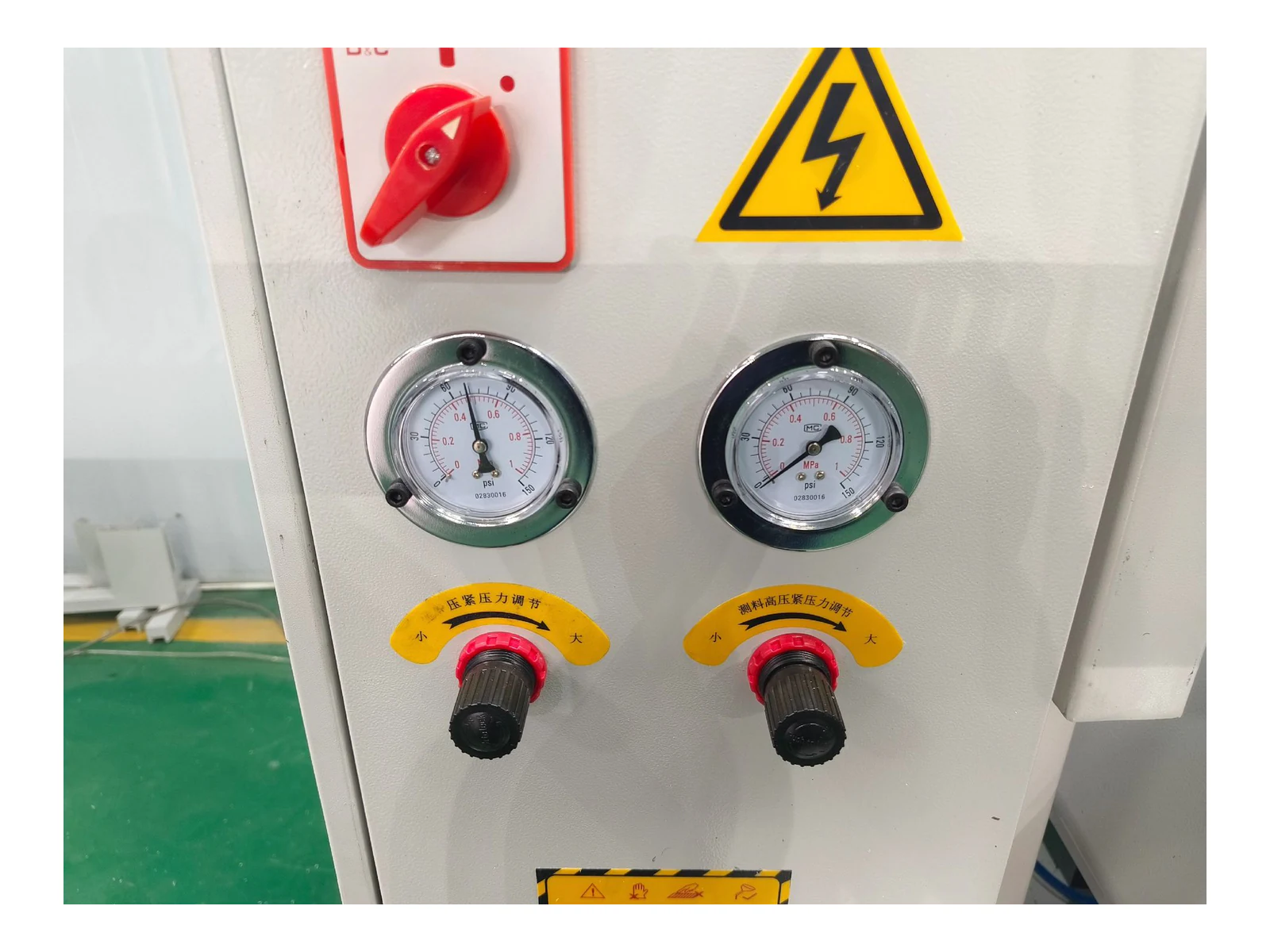

Working pressure0.5-0.8 MPa

Air consumption200 L/min

Saw blade550 x 30 x 4.7 mm

Feed rate0-3 m/min

Cutting length770-3,800 mm; short-length option to 530 mm

Cutting width290 mm

Cutting height180 mm

Overall dimensions4,800 x 1,600 x 1,700 mm

Weight1,700 kg

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the LJZ2-CNC-550x3500 aluminium cutting saw?

The LJZ2-CNC-550x3500 is an aluminium cutting saw. It is catalogued as a cNC double-head precision saw for efficient cutting and blanking of aluminium window, door and curtain-wall profiles at programmable angles.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

LJZ2-CNC-550x3500 FAQs

What is the LJZ2-CNC-550x3500 aluminium cutting saw?

What profiles or operations is the LJZ2-CNC-550x3500 designed for?

Wide processing range for aluminium window, door and curtain-wall profile cutting.

What is the working range of the LJZ2-CNC-550x3500?

Cutting length: 770-3,800 mm; short-length option to 530 mm; Cutting width: 290 mm; Cutting height: 180 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the LJZ2-CNC-550x3500?

Power supply: 380 V / 50 Hz; Working pressure: 0.5-0.8 MPa; Air consumption: 200 L/min. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the LJZ2-CNC-550x3500?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
