LJZ-CNS-600

Single-Head Arbitrary-Angle Aluminium Cutting Saw

Description

Single-head saw for cutting aluminium alloy, light-metal and compatible uPVC profiles at adjustable angles from 30 to 150 degrees.

Cuts aluminium alloy, light-metal and compatible uPVC profiles from 30 to 150 degrees.
A 600 mm carbide blade supports large aluminium profile sections and a smooth cut surface.
Digital angle display provides real-time feedback for easier adjustment.
Integrated thick-steel body and double-turntable design support stable cutting.
Can connect to a dust extractor for a cleaner working environment.
Upward blade feed and fast return support efficient operation.

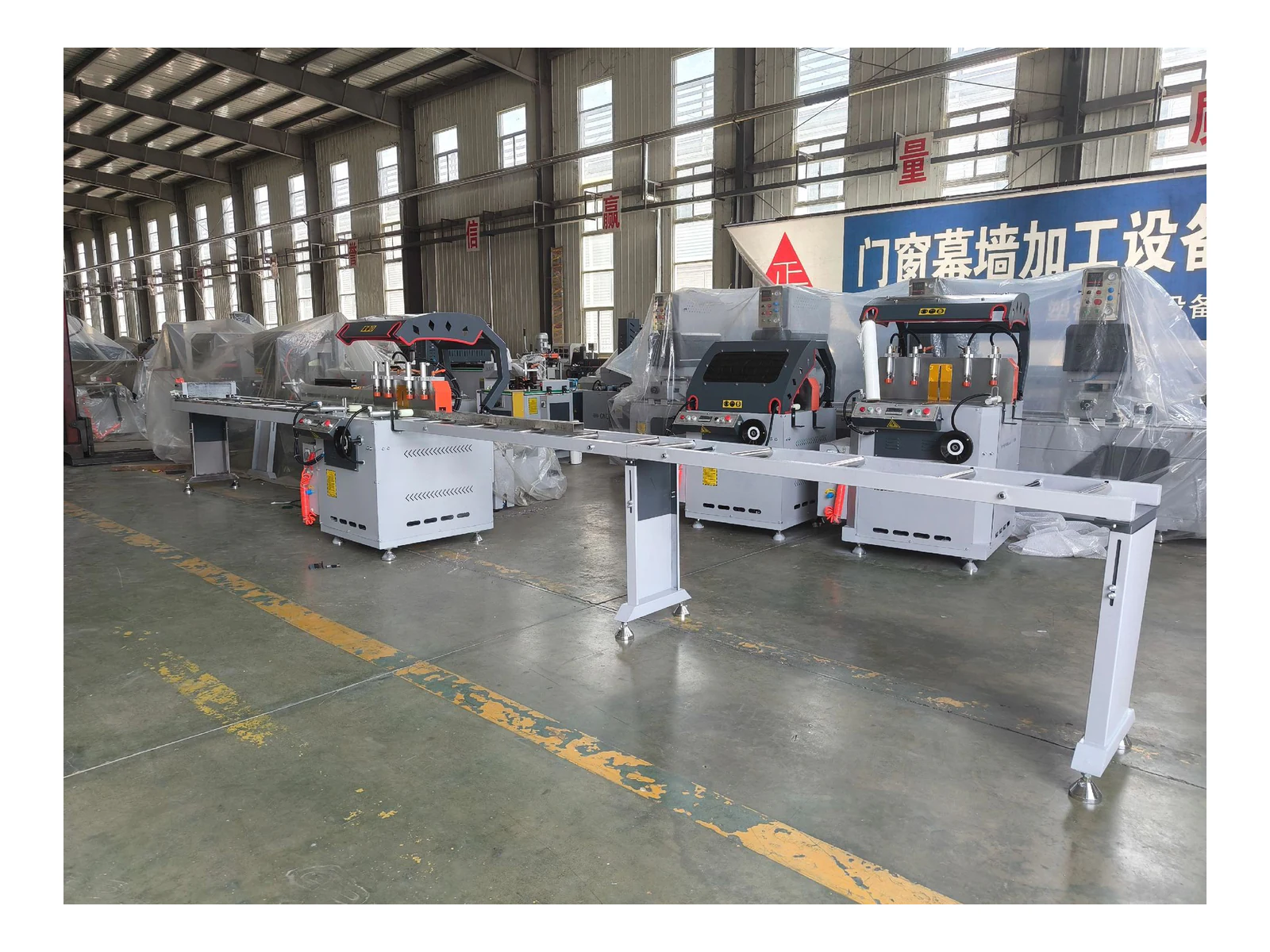

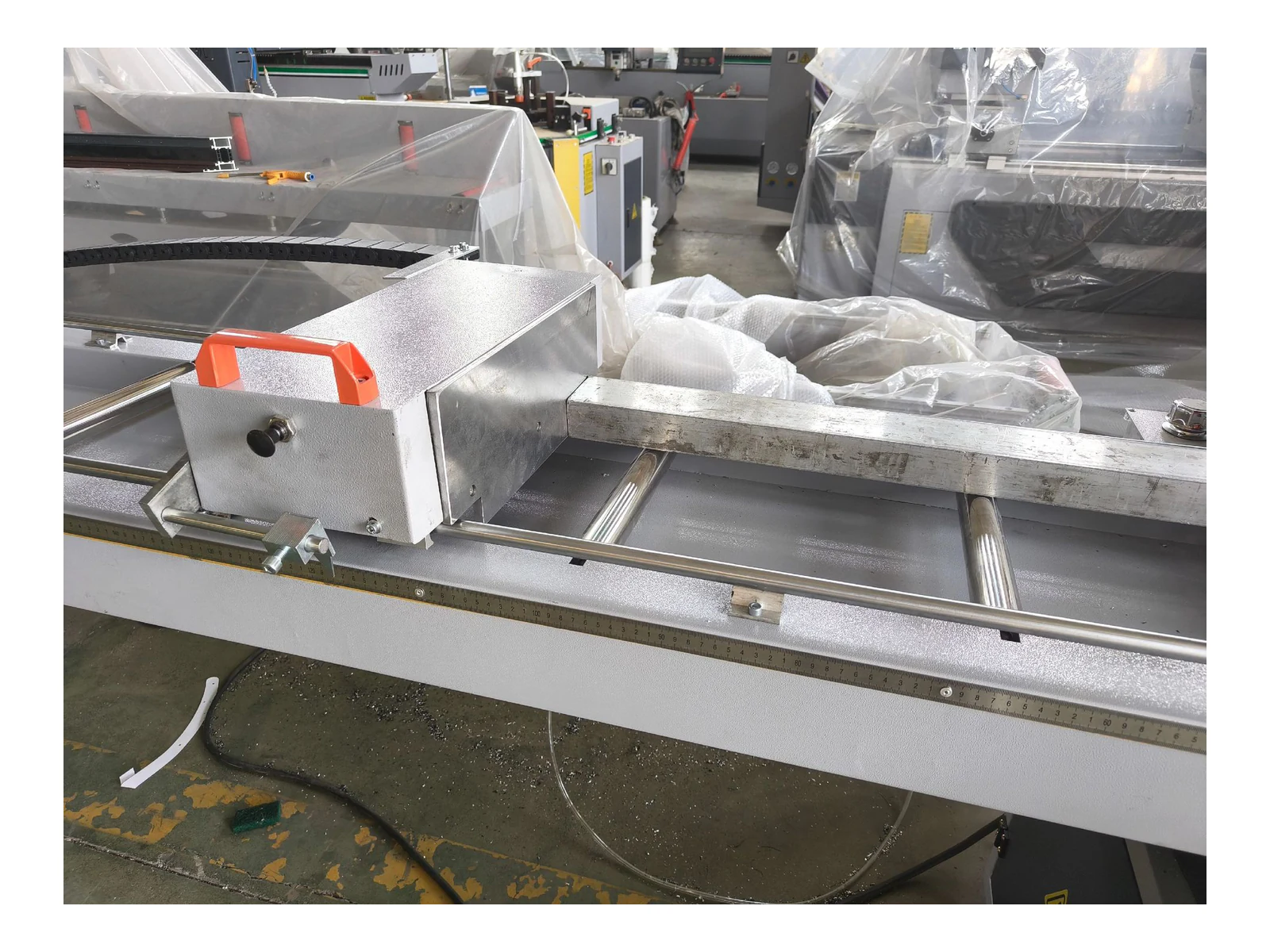

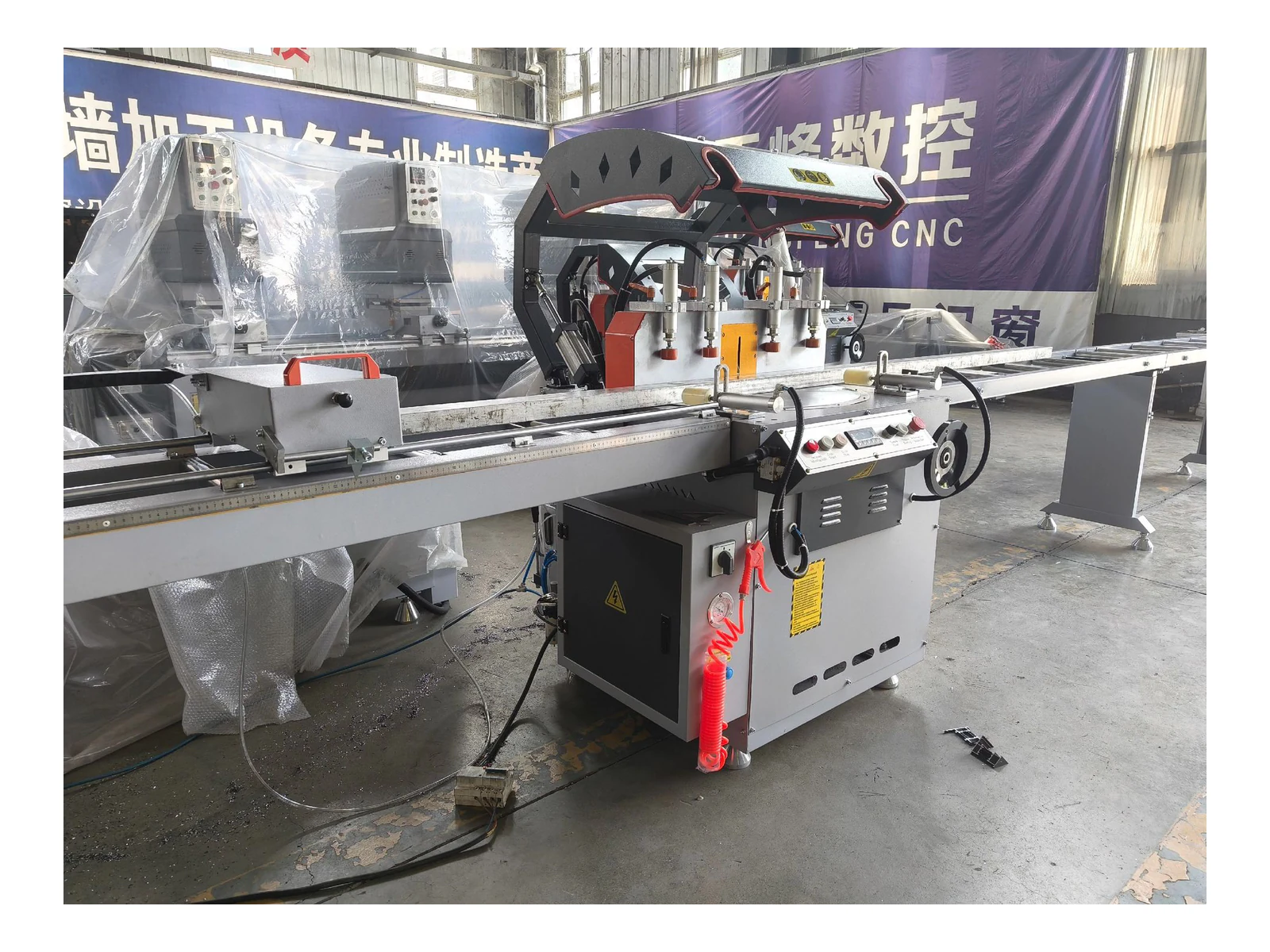

Positioning and material-support racks are fitted on both sides and can be customized in length.

Specifications

Power supply380 V / 50 Hz, three-phase

Input power3 kW

Working pressure0.6-0.8 MPa

Air consumption30 L/min

Saw blade600 x 30 mm, 120 teeth

Cutting angle30-150 degrees

Cutting width340 mm

Cutting height205 mm

Overall dimensions1,150 x 1,250 x 1,600 mm

Machine weight530 kg

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Direct answer

What is the LJZ-CNS-600 aluminium cutting saw?

The LJZ-CNS-600 is an aluminium cutting saw. It is catalogued as a single-head saw for cutting aluminium alloy, light-metal and compatible uPVC profiles at adjustable angles from 30 to 150 degrees.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

LJZ-CNS-600 FAQs

What is the LJZ-CNS-600 aluminium cutting saw?

The LJZ-CNS-600 is an aluminium cutting saw. It is catalogued as a single-head saw for cutting aluminium alloy, light-metal and compatible uPVC profiles at adjustable angles from 30 to 150 degrees.

What profiles or operations is the LJZ-CNS-600 designed for?

Cuts aluminium alloy, light-metal and compatible uPVC profiles from 30 to 150 degrees.

What is the working range of the LJZ-CNS-600?

Cutting angle: 30-150 degrees; Cutting width: 340 mm; Cutting height: 205 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the LJZ-CNS-600?

Power supply: 380 V / 50 Hz, three-phase; Input power: 3 kW; Working pressure: 0.6-0.8 MPa. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the LJZ-CNS-600?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
