LZZ6A-13

Multi-Head Combination Drilling Machine

Description

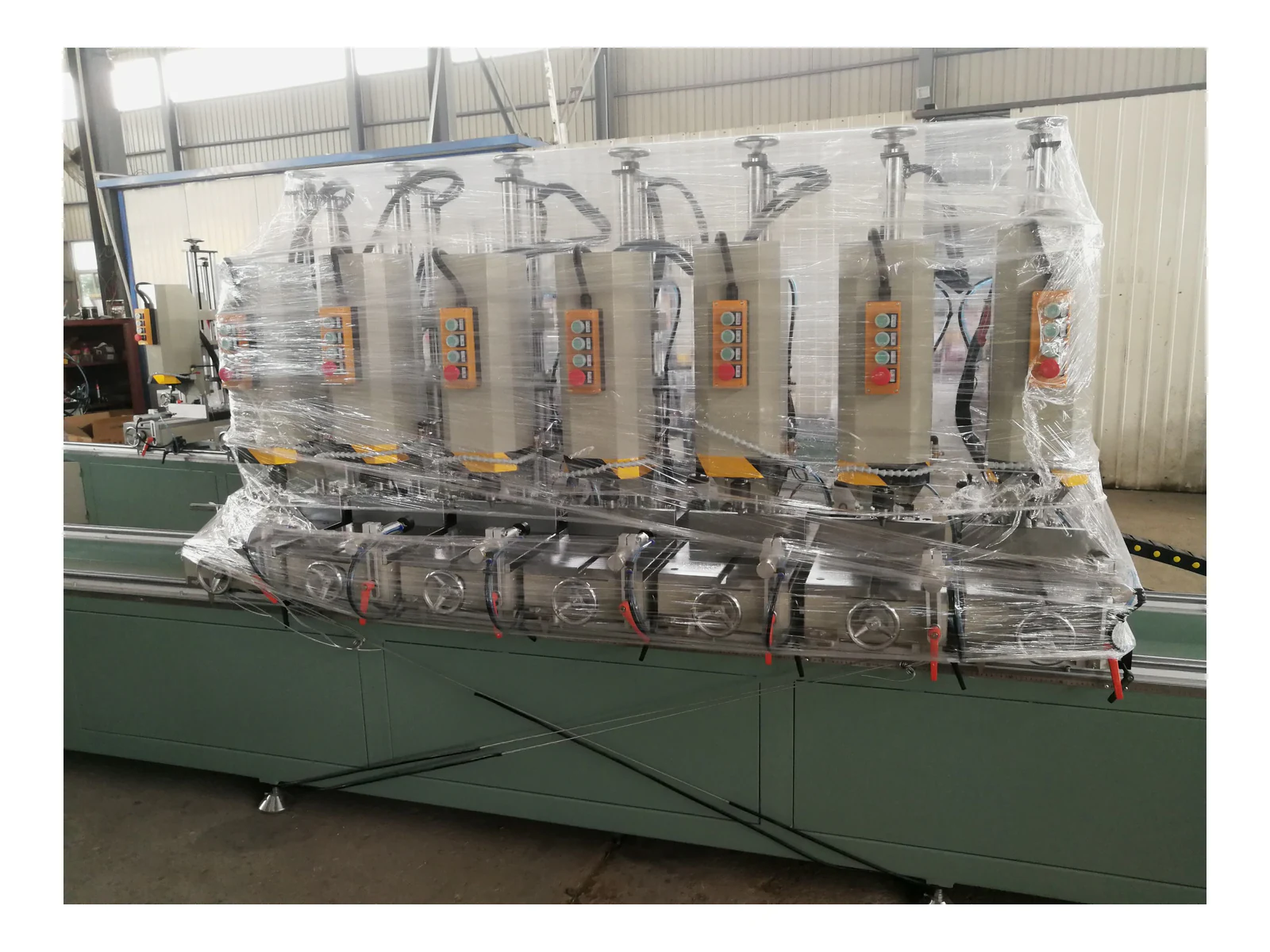

Thirteen-head drilling machine for volume production of holes in aluminium and curtain-wall profiles.

Drills repeated hole patterns in aluminium and curtain-wall profiles.

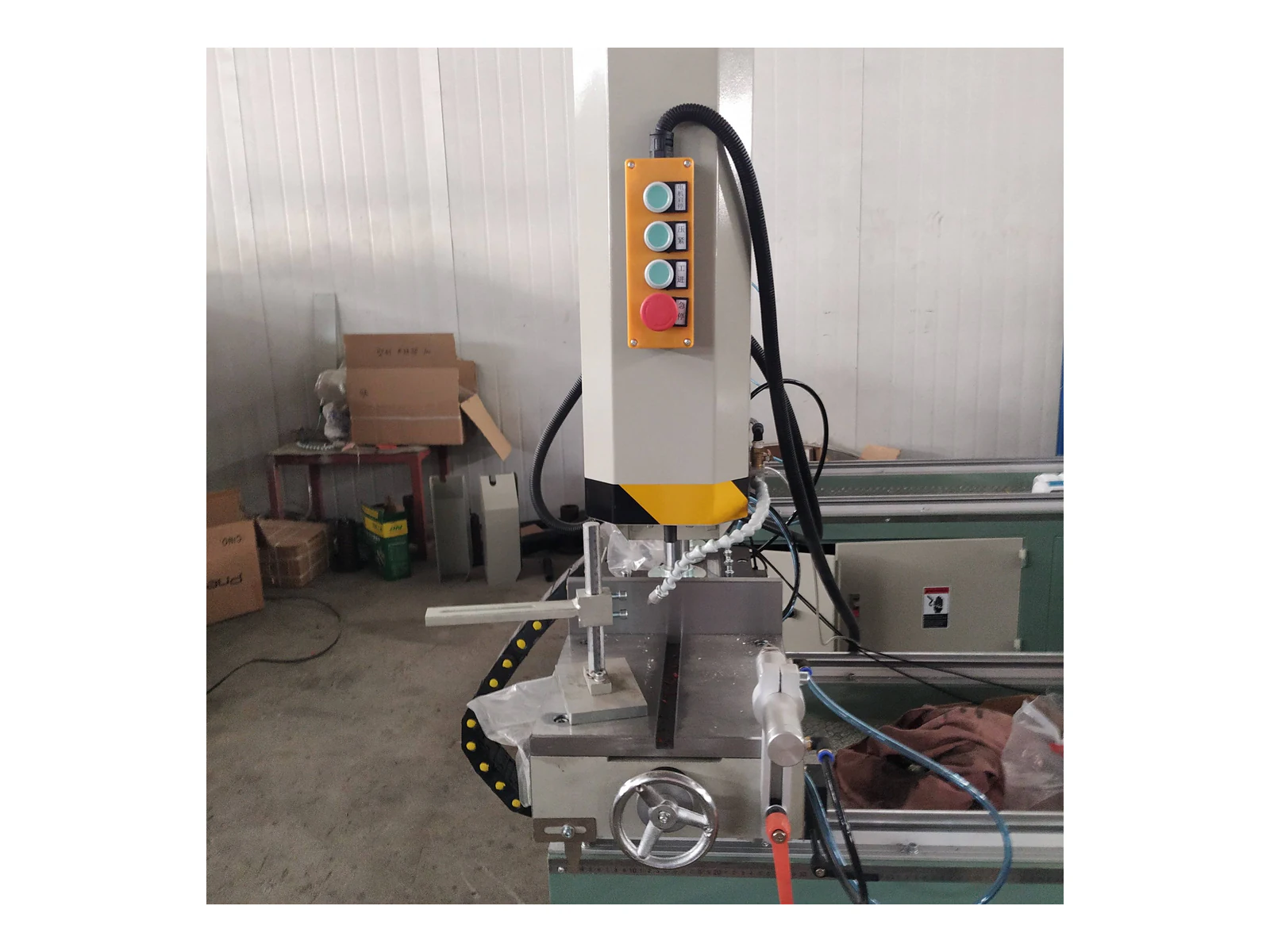

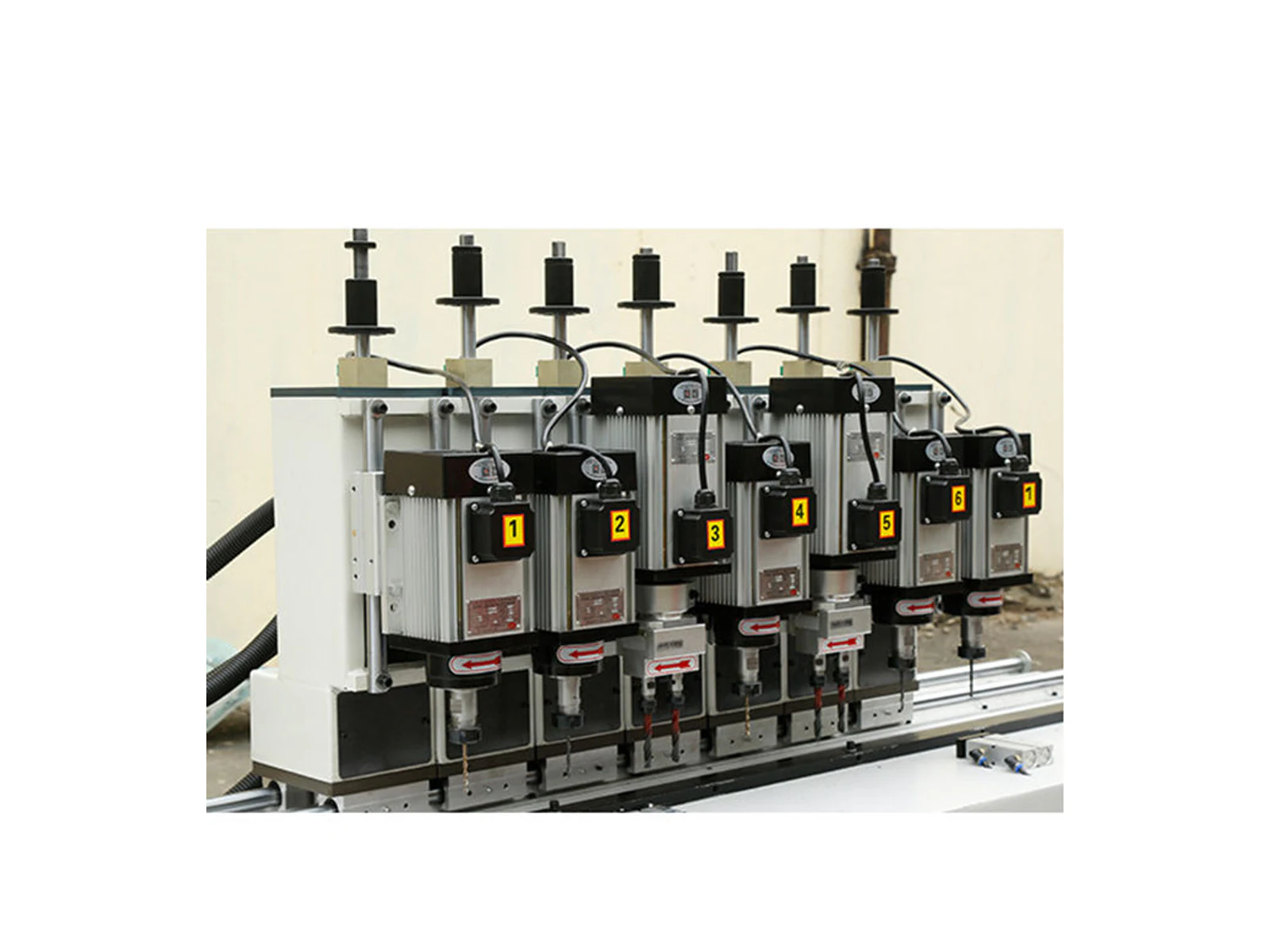

The machine bed accepts multiple clip-drill heads and multi-bore drills.

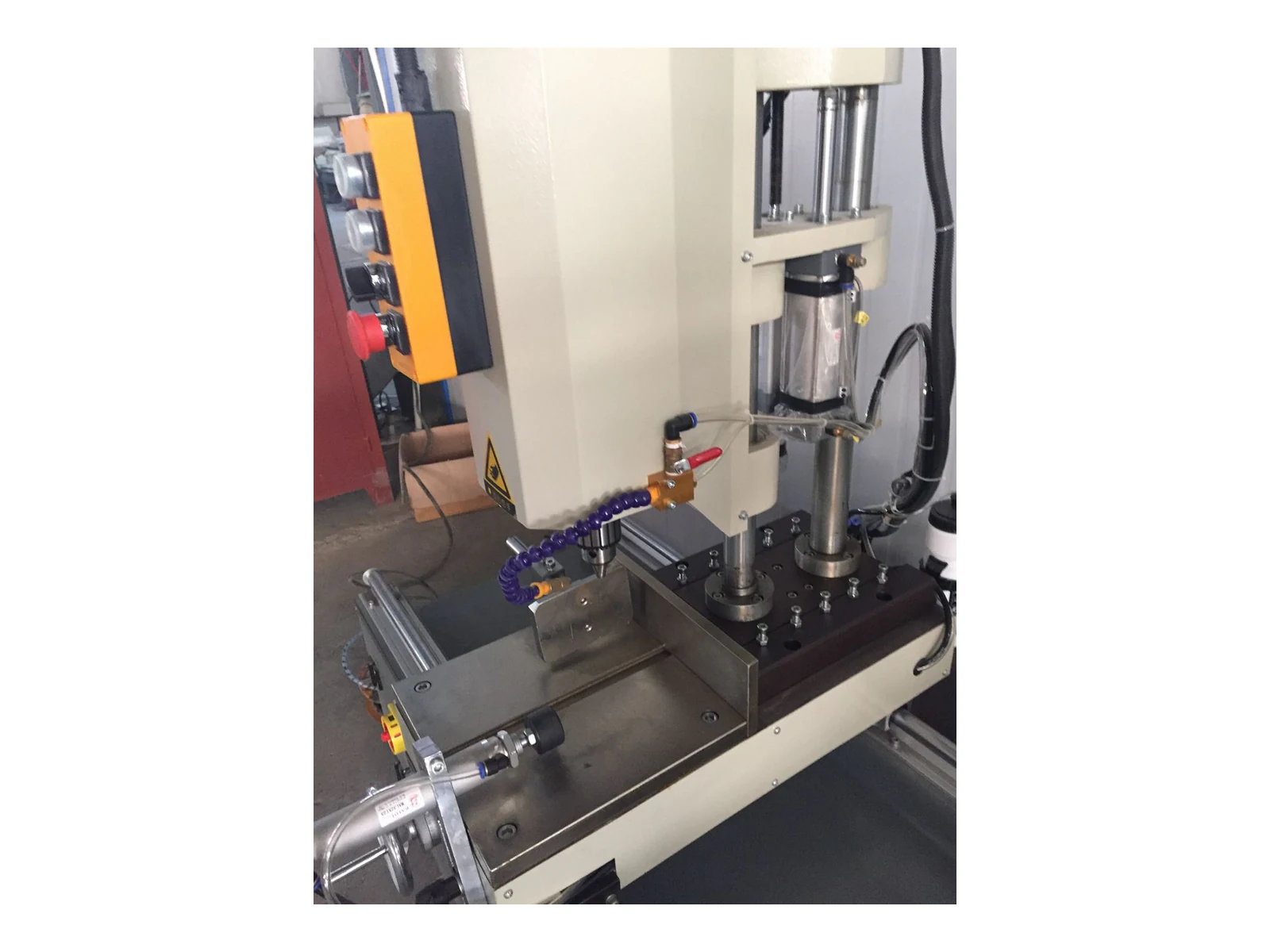

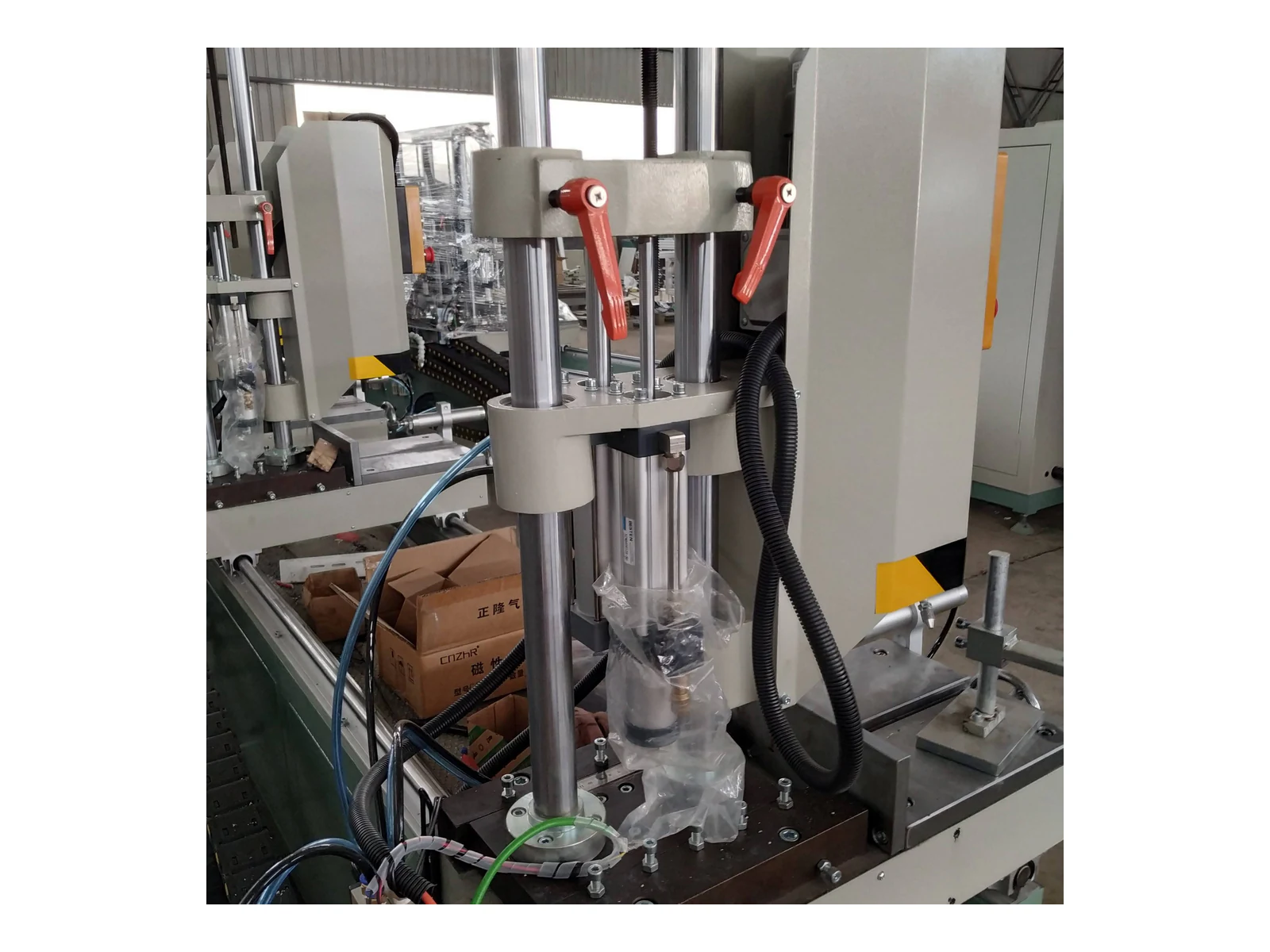

Direct-connected motor-cylinder power heads support drilling accuracy.
Hydraulic damping controls feed and PLC control links the heads.

Specifications

Input power6 x 0.75 kW

Power supply380 V / 50 Hz

Working air pressure0.5-0.8 MPa

Maximum profile length5,000 mm

Maximum profile size250 x 250 mm

Drilling travel125 mm

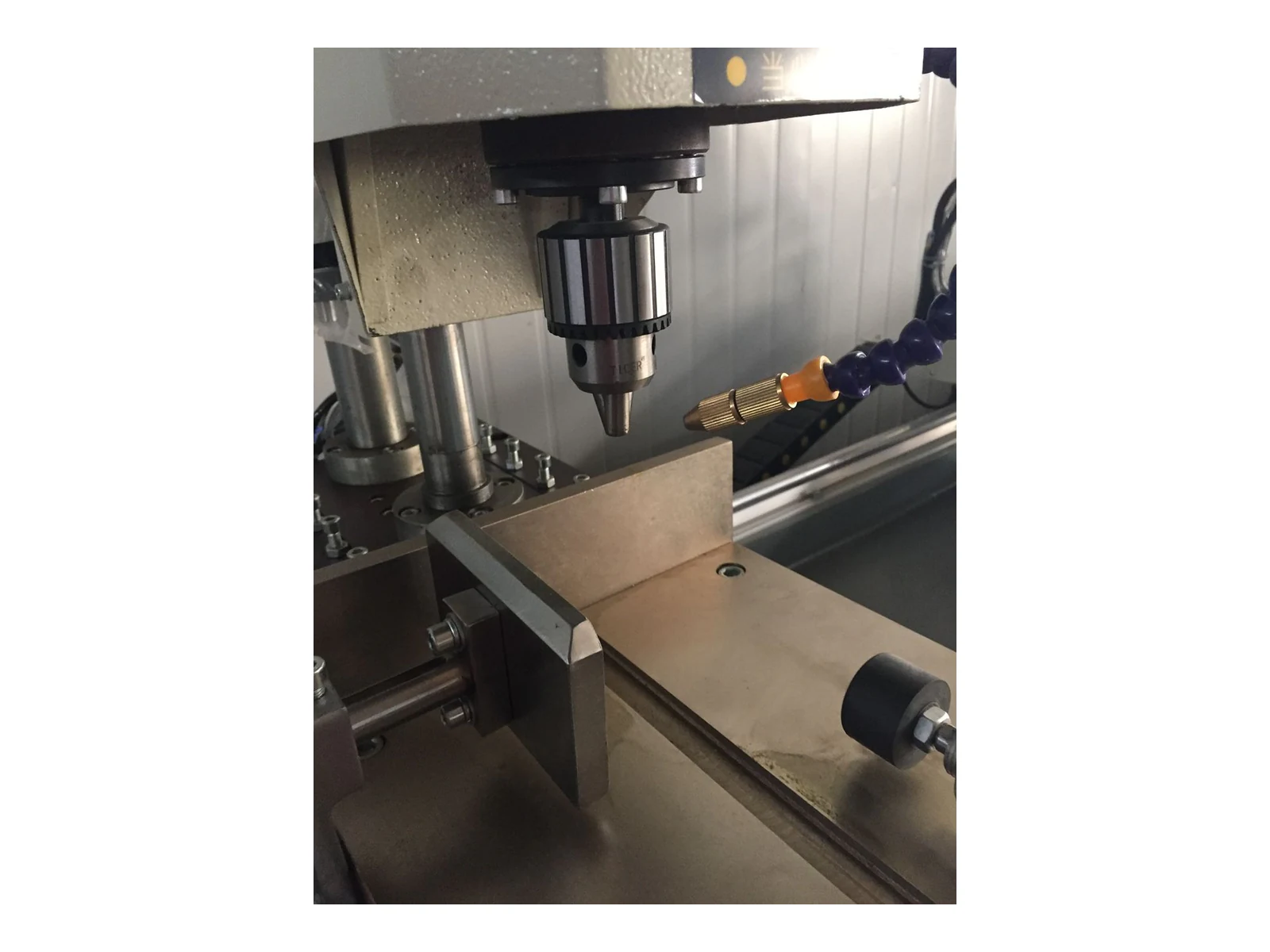

Maximum drill diameter13 mm

Head count13

Overall dimensions5,500 x 1,100 x 1,800 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the LZZ6A-13 aluminium profile processing machine?

The LZZ6A-13 is an aluminium profile processing machine. It is catalogued as a thirteen-head drilling machine for volume production of holes in aluminium and curtain-wall profiles.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

LZZ6A-13 FAQs

What is the LZZ6A-13 aluminium profile processing machine?

The LZZ6A-13 is an aluminium profile processing machine. It is catalogued as a thirteen-head drilling machine for volume production of holes in aluminium and curtain-wall profiles.

What profiles or operations is the LZZ6A-13 designed for?

Drills repeated hole patterns in aluminium and curtain-wall profiles.

What is the working range of the LZZ6A-13?

Drilling travel: 125 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the LZZ6A-13?

Input power: 6 x 0.75 kW; Power supply: 380 V / 50 Hz; Working air pressure: 0.5-0.8 MPa. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the LZZ6A-13?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
