CWC-CNC-95

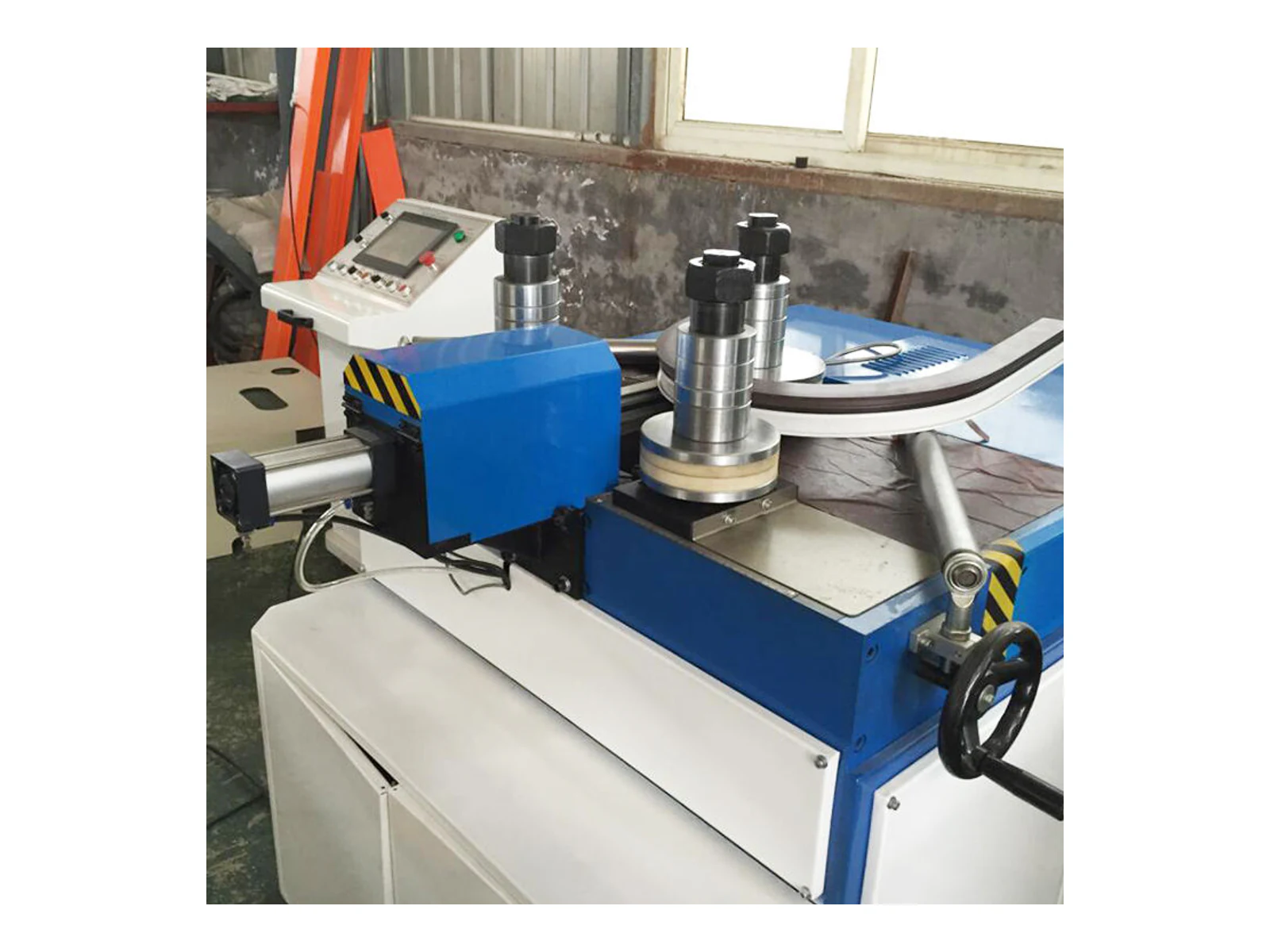

Fully Automatic CNC Roll Bending Machine

Description

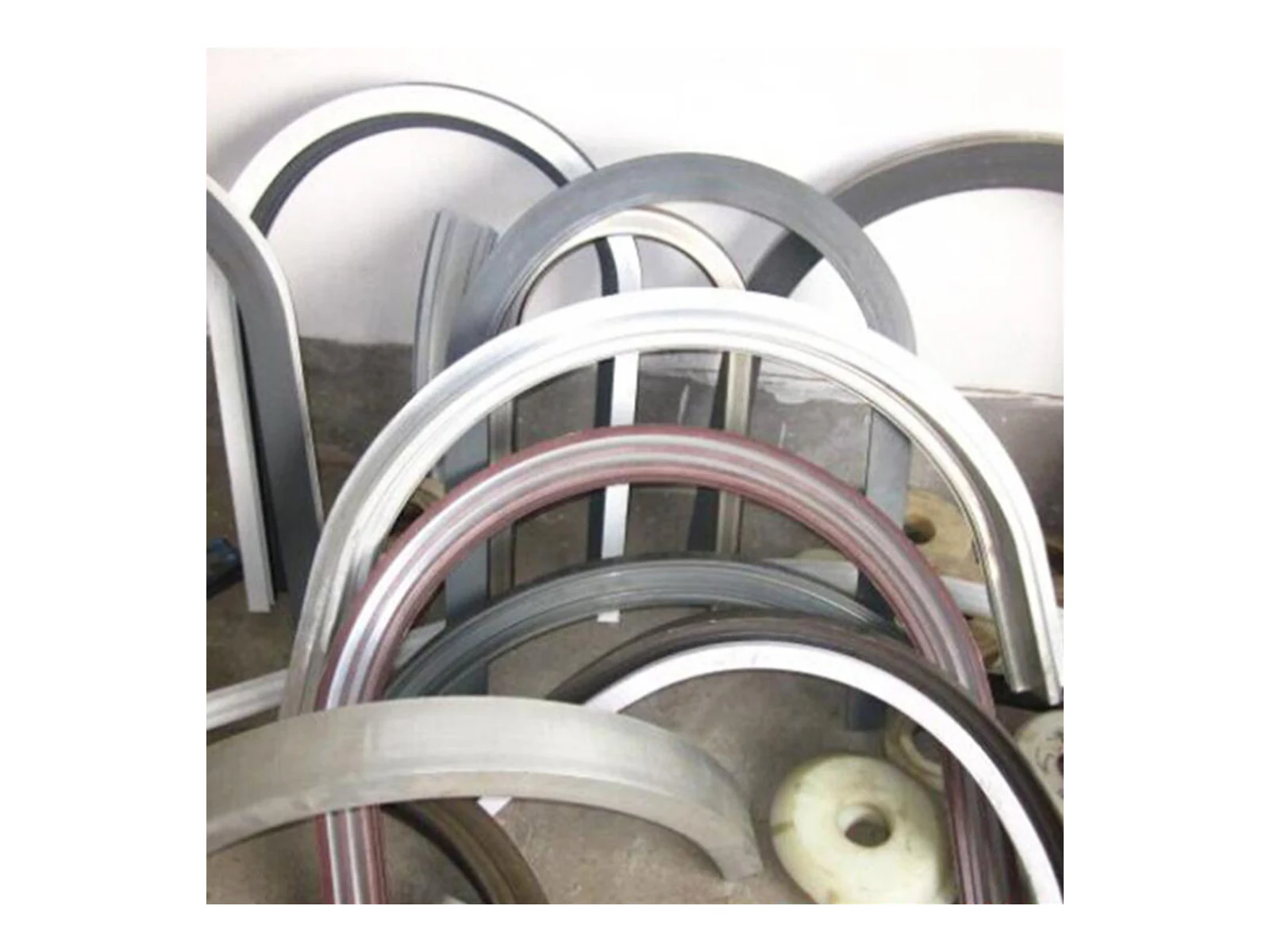

CNC roll-bending machine for forming curved iron, copper, aluminium and special-shaped profiles.

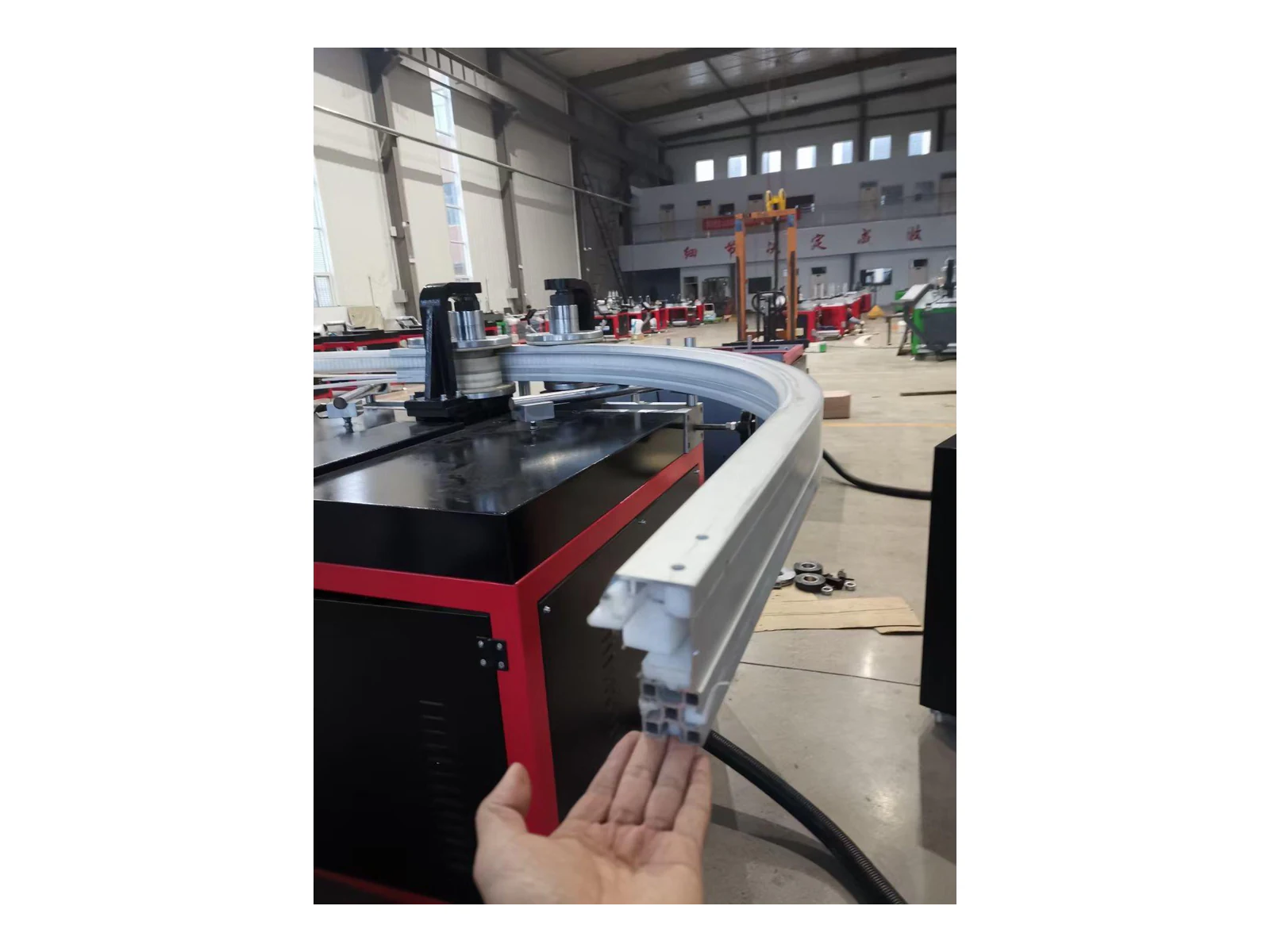

Bends aluminium and other compatible profiles into programmed arcs.
Automatic CNC control supports different curvature requirements.

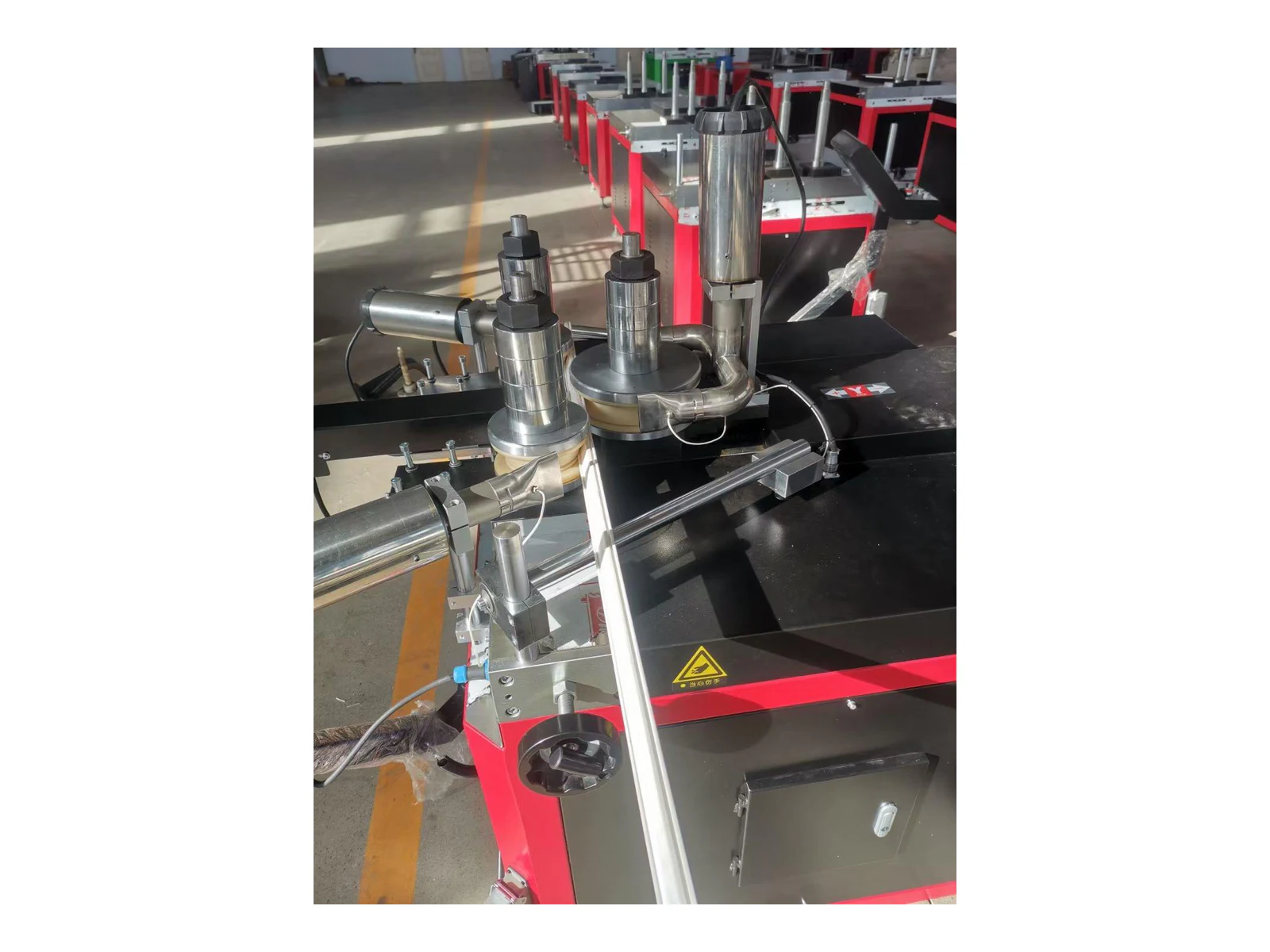

Profile-protection tooling helps limit surface damage during bending.
Designed for curved aluminium door and window components.

Specifications

Power supply380 V / 50 Hz

Input power3.7 kW

Motor rotational speed5-15 r/min

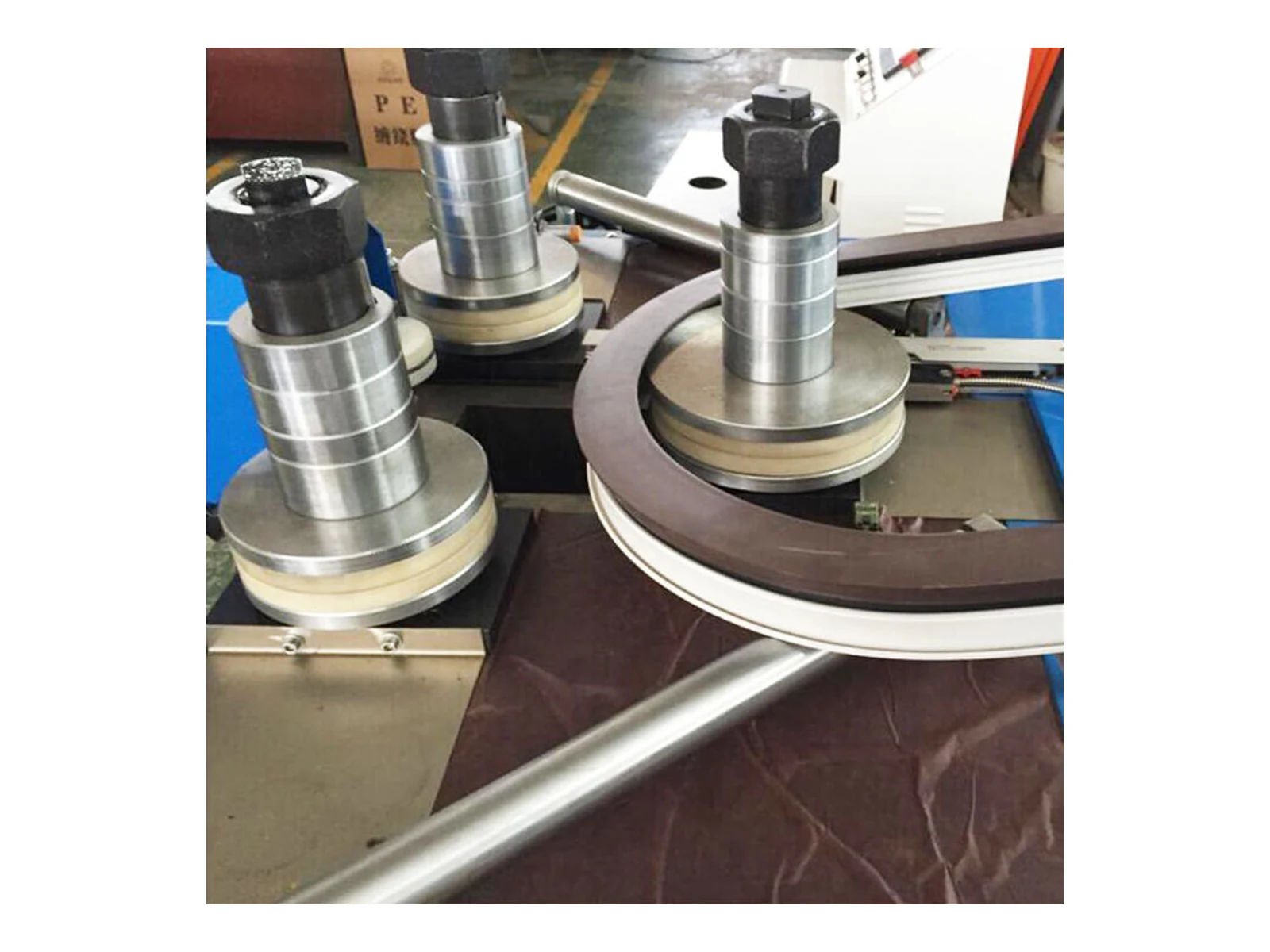

Roller diameter50 mm

Nominal pressure10 t

Minimum bending diameter400 mm

Overall dimensions4,600 x 700 x 1,600 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the CWC-CNC-95 aluminium profile processing machine?

The CWC-CNC-95 is an aluminium profile processing machine. It is catalogued as a cNC roll-bending machine for forming curved iron, copper, aluminium and special-shaped profiles.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

CWC-CNC-95 FAQs

What is the CWC-CNC-95 aluminium profile processing machine?

The CWC-CNC-95 is an aluminium profile processing machine. It is catalogued as a cNC roll-bending machine for forming curved iron, copper, aluminium and special-shaped profiles.

What profiles or operations is the CWC-CNC-95 designed for?

Bends aluminium and other compatible profiles into programmed arcs.

What is the working range of the CWC-CNC-95?

Power supply: 380 V / 50 Hz; Input power: 3.7 kW; Motor rotational speed: 5-15 r/min. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the CWC-CNC-95?

Power supply: 380 V / 50 Hz; Input power: 3.7 kW. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the CWC-CNC-95?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
