LRZ2-CNC-4200

Three-Axis CNC Aluminium Profile Cutting Saw

Description

Servo-controlled three-axis CNC saw for aluminium window, door, sunroom and curtain-wall profiles requiring programmable variable-angle cutting.

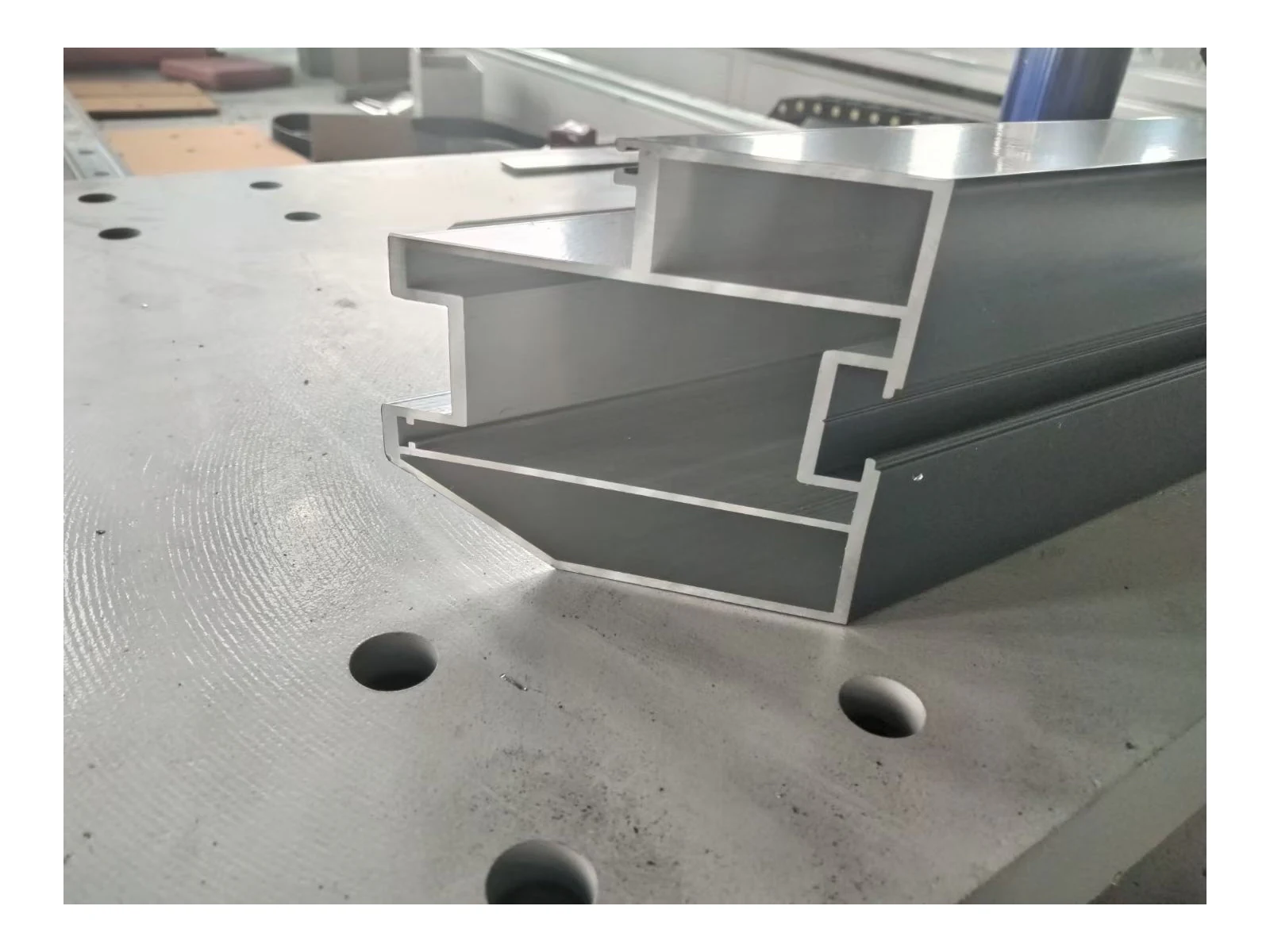

Cuts aluminium window, door, sunroom and curtain-wall profiles, including components requiring irregular angles.

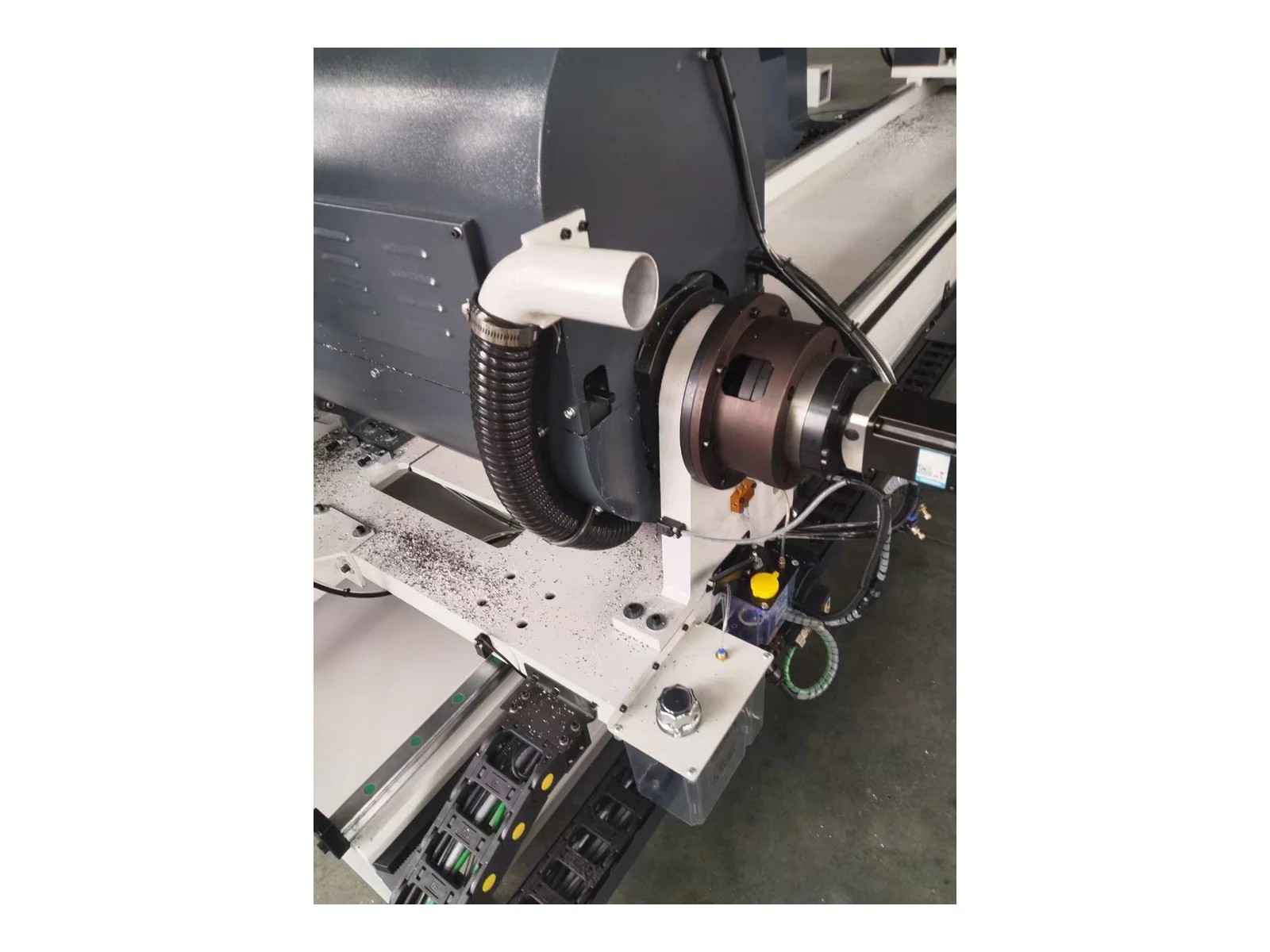

Two saw heads automatically adjust from -22.5 degrees to +22.5 degrees.

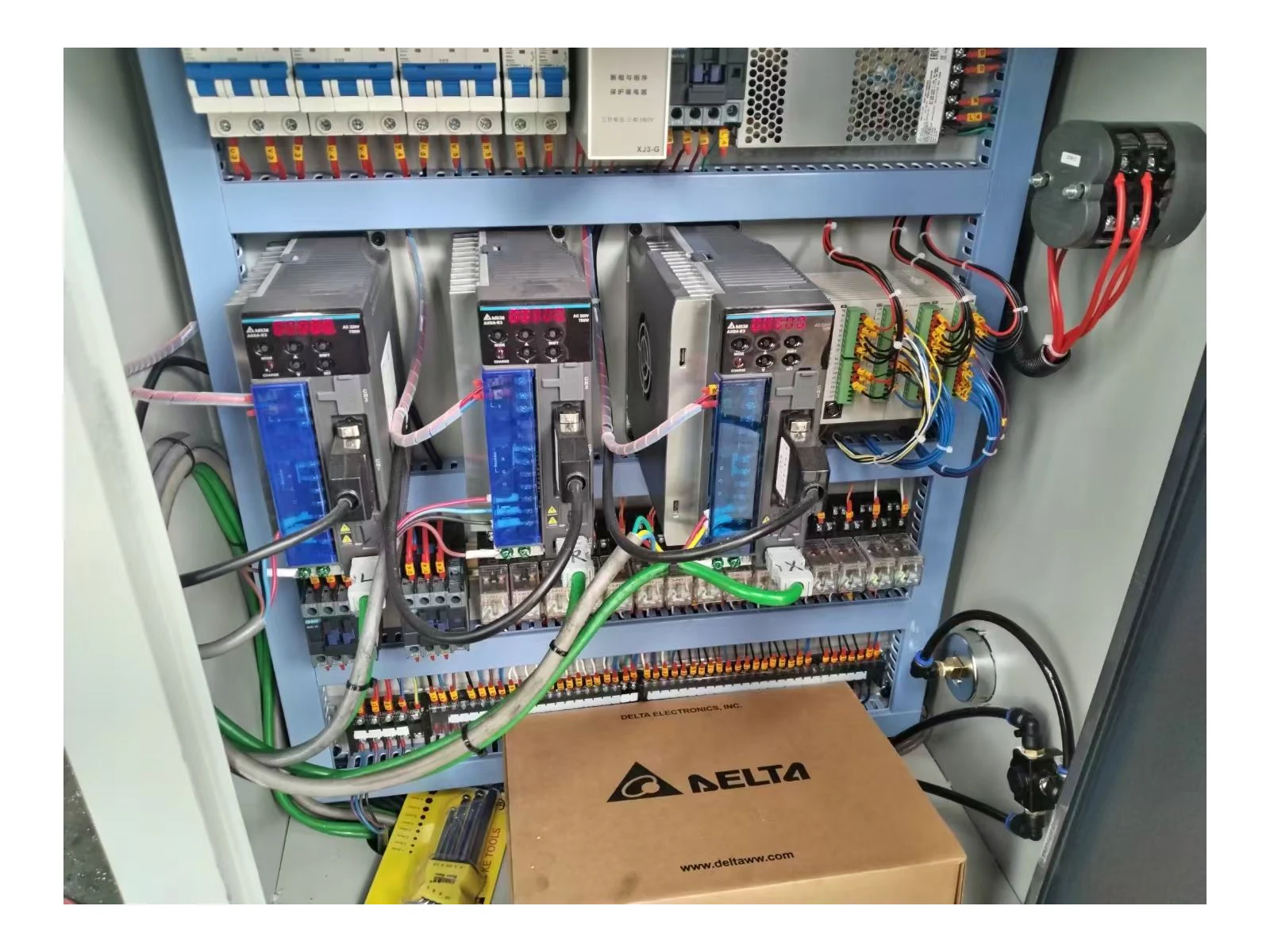

Servo CNC control supports accurate positioning and stable operation.
Servo-driven angle adjustment expands the programmable cutting range.
Gas-liquid damping provides a uniform blade-feed speed and smooth motion.
Imported linear guide pairs support accurate, stable saw-blade feeding.
Automatic lifting guards improve access while protecting the cutting area.
Designed for accurate positioning across mixed profile-cutting work.

Specifications

Power supply380 V / 50 Hz, three-phase

Saw-head motor power2 x 3 kW

Saw speed2,800 r/min

Working air pressure0.5-0.8 MPa

Air consumption100 L/min

Maximum cutting length4,200 mm

Maximum cutting width150 mm

Maximum cutting height270 mm

Sawing angle-22.5 degrees to +22.5 degrees

Saw blade550 x 4.4 x 30 mm, Z=120

Overall dimensions5,800 x 1,980 x 1,750 mm

Approximate weight2,000 kg

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the LRZ2-CNC-4200 aluminium cutting saw?

The LRZ2-CNC-4200 is an aluminium cutting saw. It is catalogued as a servo-controlled three-axis CNC saw for aluminium window, door, sunroom and curtain-wall profiles requiring programmable variable-angle cutting.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

LRZ2-CNC-4200 FAQs

What is the LRZ2-CNC-4200 aluminium cutting saw?

What profiles or operations is the LRZ2-CNC-4200 designed for?

Cuts aluminium window, door, sunroom and curtain-wall profiles, including components requiring irregular angles.

What is the working range of the LRZ2-CNC-4200?

Maximum cutting length: 4,200 mm; Maximum cutting width: 150 mm; Maximum cutting height: 270 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the LRZ2-CNC-4200?

Power supply: 380 V / 50 Hz, three-phase; Saw-head motor power: 2 x 3 kW; Working air pressure: 0.5-0.8 MPa. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the LRZ2-CNC-4200?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
