XDCJQ-CNC-6500

CNC Automatic Profile Cutting Center

Description

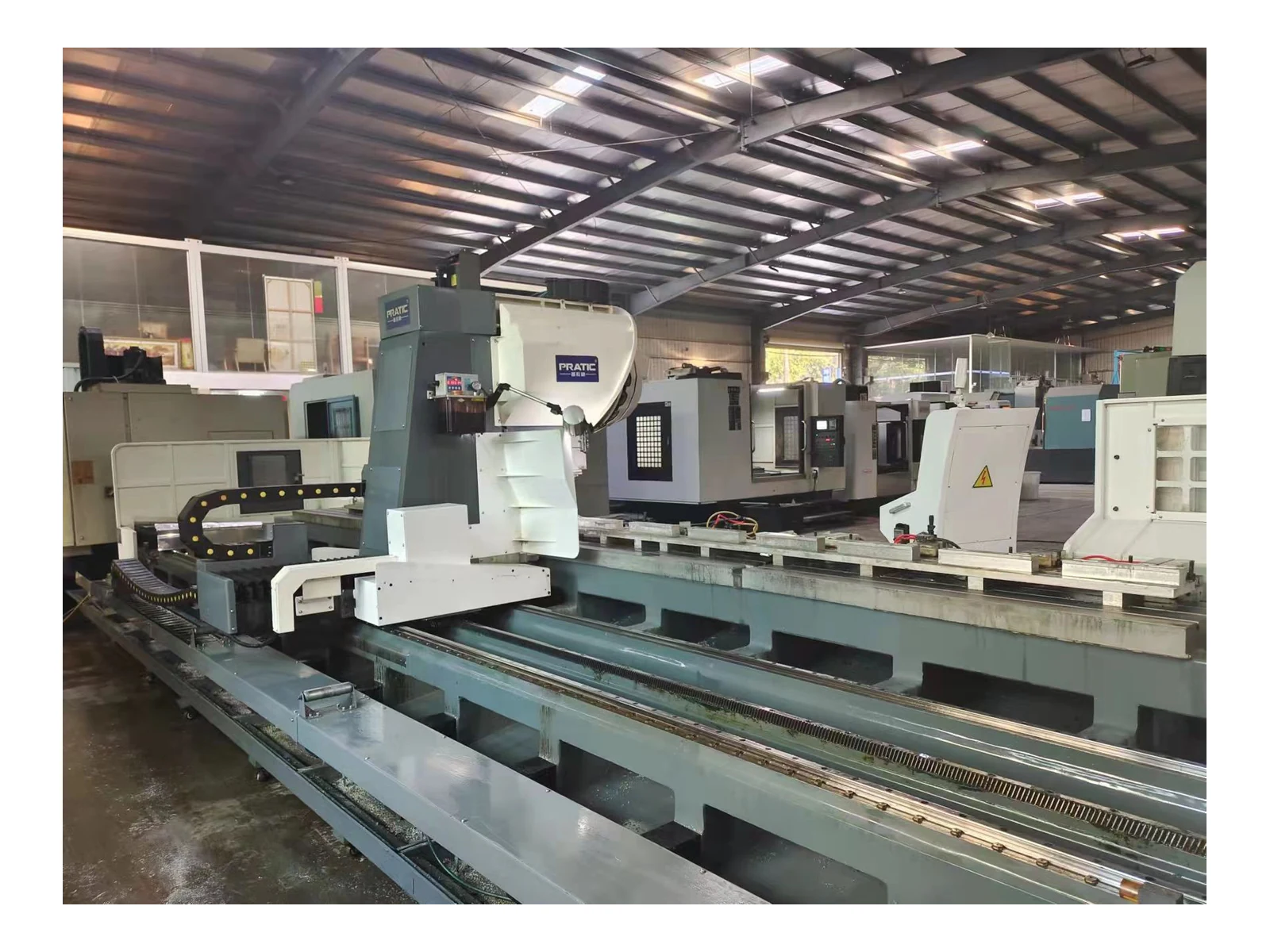

Automatic profile cutting center for aluminium, PVC and alloy profiles, combining multi-bar feeding, fixed-angle cutting and automatic discharge.

Processes aluminium alloy, PVC and other compatible alloy profiles.
Feeds multiple profiles and completes feeding, cutting and discharge automatically.
Does not require profile-height-based mould changes or manipulator adjustment for the stated working range.

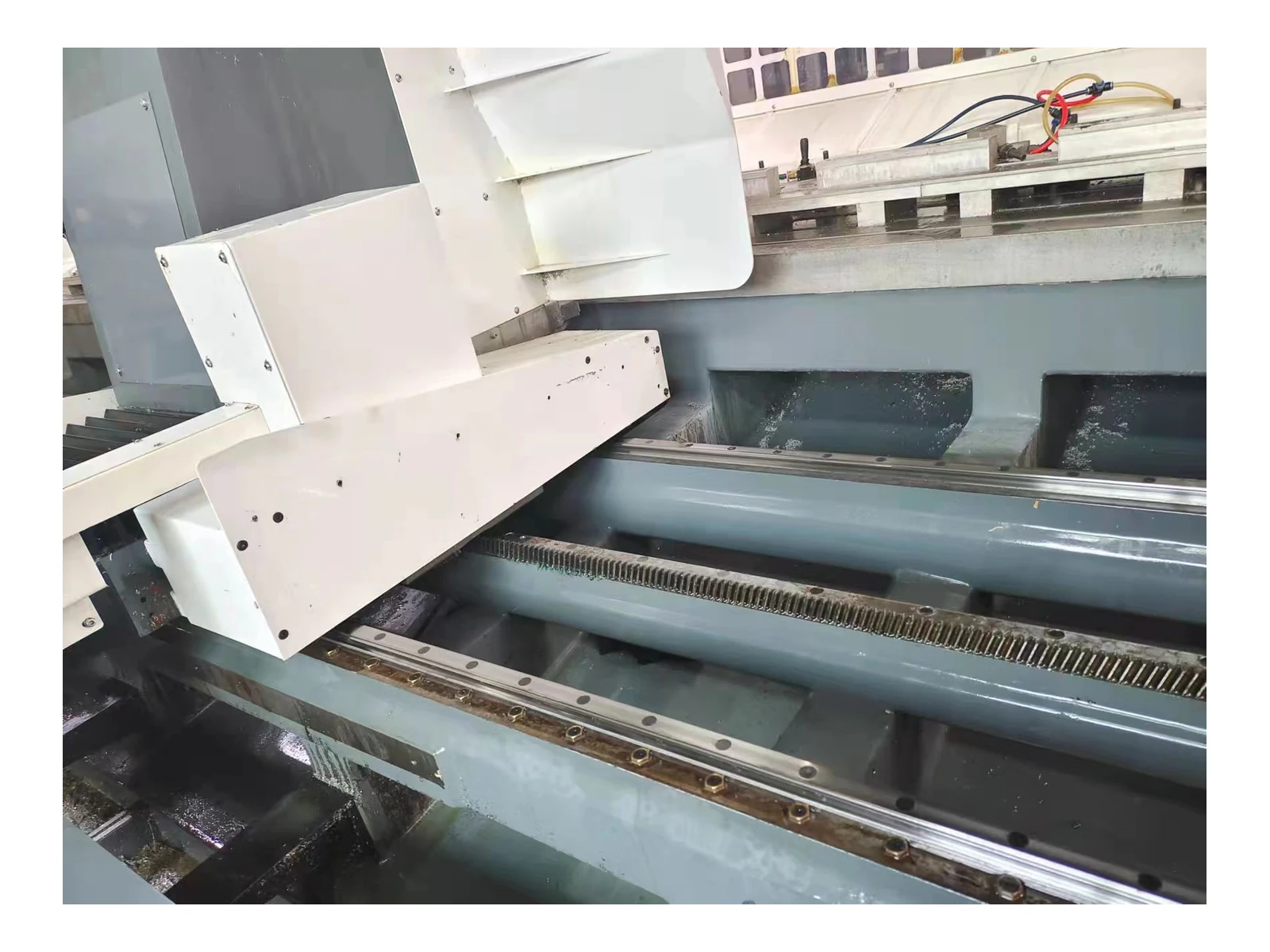

Uses a cast cutting mechanism with fixed 45-degree and 90-degree blade positions.
Full-servo feeding supports fast, accurate positioning and controlled clamping.
Automatic chip removal collects processing waste for a cleaner work area.
Tool-life management includes an automatic maintenance reminder function.

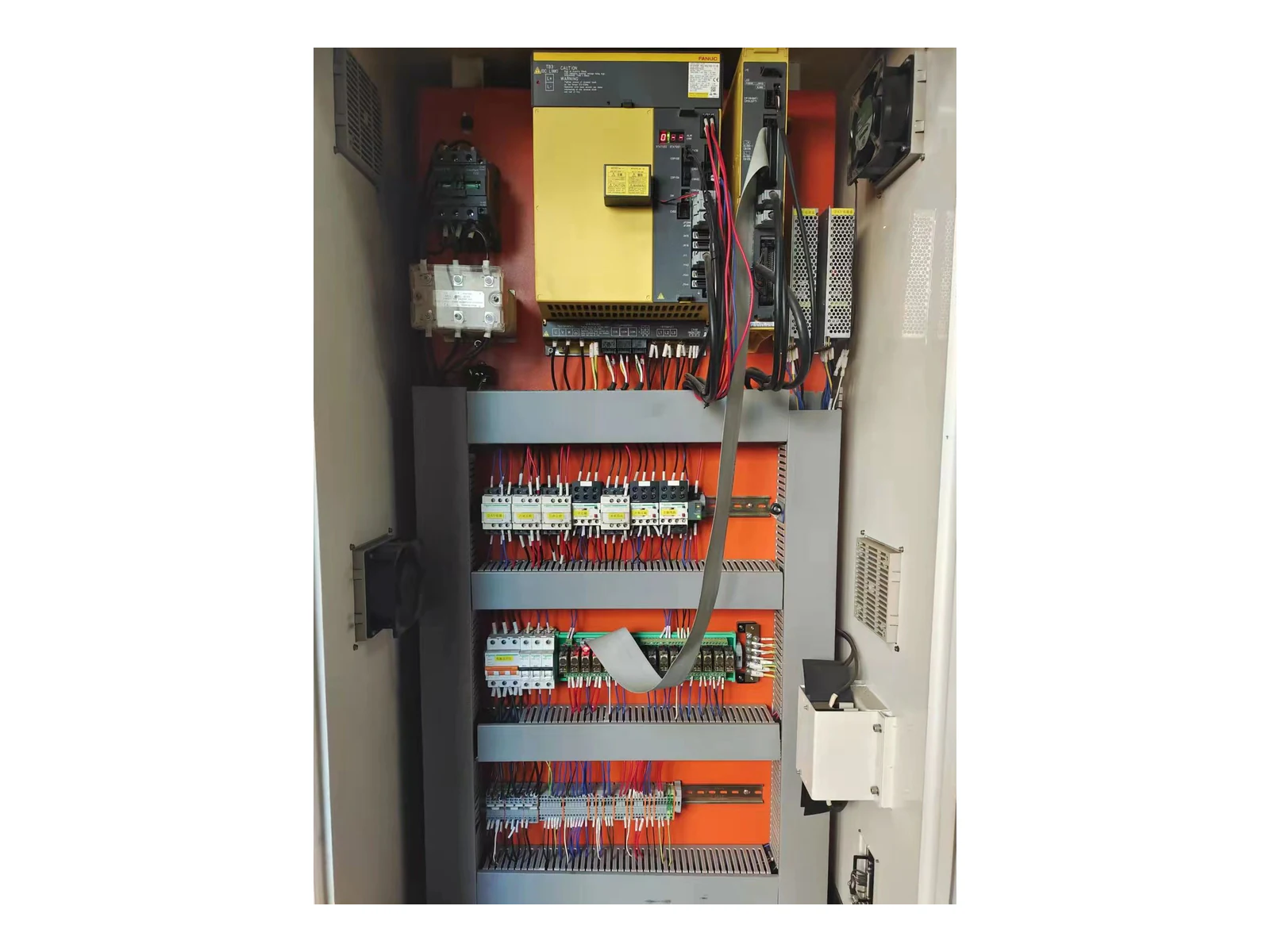

Electrical and mechanical protection devices support safe operation.
Designed for single-operator production with reduced manual profile handling.
Optional automatic loading and coding equipment can support downstream identification.

Specifications

Input voltage380 V / 50 Hz

Input power16 kW

Saw speed2,800 r/min

Air consumption100 L/min

Cutting length150-6,500 mm

Profile width / height150 mm / 150 mm

Manipulator speed100 m/min

Cutting angles45 degrees and 90 degrees

Saw blade500 x 30 x 4.4 mm, Z=120

Overall dimensions14,000 x 3,200 x 2,200 mm

Weight7,500 kg

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the XDCJQ-CNC-6500 aluminium cutting saw?

The XDCJQ-CNC-6500 is an aluminium cutting saw. It is catalogued as an automatic profile cutting center for aluminium, PVC and alloy profiles, combining multi-bar feeding, fixed-angle cutting and automatic discharge.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

XDCJQ-CNC-6500 FAQs

What is the XDCJQ-CNC-6500 aluminium cutting saw?

What profiles or operations is the XDCJQ-CNC-6500 designed for?

Processes aluminium alloy, PVC and other compatible alloy profiles.

What is the working range of the XDCJQ-CNC-6500?

Cutting length: 150-6,500 mm; Profile width / height: 150 mm / 150 mm; Cutting angles: 45 degrees and 90 degrees. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the XDCJQ-CNC-6500?

Input voltage: 380 V / 50 Hz; Input power: 16 kW; Air consumption: 100 L/min. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the XDCJQ-CNC-6500?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
