LJZ2-CNC-550x4200

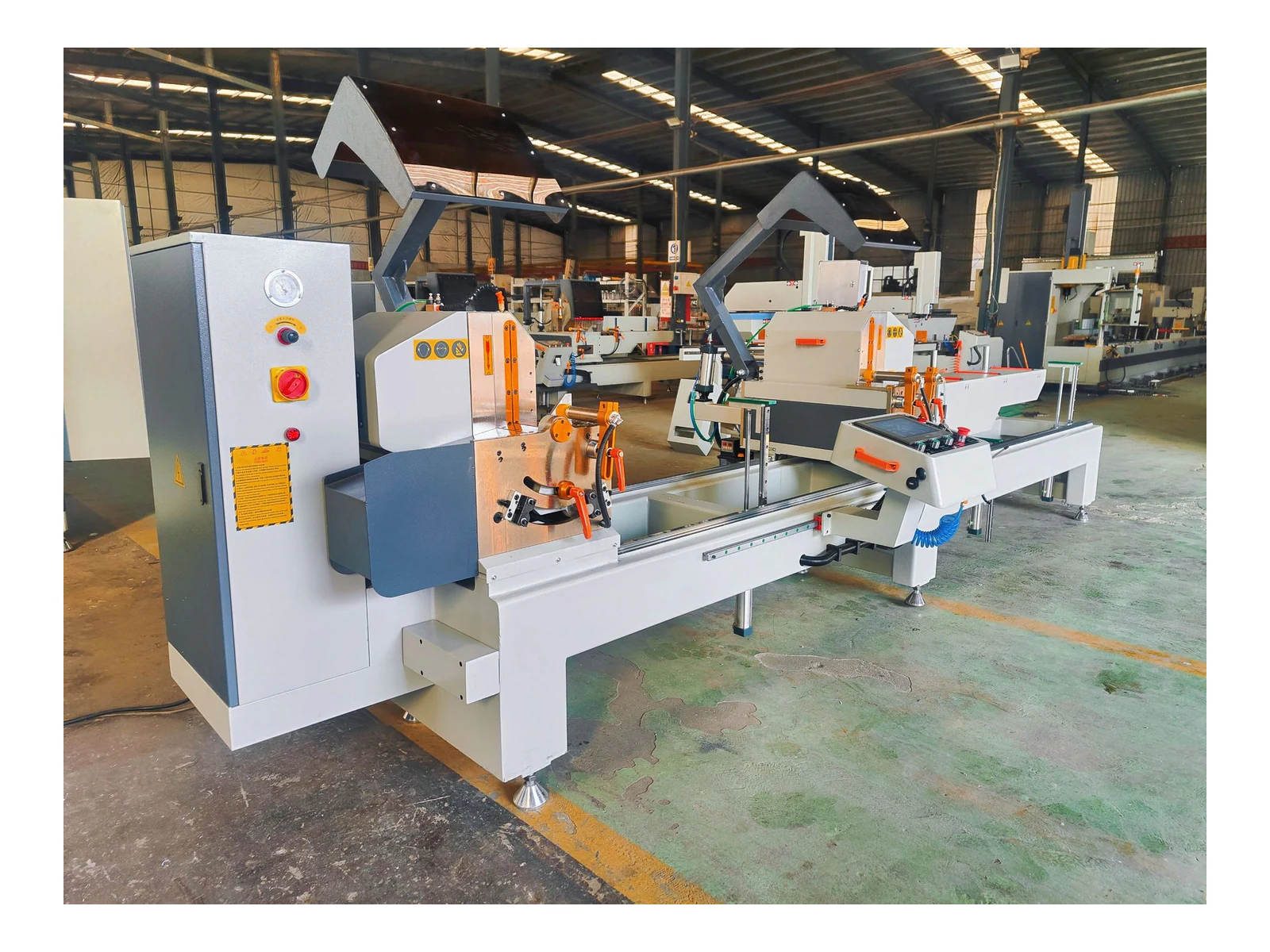

Double-Head CNC Precision Cutting Saw

Description

Double-head CNC precision saw for aluminium window, door and curtain-wall profiles, with independent or synchronized head operation.

Developed for aluminium door, window and curtain-wall profile cutting.
Simple controls, accessible maintenance and a stable machine structure support production use.
Carbide-tooth blades combine cutting speed with accurate profile processing.

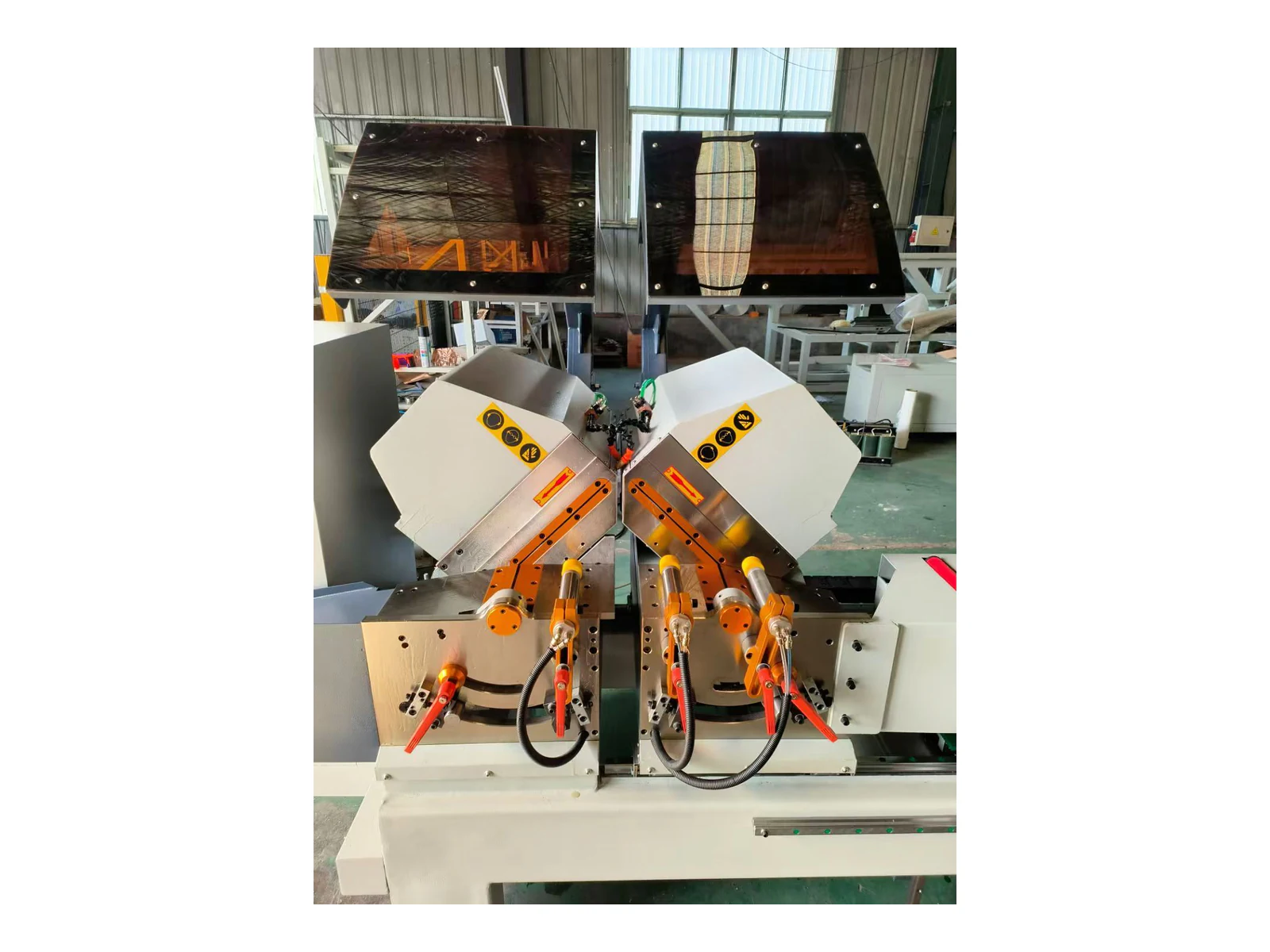

The two saw heads can work independently or together.
Synchronized operation cuts the required length and end angles in one setup.
Precision spindles support stable blade rotation.
Hydraulic damping controls the blade-feed speed for uniform cutting.

Specifications

Power supply380 V / 50 Hz

Input power6.5 kW

Working air pressure0.5-0.8 MPa

Blade rotational speed3,100 r/min

Saw blade550 mm diameter; 30 mm bore

Cutting length380-4,200 mm

Cutting angles90 degrees and 45 degrees

Maximum cutting width190 mm

Overall dimensions5,800 x 1,750 x 1,600 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the LJZ2-CNC-550x4200 aluminium cutting saw?

The LJZ2-CNC-550x4200 is an aluminium cutting saw. It is catalogued as a double-head CNC precision saw for aluminium window, door and curtain-wall profiles, with independent or synchronized head operation.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

LJZ2-CNC-550x4200 FAQs

What is the LJZ2-CNC-550x4200 aluminium cutting saw?

What profiles or operations is the LJZ2-CNC-550x4200 designed for?

Developed for aluminium door, window and curtain-wall profile cutting.

What is the working range of the LJZ2-CNC-550x4200?

Cutting length: 380-4,200 mm; Cutting angles: 90 degrees and 45 degrees; Maximum cutting width: 190 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the LJZ2-CNC-550x4200?

Power supply: 380 V / 50 Hz; Input power: 6.5 kW; Working air pressure: 0.5-0.8 MPa. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the LJZ2-CNC-550x4200?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
