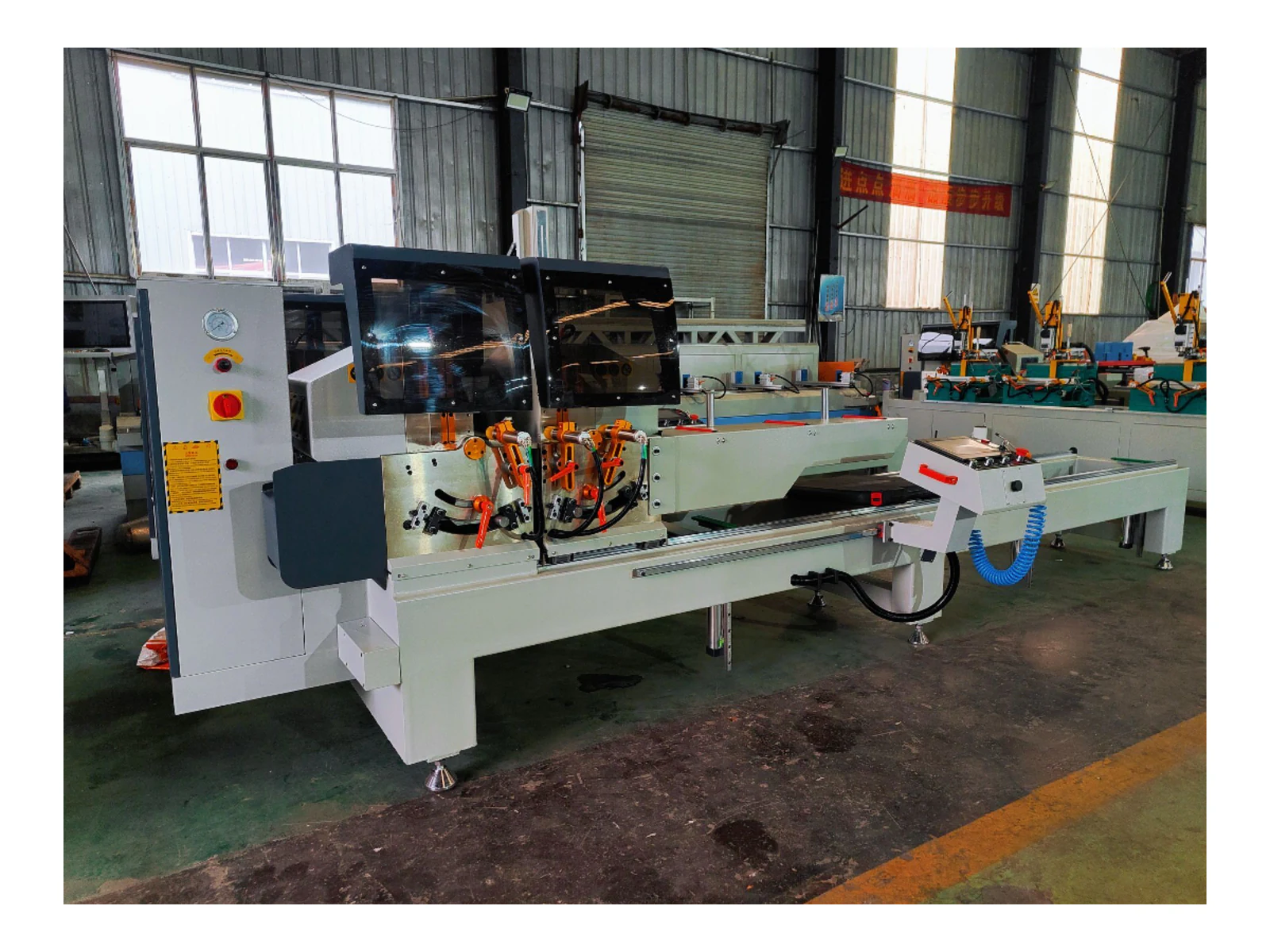

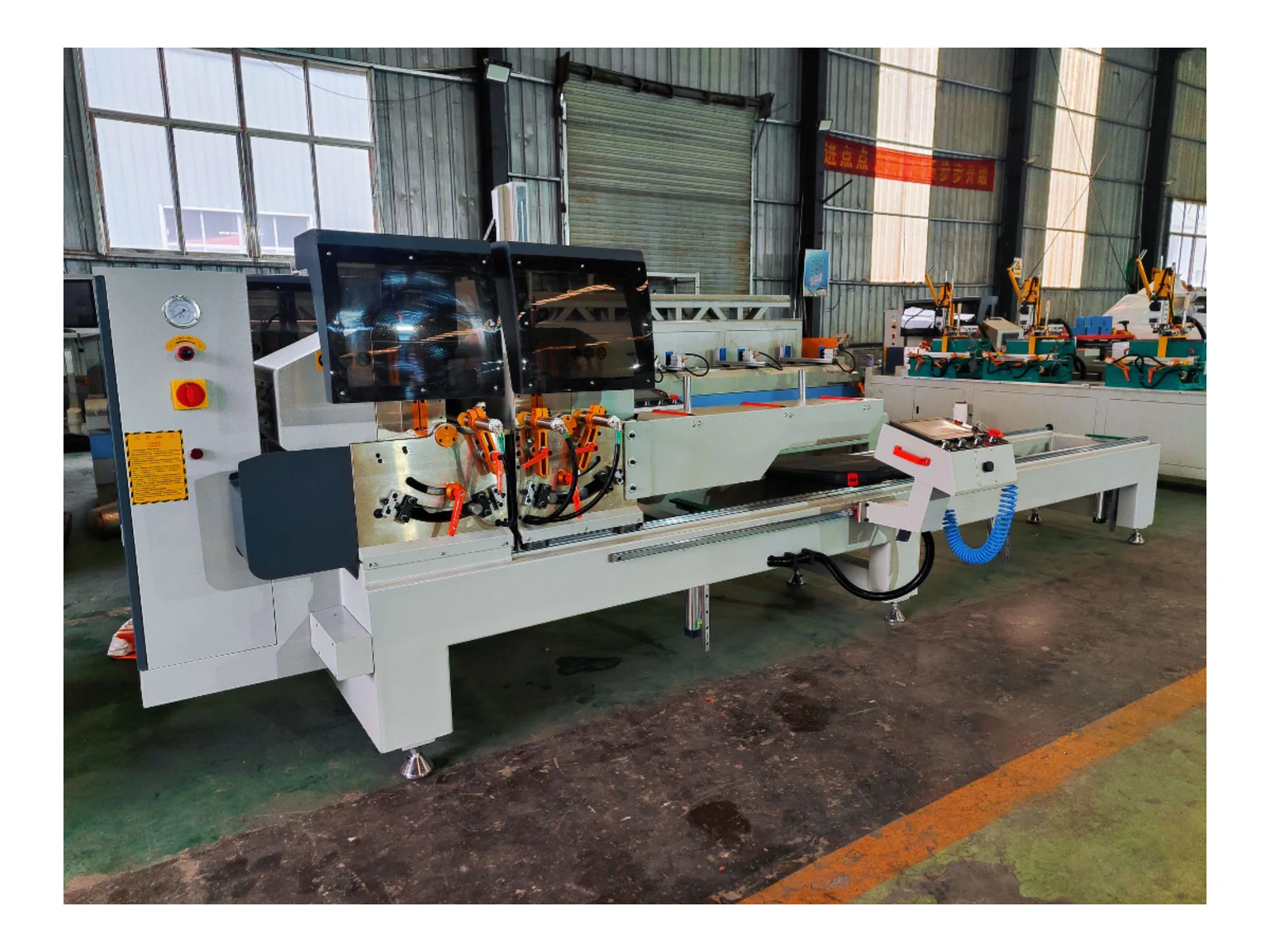

LJG2-CNC-500x4500

CNC Double-Head Precision Cutting Saw

Description

Numerically controlled double-head saw for aluminium door, window and curtain-wall profiles, with automatic cutting-angle conversion and digital size display.

Cuts aluminium profiles used for doors, windows and curtain walls.

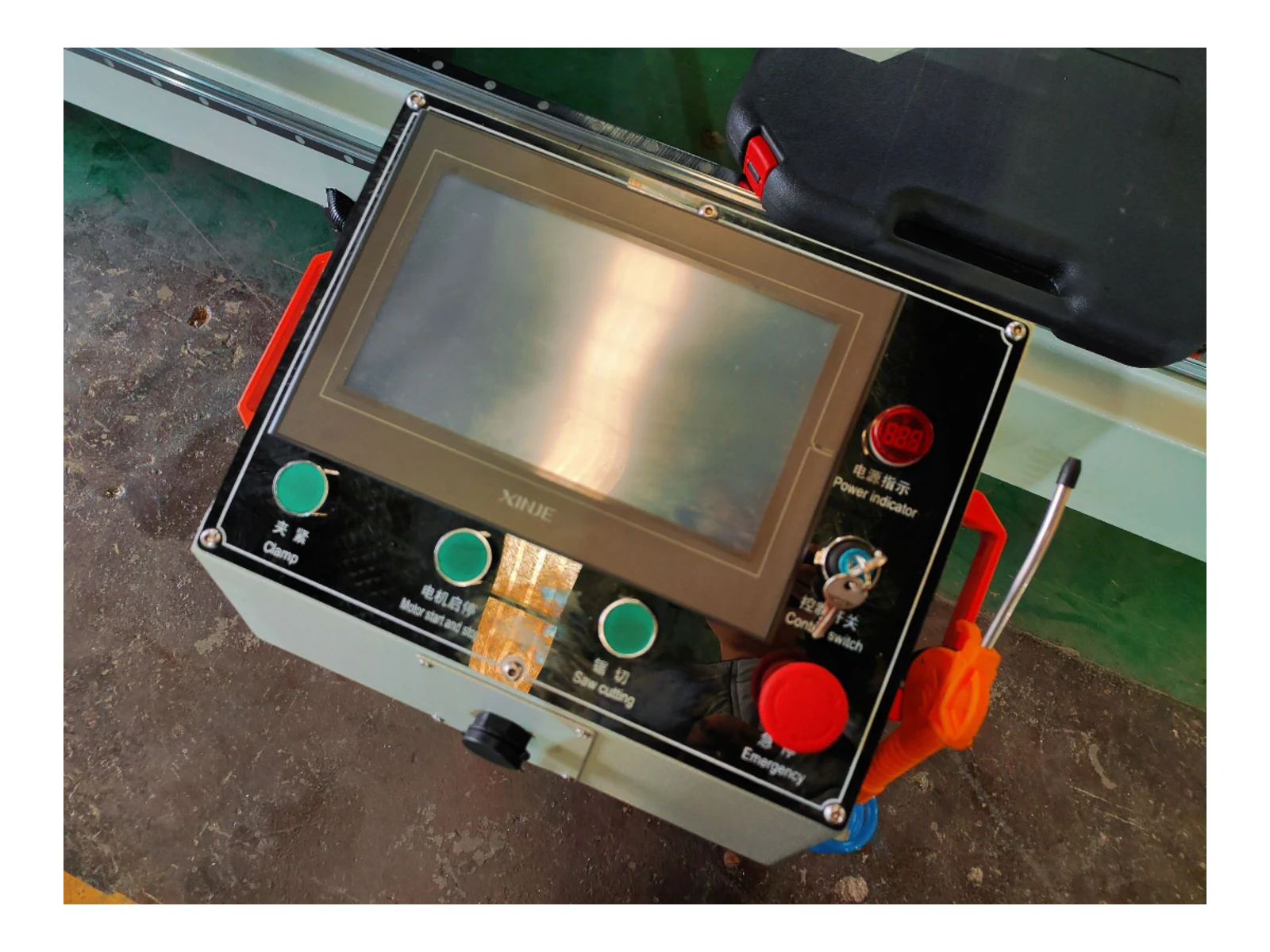

A numerical control package combines PLC, servo drive, touchscreen and photoelectric control components.
Digital size display supports repeatable positioning and straightforward operation.

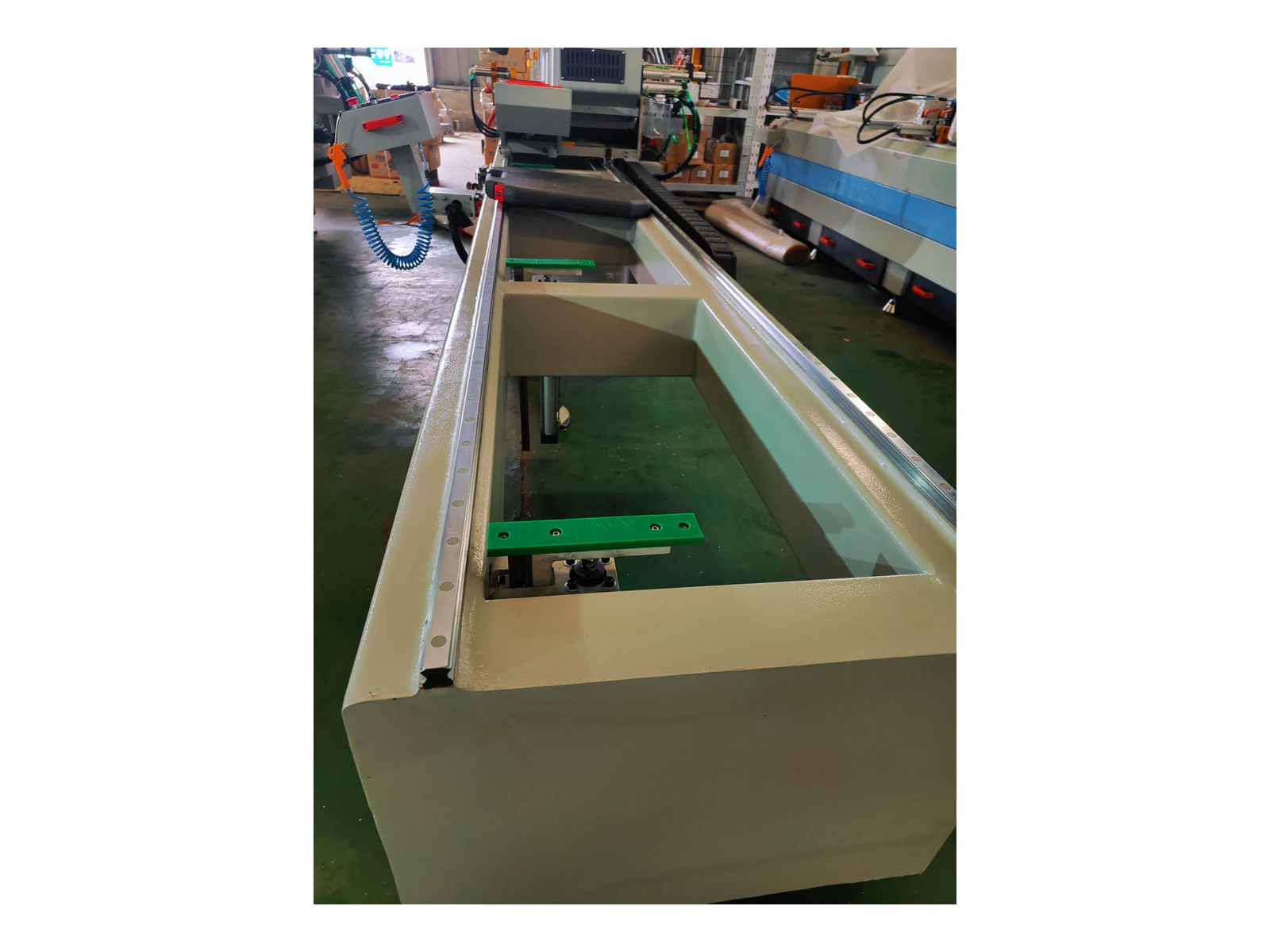

The feeding system uses an imported linear-guide motion pair for accurate, stable travel.
A high-precision spindle supports stable saw-blade rotation.

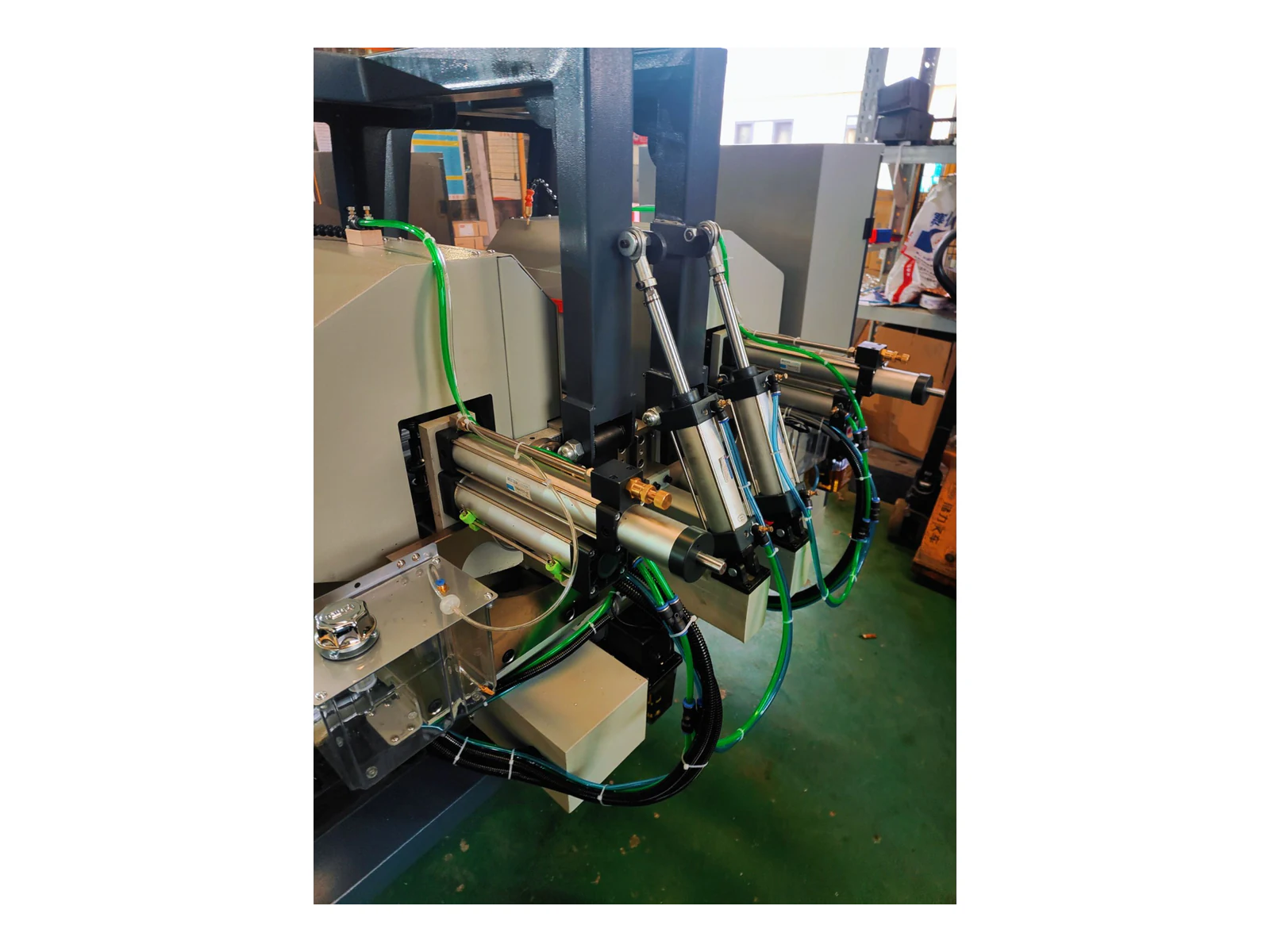

Hydraulic damping regulates blade feed for a uniform cutting motion.
Automatically converts between -45-degree, 45-degree and 90-degree cutting positions.

Specifications

Power supply380 V / 50 Hz

Input power4.8 kW

Working air pressure0.5-0.8 MPa

Blade rotational speed2,840 r/min

Saw blade550 mm diameter; 30 mm bore

Cutting length350-4,500 mm

Cutting angles-45 degrees, 45 degrees and 90 degrees

Maximum cutting width170 mm

Overall dimensions5,800 x 1,750 x 1,600 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the LJG2-CNC-500x4500 aluminium cutting saw?

The LJG2-CNC-500x4500 is an aluminium cutting saw. It is catalogued as a numerically controlled double-head saw for aluminium door, window and curtain-wall profiles, with automatic cutting-angle conversion and digital size display.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

LJG2-CNC-500x4500 FAQs

What is the LJG2-CNC-500x4500 aluminium cutting saw?

What profiles or operations is the LJG2-CNC-500x4500 designed for?

Cuts aluminium profiles used for doors, windows and curtain walls.

What is the working range of the LJG2-CNC-500x4500?

Cutting length: 350-4,500 mm; Cutting angles: -45 degrees, 45 degrees and 90 degrees; Maximum cutting width: 170 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the LJG2-CNC-500x4500?

Power supply: 380 V / 50 Hz; Input power: 4.8 kW; Working air pressure: 0.5-0.8 MPa. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the LJG2-CNC-500x4500?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
