FH-02

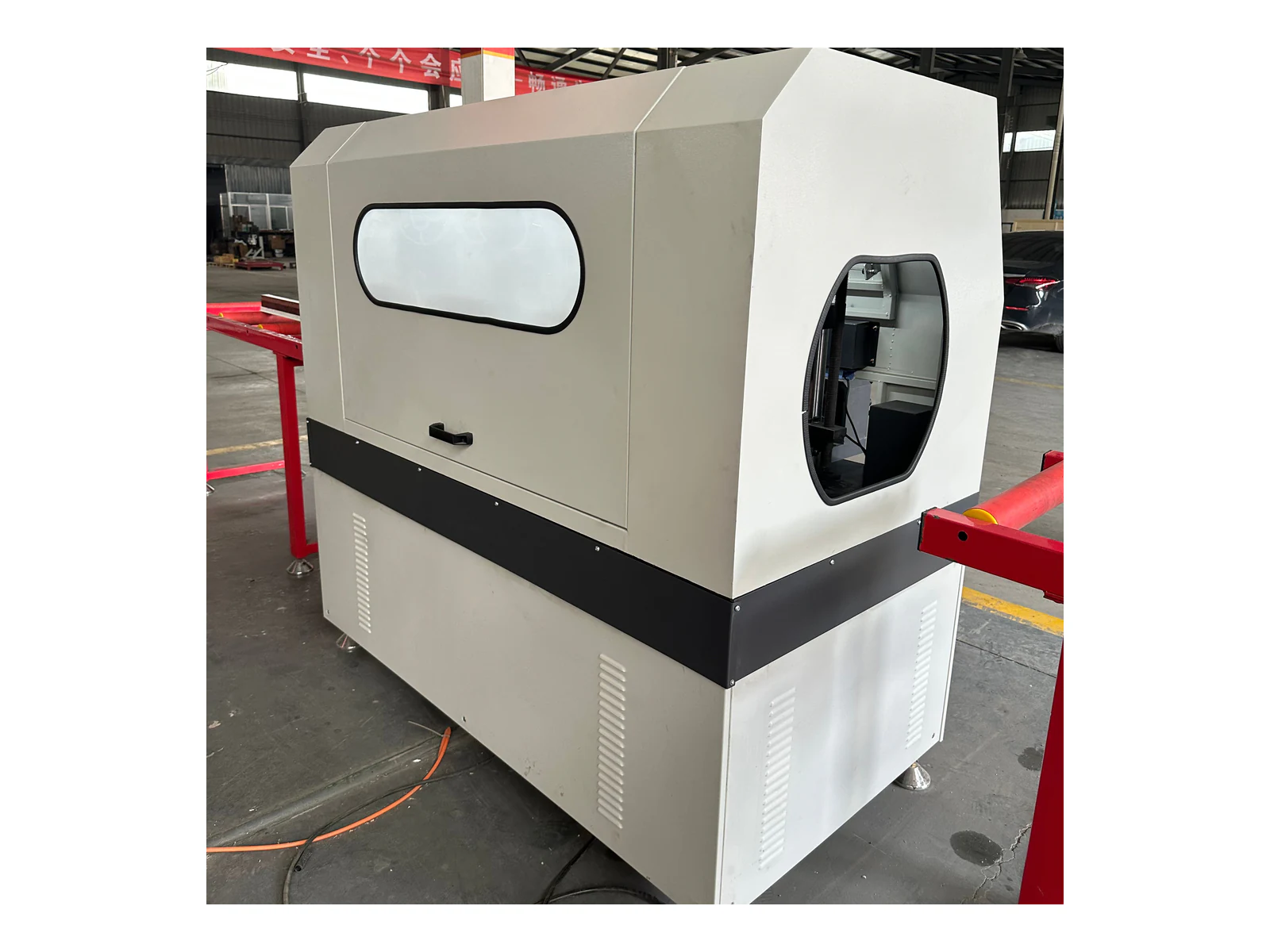

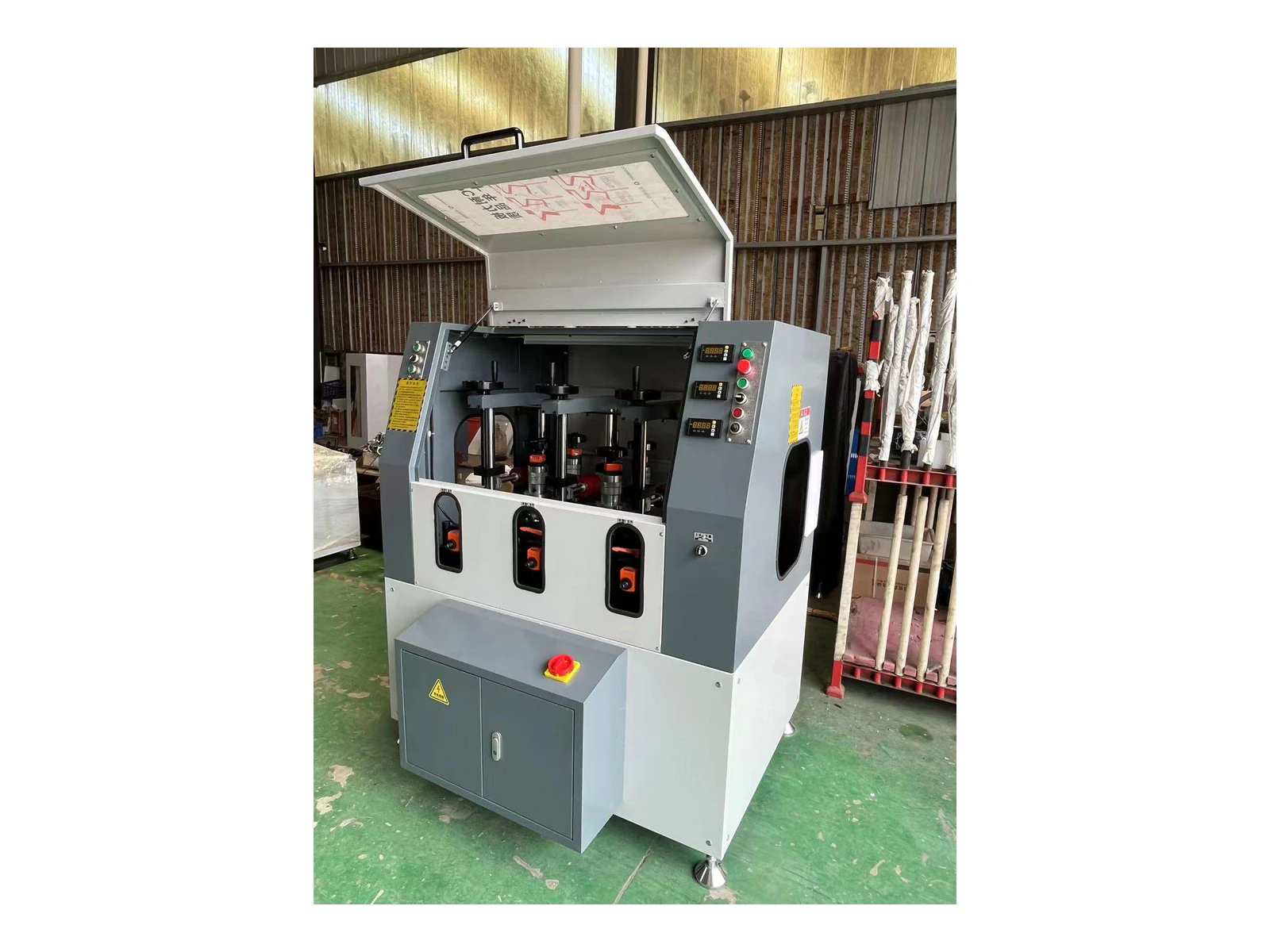

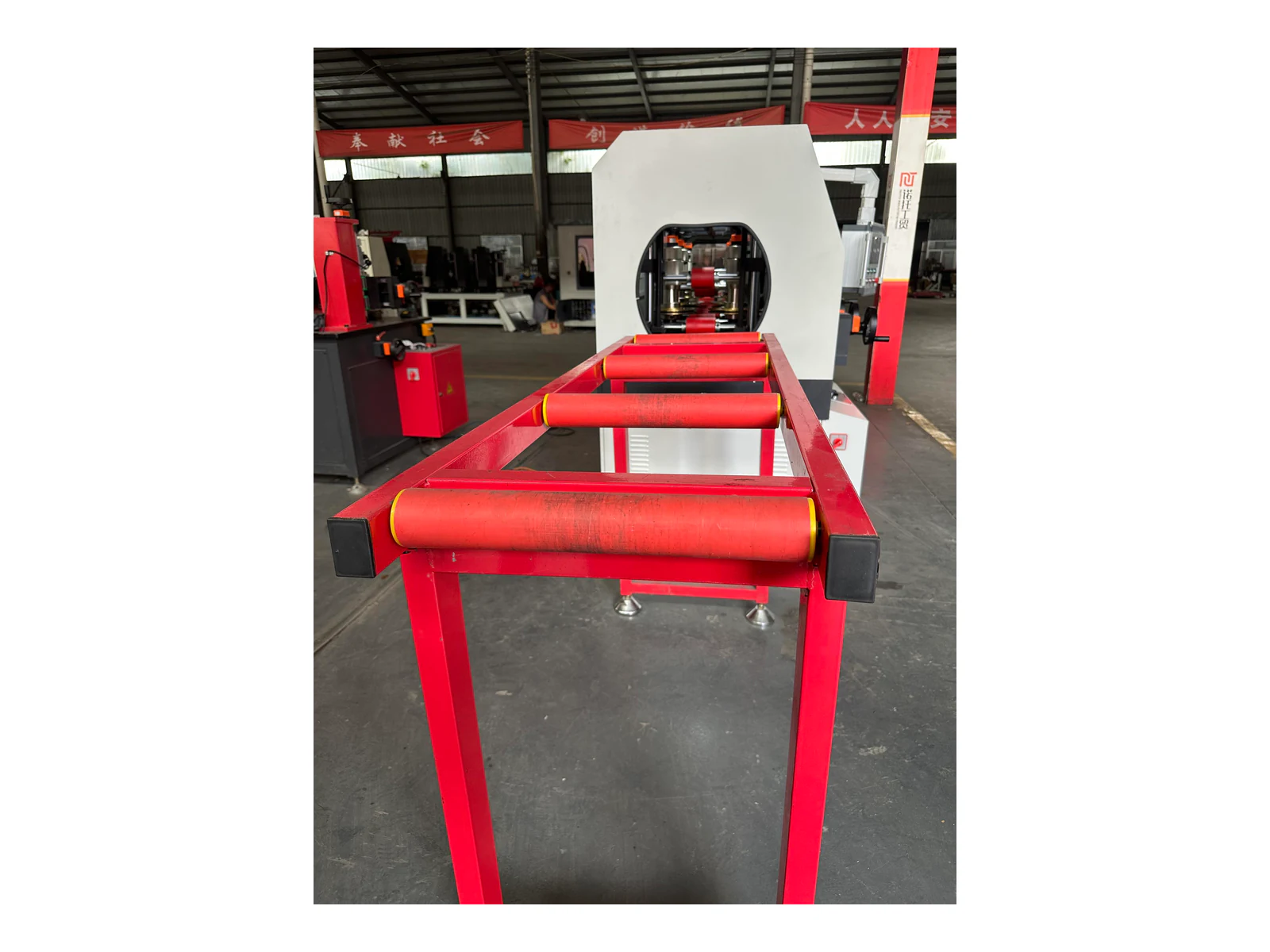

Thermal-Break Profile Rolling Machine

Description

Five-axis rolling machine for pressing insulation strips into aluminium thermal-break profiles.

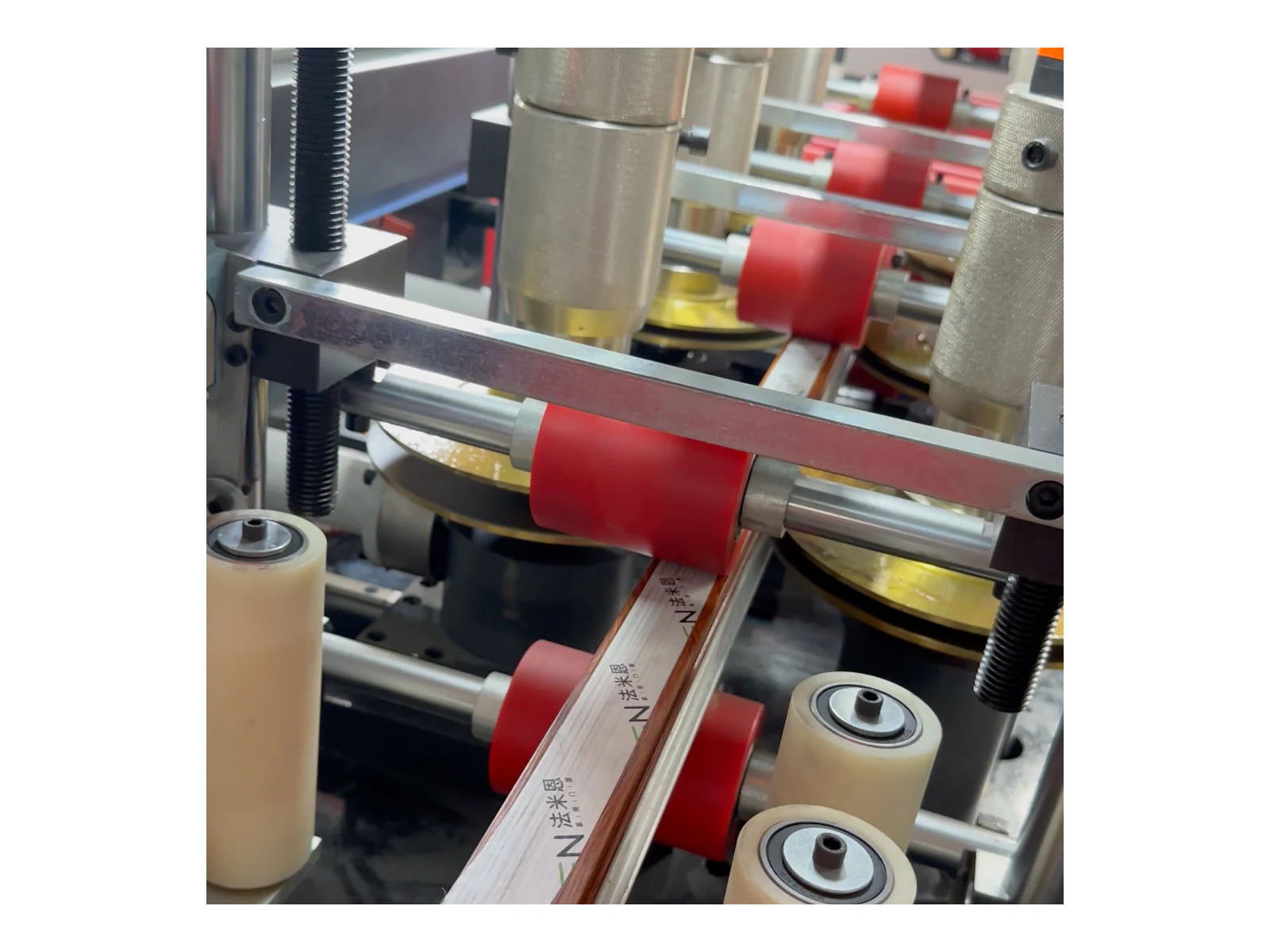

Presses insulating strips and aluminium sections into assembled thermal-break profiles.
A touchscreen interface stores and recalls five-axis settings.
Automated adjustment supports changeover between profile configurations.

Specifications

Power supply380 V / 50 Hz

Input power5.5 kW

Rolling wheel diameter240 mm

Maximum profile size230 x 330 mm

Overall dimensions1,850 x 1,420 x 1,950 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Direct answer

What is the FH-02 aluminium profile processing machine?

The FH-02 is an aluminium profile processing machine. It is catalogued as a five-axis rolling machine for pressing insulation strips into aluminium thermal-break profiles.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

FH-02 FAQs

What is the FH-02 aluminium profile processing machine?

The FH-02 is an aluminium profile processing machine. It is catalogued as a five-axis rolling machine for pressing insulation strips into aluminium thermal-break profiles.

What profiles or operations is the FH-02 designed for?

Presses insulating strips and aluminium sections into assembled thermal-break profiles.

What is the working range of the FH-02?

Power supply: 380 V / 50 Hz; Input power: 5.5 kW; Rolling wheel diameter: 240 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the FH-02?

Power supply: 380 V / 50 Hz; Input power: 5.5 kW. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the FH-02?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
