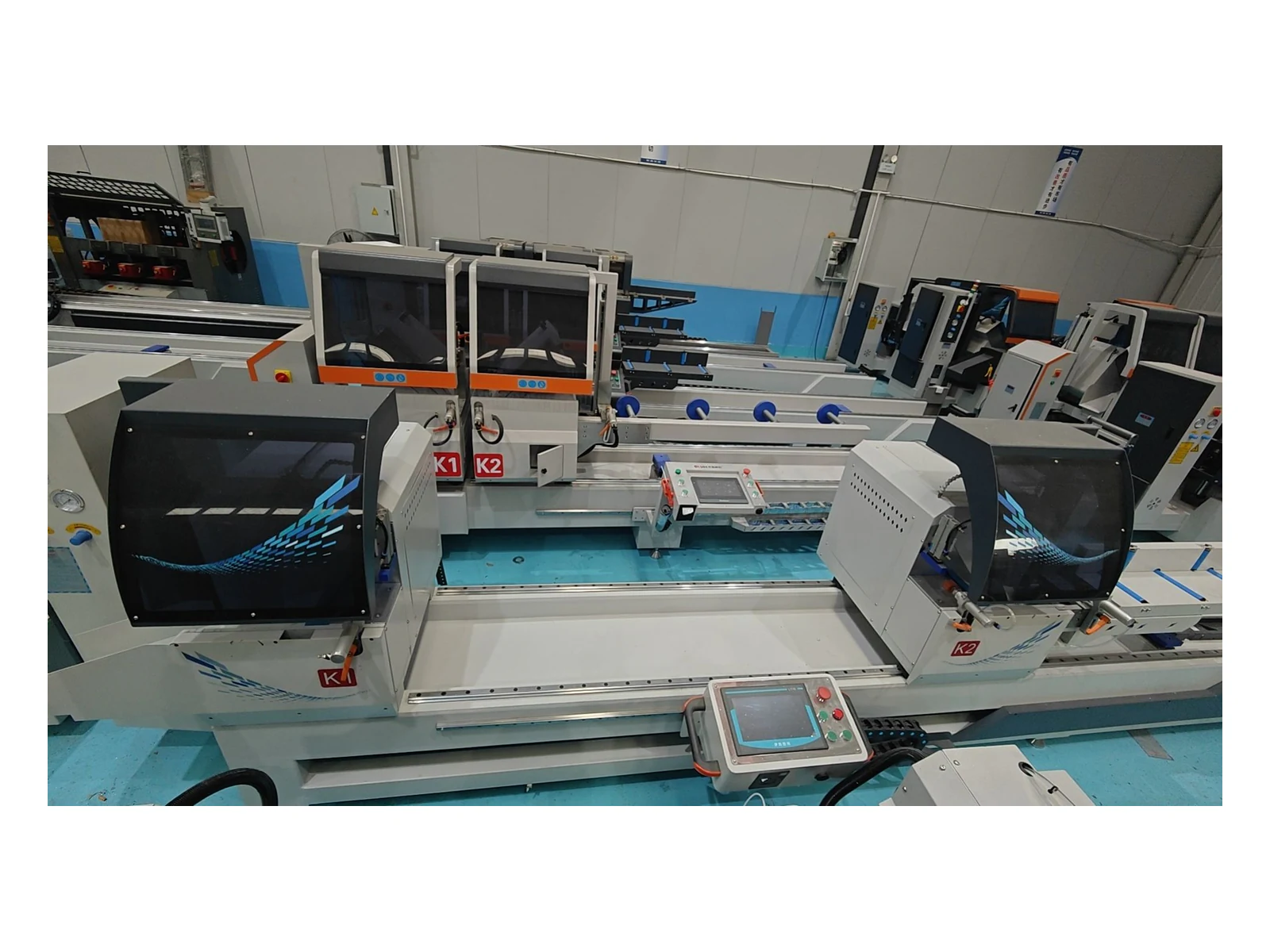

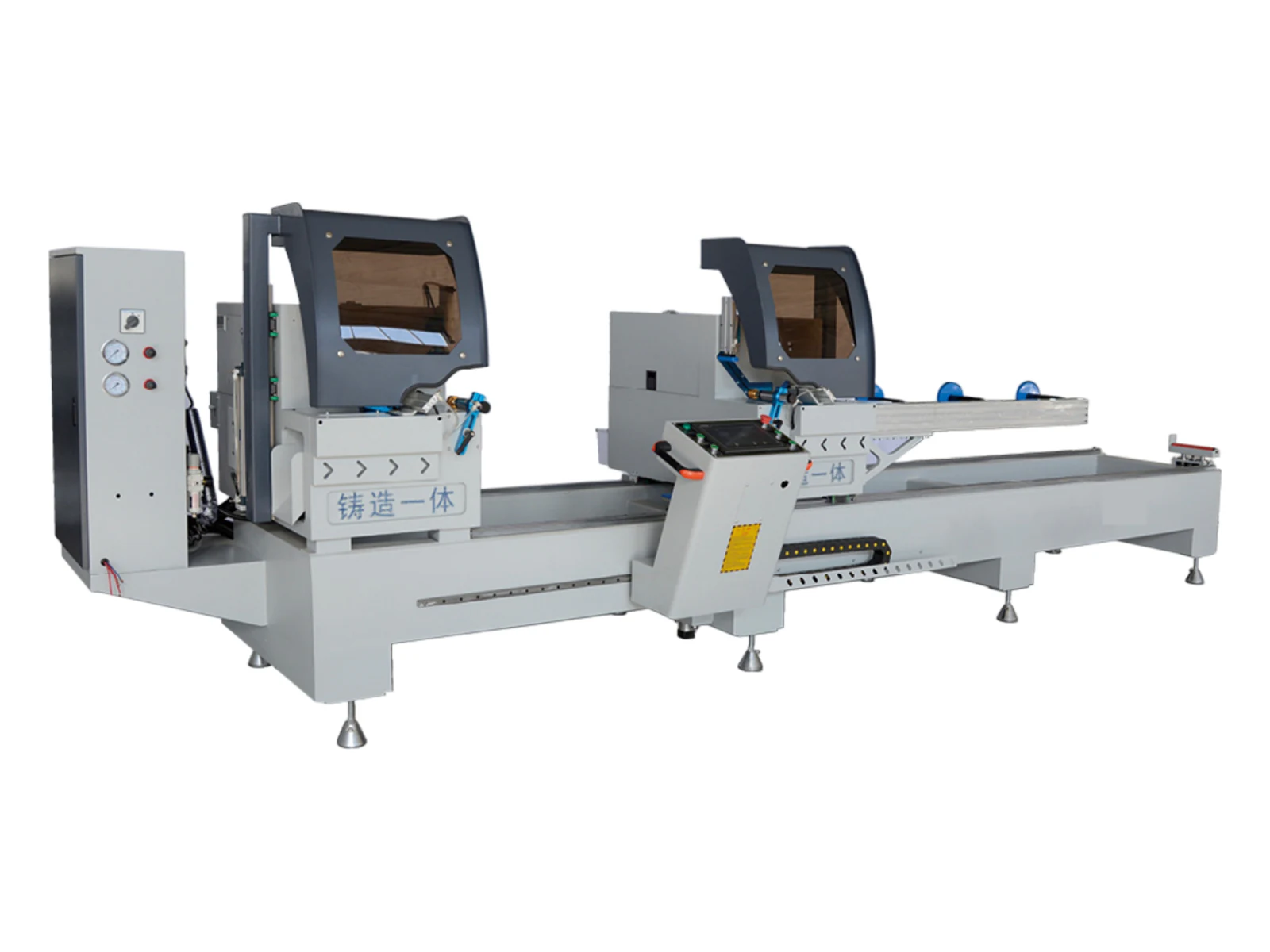

LJGB-550x4200

Heavy-Duty 45-Degree Fixed Precision Cutting Saw

Description

Heavy-duty fixed 45-degree precision saw for aluminium alloy door, window, curtain-wall and solar-frame profiles.

Cuts aluminium alloy door, window, curtain-wall and solar-frame profiles at a fixed 45-degree angle.
The saw blade mounts directly to the motor spindle to reduce belt-drive loss.
Oil-mist cooling supports a cleaner cut surface, fewer burrs and longer tool service life.
Designed for straightforward operation, efficient fixed-angle cutting and stable precision.

Specifications

Catalog model codeLDX-CNC-300-7A

Input voltage380 V / 50 Hz

Input power6.5 kW

Motor speed3,000 r/min

Saw blade550 mm diameter; 30 mm bore

Cutting angle45 degrees

Overall dimensions5,800 x 1,750 x 1,600 mm

Weight1,800 kg

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the LJGB-550x4200 aluminium cutting saw?

The LJGB-550x4200 is an aluminium cutting saw. It is catalogued as a heavy-duty fixed 45-degree precision saw for aluminium alloy door, window, curtain-wall and solar-frame profiles.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

LJGB-550x4200 FAQs

What is the LJGB-550x4200 aluminium cutting saw?

The LJGB-550x4200 is an aluminium cutting saw. It is catalogued as a heavy-duty fixed 45-degree precision saw for aluminium alloy door, window, curtain-wall and solar-frame profiles.

What profiles or operations is the LJGB-550x4200 designed for?

Cuts aluminium alloy door, window, curtain-wall and solar-frame profiles at a fixed 45-degree angle.

What is the working range of the LJGB-550x4200?

Cutting angle: 45 degrees. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the LJGB-550x4200?

Input voltage: 380 V / 50 Hz; Input power: 6.5 kW. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the LJGB-550x4200?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
