LJZ2H-450x3700

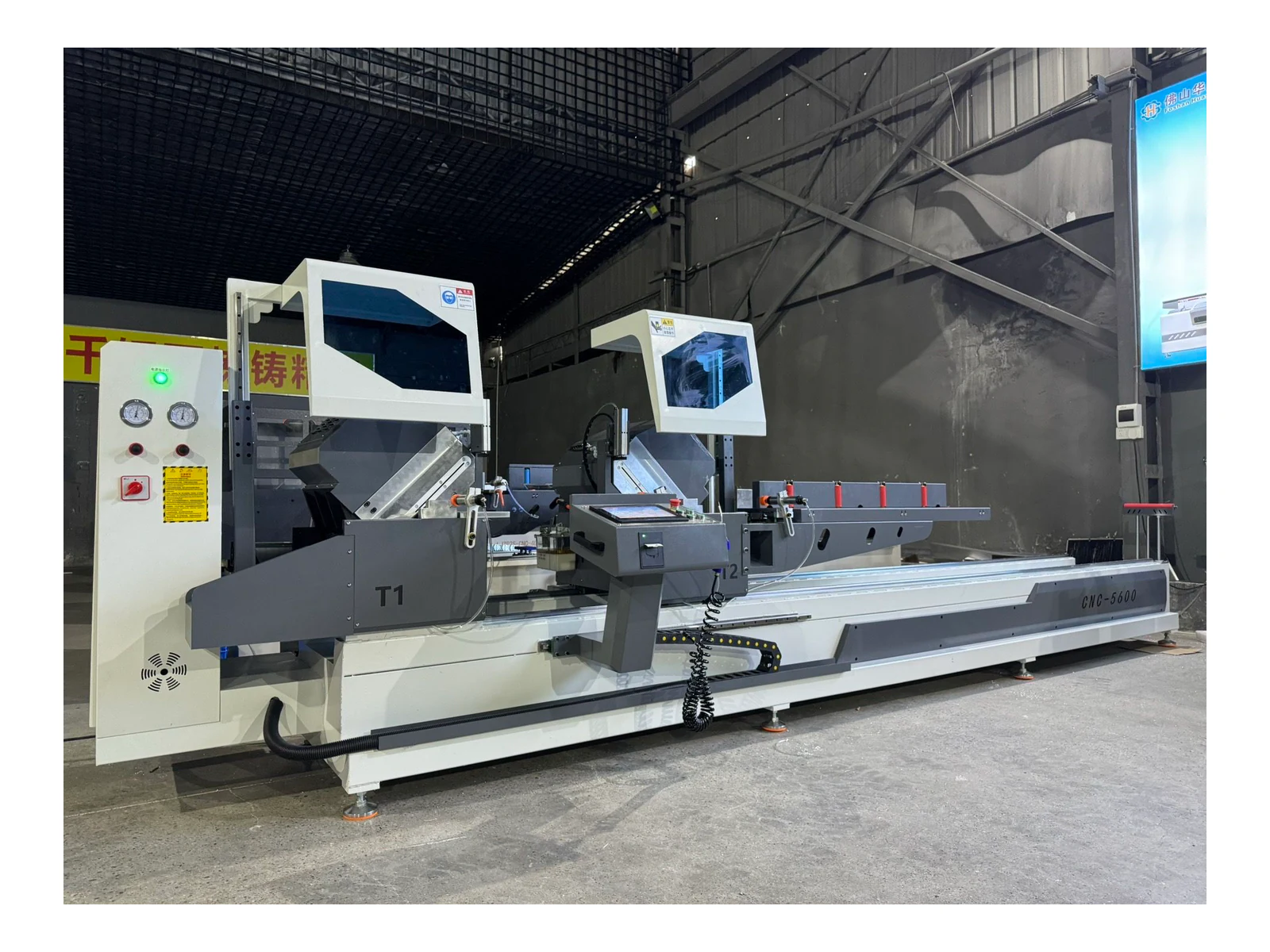

Aluminium Double-Head Precision Cutting Saw

Description

Double-head precision saw for aluminium door, window and curtain-wall profiles, with three cutting positions and optional digital display functions.

Cuts aluminium profiles used for doors, windows and curtain walls.

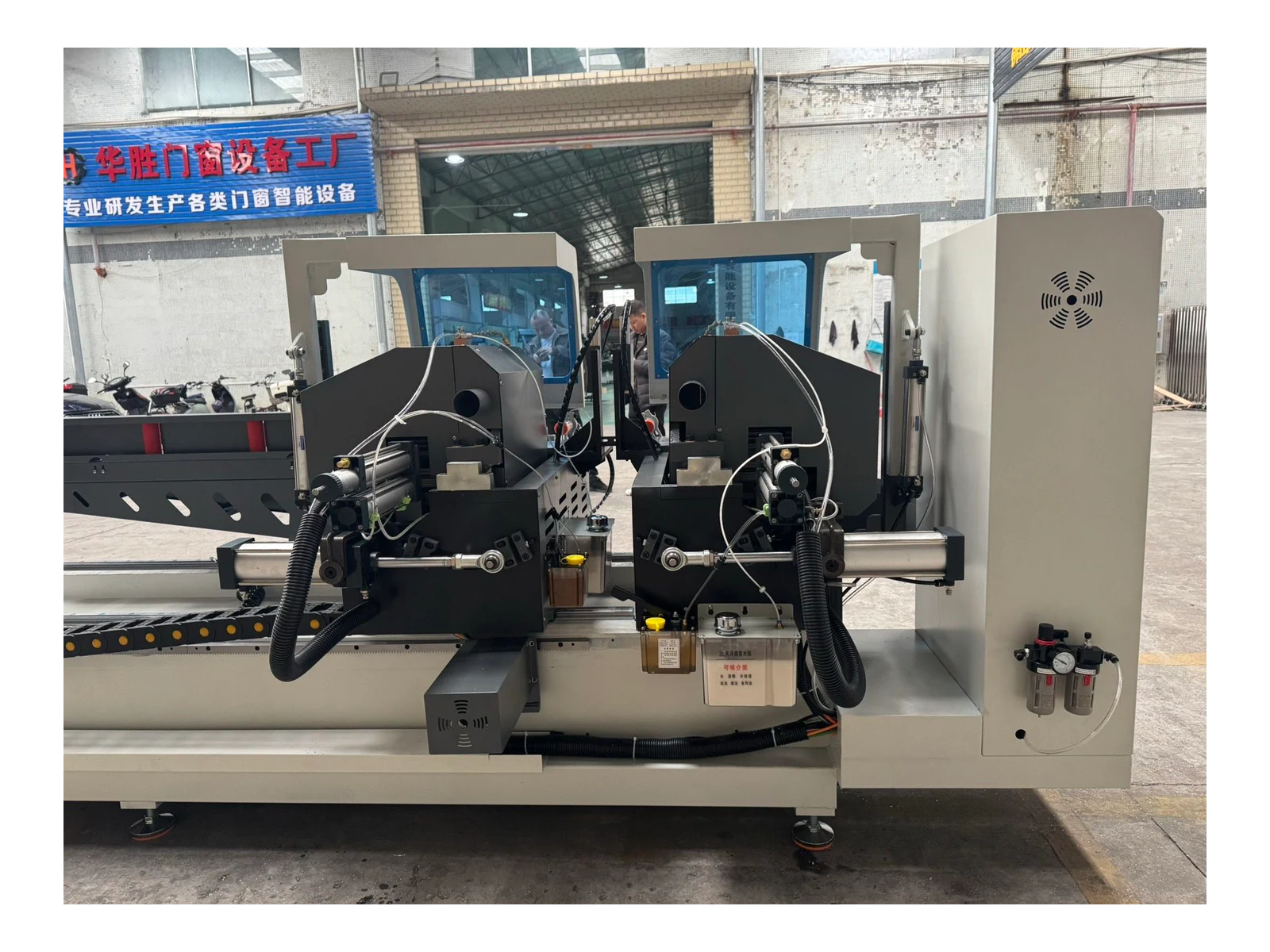

Two saw heads convert between -45-degree, 45-degree and 90-degree positions.

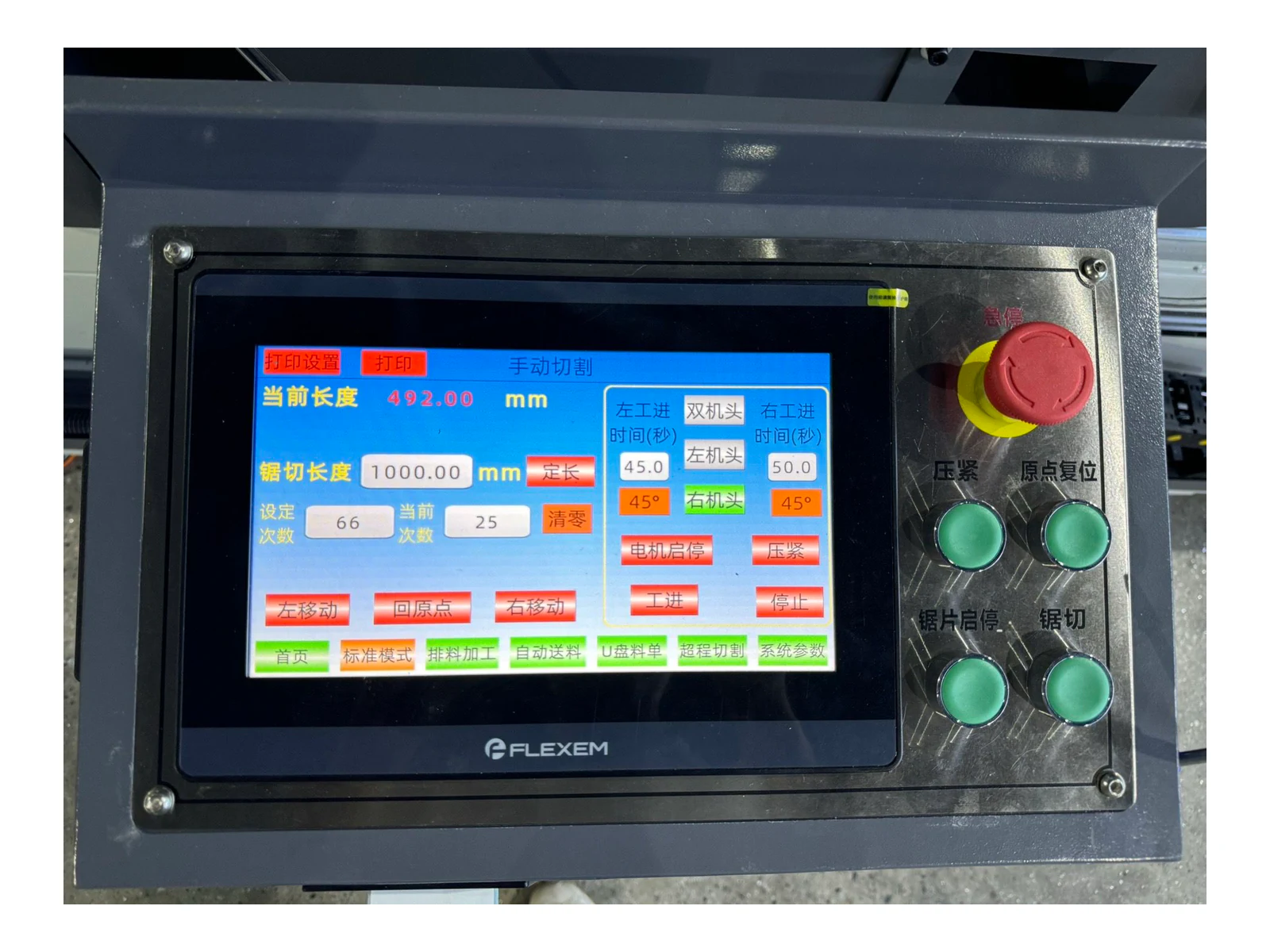

Supports optional digital display and automatic corner-code functions.
Gas-liquid damping provides a uniform feed speed and smooth movement.
Imported linear-guide motion pairs support accurate, stable blade feeding.
The protective cover lifts and lowers automatically for safer access.

Specifications

Power supply380 V / 50 Hz

Input power4.4 kW

Working air pressure0.5-0.8 MPa

Blade rotational speed3,100 r/min

Saw blade450 mm diameter; 30 mm bore

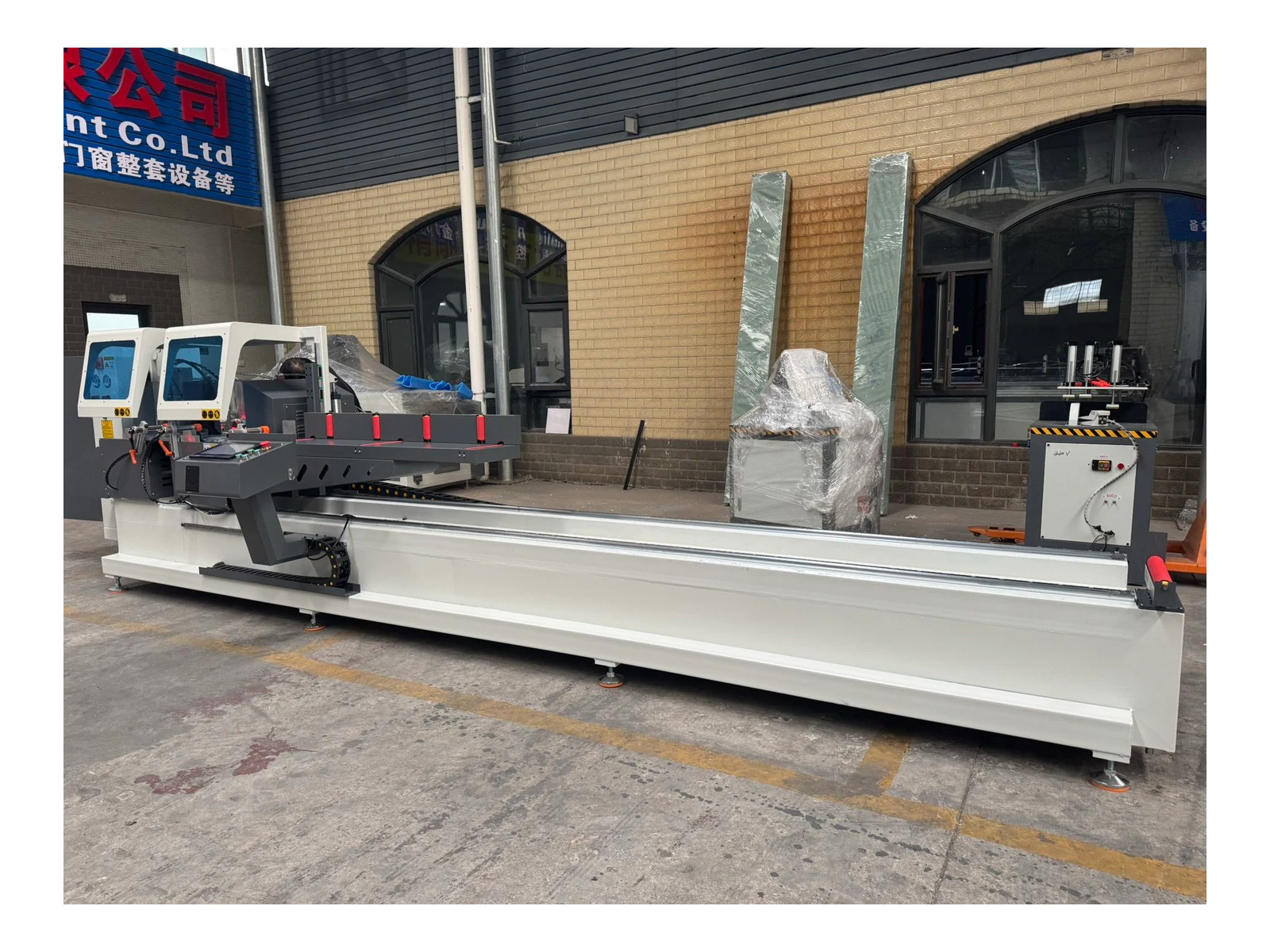

Cutting length385-3,700 mm

Cutting angles-45 degrees, 45 degrees and 90 degrees

Maximum cutting width120 mm

Overall dimensions4,750 x 1,600 x 1,550 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the LJZ2H-450x3700 aluminium cutting saw?

The LJZ2H-450x3700 is an aluminium cutting saw. It is catalogued as a double-head precision saw for aluminium door, window and curtain-wall profiles, with three cutting positions and optional digital display functions.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

LJZ2H-450x3700 FAQs

What is the LJZ2H-450x3700 aluminium cutting saw?

What profiles or operations is the LJZ2H-450x3700 designed for?

Cuts aluminium profiles used for doors, windows and curtain walls.

What is the working range of the LJZ2H-450x3700?

Cutting length: 385-3,700 mm; Cutting angles: -45 degrees, 45 degrees and 90 degrees; Maximum cutting width: 120 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the LJZ2H-450x3700?

Power supply: 380 V / 50 Hz; Input power: 4.4 kW; Working air pressure: 0.5-0.8 MPa. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the LJZ2H-450x3700?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
