SZJ01

Keyhole and Slot Processing Machine

Description

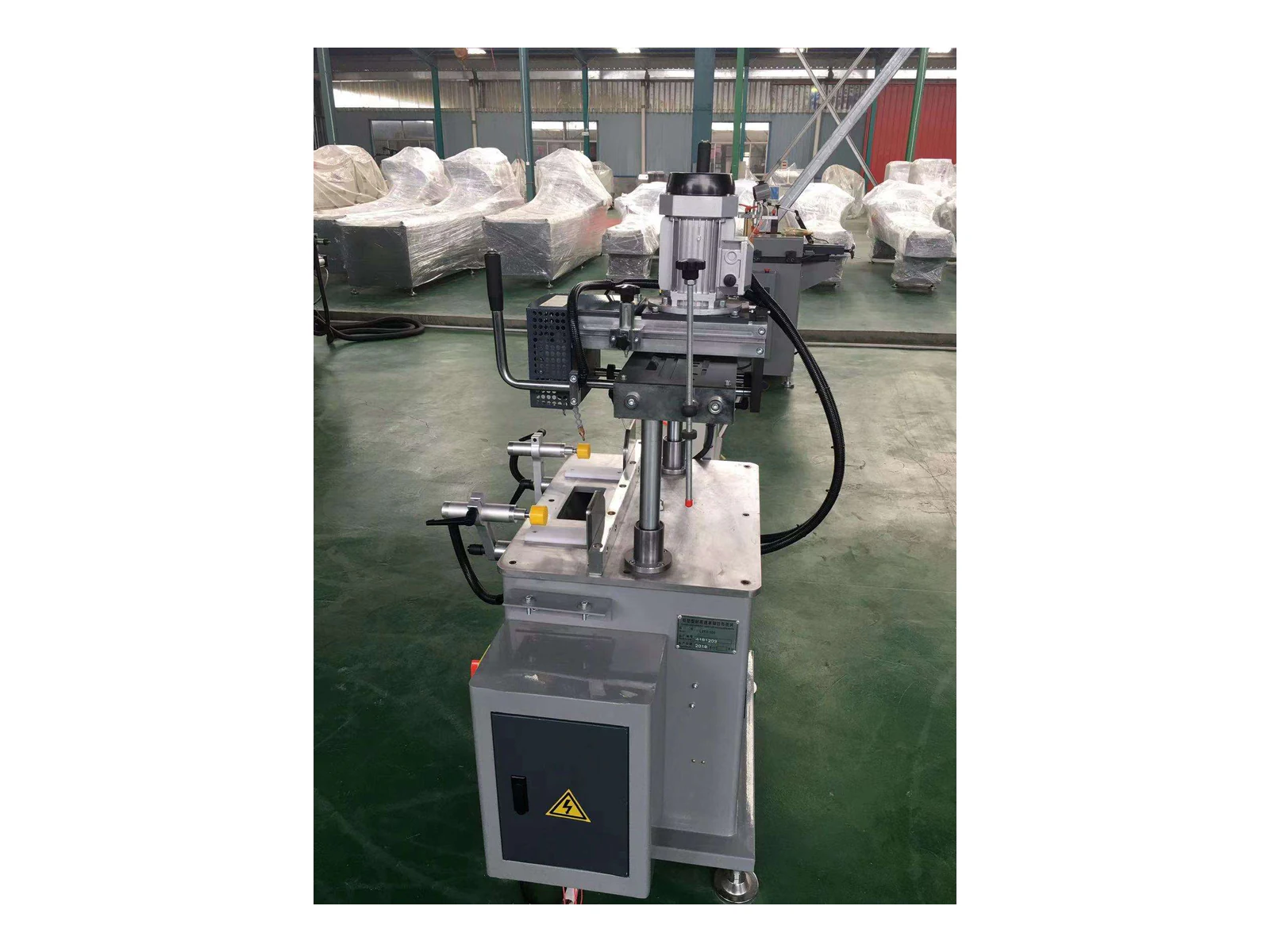

Combined three-hole drilling and copy-routing machine for holes, grooves and water slots in aluminium window and door profiles.

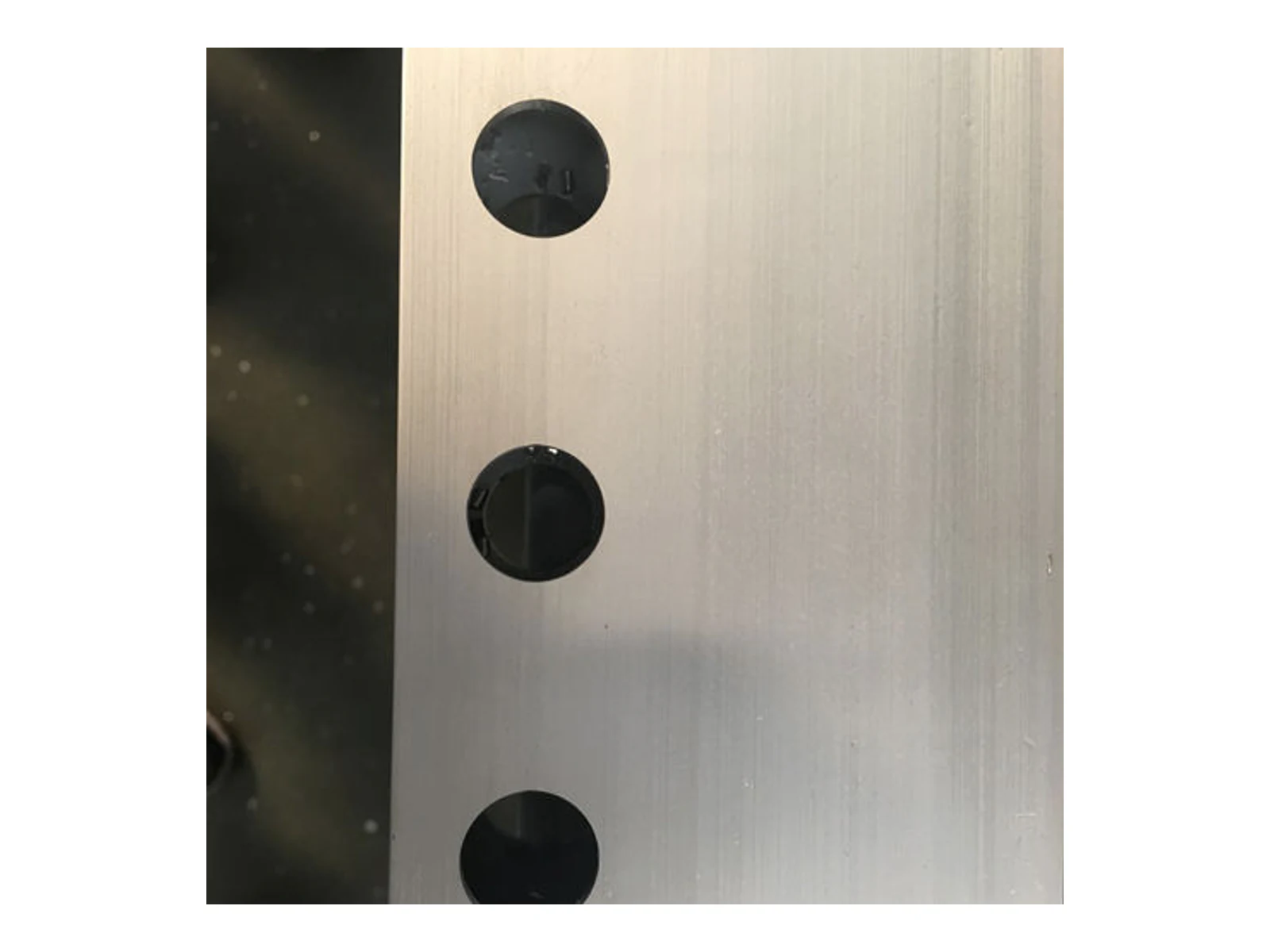

Combines three-hole drilling with copy routing.

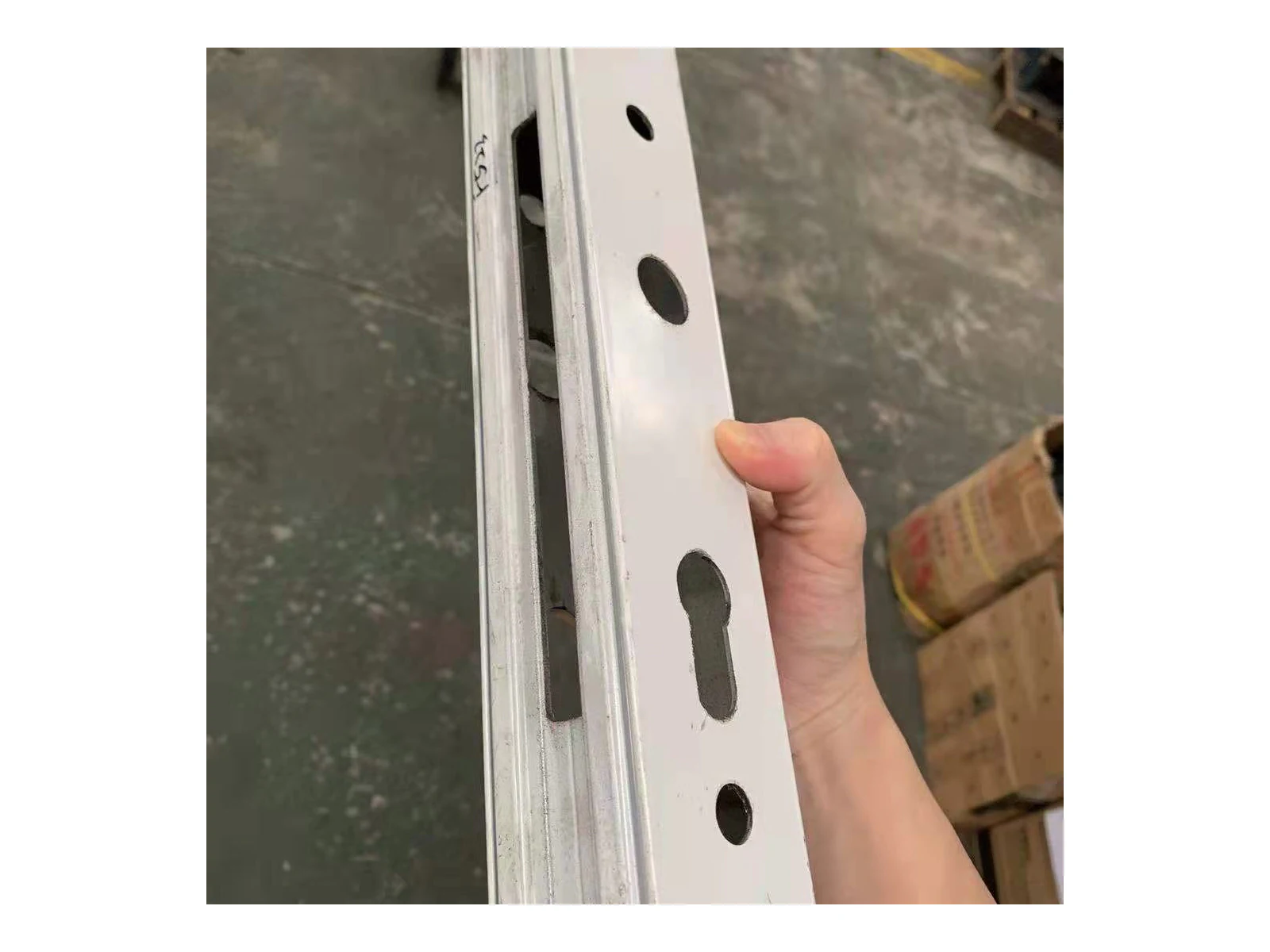

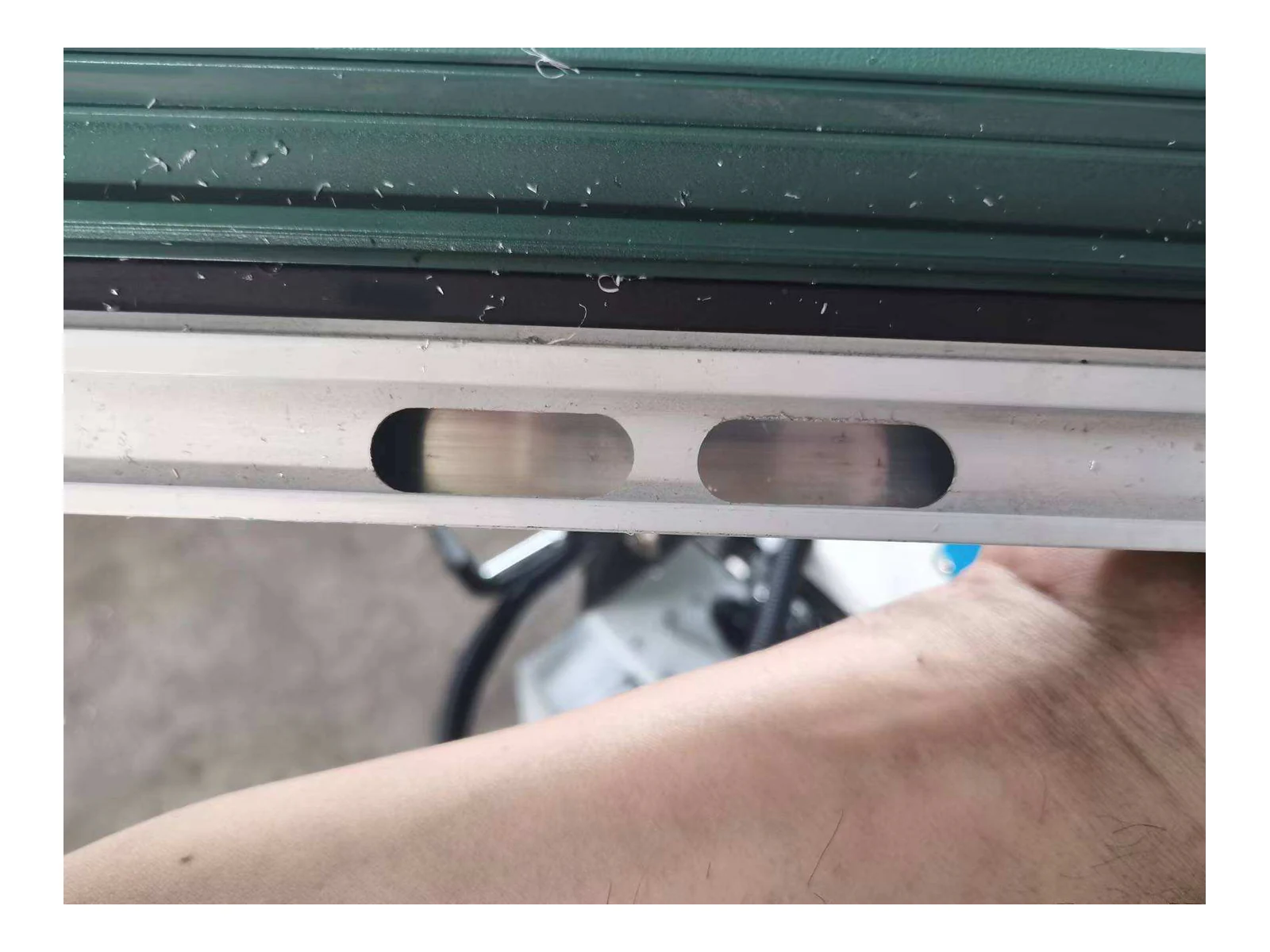

Processes holes, grooves and water slots in aluminium profiles.
Belt-driven speed supports milling quality.
Replaceable copy templates support different openings.

Specifications

Catalog routing modelSZS-290 x 90

Power supply380 V / 50 Hz

Input power3.8 kW

Working air pressure0.4-0.6 MPa

Copy-routing range290 x 90 mm

Overall dimensions800 x 700 x 1,420 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the SZJ01 aluminium milling & routing machine?

The SZJ01 is an aluminium milling & routing machine. It is catalogued as a combined three-hole drilling and copy-routing machine for holes, grooves and water slots in aluminium window and door profiles.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

SZJ01 FAQs

What is the SZJ01 aluminium milling & routing machine?

What profiles or operations is the SZJ01 designed for?

Combines three-hole drilling with copy routing.

What is the working range of the SZJ01?

Catalog routing model: SZS-290 x 90; Power supply: 380 V / 50 Hz; Input power: 3.8 kW. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the SZJ01?

Power supply: 380 V / 50 Hz; Input power: 3.8 kW; Working air pressure: 0.4-0.6 MPa. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the SZJ01?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
