LJJ-140

Lift-Position Aluminium Corner Crimping Machine

Description

Hydraulic aluminium door and window corner-crimping machine with adjustable tool position.

Joins aluminium frame corners at 90 degrees.

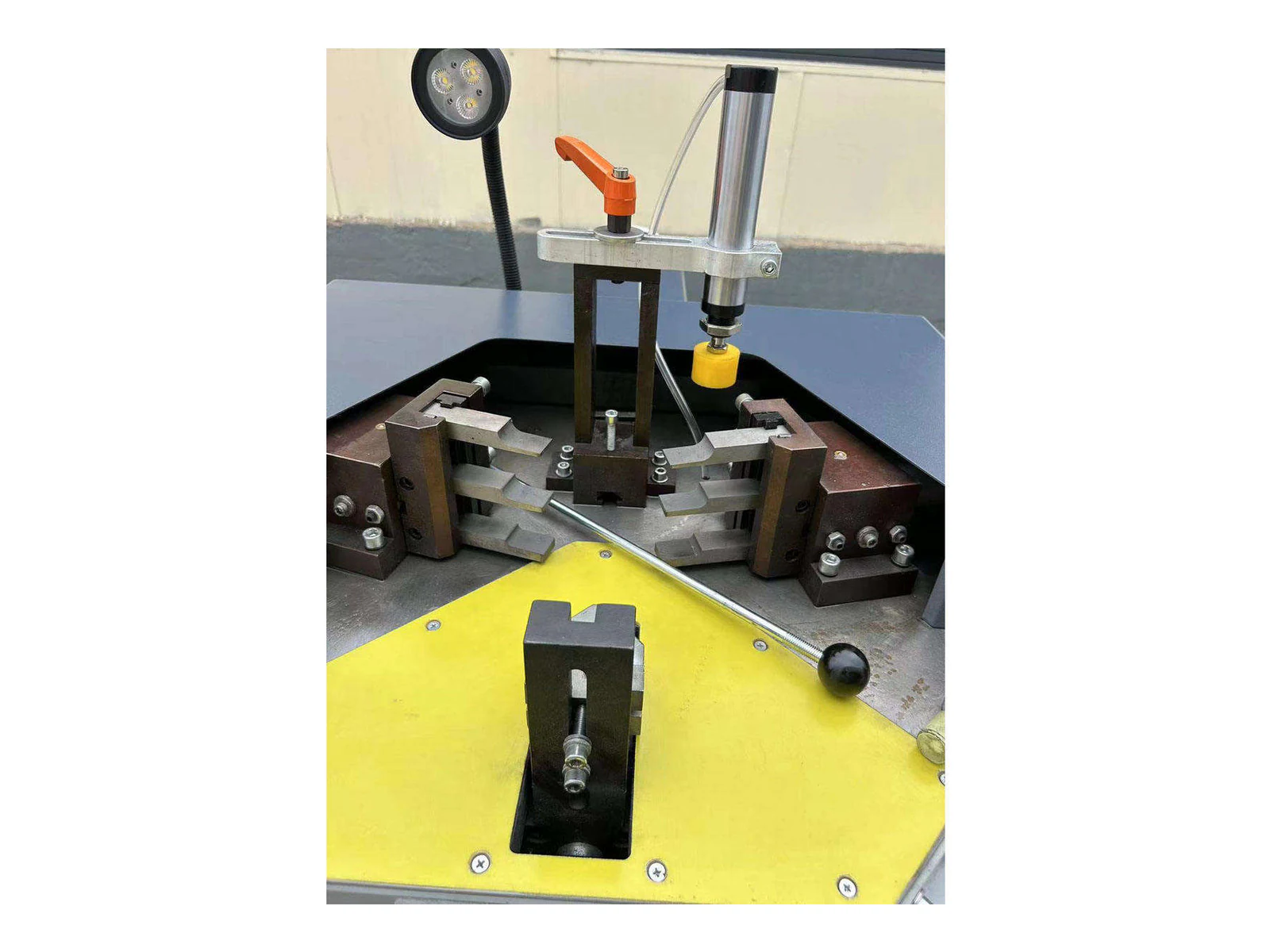

Adjustable corner tools support multiple crimping positions.
Hydraulic power supports stable operation.
The catalog describes straightforward operation and maintenance.

Specifications

Input power2.2 kW

Power supply380 V / 50 Hz

Working air pressure0.5-0.8 MPa

Rated oil pressure15 MPa

Oil tank20 L

Profile width140 mm

Crimping travel85 mm

Crimping force48 kN

Connection seam errorLess than 0.15 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the LJJ-140 aluminium corner crimping machine?

The LJJ-140 is an aluminium corner crimping machine. It is catalogued as a hydraulic aluminium door and window corner-crimping machine with adjustable tool position.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

LJJ-140 FAQs

What is the LJJ-140 aluminium corner crimping machine?

The LJJ-140 is an aluminium corner crimping machine. It is catalogued as a hydraulic aluminium door and window corner-crimping machine with adjustable tool position.

What profiles or operations is the LJJ-140 designed for?

Joins aluminium frame corners at 90 degrees.

What is the working range of the LJJ-140?

Profile width: 140 mm; Crimping travel: 85 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the LJJ-140?

Input power: 2.2 kW; Power supply: 380 V / 50 Hz; Working air pressure: 0.5-0.8 MPa. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the LJJ-140?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
