LM4-CNC-100x1800x3000

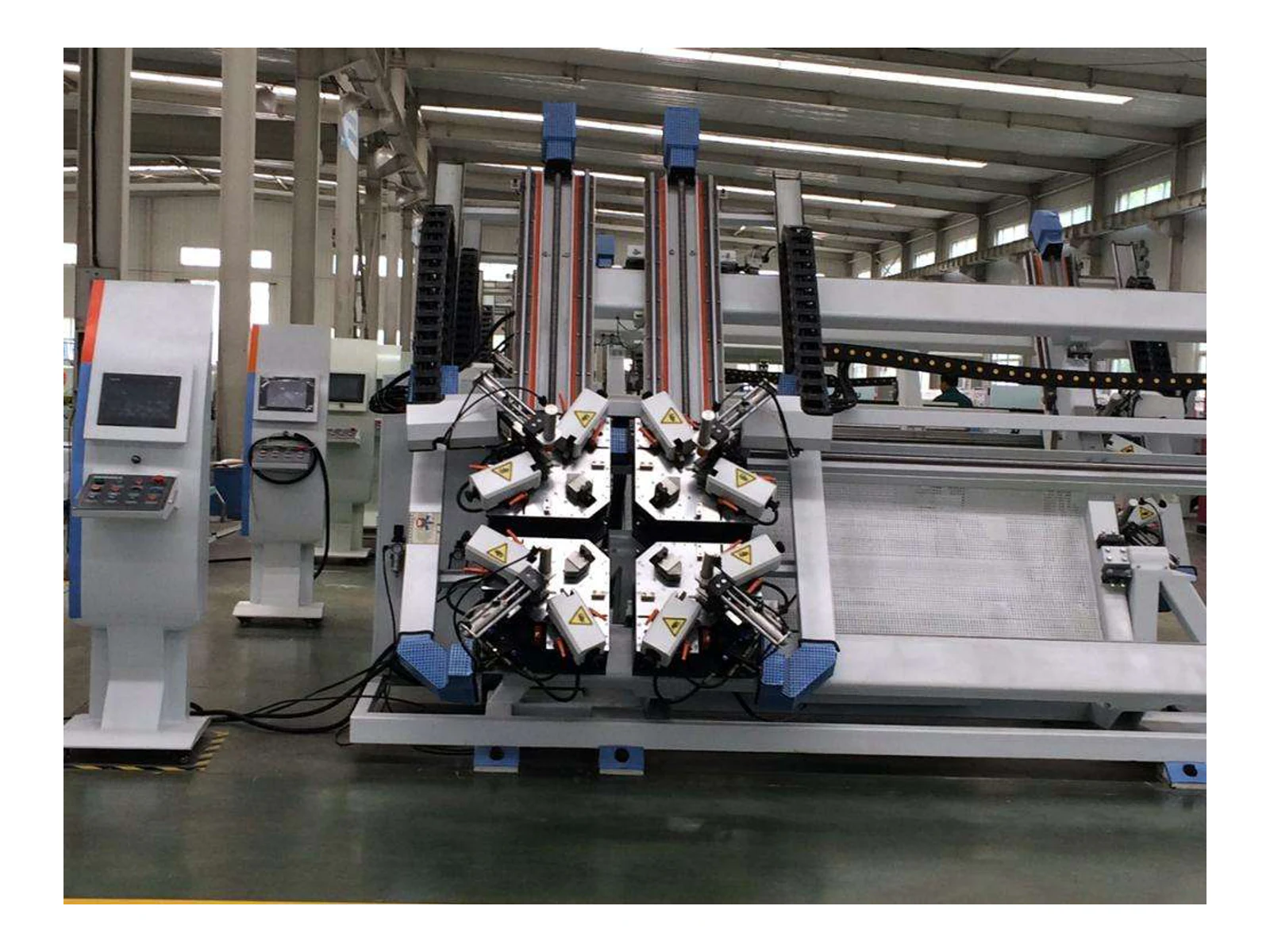

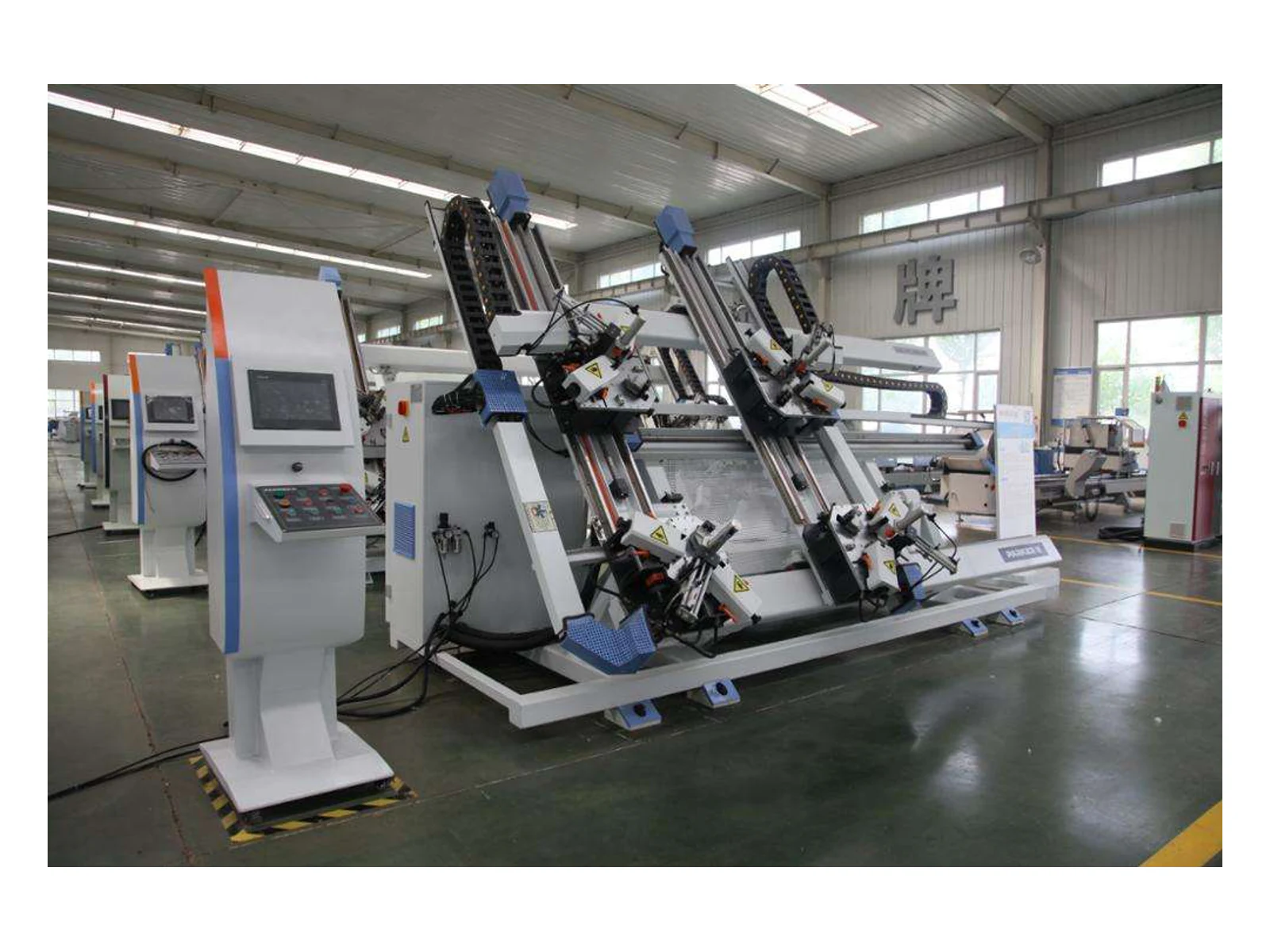

Four-Head CNC Corner Crimping Machine

Description

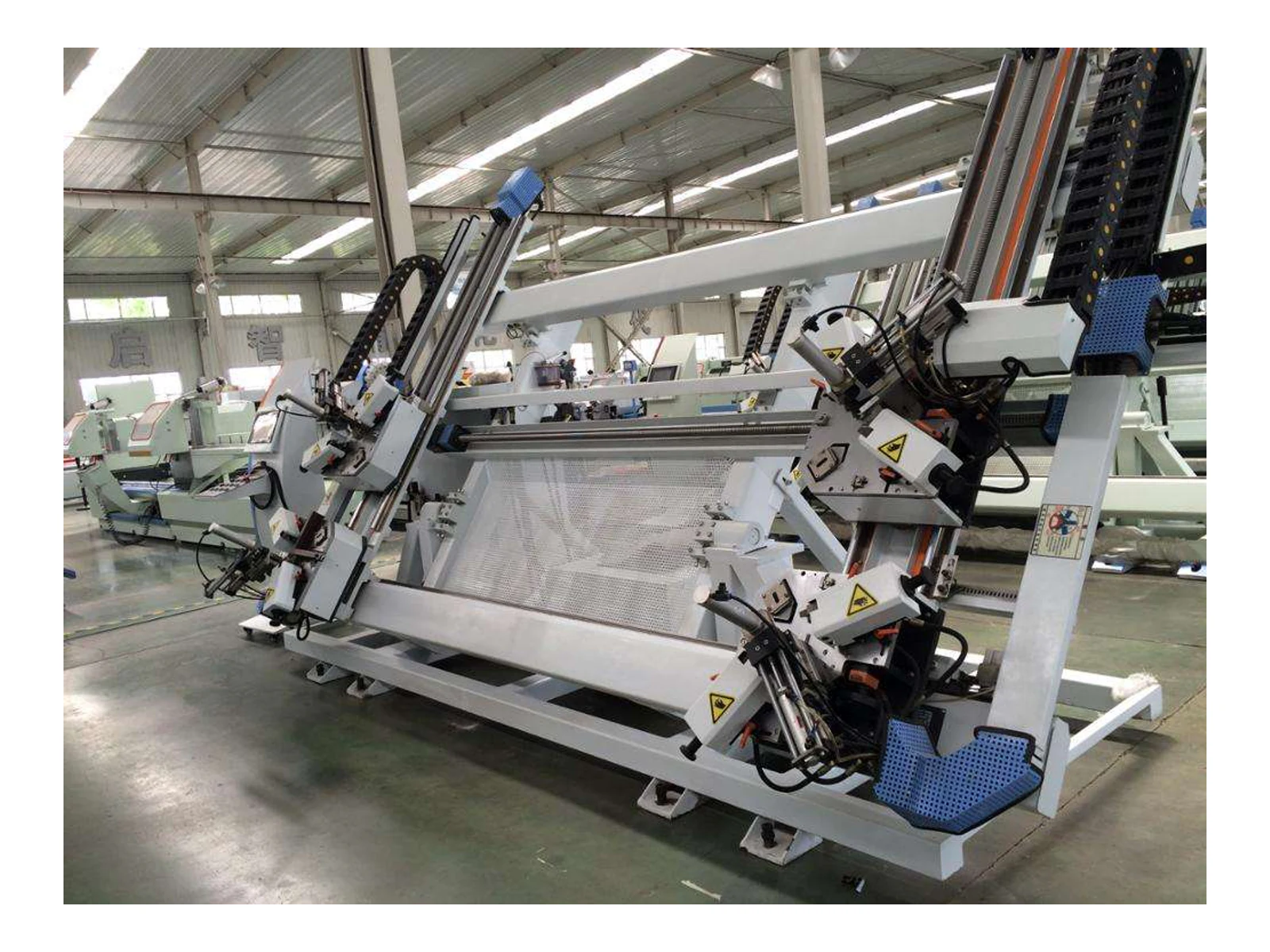

Four-head CNC machine for joining all four corners of an aluminium window or door frame in one cycle.

Crimps four aluminium-frame corners in one cycle.
Automatic clamping movement supports loading and operation.

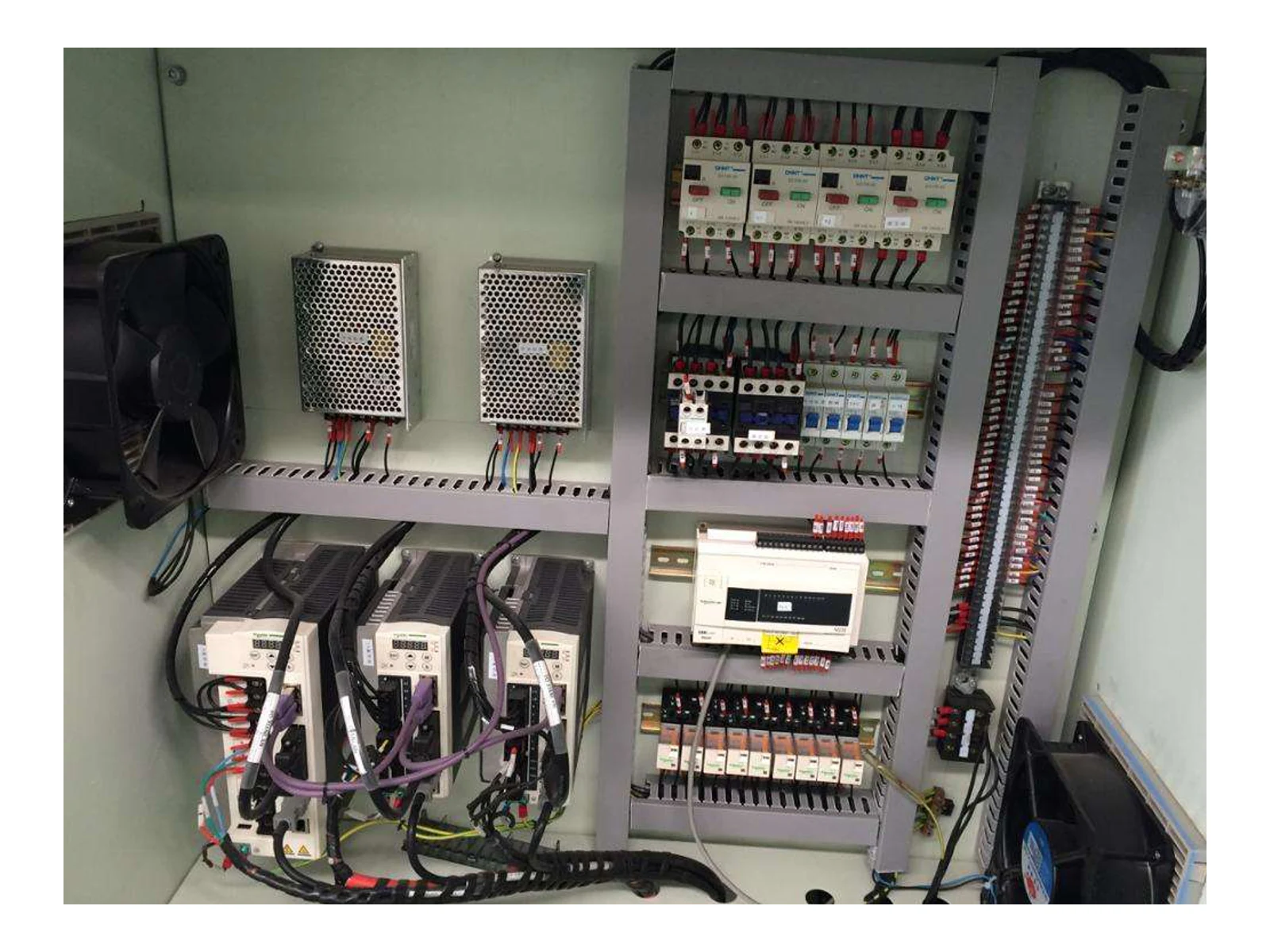

A CNC servo system controls positioning and pressing.

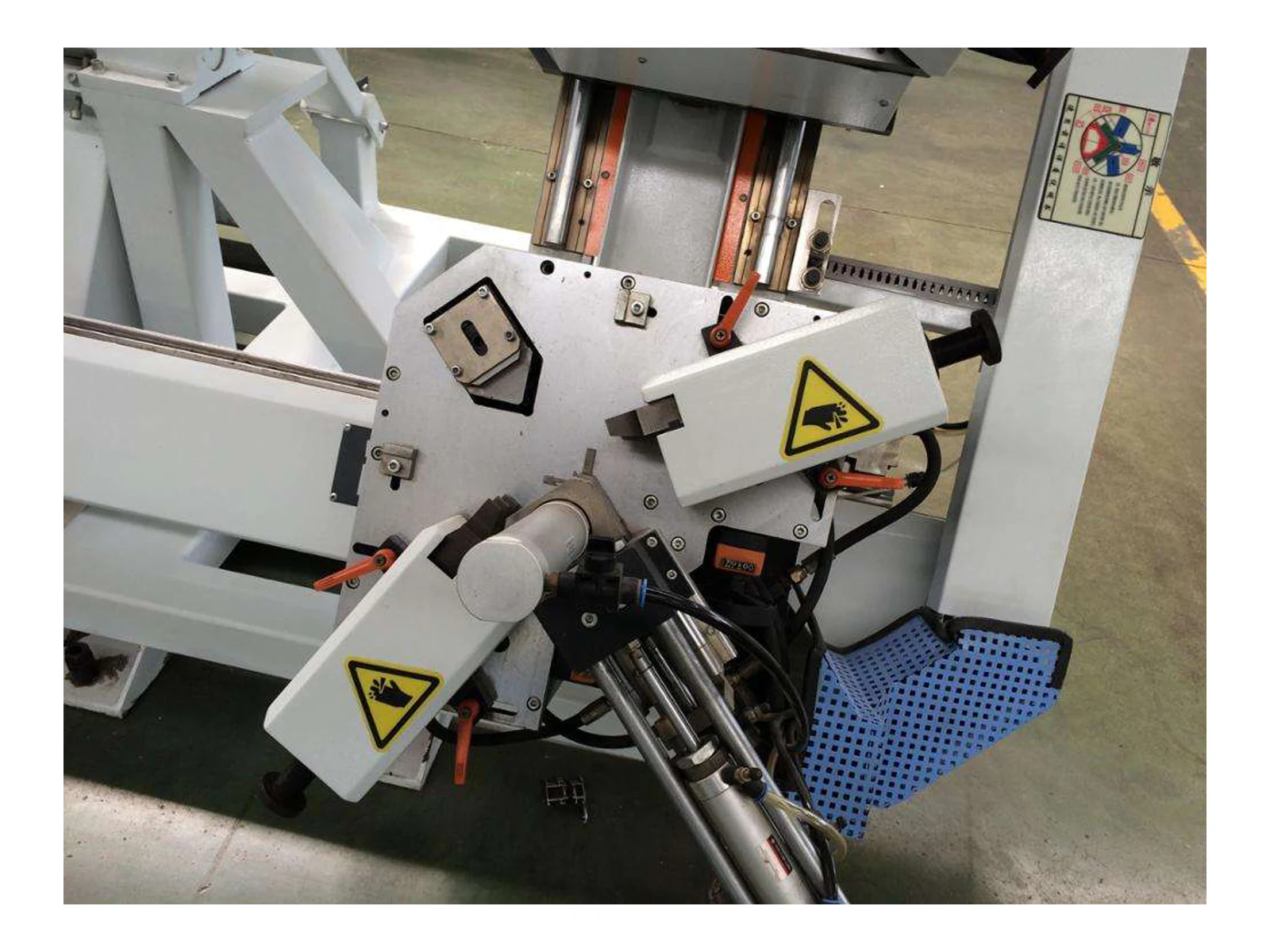

Corner-crimping blades adjust for different profile requirements.

Specifications

Input power7.5 kW

Power supply380 V / 50 Hz

Working air pressure0.5-0.8 MPa

Rated oil pressure15 MPa

Oil tank60 L

Profile width95 mm

Crimping casing travel60 mm

Connection seam errorLess than 0.15 mm

Overall dimensions4,700 x 2,200 x 2,500 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the LM4-CNC-100x1800x3000 aluminium corner crimping machine?

The LM4-CNC-100x1800x3000 is an aluminium corner crimping machine. It is catalogued as a four-head CNC machine for joining all four corners of an aluminium window or door frame in one cycle.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

LM4-CNC-100x1800x3000 FAQs

What is the LM4-CNC-100x1800x3000 aluminium corner crimping machine?

The LM4-CNC-100x1800x3000 is an aluminium corner crimping machine. It is catalogued as a four-head CNC machine for joining all four corners of an aluminium window or door frame in one cycle.

What profiles or operations is the LM4-CNC-100x1800x3000 designed for?

Crimps four aluminium-frame corners in one cycle.

What is the working range of the LM4-CNC-100x1800x3000?

Profile width: 95 mm; Crimping casing travel: 60 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the LM4-CNC-100x1800x3000?

Input power: 7.5 kW; Power supply: 380 V / 50 Hz; Working air pressure: 0.5-0.8 MPa. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the LM4-CNC-100x1800x3000?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
