LJJ-180A

Heavy-Duty Aluminium Corner Crimping Machine

Description

Heavy-duty hydraulic corner-crimping machine with a large support table for aluminium door and window frames.

Large support table and adjustment space accommodate frame work.

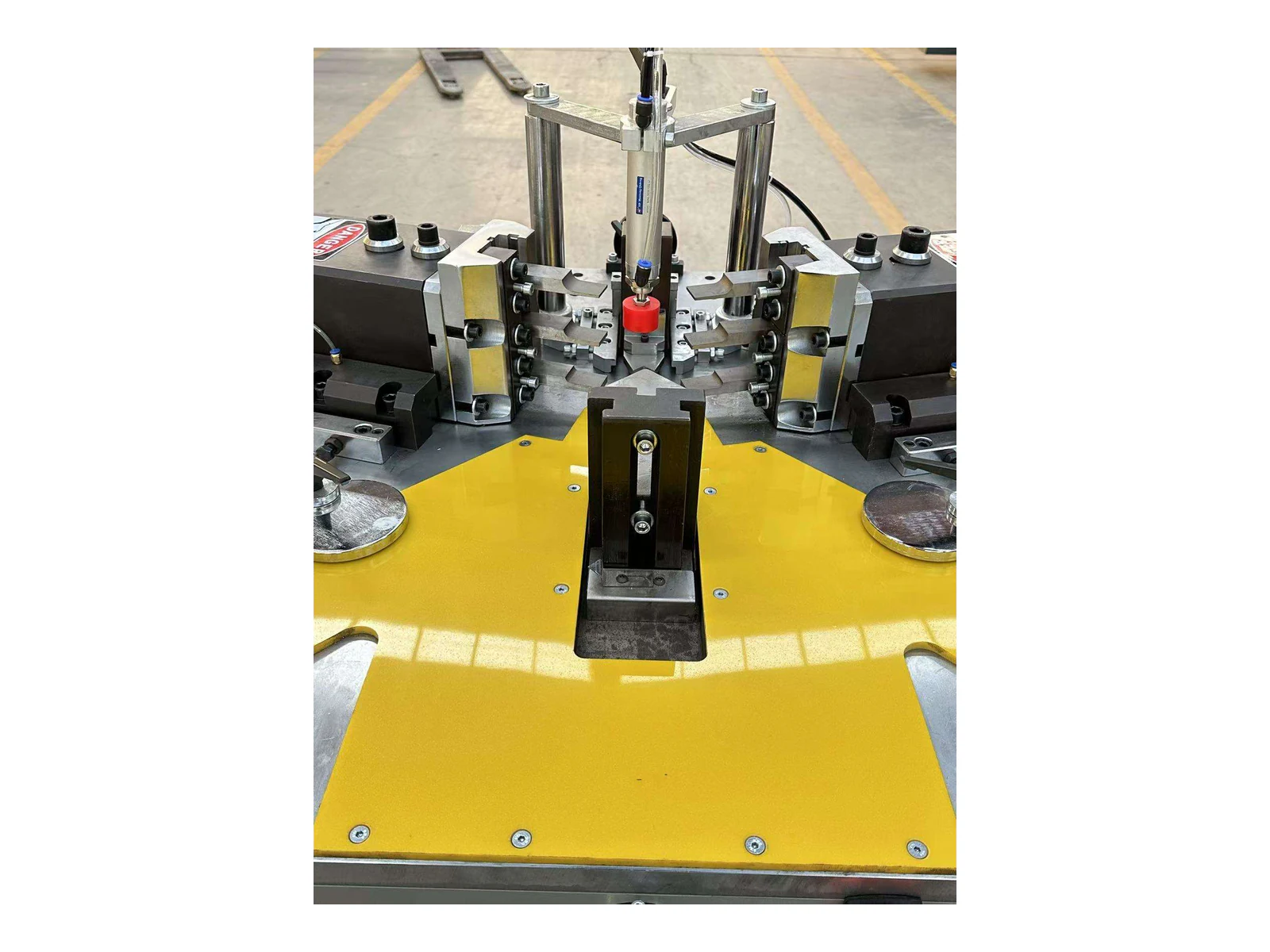

Magnetic angle-knife positioning supports tool adjustment.
A hydraulic system supplies crimping force.

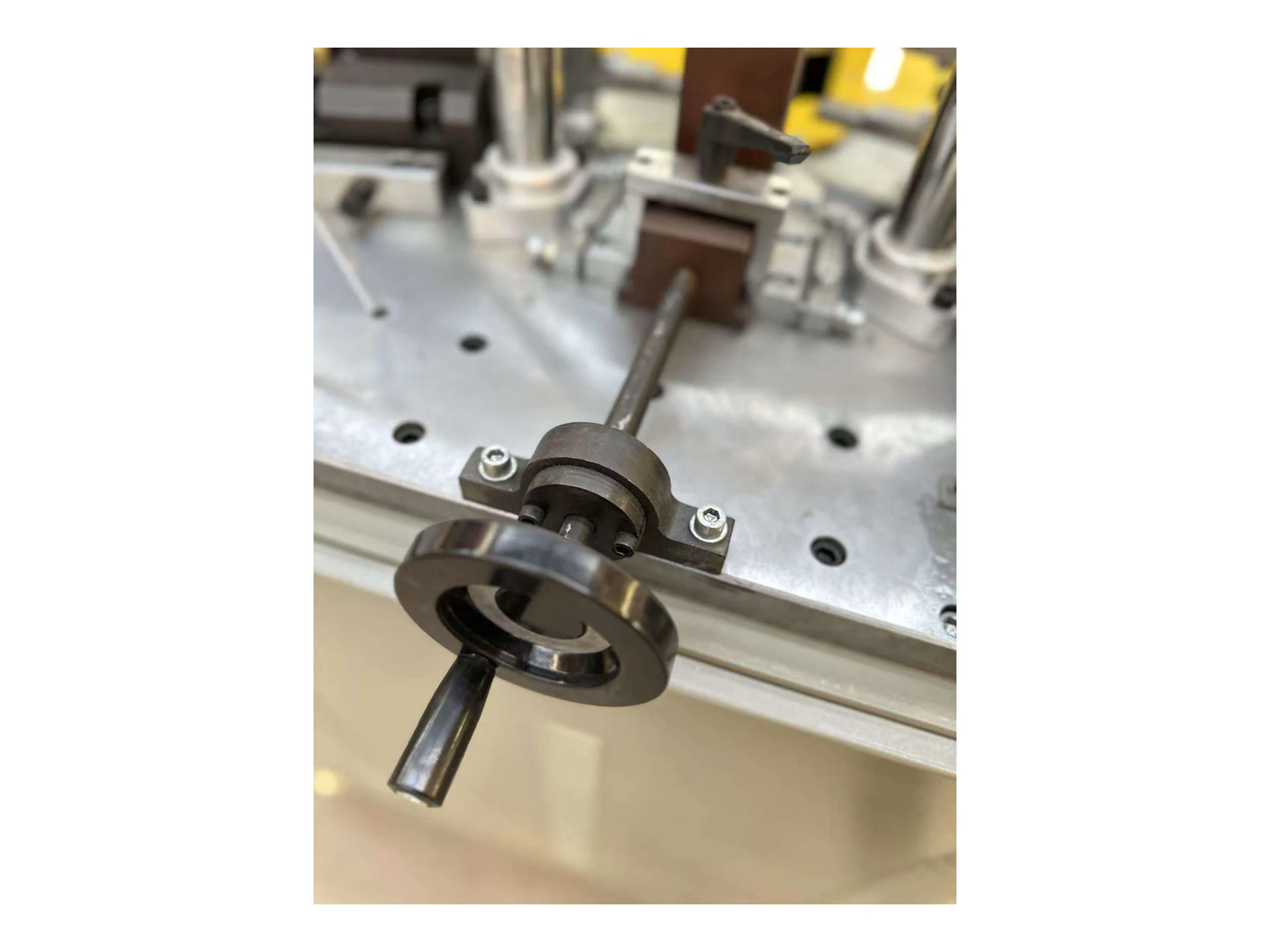

Cylinder-rod adjustment supports the working position.

Specifications

Input power3 kW

Power supply380 V / 50 Hz

Working air pressure0.5-0.8 MPa

Air consumption2 L

Rated oil pressure15 MPa

Oil tank20 L

Profile width180 mm

Crimping travel85 mm

Crimping force48 kN

Connection seam errorLess than 0.15 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the LJJ-180A aluminium corner crimping machine?

The LJJ-180A is an aluminium corner crimping machine. It is catalogued as a heavy-duty hydraulic corner-crimping machine with a large support table for aluminium door and window frames.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

LJJ-180A FAQs

What is the LJJ-180A aluminium corner crimping machine?

The LJJ-180A is an aluminium corner crimping machine. It is catalogued as a heavy-duty hydraulic corner-crimping machine with a large support table for aluminium door and window frames.

What profiles or operations is the LJJ-180A designed for?

Large support table and adjustment space accommodate frame work.

What is the working range of the LJJ-180A?

Profile width: 180 mm; Crimping travel: 85 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the LJJ-180A?

Input power: 3 kW; Power supply: 380 V / 50 Hz; Working air pressure: 0.5-0.8 MPa. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the LJJ-180A?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
