TM-CNC-3000

CNC Aluminium Milling Machine

Description

CNC milling machine for holes, slots, lock holes, special-shaped holes, chamfers and plane engraving in aluminium door, window and curtain-wall profiles.

Processes round holes, slots, lock holes, special-shaped holes, chamfers and plane engraving in aluminium profiles.

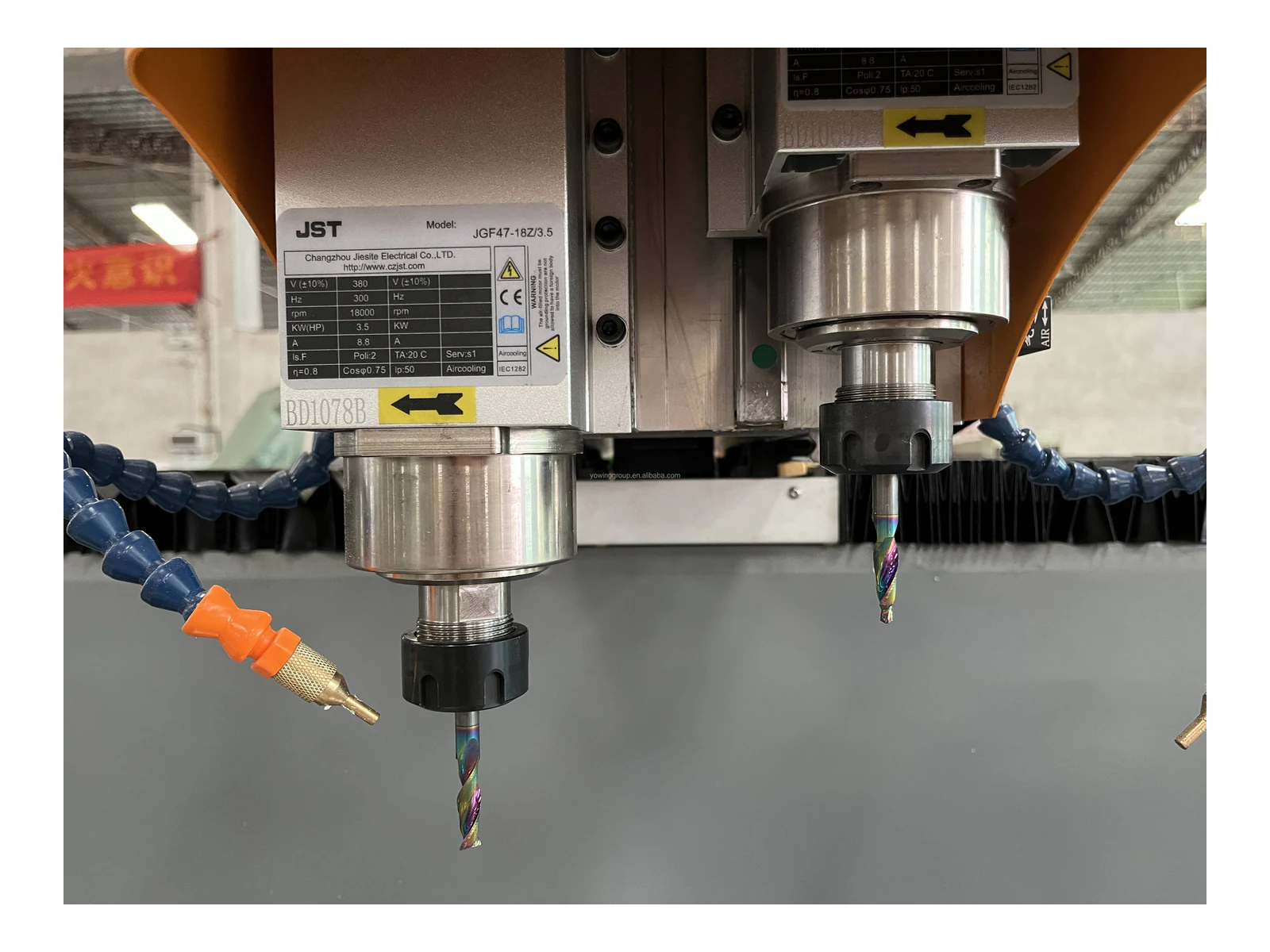

An air-cooled electric spindle supports smooth drive and machining accuracy.
Imported guide rails support each motion pair; the X axis uses a helical rack and the Y and Z axes use precision ball screws.
A 180-degree rotating table supports three-side machining in one clamping at -90-degree, 0-degree and 90-degree positions.
Manual-pump lubrication and system-controlled spray cooling support the cutting process.

Specifications

Spindle power2 x 4.5 kW

Power supply380 V / 50 Hz

Working air pressure0.5-0.8 MPa

Y-axis travel400 mm

X-axis travel3,000 mm

Z-axis travel400 mm

Maximum clamping diameter320 mm

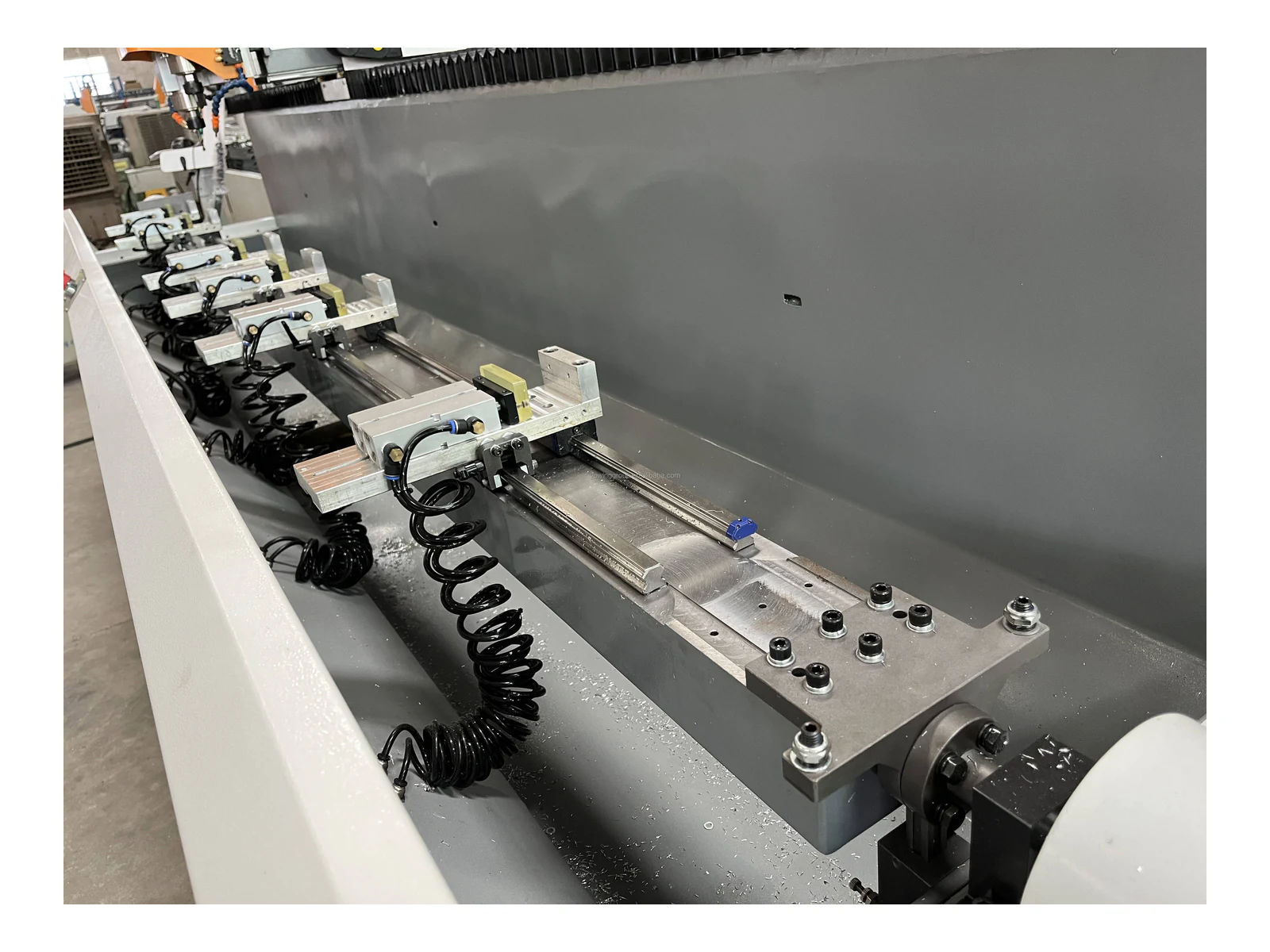

Clamping station2 / 50 mm

Main spindle speed0-18,000 r/min

Overall dimensions3,700 x 1,700 x 2,100 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the TM-CNC-3000 aluminium milling & routing machine?

The TM-CNC-3000 is an aluminium milling & routing machine. It is catalogued as a cNC milling machine for holes, slots, lock holes, special-shaped holes, chamfers and plane engraving in aluminium door, window and curtain-wall profiles.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

TM-CNC-3000 FAQs

What is the TM-CNC-3000 aluminium milling & routing machine?

What profiles or operations is the TM-CNC-3000 designed for?

Processes round holes, slots, lock holes, special-shaped holes, chamfers and plane engraving in aluminium profiles.

What is the working range of the TM-CNC-3000?

Y-axis travel: 400 mm; X-axis travel: 3,000 mm; Z-axis travel: 400 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the TM-CNC-3000?

Power supply: 380 V / 50 Hz; Working air pressure: 0.5-0.8 MPa. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the TM-CNC-3000?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
