SHZW2-140x3500

Two-Position Single-Sided Seamless Welding Machine

Description

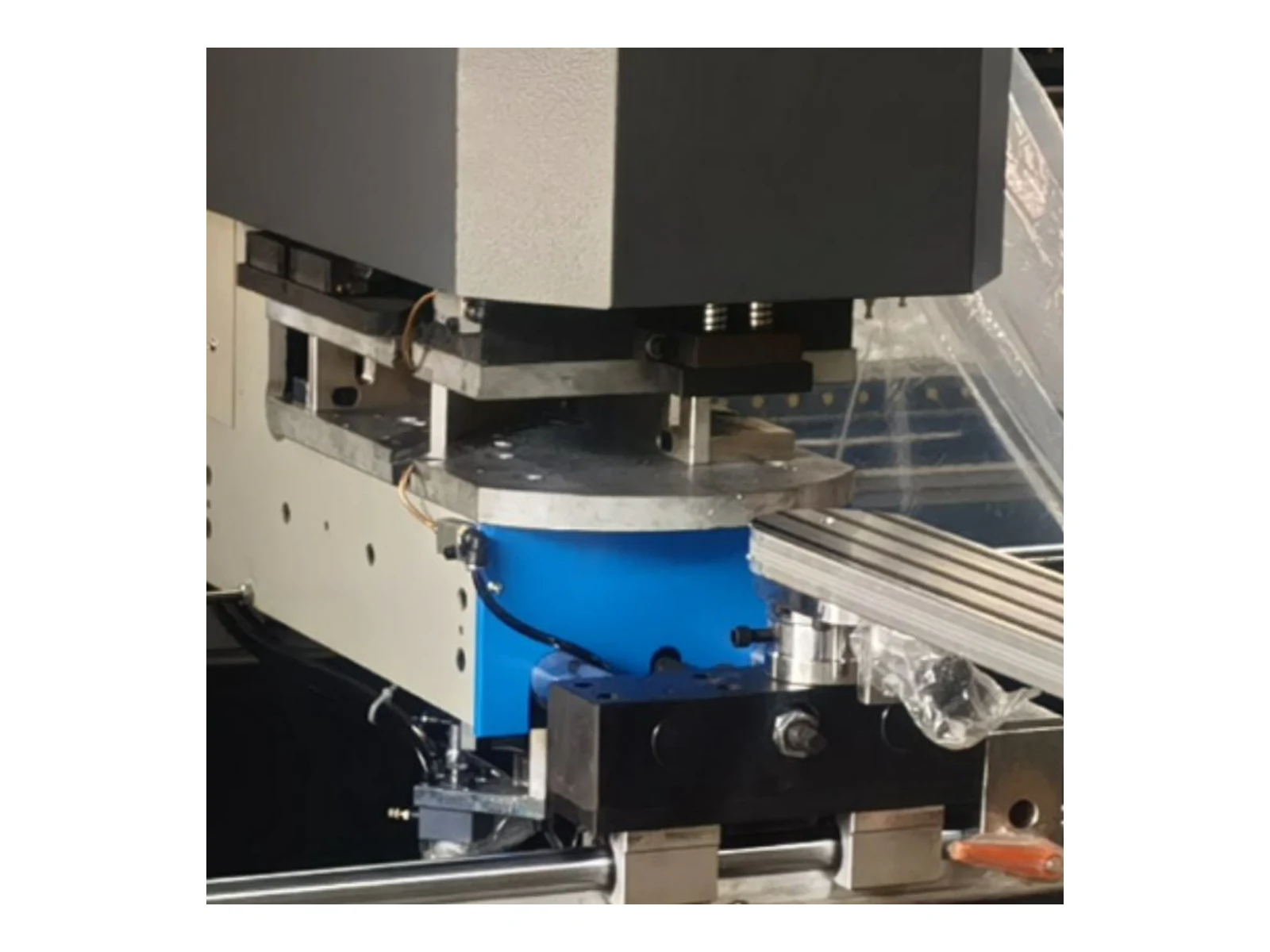

Two-position seamless welding machine for colored uPVC door and window profiles using one-sided fillet welding.

Performs one-sided fillet welding on colored uPVC and plastic-steel profiles.
Standardized alloy cutters are precision machined and interchangeable.
Linear-bearing motion supports stable head travel and routine maintenance.

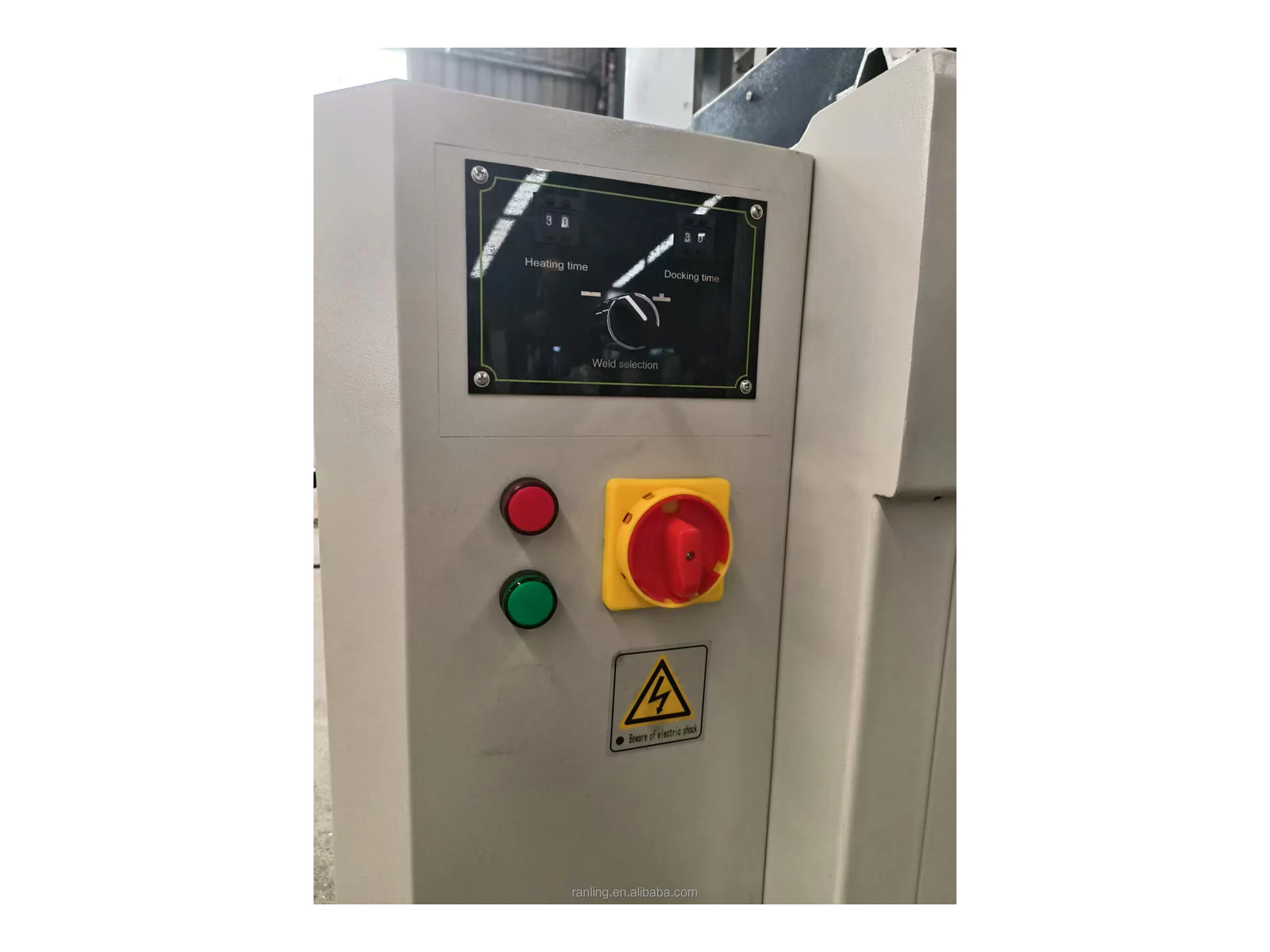

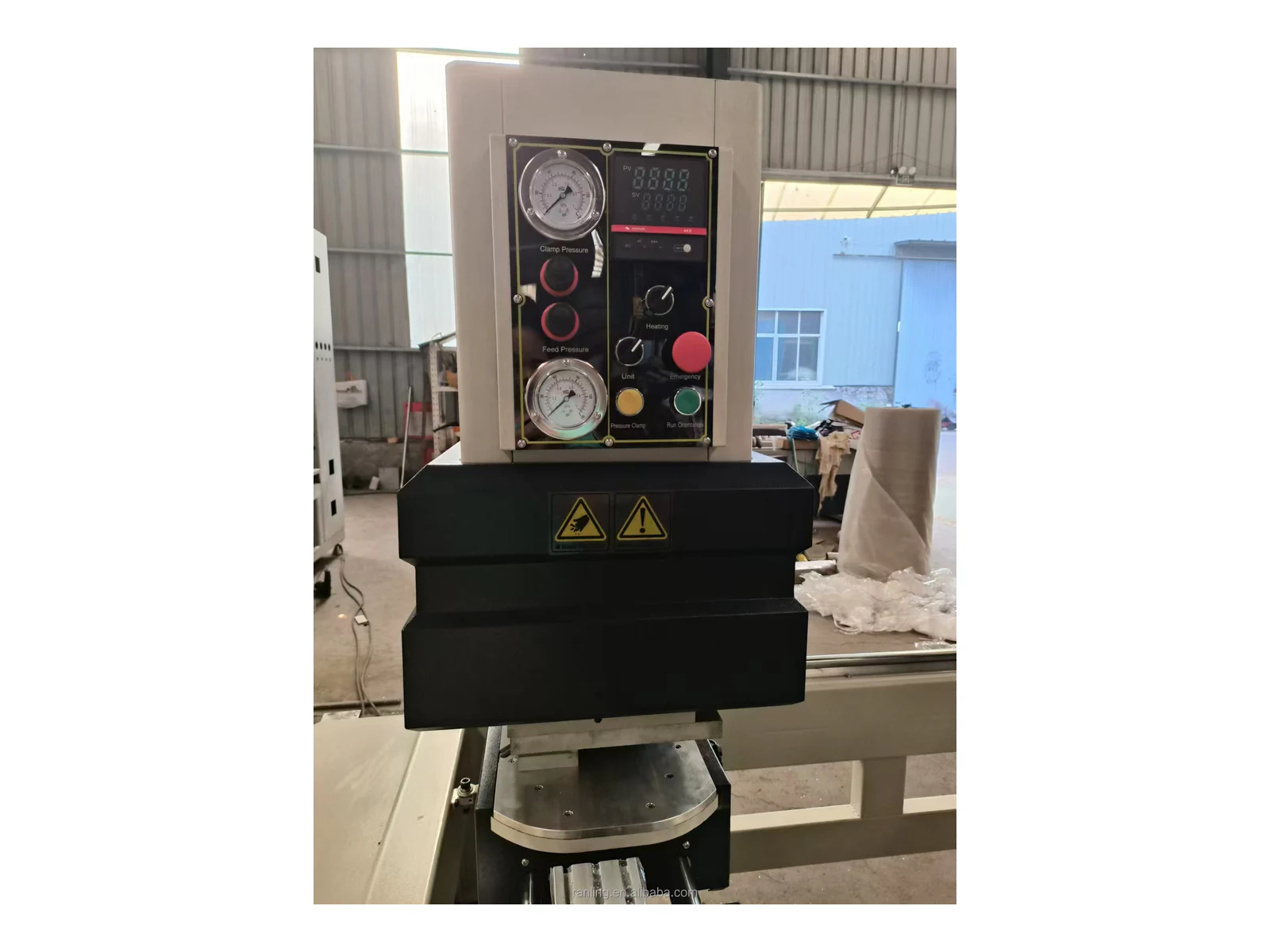

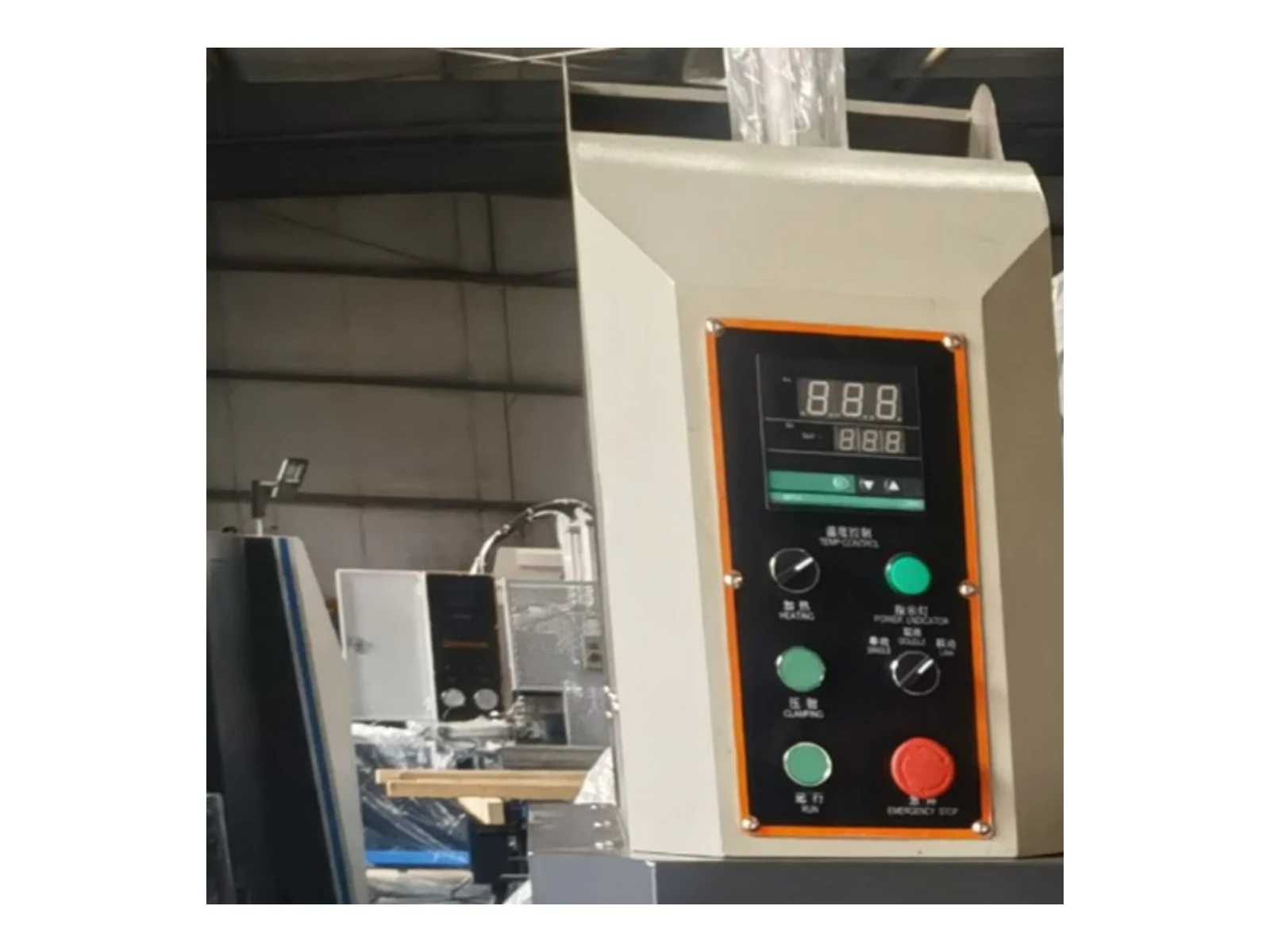

Programmable control manages the welding action and adjustable process parameters.

Specifications

Power supply220 V / 50 Hz

Total power2.5 kW

Working air pressure0.6-0.8 MPa

Air consumption160 L/min

Welded profile width120 mm

Welded profile height25-140 mm

Welding range435-3,500 mm

Overall dimensions4,260 x 980 x 1,700 mm

Weight800 kg

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Direct answer

What is the SHZW2-140x3500 uPVC welding machine?

The SHZW2-140x3500 is an uPVC welding machine. It is catalogued as a two-position seamless welding machine for colored uPVC door and window profiles using one-sided fillet welding.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

SHZW2-140x3500 FAQs

What is the SHZW2-140x3500 uPVC welding machine?

The SHZW2-140x3500 is an uPVC welding machine. It is catalogued as a two-position seamless welding machine for colored uPVC door and window profiles using one-sided fillet welding.

What profiles or operations is the SHZW2-140x3500 designed for?

Performs one-sided fillet welding on colored uPVC and plastic-steel profiles.

What is the working range of the SHZW2-140x3500?

Welded profile width: 120 mm; Welded profile height: 25-140 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the SHZW2-140x3500?

Power supply: 220 V / 50 Hz; Working air pressure: 0.6-0.8 MPa; Air consumption: 160 L/min. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the SHZW2-140x3500?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
