SQJA-CNC-125

CNC uPVC Corner Cleaning Machine

Description

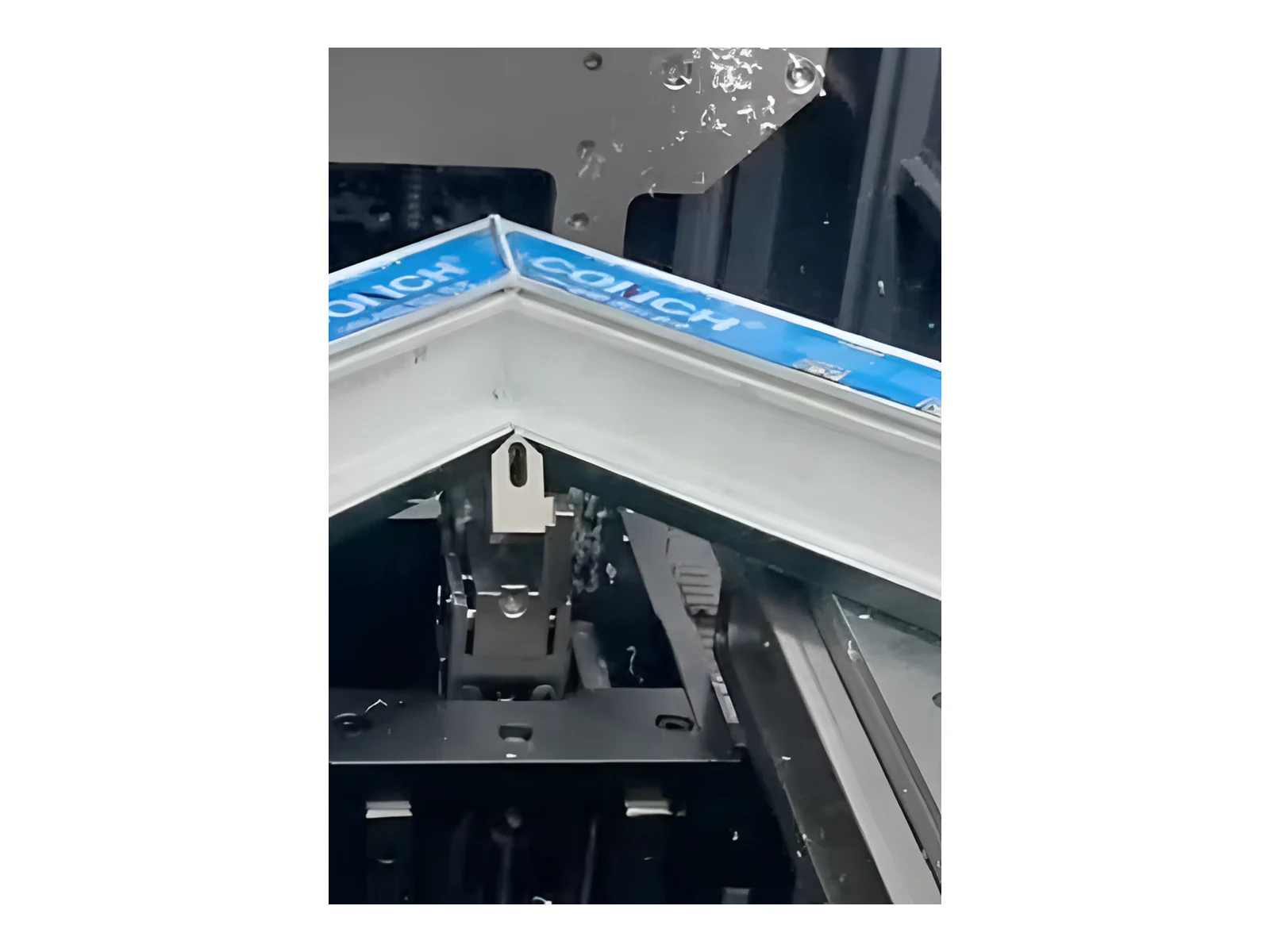

Two-axis CNC machine for cleaning external and internal welding seams and grooves on uPVC window profiles.

Cleans uPVC profile welding seams.
Two-axis control and size-error compensation support programmed finishing.
Servo drive and computer control support stored profile programs.
Processes external surfaces, upper and lower seams, bevels and gasket-groove areas.

Specifications

Parameter-table modelSQJ04-CNC-120

Input power1.5 kW

Power supply380 V / 50 Hz

Working air pressure0.5-0.8 MPa

Motor rotational speed2,800 r/min

Air consumption60 L/min

Profile height30-120 mm

Profile width20-120 mm

Overall dimensions2,000 x 1,820 x 1,550 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Direct answer

What is the SQJA-CNC-125 uPVC corner cleaning machine?

The SQJA-CNC-125 is an uPVC corner cleaning machine. It is catalogued as a two-axis CNC machine for cleaning external and internal welding seams and grooves on uPVC window profiles.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

SQJA-CNC-125 FAQs

What is the SQJA-CNC-125 uPVC corner cleaning machine?

The SQJA-CNC-125 is an uPVC corner cleaning machine. It is catalogued as a two-axis CNC machine for cleaning external and internal welding seams and grooves on uPVC window profiles.

What profiles or operations is the SQJA-CNC-125 designed for?

Cleans uPVC profile welding seams.

What is the working range of the SQJA-CNC-125?

Profile height: 30-120 mm; Profile width: 20-120 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the SQJA-CNC-125?

Input power: 1.5 kW; Power supply: 380 V / 50 Hz; Working air pressure: 0.5-0.8 MPa. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the SQJA-CNC-125?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
