SJ02-3500

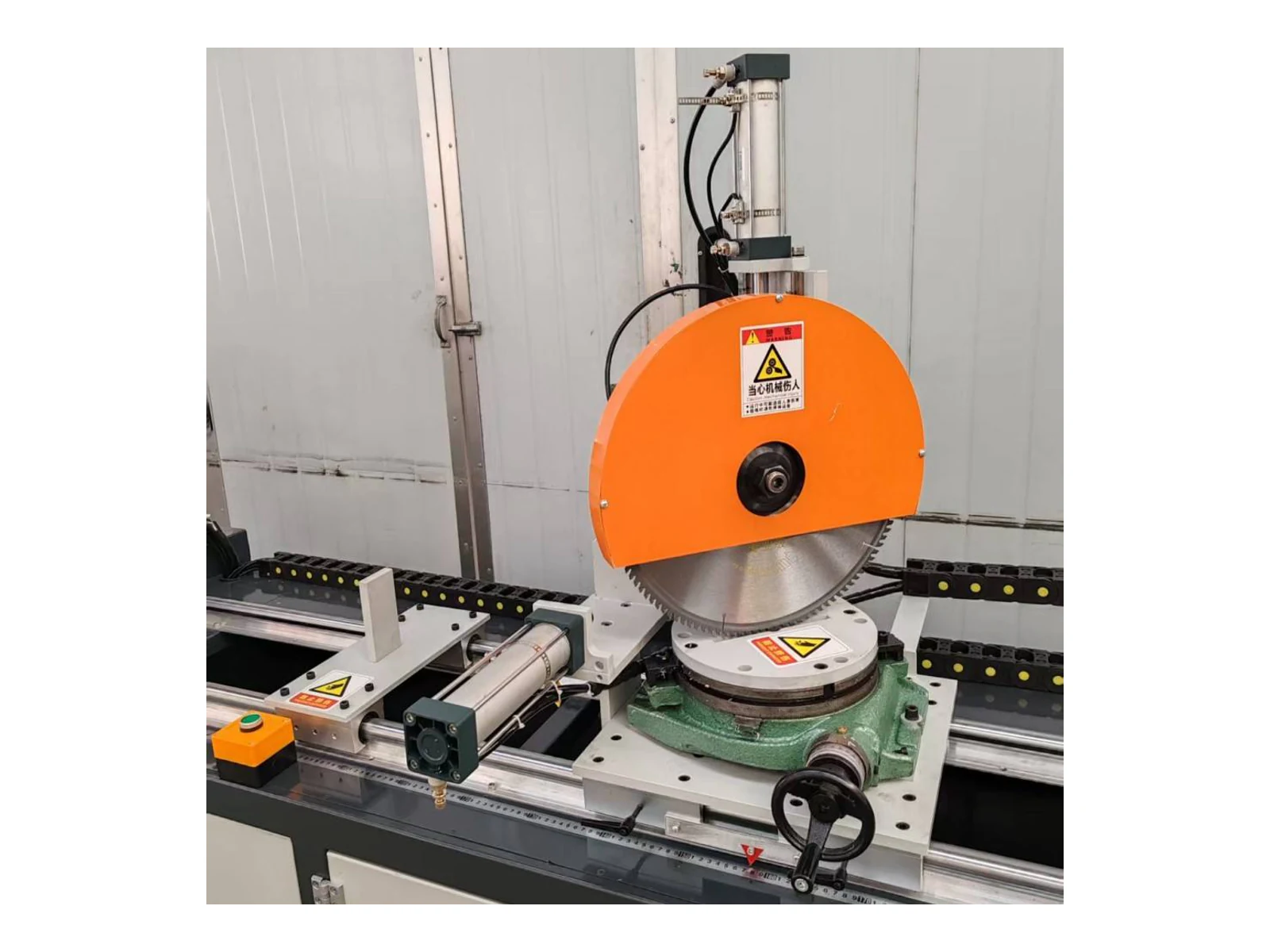

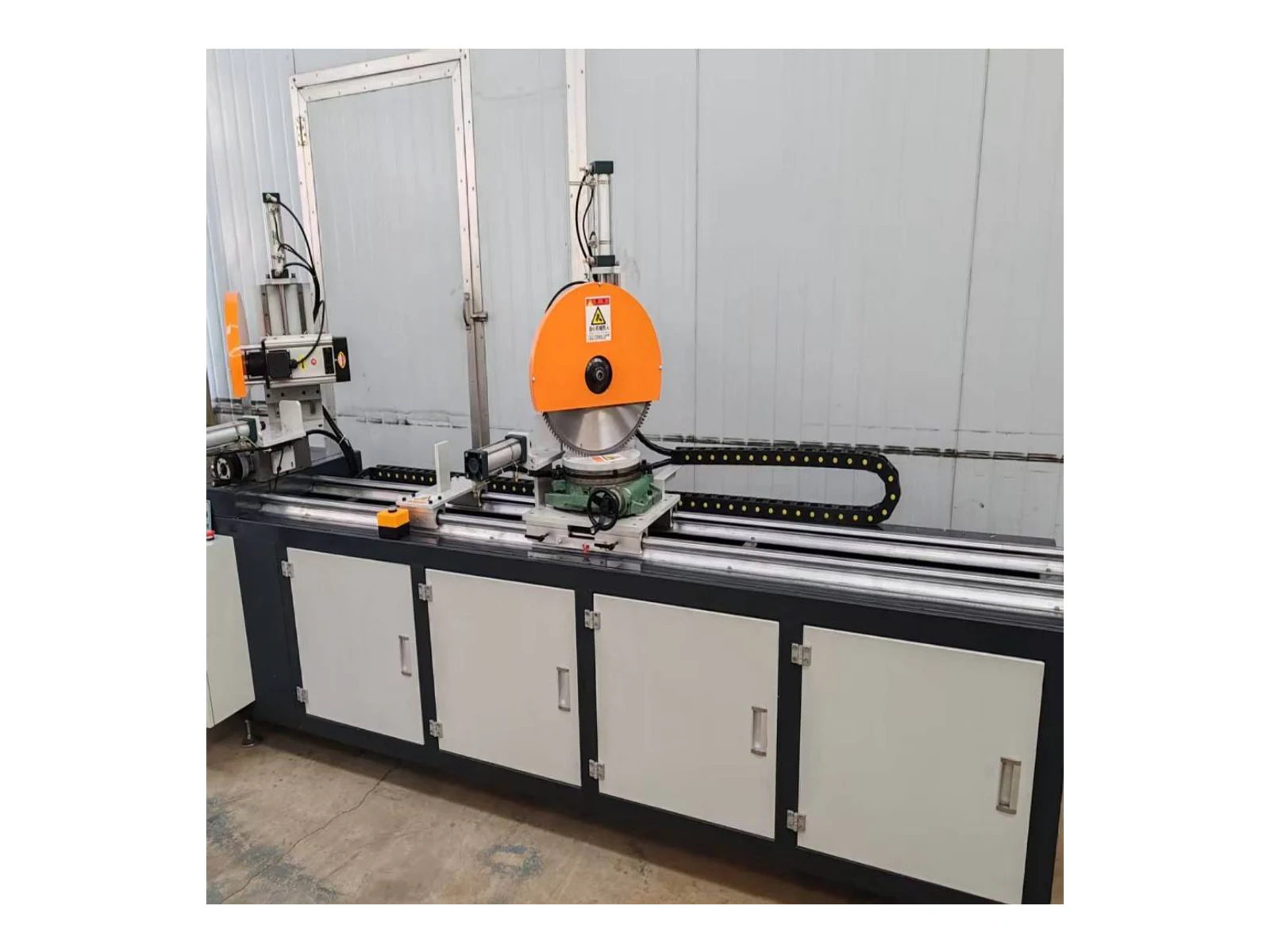

uPVC Door and Window Double-Angle Saw

Description

Double-angle saw for fixed-length cutting of aluminium-uPVC door and window profiles at -45-degree, 45-degree and 90-degree positions.

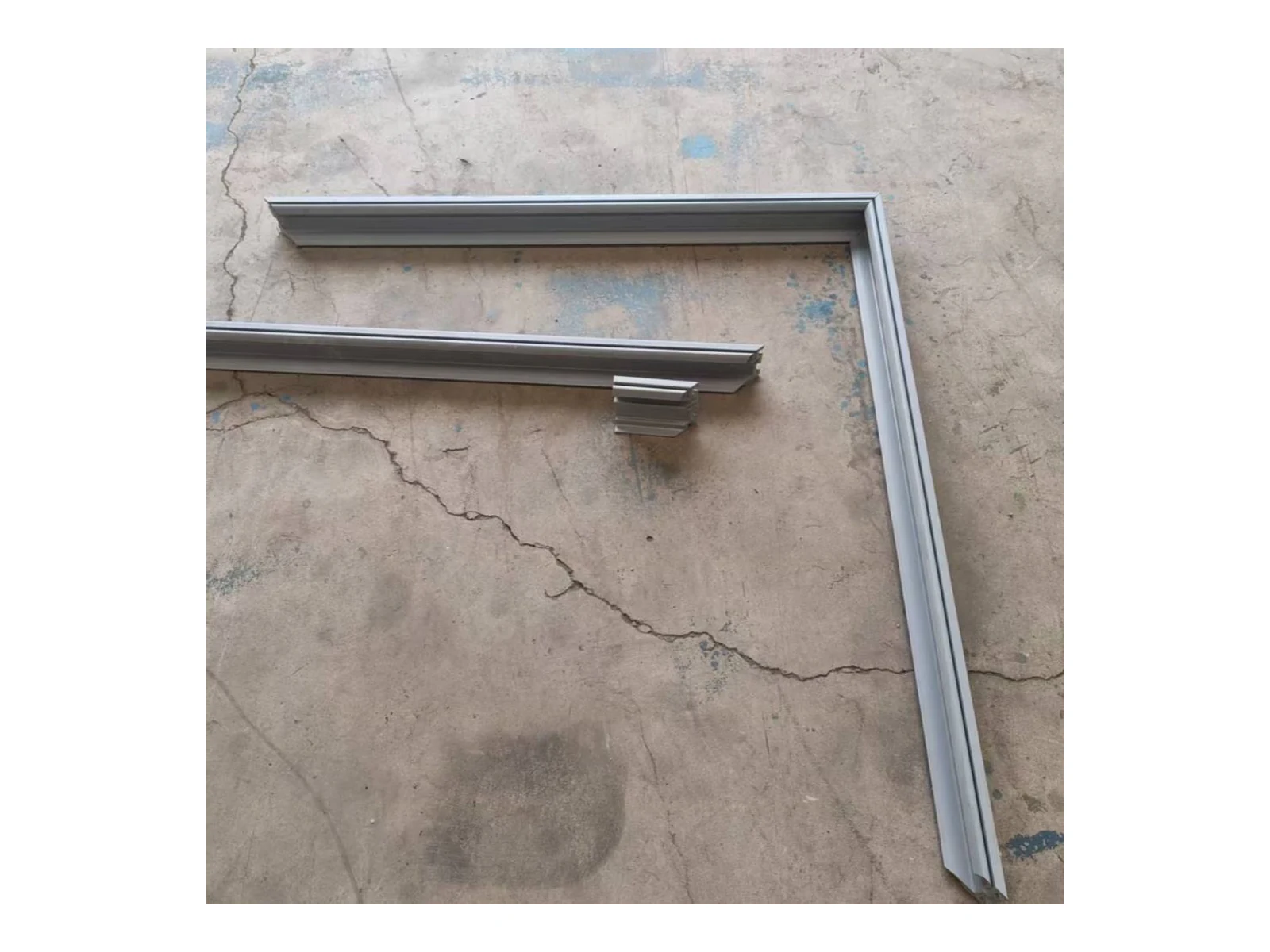

Cuts aluminium-uPVC profiles to a fixed length at -45-degree, 45-degree and 90-degree positions.
Adjustable angle limits support precision compensation.
A swing-type working method supports flexible setup.
Designed for straightforward profile positioning and operation.

Specifications

Working air pressure0.5-0.8 MPa

Air consumption100 L/min

Power supply380 V / 50 Hz

Input power2 x 1.1 kW

Spindle speed3,200 r/min

Cutting height100 mm

Cutting width200 mm

Cutting length290-3,500 mm

Overall dimensions4,000 x 1,120 x 1,450 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the SJ02-3500 uPVC cutting machine?

The SJ02-3500 is an uPVC cutting machine. It is catalogued as a double-angle saw for fixed-length cutting of aluminium-uPVC door and window profiles at -45-degree, 45-degree and 90-degree positions.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

SJ02-3500 FAQs

What is the SJ02-3500 uPVC cutting machine?

The SJ02-3500 is an uPVC cutting machine. It is catalogued as a double-angle saw for fixed-length cutting of aluminium-uPVC door and window profiles at -45-degree, 45-degree and 90-degree positions.

What profiles or operations is the SJ02-3500 designed for?

Cuts aluminium-uPVC profiles to a fixed length at -45-degree, 45-degree and 90-degree positions.

What is the working range of the SJ02-3500?

Cutting height: 100 mm; Cutting width: 200 mm; Cutting length: 290-3,500 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the SJ02-3500?

Working air pressure: 0.5-0.8 MPa; Air consumption: 100 L/min; Power supply: 380 V / 50 Hz. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the SJ02-3500?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
