SHZ1GC-140

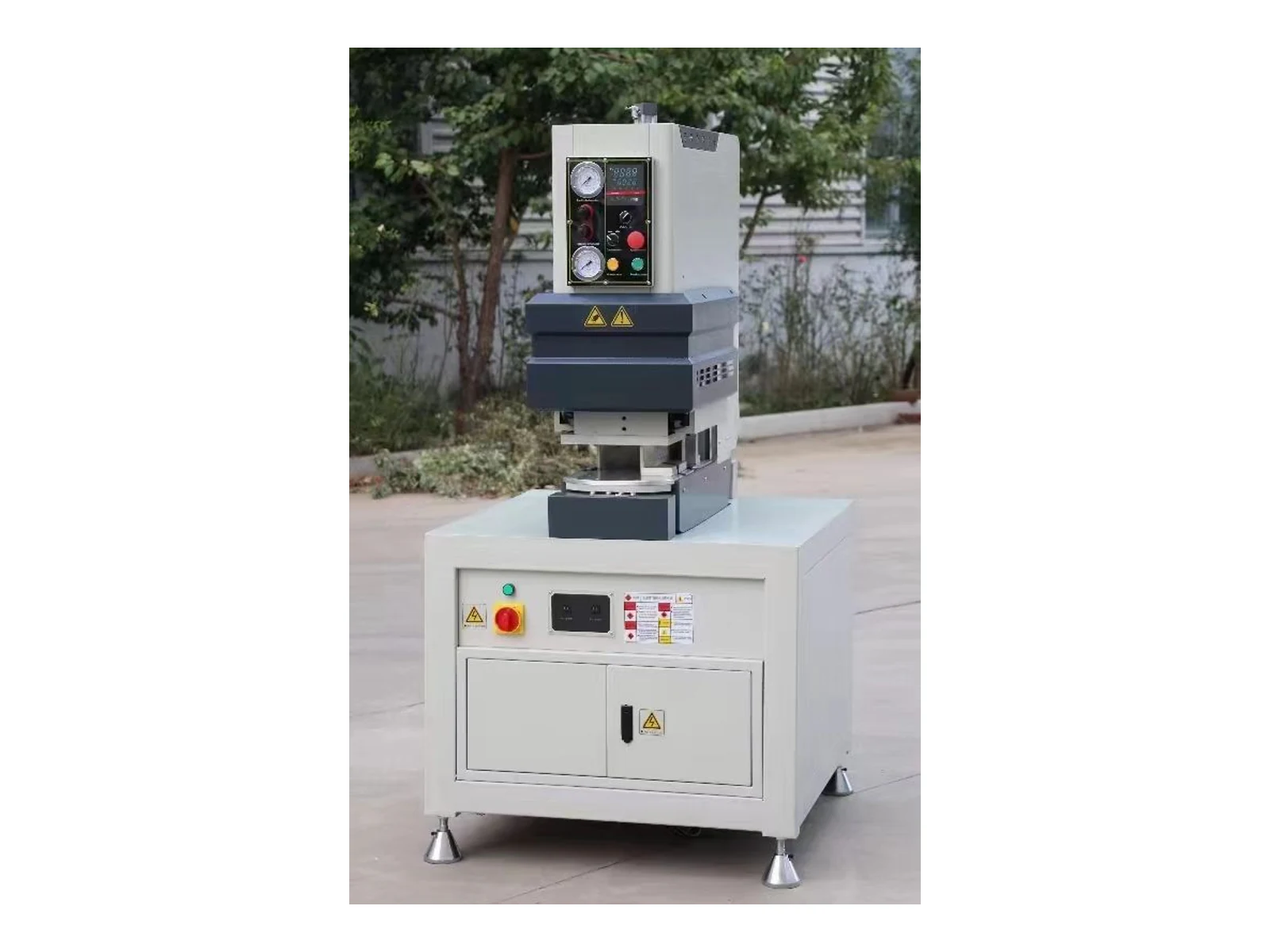

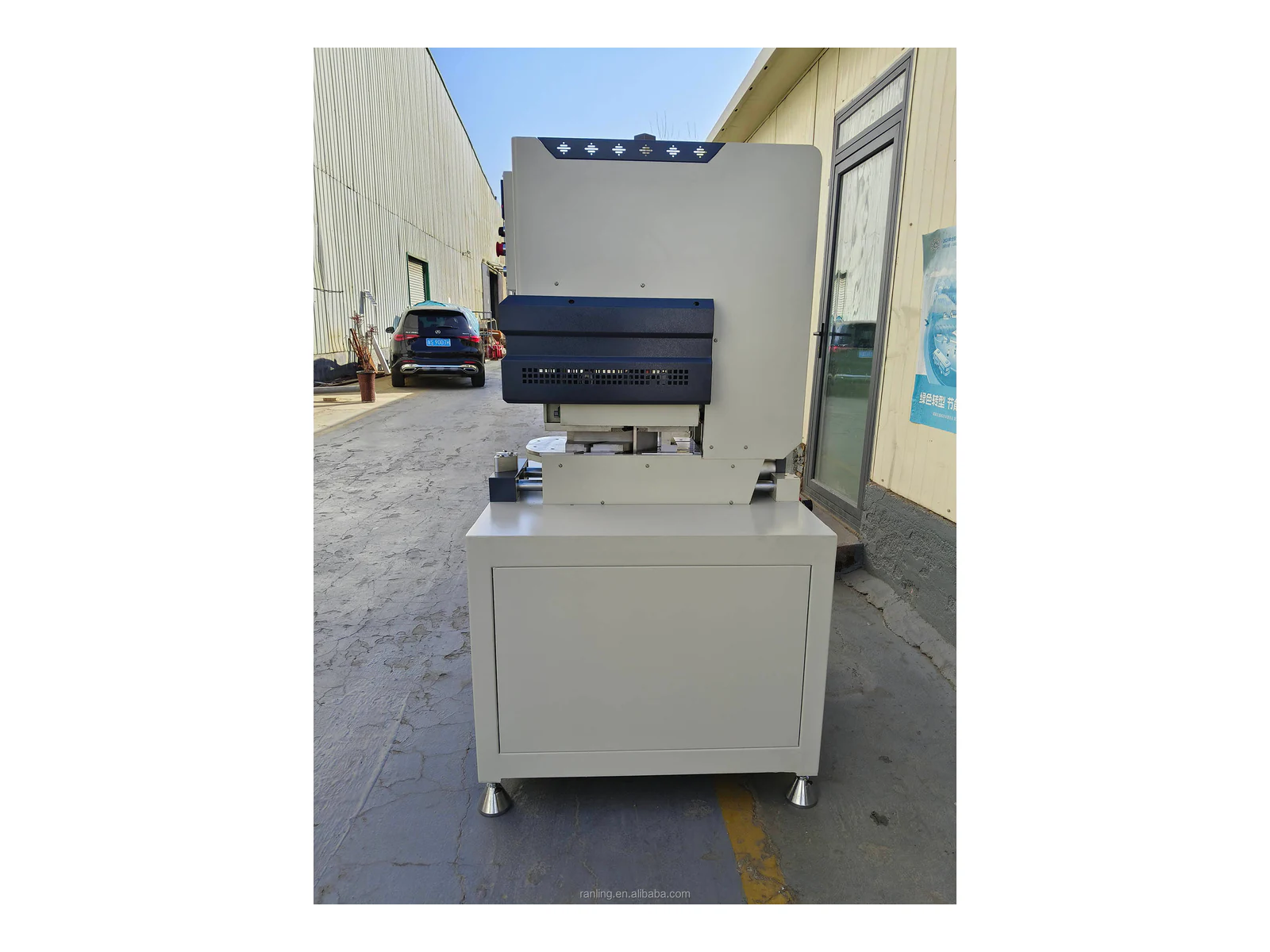

Heavy-Duty Single-Head Double-Sided Seamless Welding Machine

Description

Single-head seamless welding machine for colored uPVC profiles, including angled frame work with a suitable backing plate.

Welds colored uPVC profiles and cleans upper and lower surface flash.

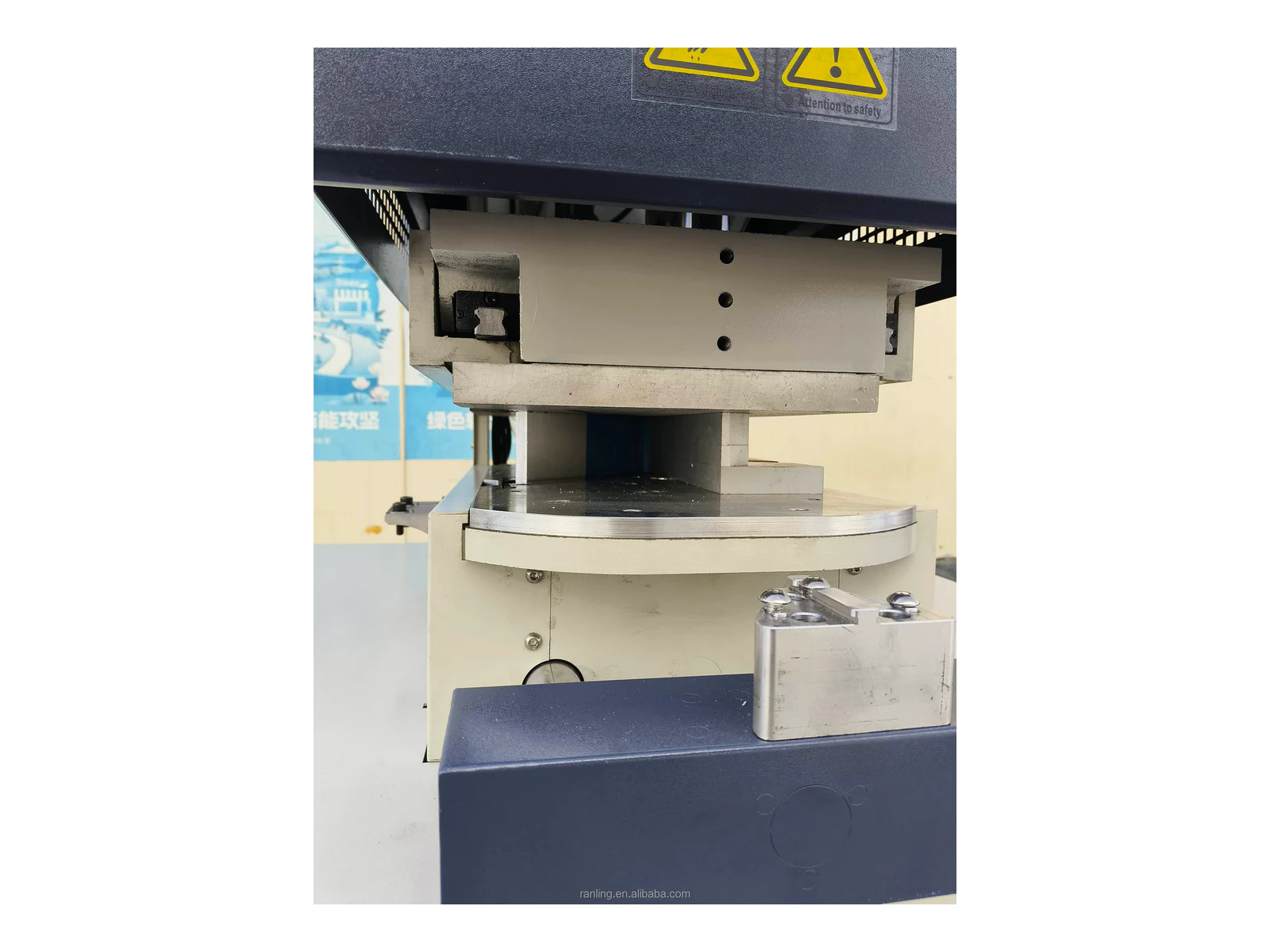

A special backing plate supports catalogued 60-180-degree frame welding.
Integral upper clamps and linear rails support stable operation.

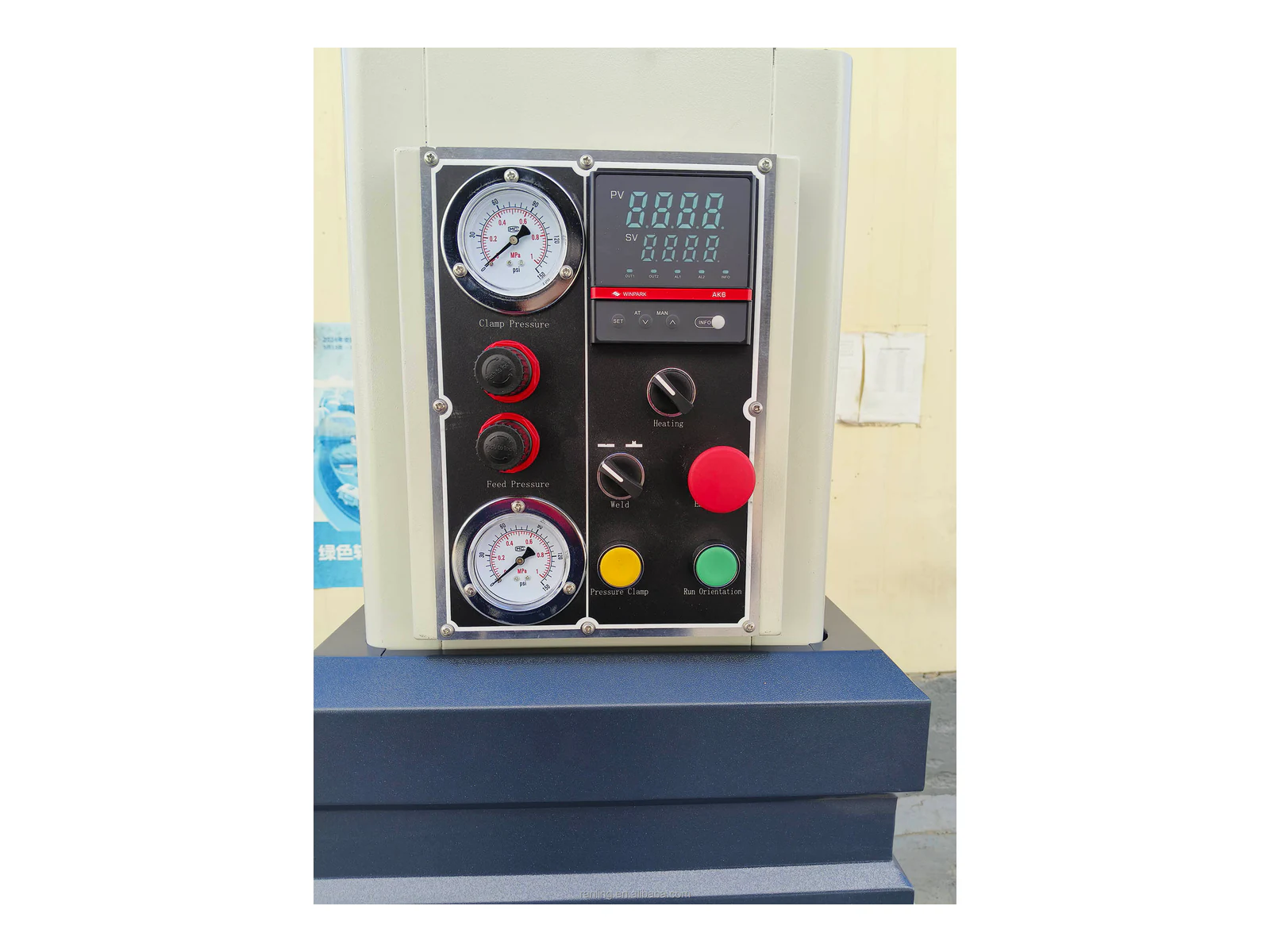

Programmable control manages welding actions and parameters.

Specifications

Power supply220 V / 50 Hz

Total power1.3 kW

Working air pressure0.6-0.8 MPa

Air consumption80 L/min

Welded profile width120 mm

Welded profile height25-140 mm

Overall dimensions980 x 980 x 1,760 mm

Weight950 kg

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the SHZ1GC-140 uPVC welding machine?

The SHZ1GC-140 is an uPVC welding machine. It is catalogued as a single-head seamless welding machine for colored uPVC profiles, including angled frame work with a suitable backing plate.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

SHZ1GC-140 FAQs

What is the SHZ1GC-140 uPVC welding machine?

The SHZ1GC-140 is an uPVC welding machine. It is catalogued as a single-head seamless welding machine for colored uPVC profiles, including angled frame work with a suitable backing plate.

What profiles or operations is the SHZ1GC-140 designed for?

Welds colored uPVC profiles and cleans upper and lower surface flash.

What is the working range of the SHZ1GC-140?

Welded profile width: 120 mm; Welded profile height: 25-140 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the SHZ1GC-140?

Power supply: 220 V / 50 Hz; Working air pressure: 0.6-0.8 MPa; Air consumption: 80 L/min. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the SHZ1GC-140?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
