SHZV4GC-140x4500

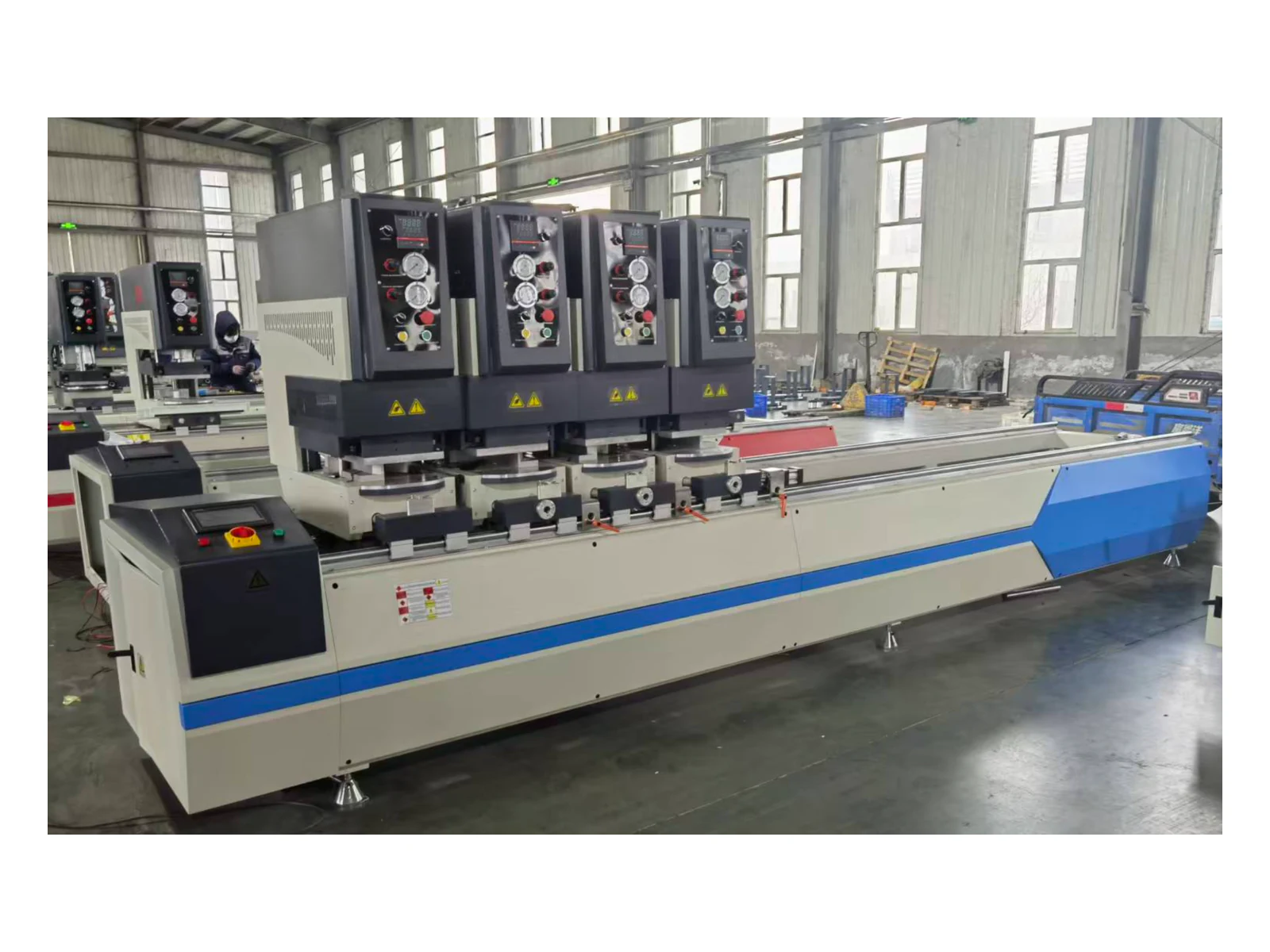

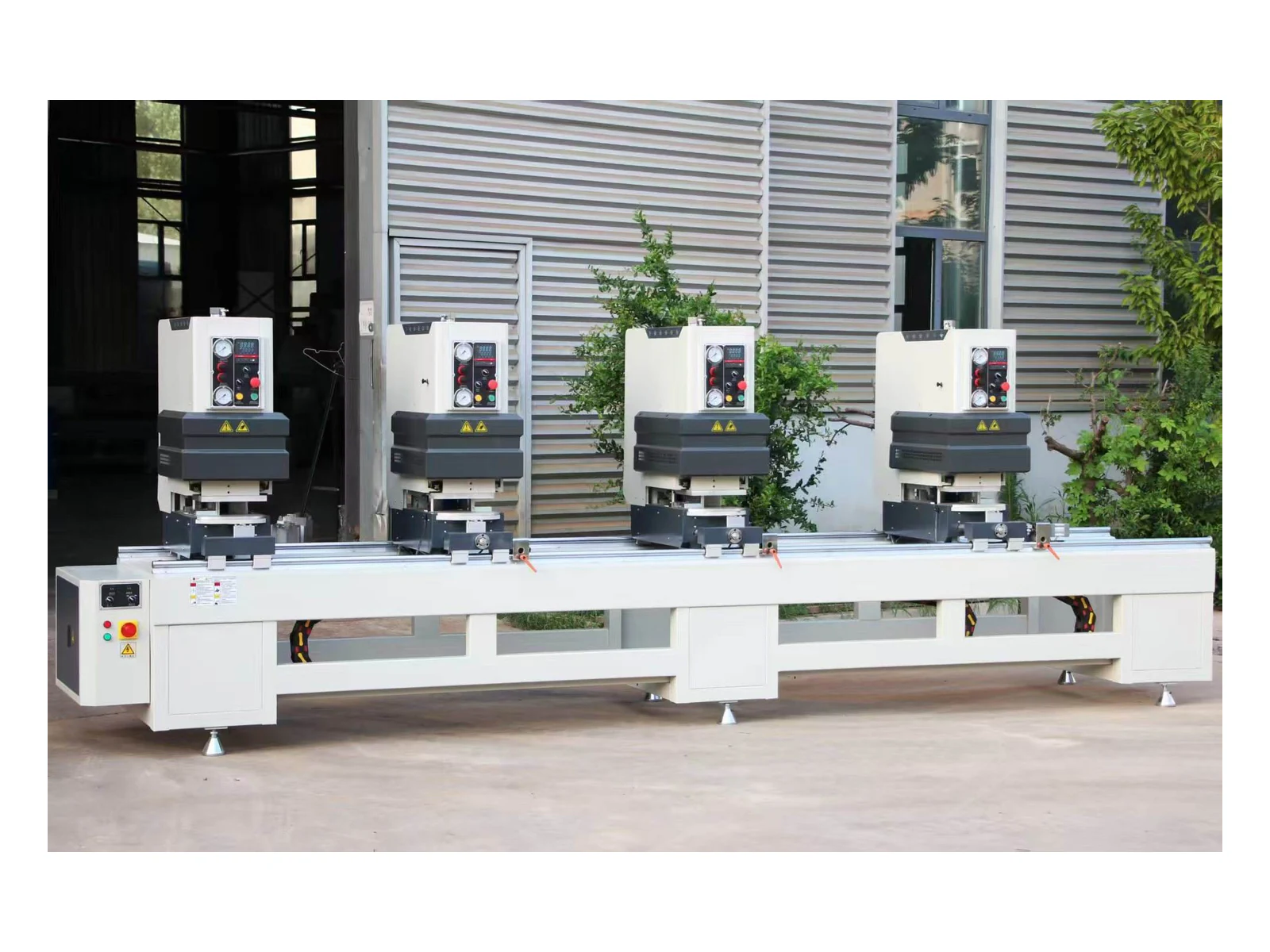

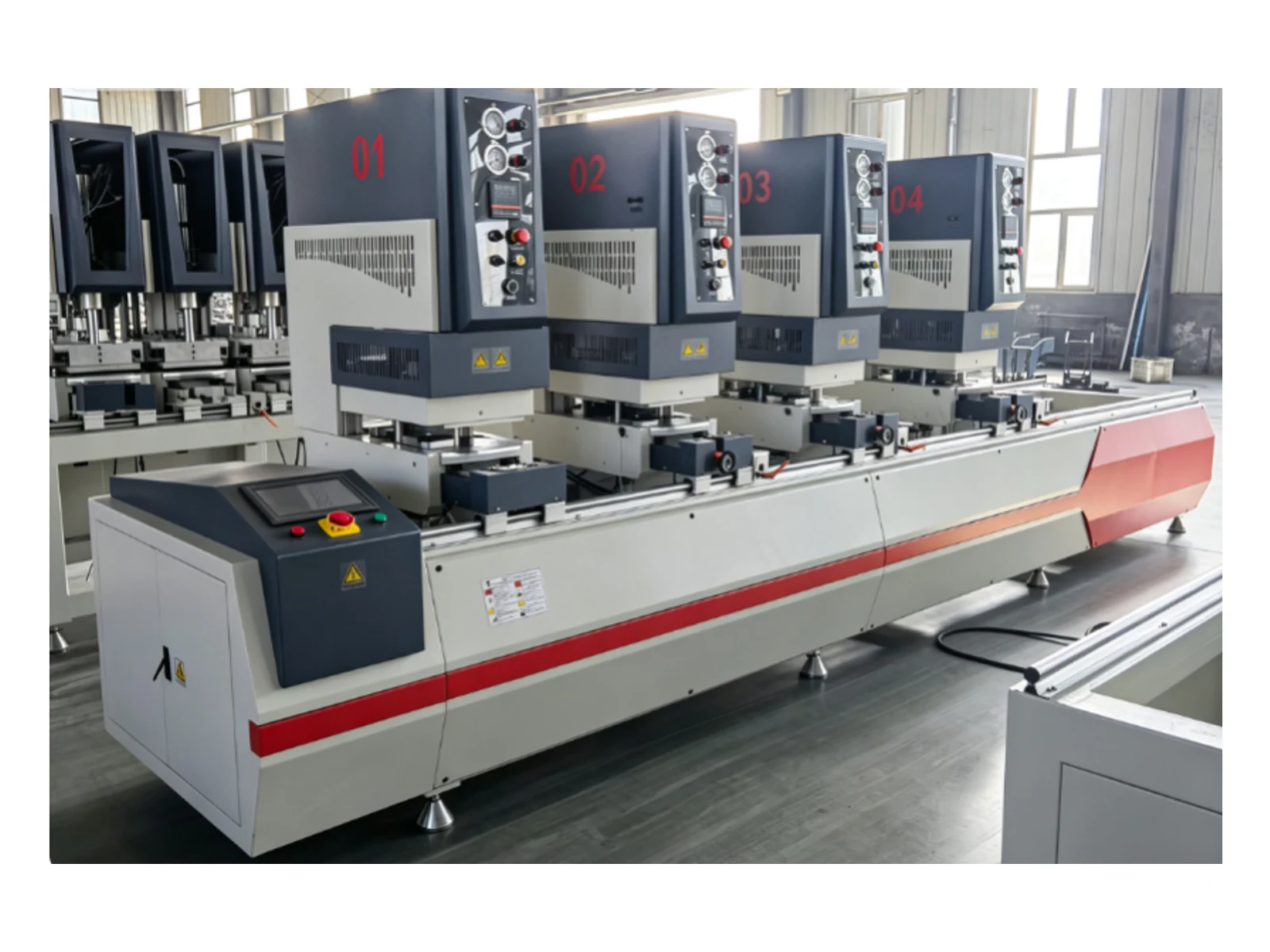

Four-Position Double-Sided Seamless Welding Machine

Description

Four-position seamless welding machine for colored uPVC door and window profiles, with simultaneous upper and lower flash cleaning.

Welds colored uPVC door and window profiles and cleans upper and lower surface flash in the same cycle.
Automatic seam and seamless conversion supports different welding processes.
Integral upper clamps and linear-rail support are designed for stable, repeatable feed.
Standardized co-extrusion cutters support interchangeability.

Specifications

Power supply220 V / 50 Hz

Total power5.2 kW

Working air pressure0.6-0.8 MPa

Air consumption300 L/min

Welded profile width120 mm

Welded profile height25-140 mm

Welding range435-4,300 mm

Overall dimensions5,470 x 1,060 x 1,850 mm

Weight1,700 kg

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Direct answer

What is the SHZV4GC-140x4500 uPVC welding machine?

The SHZV4GC-140x4500 is an uPVC welding machine. It is catalogued as a four-position seamless welding machine for colored uPVC door and window profiles, with simultaneous upper and lower flash cleaning.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

SHZV4GC-140x4500 FAQs

What is the SHZV4GC-140x4500 uPVC welding machine?

What profiles or operations is the SHZV4GC-140x4500 designed for?

Welds colored uPVC door and window profiles and cleans upper and lower surface flash in the same cycle.

What is the working range of the SHZV4GC-140x4500?

Welded profile width: 120 mm; Welded profile height: 25-140 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the SHZV4GC-140x4500?

Power supply: 220 V / 50 Hz; Working air pressure: 0.6-0.8 MPa; Air consumption: 300 L/min. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the SHZV4GC-140x4500?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
