TM-02

Single-Head Cutting Saw for uPVC Doors and Windows

Description

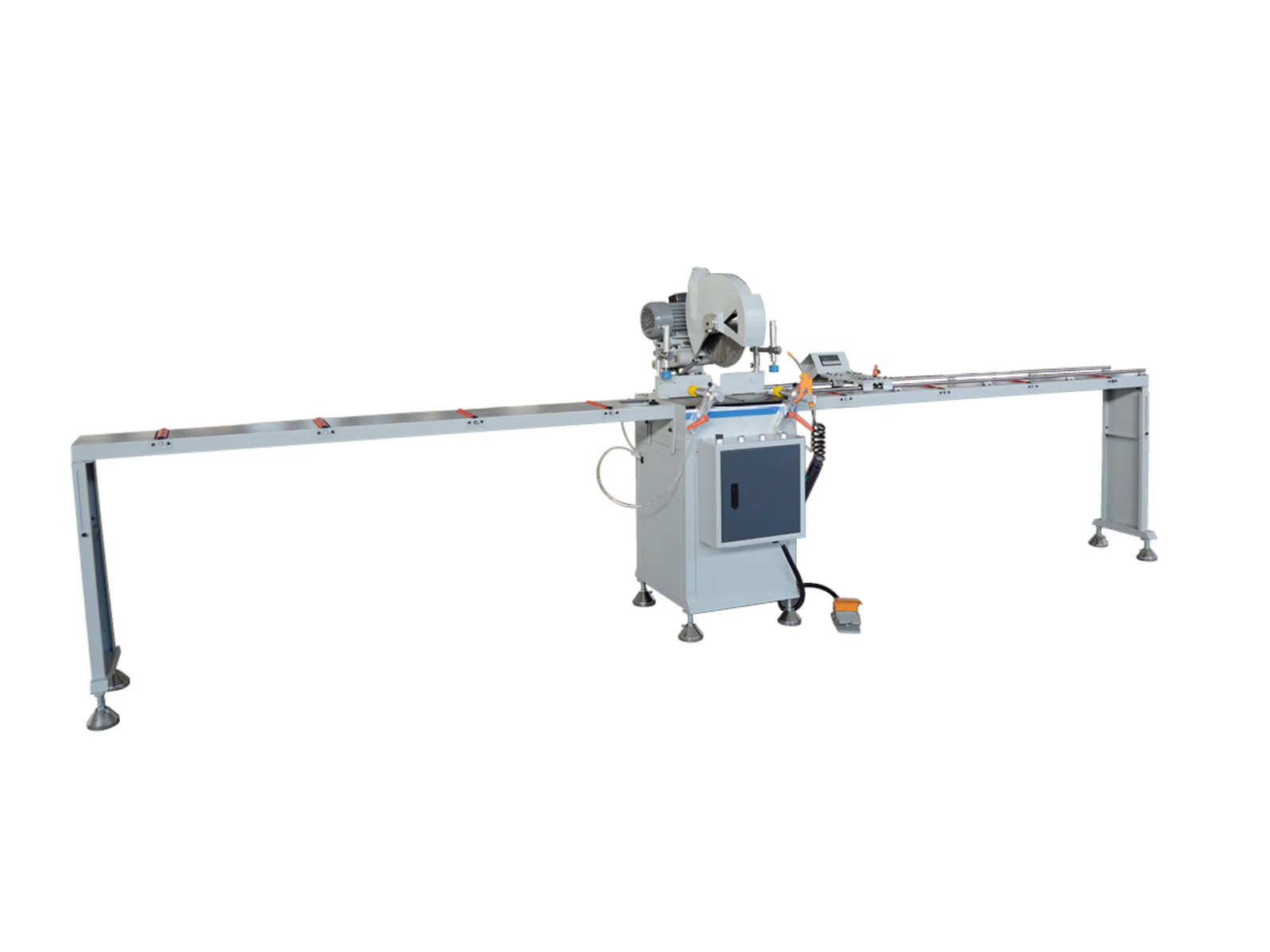

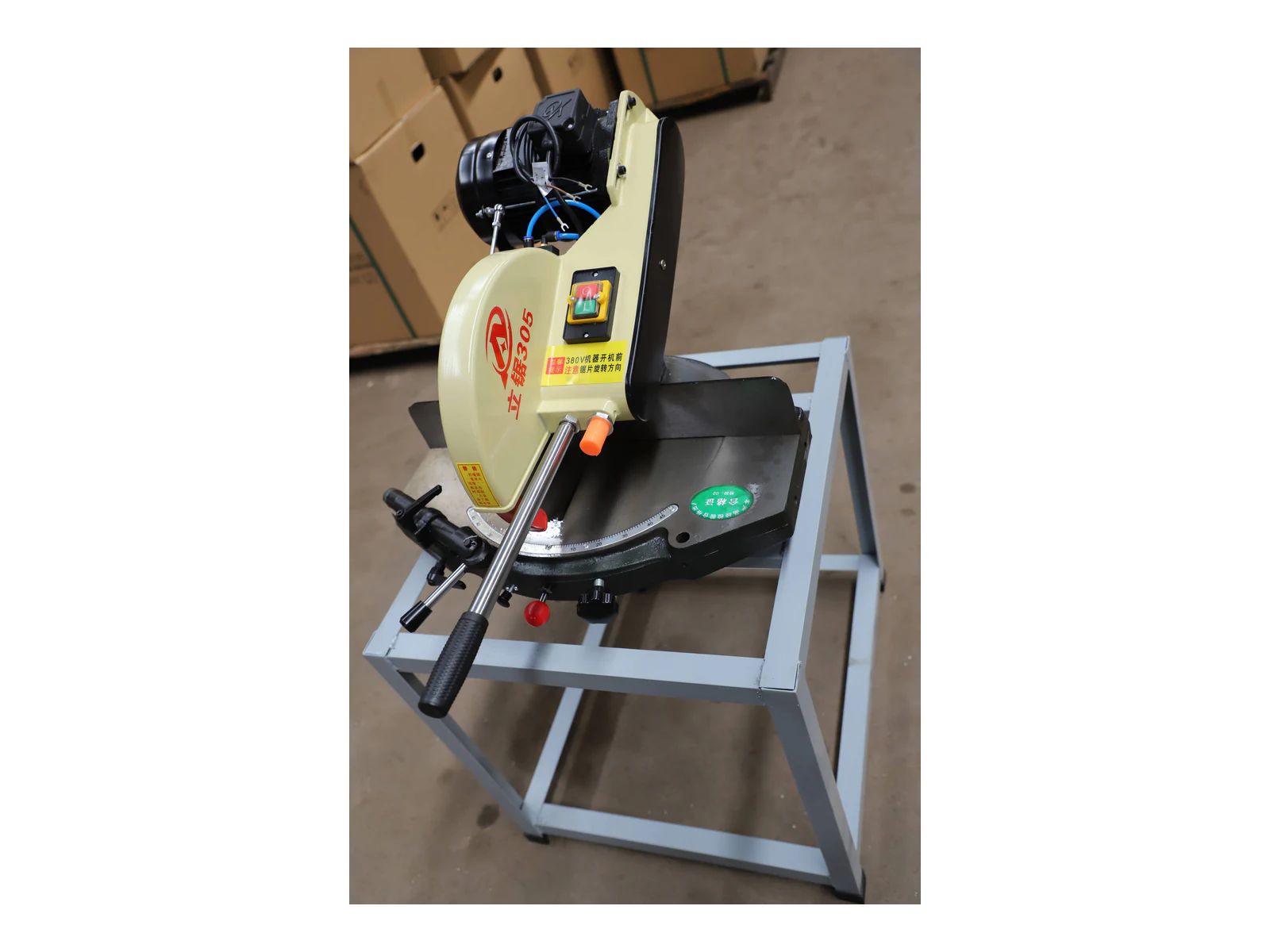

Compact swing-type single-head saw for fixed-length cutting of aluminium alloy and uPVC door and window profiles.

Processes aluminium alloy and uPVC profiles at -45-degree, 45-degree and 90-degree positions.

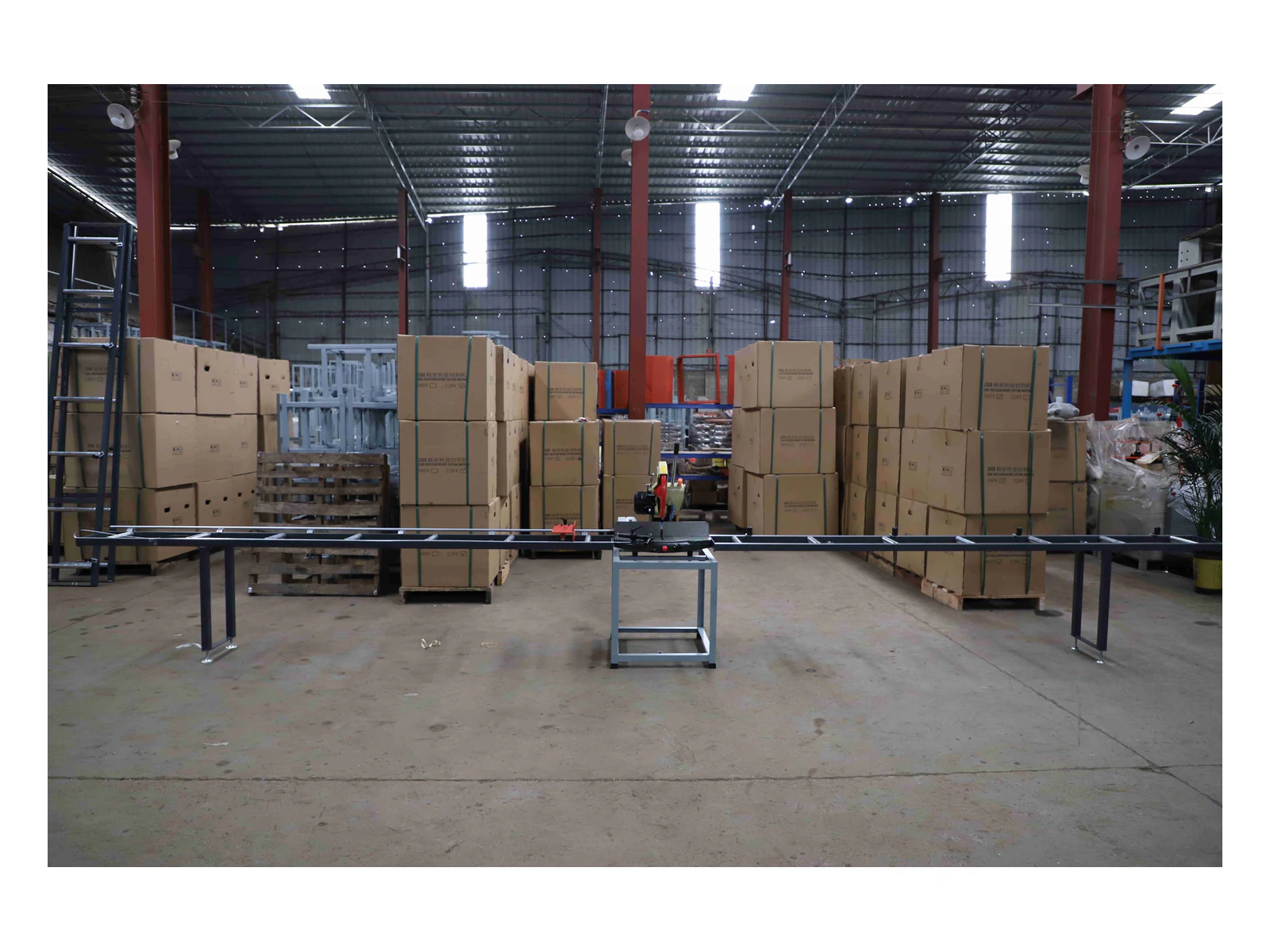

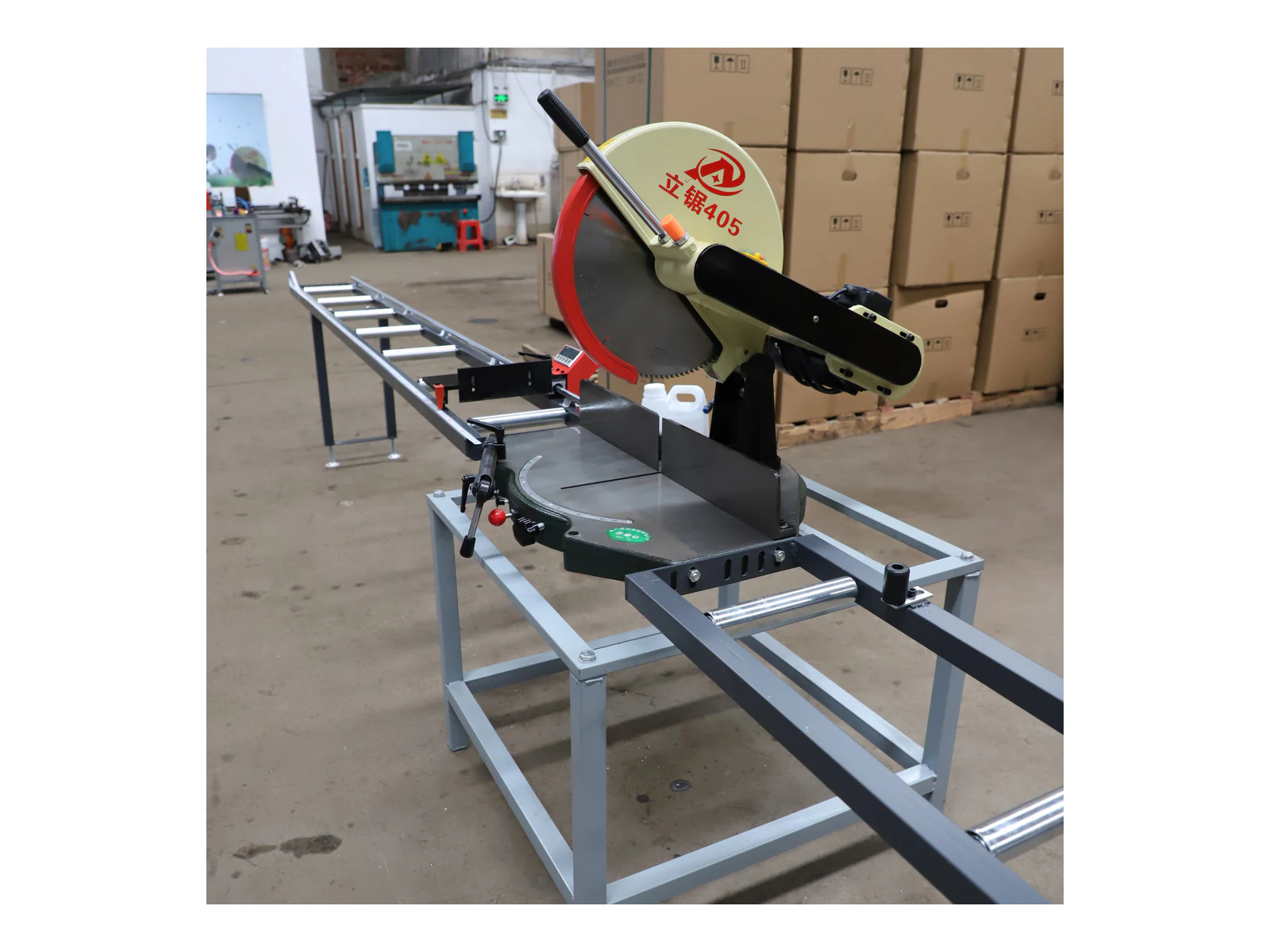

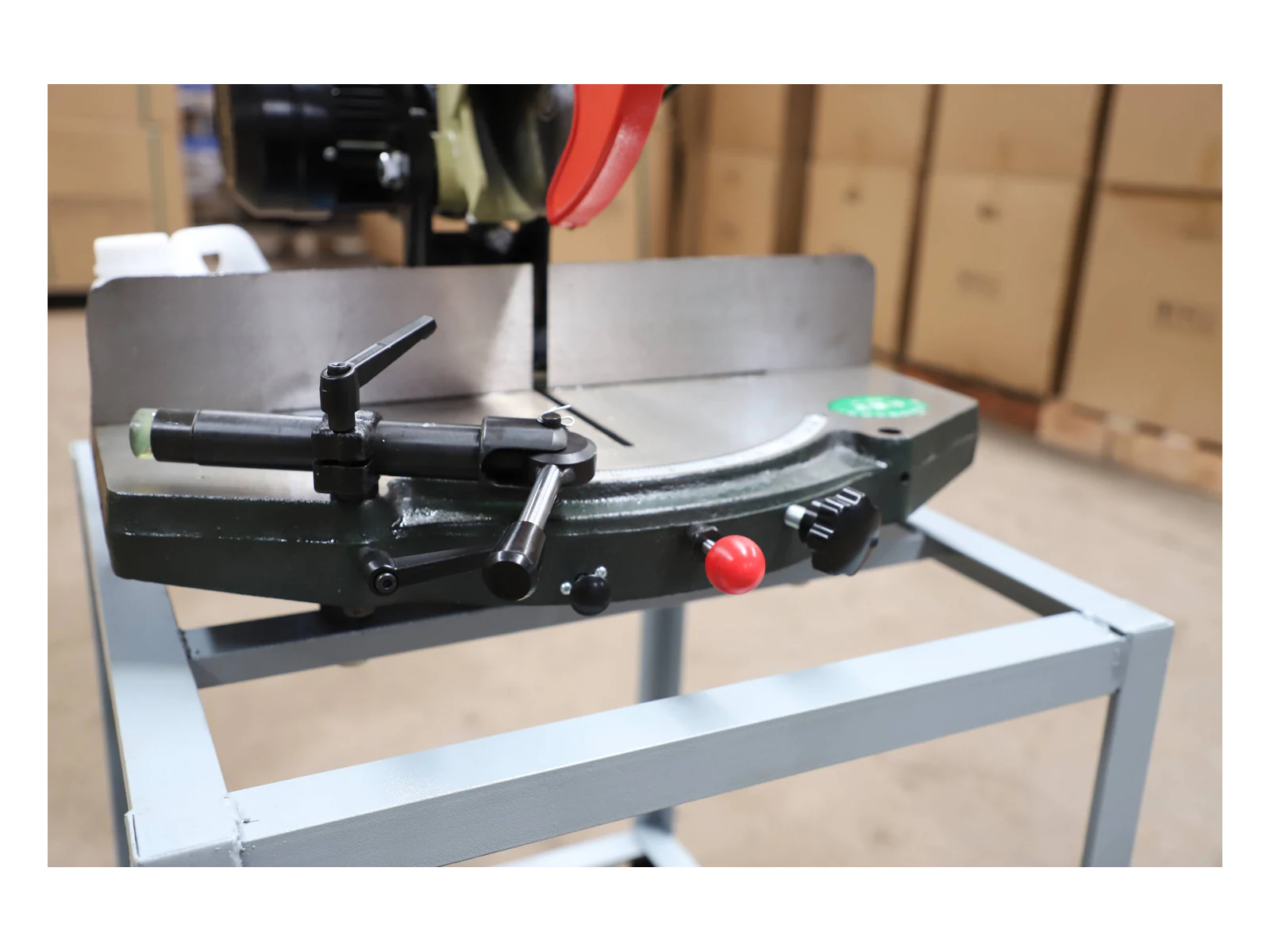

Adjustable cutting-angle limits and two-metre digital feeding racks support repeatable positioning.
A compact, rigid structure combines flexible operation with efficient production.

Specifications

Working air pressure0.5-0.8 MPa

Power supply380 V / 50 Hz

Input power1.1 kW

Spindle rotational speed3,200 r/min

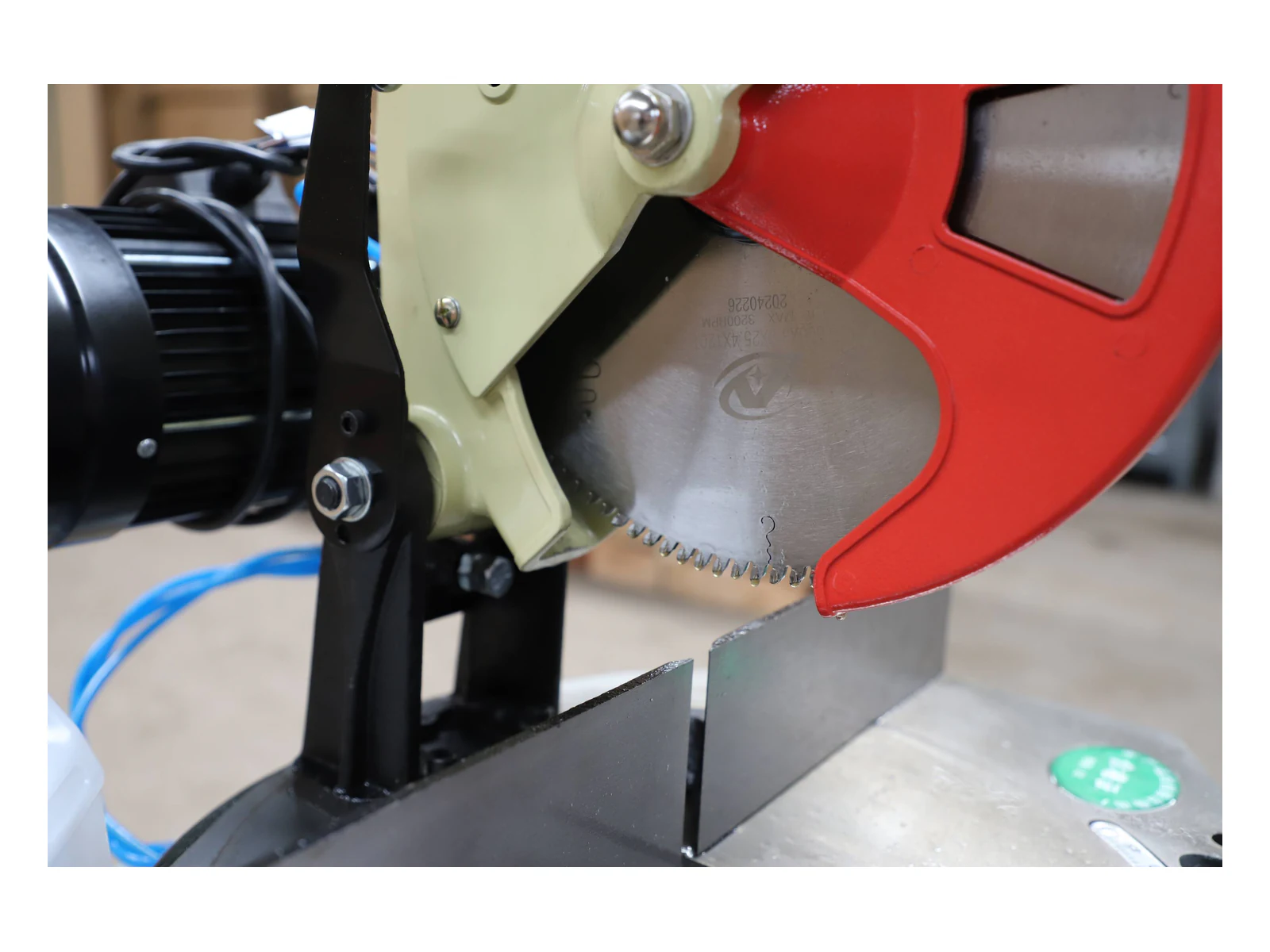

Saw blade350 mm diameter; 30 mm bore

Cutting height100 mm

Cutting width200 mm

Overall dimensions4,500 x 1,120 x 1,500 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the TM-02 uPVC cutting machine?

The TM-02 is an uPVC cutting machine. It is catalogued as a compact swing-type single-head saw for fixed-length cutting of aluminium alloy and uPVC door and window profiles.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

TM-02 FAQs

What is the TM-02 uPVC cutting machine?

The TM-02 is an uPVC cutting machine. It is catalogued as a compact swing-type single-head saw for fixed-length cutting of aluminium alloy and uPVC door and window profiles.

What profiles or operations is the TM-02 designed for?

Processes aluminium alloy and uPVC profiles at -45-degree, 45-degree and 90-degree positions.

What is the working range of the TM-02?

Cutting height: 100 mm; Cutting width: 200 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the TM-02?

Working air pressure: 0.5-0.8 MPa; Power supply: 380 V / 50 Hz; Input power: 1.1 kW. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the TM-02?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
