SCX01-2

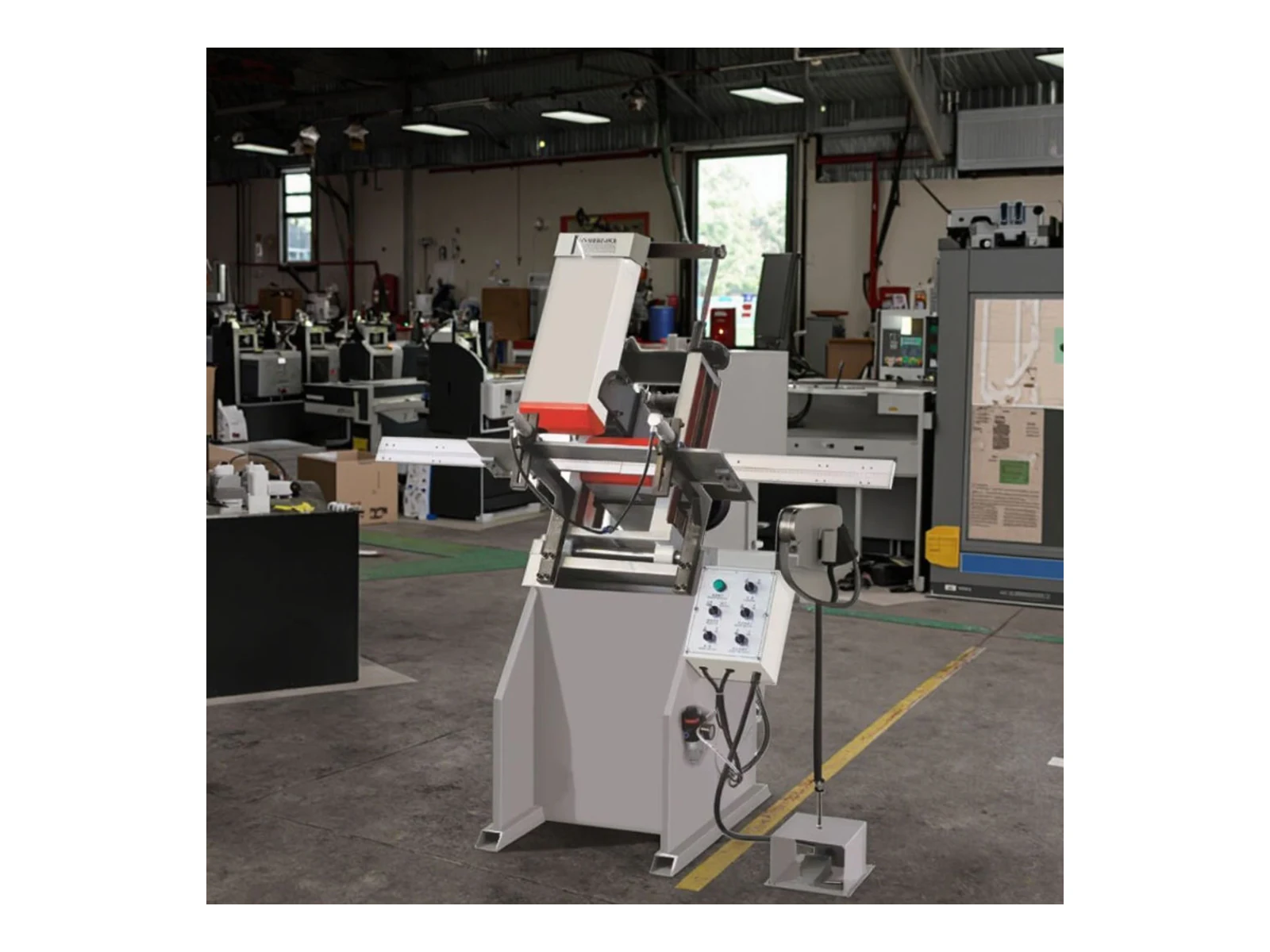

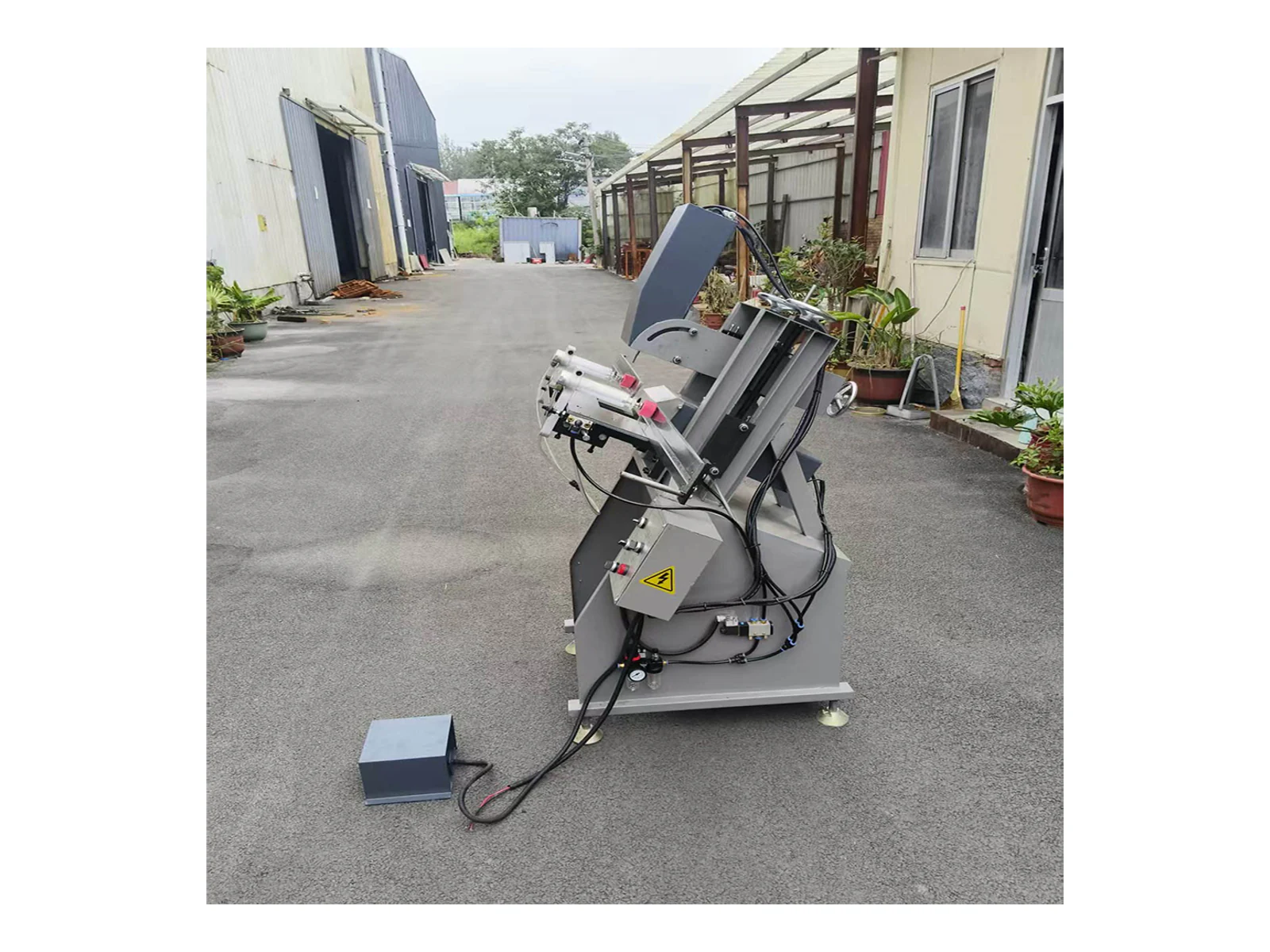

Automatic Water-Slot Milling Machine

Description

Two-head automatic milling machine for water slots and pressure-balance grooves in uPVC window profiles.

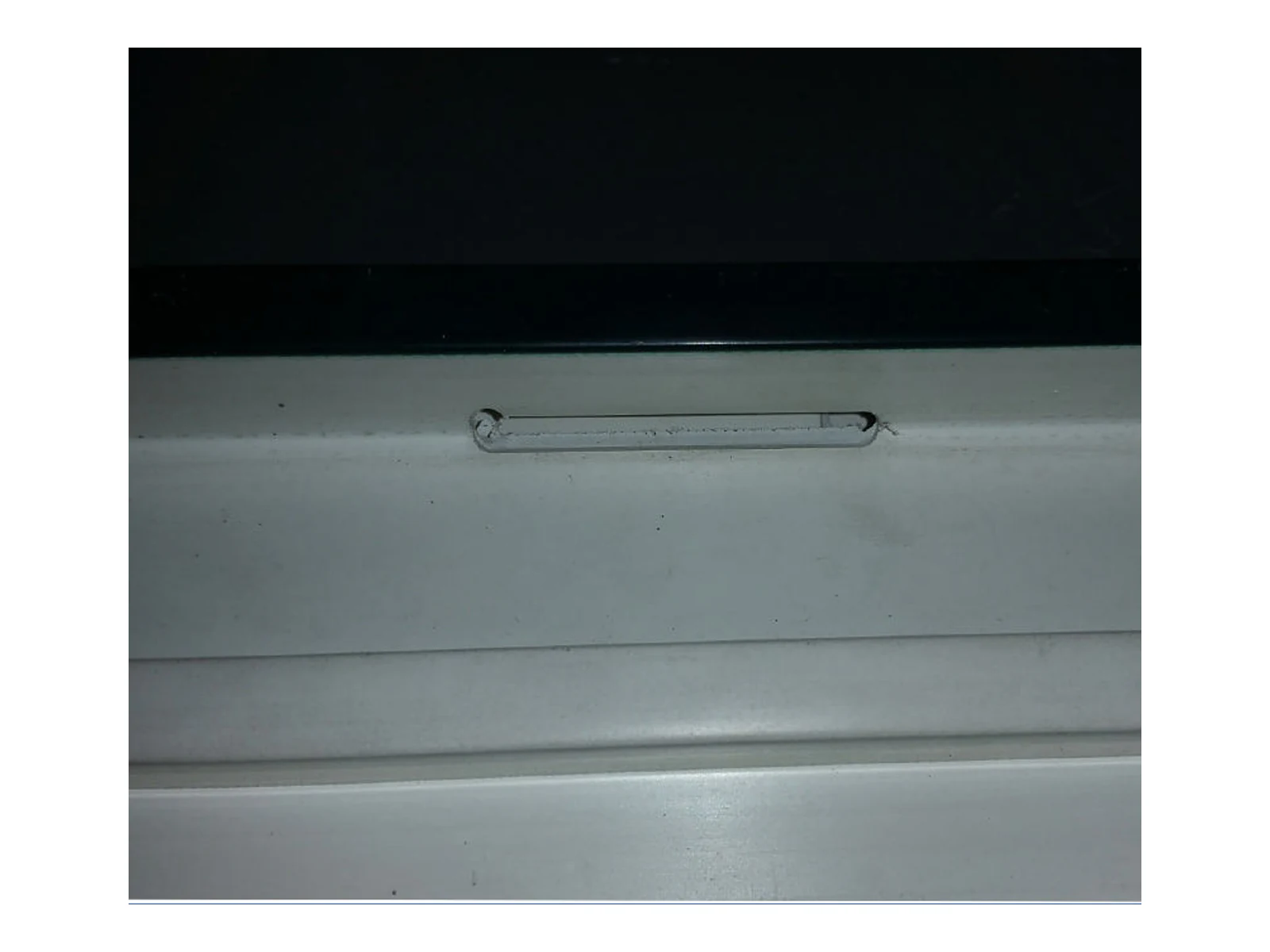

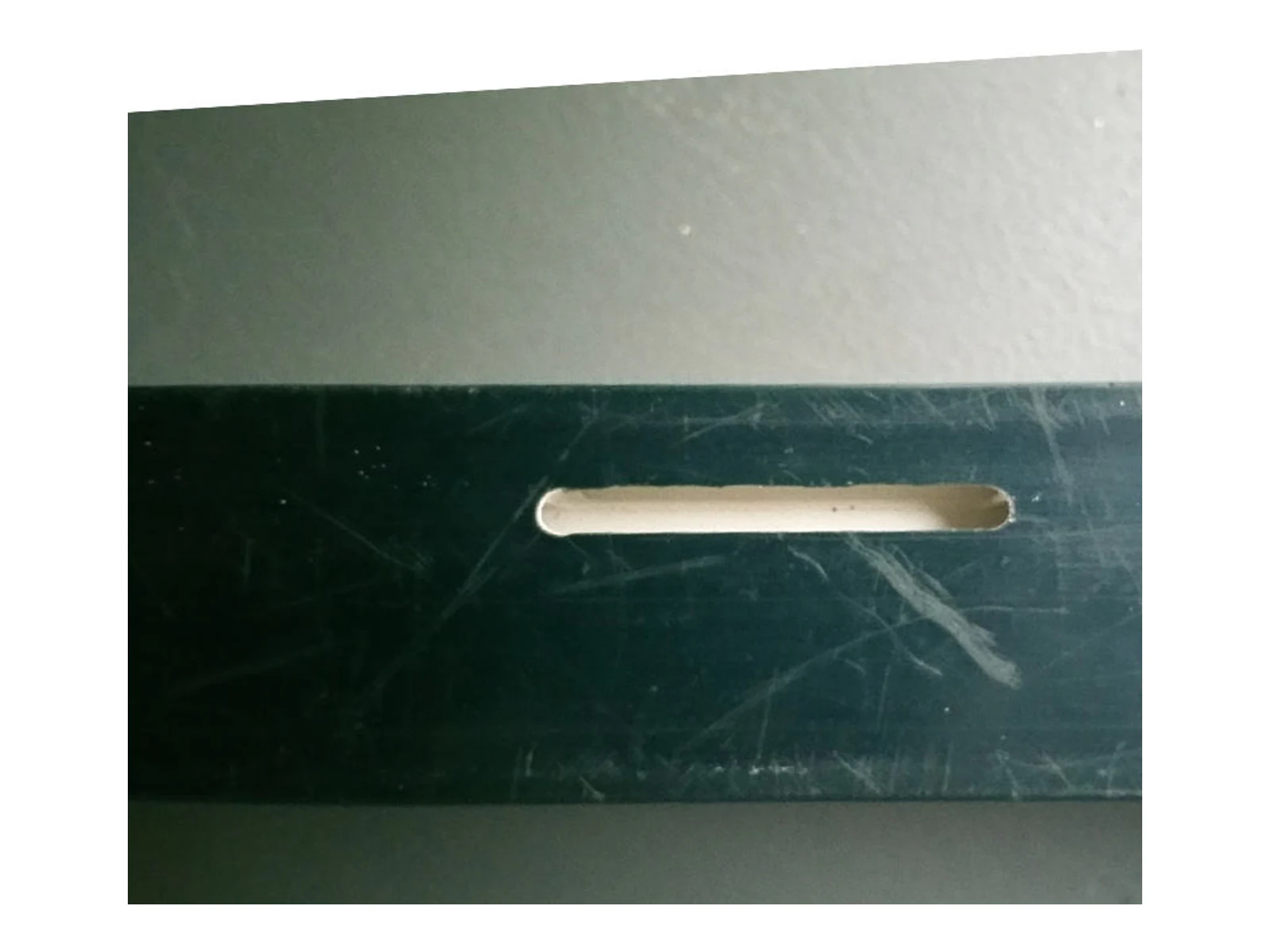

Mills water slots and pressure-balance grooves.
Independent cutter feeds support low-maintenance milling.
Slot length adjusts across the catalogued range.
Upper and lower heads process symmetrical slots at both profile ends.

Specifications

Input power4 x 0.45 kW

Power supply220 V / 50 Hz

Working air pressure0.5-0.8 MPa

Air consumption15 L/min

Motor rotational speed25,000 r/min

Cutter diameter5 x 4 mm

Milling groove depth30 mm

Milling groove length30-60 mm

Overall dimensions1,925 x 750 x 1,600 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the SCX01-2 uPVC milling & routing machine?

The SCX01-2 is an uPVC milling & routing machine. It is catalogued as a two-head automatic milling machine for water slots and pressure-balance grooves in uPVC window profiles.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

SCX01-2 FAQs

What is the SCX01-2 uPVC milling & routing machine?

The SCX01-2 is an uPVC milling & routing machine. It is catalogued as a two-head automatic milling machine for water slots and pressure-balance grooves in uPVC window profiles.

What profiles or operations is the SCX01-2 designed for?

Mills water slots and pressure-balance grooves.

What is the working range of the SCX01-2?

Input power: 4 x 0.45 kW; Power supply: 220 V / 50 Hz; Working air pressure: 0.5-0.8 MPa. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the SCX01-2?

Input power: 4 x 0.45 kW; Power supply: 220 V / 50 Hz; Working air pressure: 0.5-0.8 MPa. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the SCX01-2?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
