LXF-120

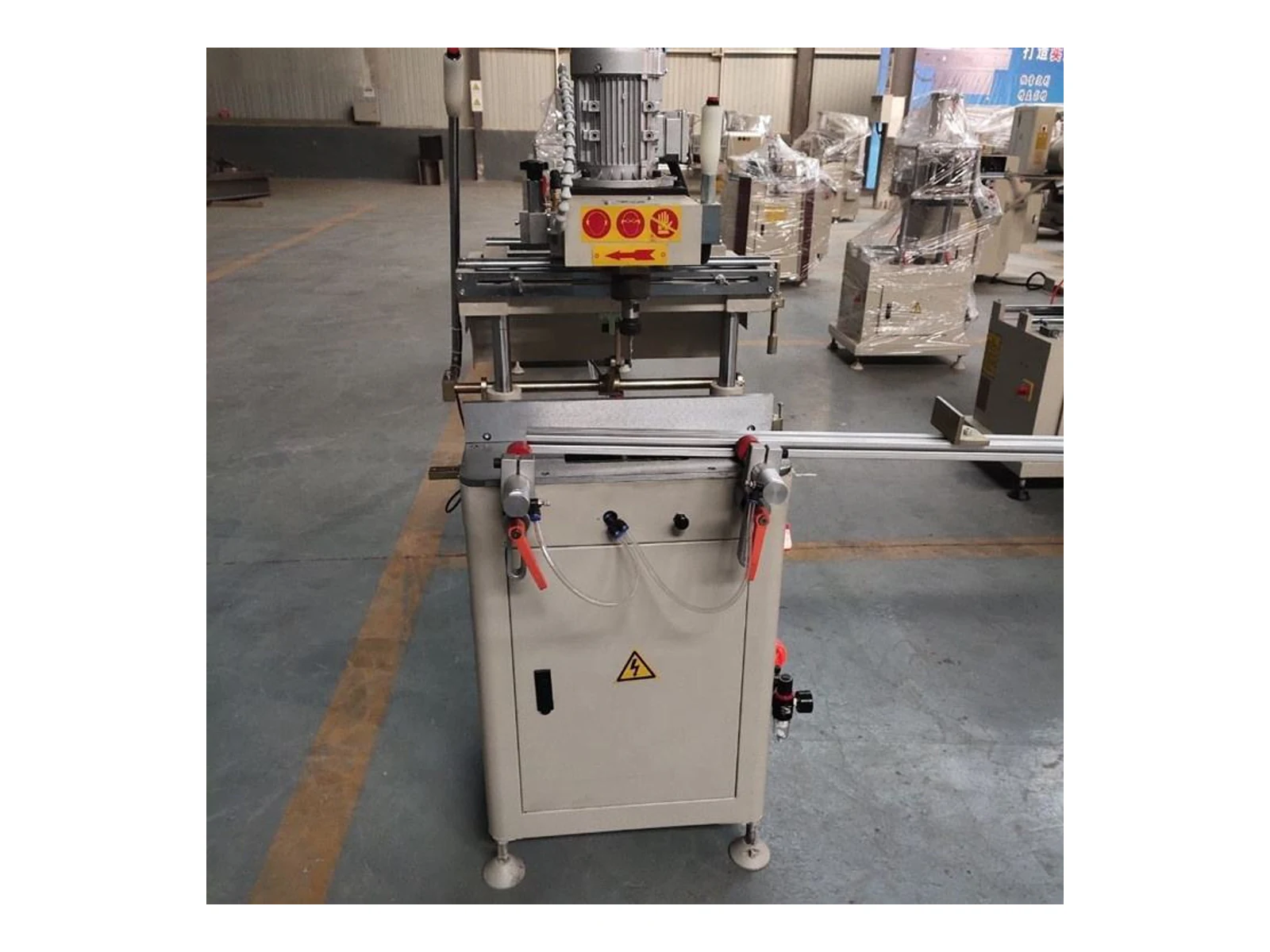

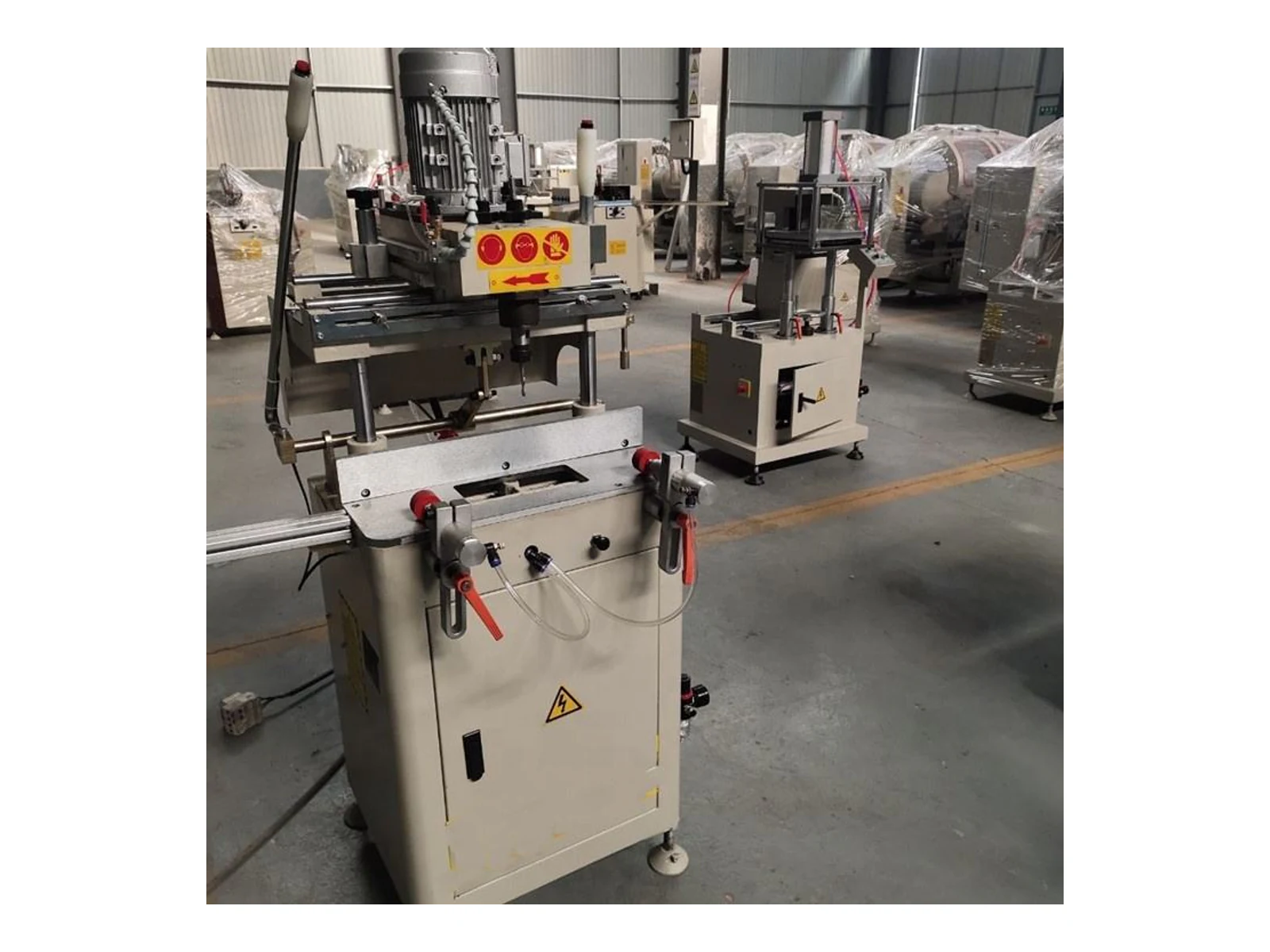

High-Speed Single-Axis Profile Milling Machine

Description

Single-axis high-speed milling machine for aluminium and uPVC profile holes and grooves.

Mills profile holes and grooves with compact single-axis operation.

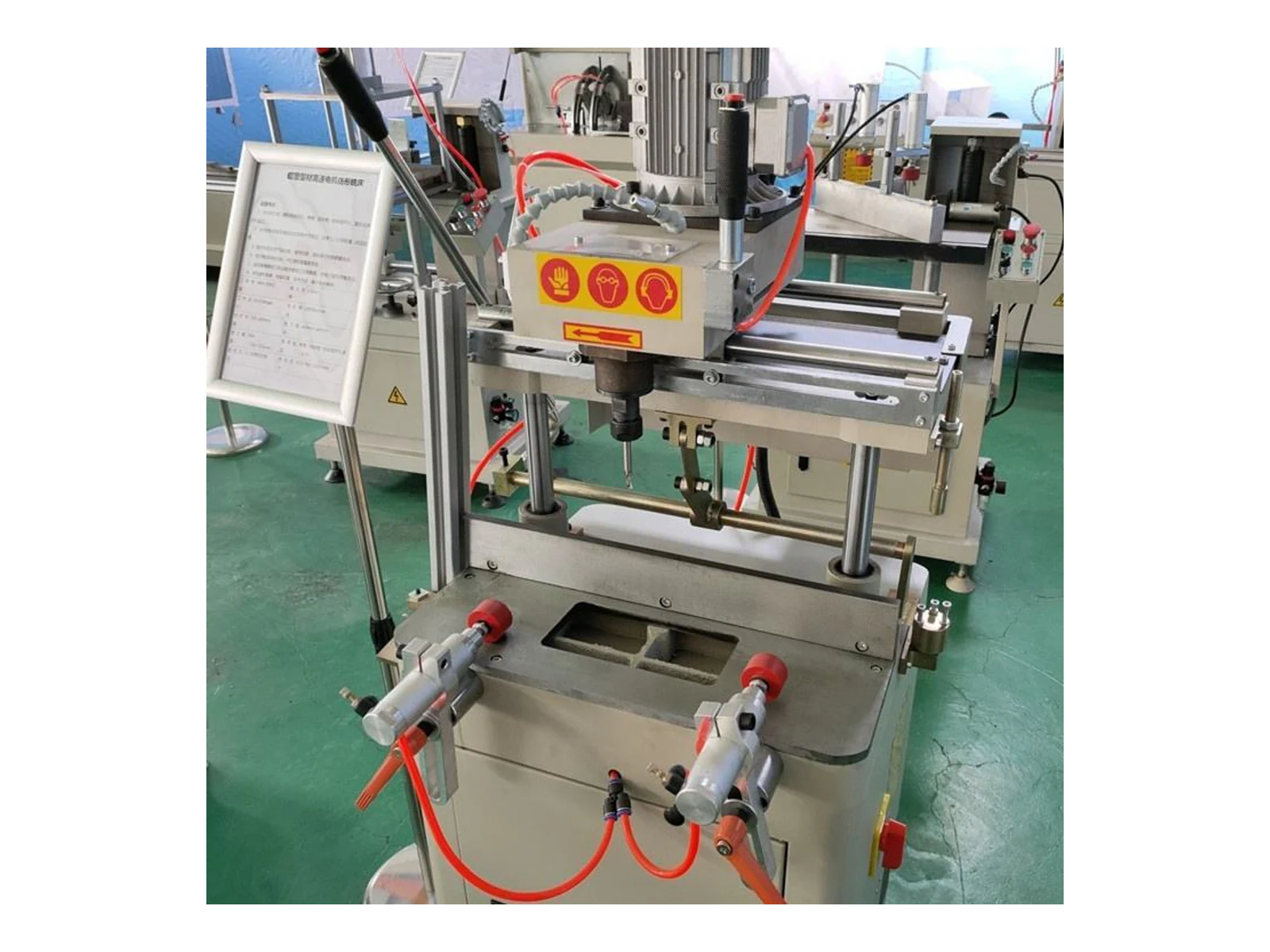

Uses interchangeable milling cutters for different operations.
The working schedule and cutter height are adjustable.

Specifications

Power supply380 V / 50 Hz

Input power1.14 kW

Working air pressure0.5-0.8 MPa

Speed12,000 r/min

Milling cutter diameter32 mm

Adjustment range0-80 mm

Milling cutter height70 mm

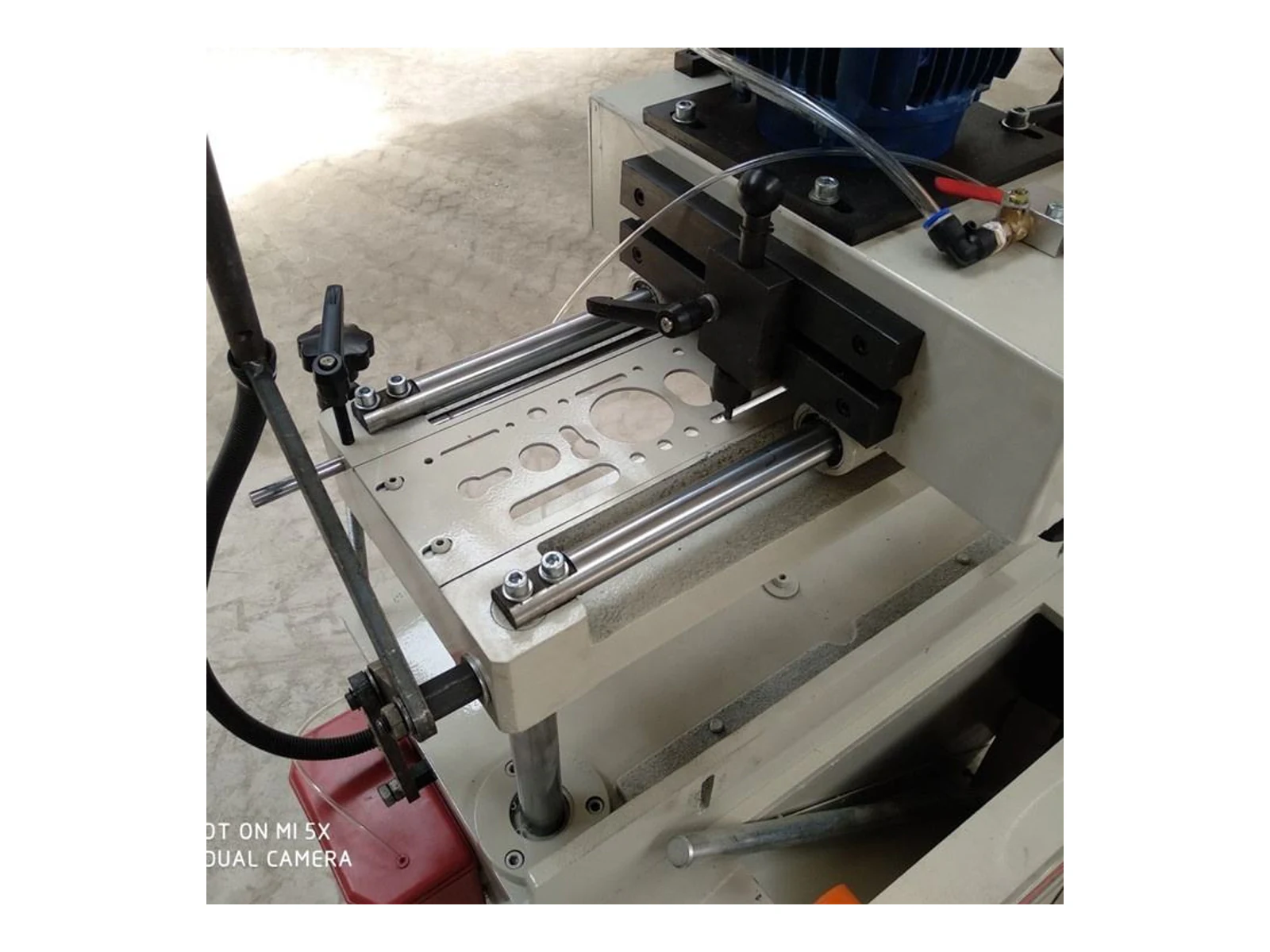

Copy-routing range270 x 115 mm

Overall dimensions870 x 700 x 1,150 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the LXF-120 aluminium milling & routing machine?

The LXF-120 is an aluminium milling & routing machine. It is catalogued as a single-axis high-speed milling machine for aluminium and uPVC profile holes and grooves.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

LXF-120 FAQs

What is the LXF-120 aluminium milling & routing machine?

The LXF-120 is an aluminium milling & routing machine. It is catalogued as a single-axis high-speed milling machine for aluminium and uPVC profile holes and grooves.

What profiles or operations is the LXF-120 designed for?

Mills profile holes and grooves with compact single-axis operation.

What is the working range of the LXF-120?

Power supply: 380 V / 50 Hz; Input power: 1.14 kW; Working air pressure: 0.5-0.8 MPa. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the LXF-120?

Power supply: 380 V / 50 Hz; Input power: 1.14 kW; Working air pressure: 0.5-0.8 MPa. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the LXF-120?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
