LXD-250A

High-Efficiency Aluminium End Milling Machine

Description

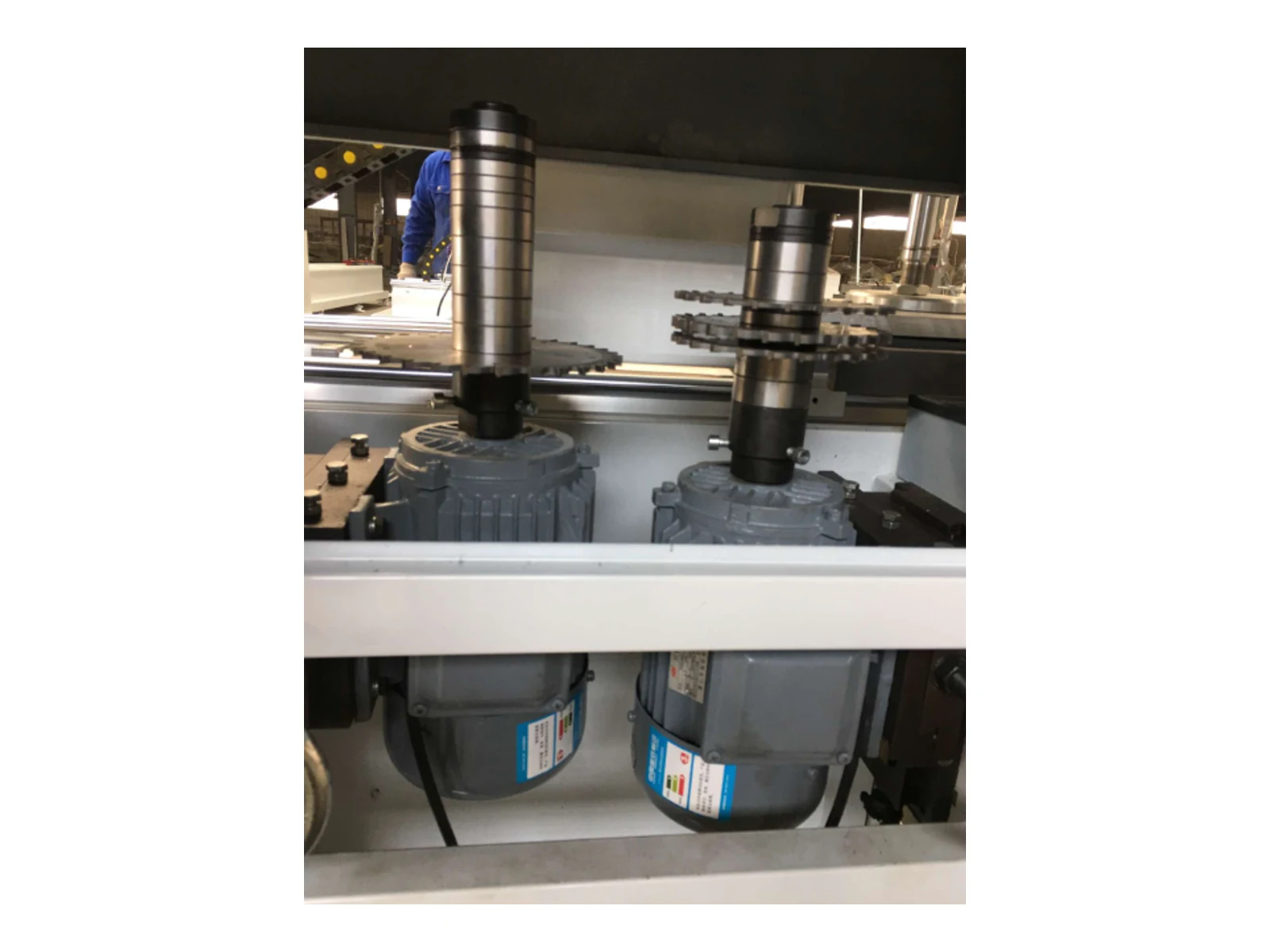

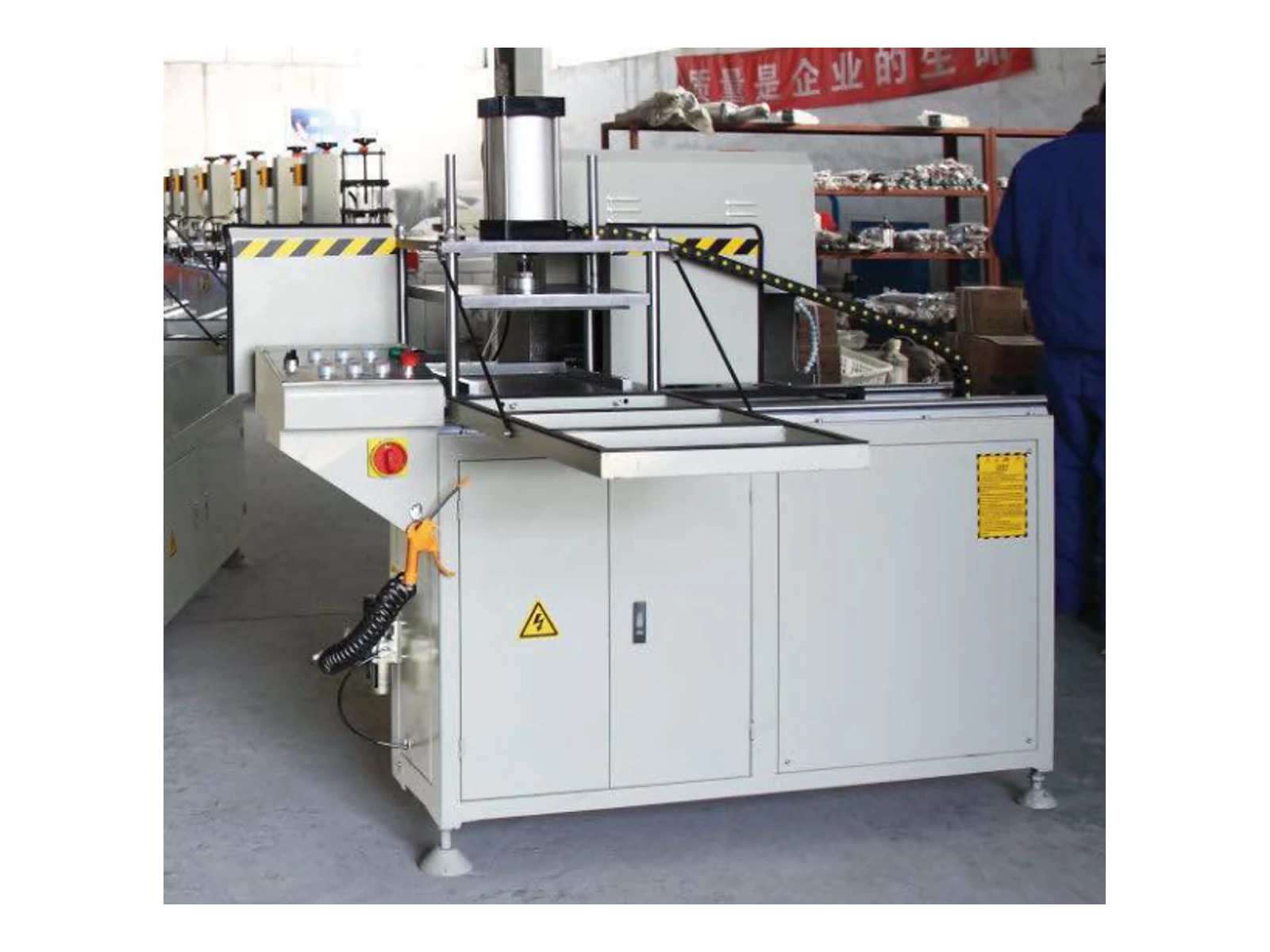

Multi-motor end-milling machine for aluminium and photovoltaic frame profiles, designed to mill several profiles in one setup.

Processes aluminium profile ends for mating transverse sections.
Supports simultaneous milling of multiple profiles.

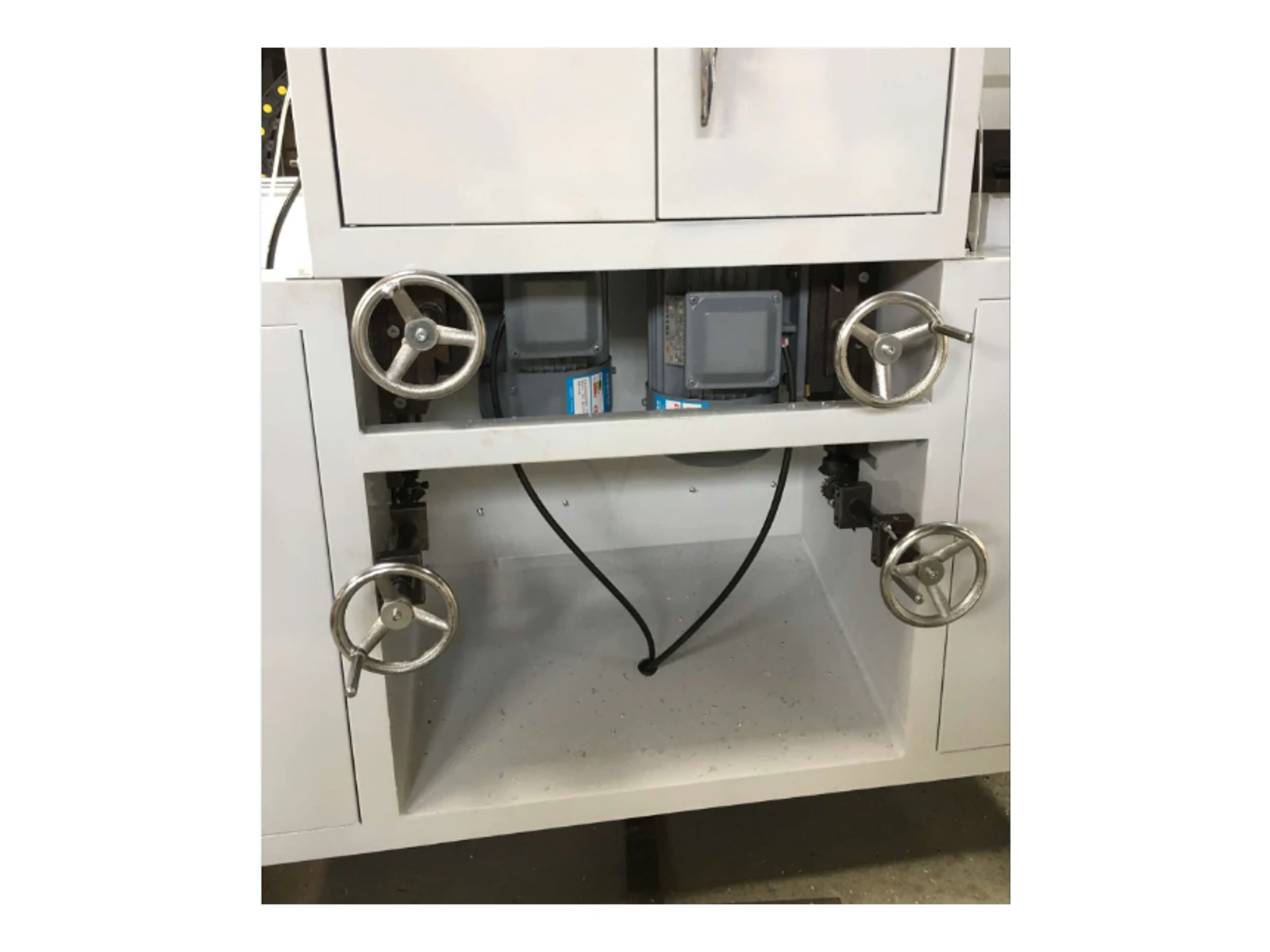

Adjustable cutter groups move vertically and horizontally for different sections.
The large cutter diameter supports a high cutting speed and finished surface quality.

Specifications

Input voltage380 V / 50 Hz

Input power8.8 kW

Working air pressure0.5-0.8 MPa

Air consumption150 L/min

Motor rotational speed2,800 r/min

Shaft diameter32 mm

Cutter diameter250 mm

Overall dimensions2,900 x 980 x 1,560 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the LXD-250A aluminium milling & routing machine?

The LXD-250A is an aluminium milling & routing machine. It is catalogued as a multi-motor end-milling machine for aluminium and photovoltaic frame profiles, designed to mill several profiles in one setup.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

LXD-250A FAQs

What is the LXD-250A aluminium milling & routing machine?

What profiles or operations is the LXD-250A designed for?

Processes aluminium profile ends for mating transverse sections.

What is the working range of the LXD-250A?

Input voltage: 380 V / 50 Hz; Input power: 8.8 kW; Working air pressure: 0.5-0.8 MPa. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the LXD-250A?

Input voltage: 380 V / 50 Hz; Input power: 8.8 kW; Working air pressure: 0.5-0.8 MPa. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the LXD-250A?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
