LXD-200B

Aluminium End Milling Machine

Description

Adjustable end-milling machine for processing multiple aluminium profiles and different section shapes.

Mills several aluminium profiles in one setup.

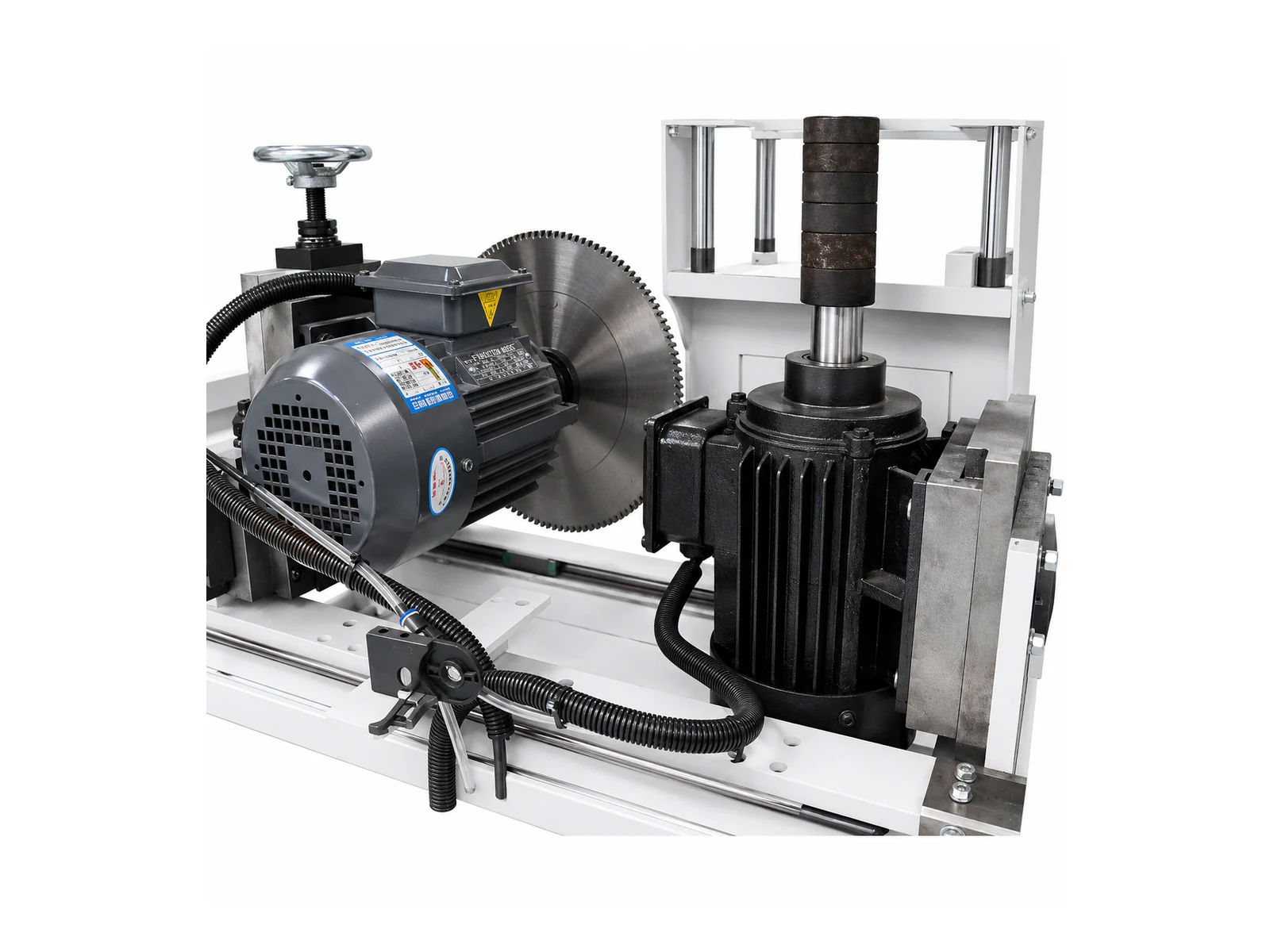

Cutters adjust vertically and horizontally for different section sizes.
Adjustable tooling reduces the need for profile-specific cutter sets.
A gas-liquid damping system supports smooth, stable feed.

Specifications

Input voltage380 V / 50 Hz

Input power4.8 kW

Working air pressure0.5-0.8 MPa

Air consumption150 L/min

Motor rotational speed2,800 r/min

Shaft diameter32 mm

Cutter diameter200 mm / 160 mm

Overall dimensions1,900 x 1,000 x 1,600 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Direct answer

What is the LXD-200B aluminium milling & routing machine?

The LXD-200B is an aluminium milling & routing machine. It is catalogued as an adjustable end-milling machine for processing multiple aluminium profiles and different section shapes.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

LXD-200B FAQs

What is the LXD-200B aluminium milling & routing machine?

The LXD-200B is an aluminium milling & routing machine. It is catalogued as an adjustable end-milling machine for processing multiple aluminium profiles and different section shapes.

What profiles or operations is the LXD-200B designed for?

Mills several aluminium profiles in one setup.

What is the working range of the LXD-200B?

Input voltage: 380 V / 50 Hz; Input power: 4.8 kW; Working air pressure: 0.5-0.8 MPa. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the LXD-200B?

Input voltage: 380 V / 50 Hz; Input power: 4.8 kW; Working air pressure: 0.5-0.8 MPa. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the LXD-200B?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
