TM-CNC-700

CNC Aluminium Drilling and Milling Machine

Description

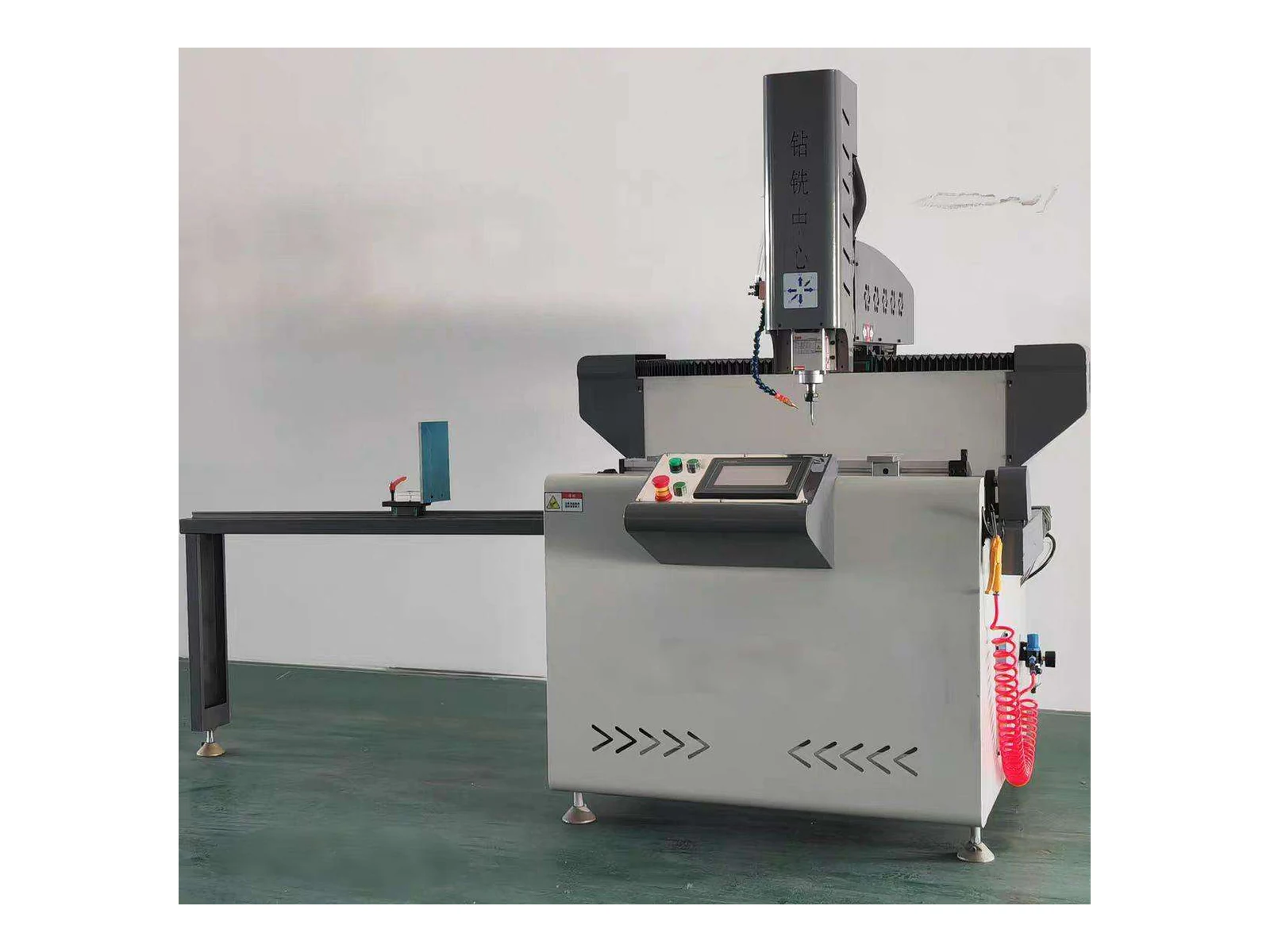

Compact CNC drilling and milling machine for holes, grooves and flat engraving on aluminium profiles.

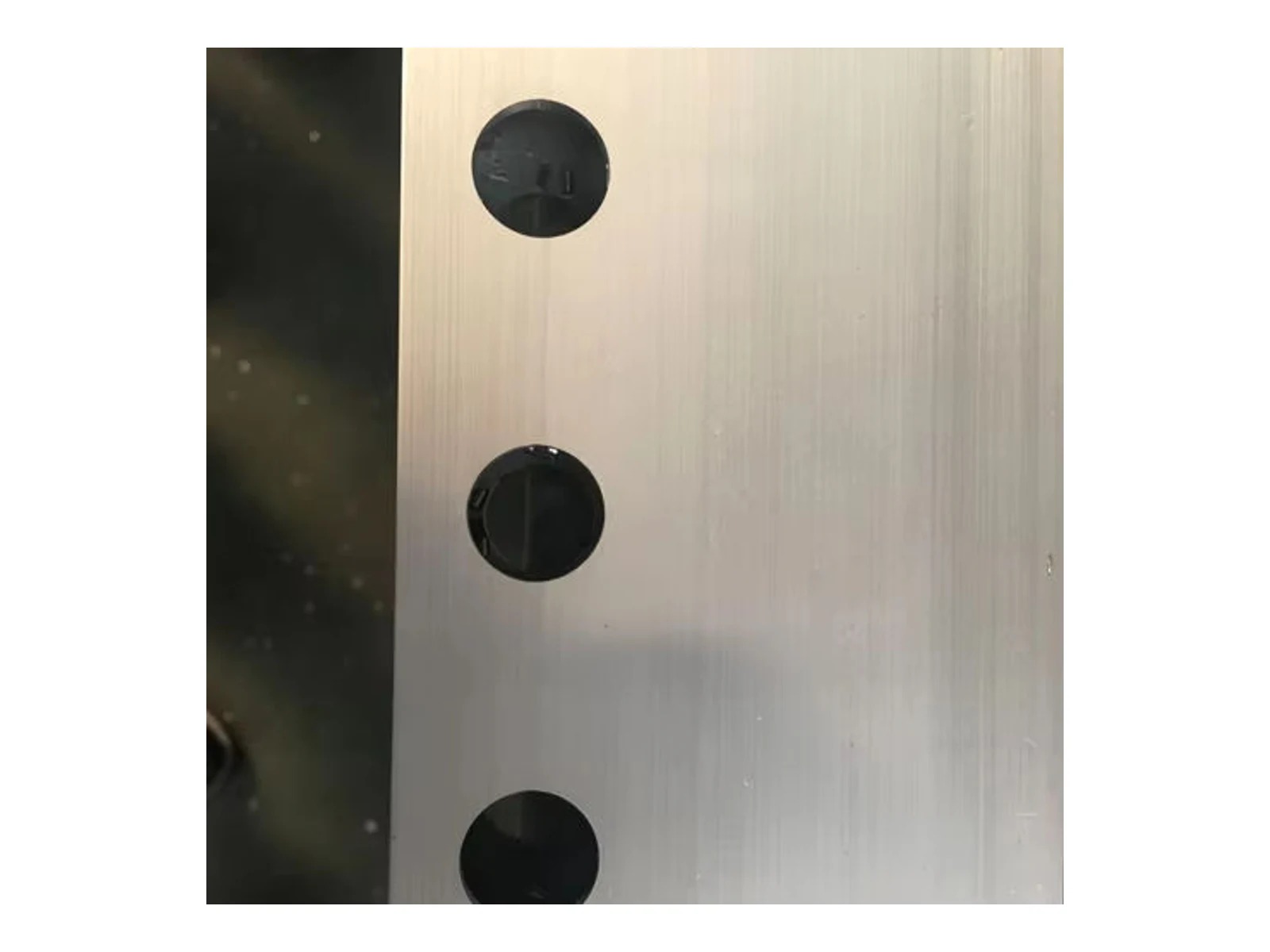

Processes round, slotted and special-shaped holes plus flat engraving.

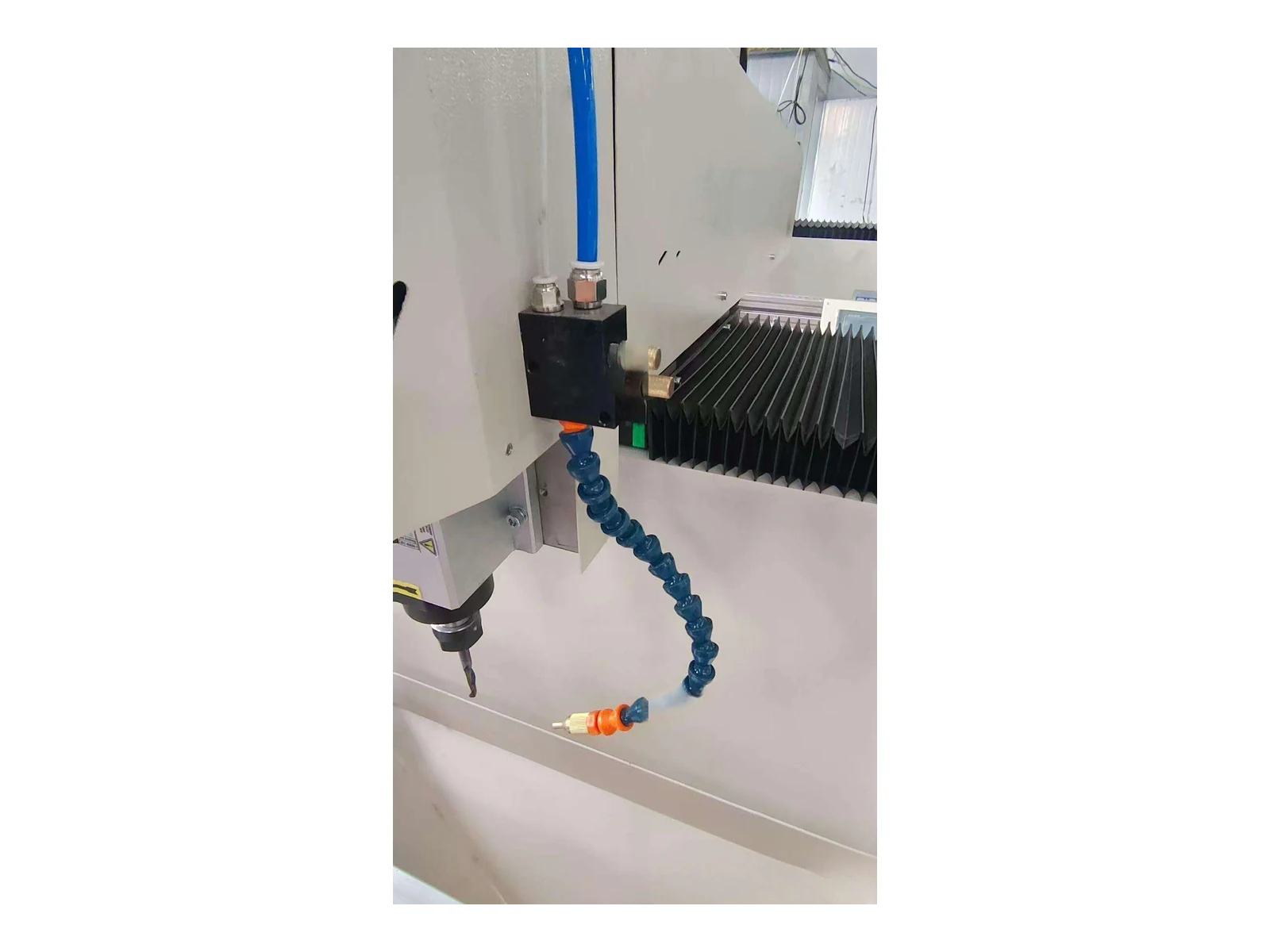

An electric spindle and CNC control support programmed machining.
Precision ball screws drive all three axes.
The rotating table supports three-side machining from one clamping.

Specifications

Power supply380 V / 50 Hz

Main spindle speed0-18,000 r/min

Working air pressure0.5-0.8 MPa

Working range700 x 300 x 280 mm

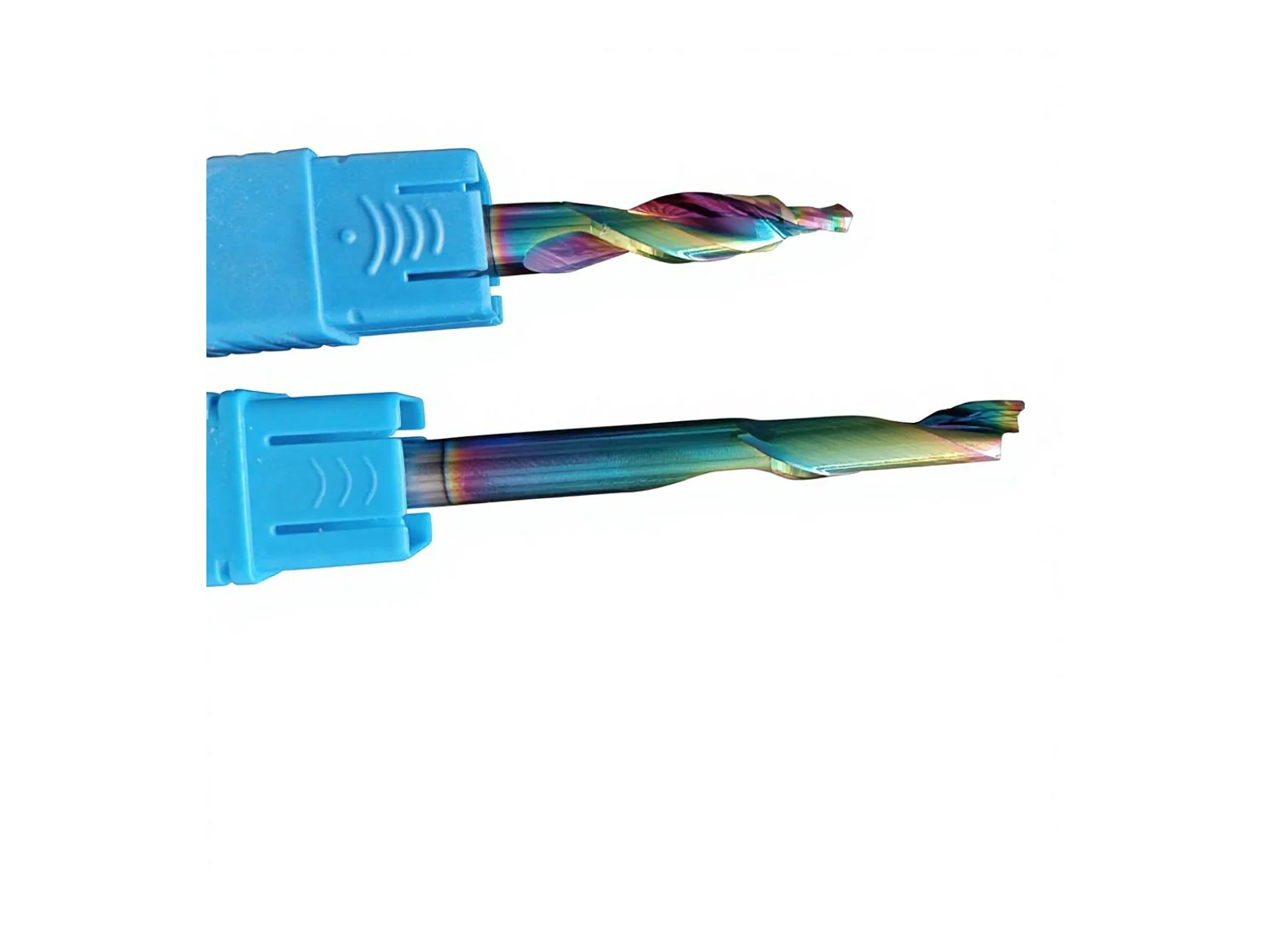

Tool holderER25 x 18

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Direct answer

What is the TM-CNC-700 aluminium milling & routing machine?

The TM-CNC-700 is an aluminium milling & routing machine. It is catalogued as a compact CNC drilling and milling machine for holes, grooves and flat engraving on aluminium profiles.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

TM-CNC-700 FAQs

What is the TM-CNC-700 aluminium milling & routing machine?

The TM-CNC-700 is an aluminium milling & routing machine. It is catalogued as a compact CNC drilling and milling machine for holes, grooves and flat engraving on aluminium profiles.

What profiles or operations is the TM-CNC-700 designed for?

Processes round, slotted and special-shaped holes plus flat engraving.

What is the working range of the TM-CNC-700?

Working range: 700 x 300 x 280 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the TM-CNC-700?

Power supply: 380 V / 50 Hz; Working air pressure: 0.5-0.8 MPa. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the TM-CNC-700?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
