LJMJ-450

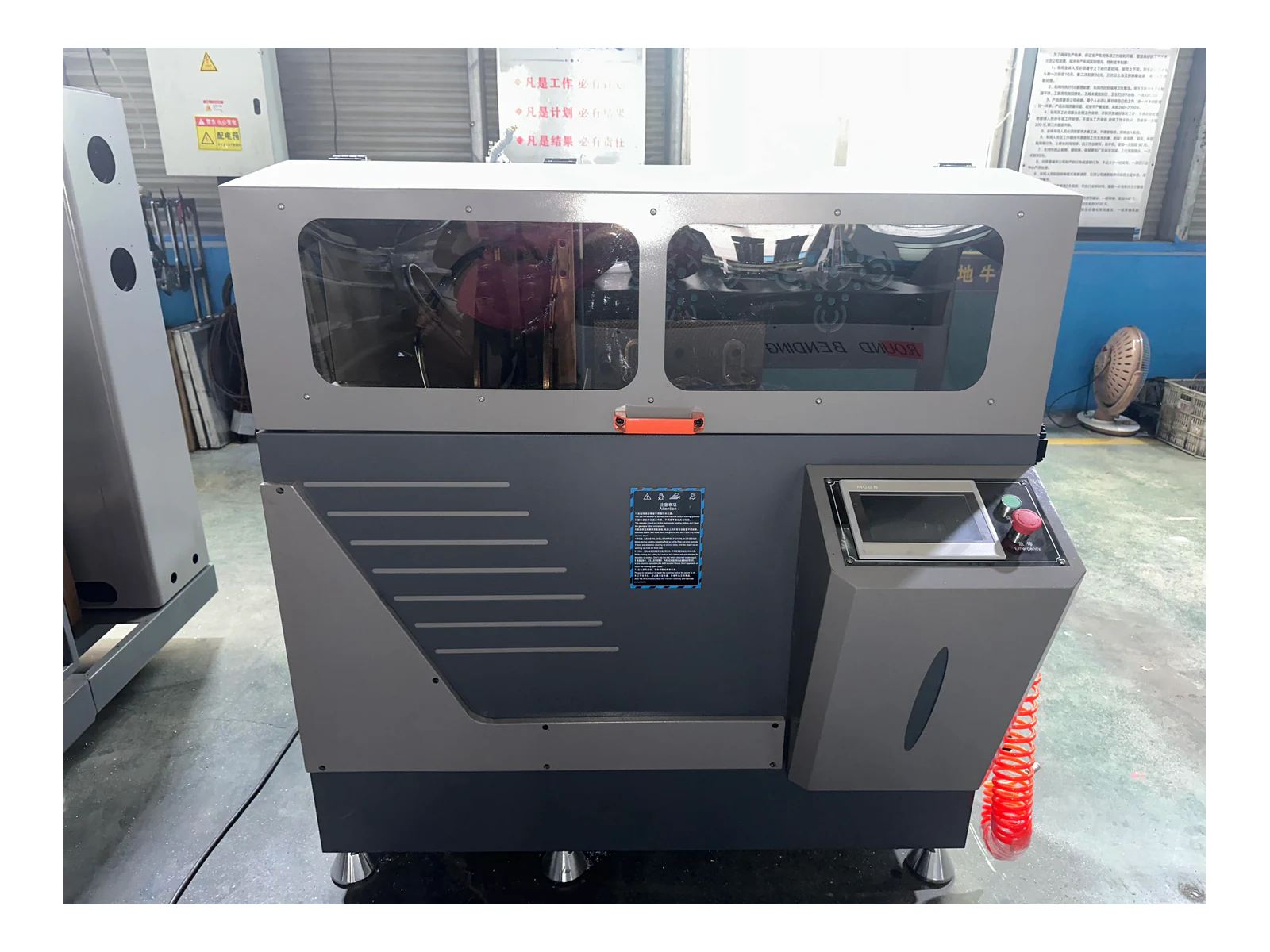

Automatic Corner Connector Cutting Saw

Description

PLC-controlled automatic saw for cutting aluminium window and door corner connectors in repeat production.

Cuts aluminium-profile corner connectors.

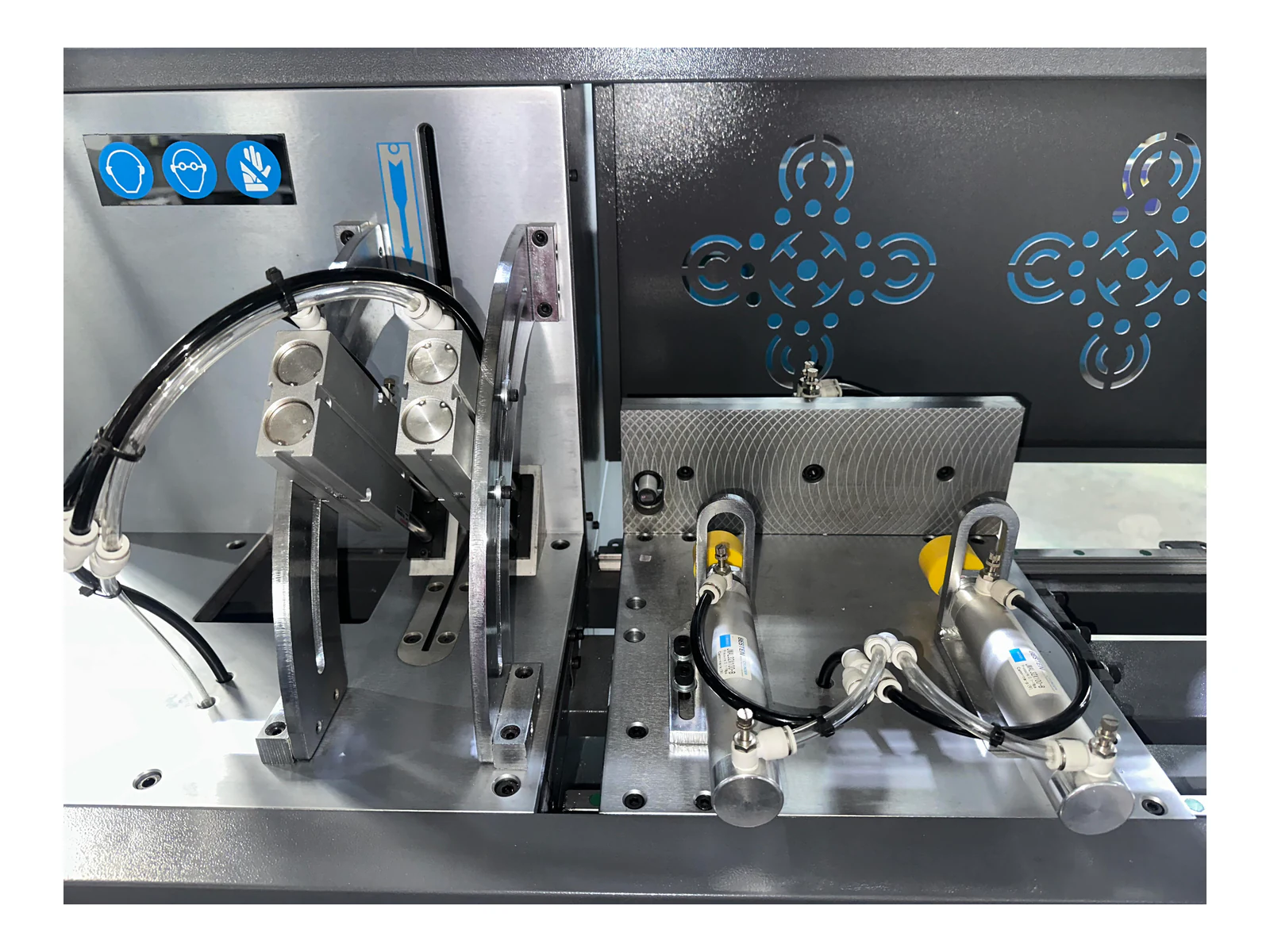

PLC-controlled automatic feeding supports repeated production.
A counter records the number of cut pieces.
A carbide saw blade supports accurate, durable cutting.

Specifications

Power supply380 V / 50 Hz

Input power2.2 kW

Working air pressure0.4-0.6 MPa

Blade rotational speed3,100 r/min

Saw blade450 mm diameter; 30 mm bore

Cutting length3-100 mm

Cutting width / height120 mm

Overall dimensions1,480 x 1,550 x 1,350 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the LJMJ-450 aluminium cutting saw?

The LJMJ-450 is an aluminium cutting saw. It is catalogued as a pLC-controlled automatic saw for cutting aluminium window and door corner connectors in repeat production.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

LJMJ-450 FAQs

What is the LJMJ-450 aluminium cutting saw?

The LJMJ-450 is an aluminium cutting saw. It is catalogued as a pLC-controlled automatic saw for cutting aluminium window and door corner connectors in repeat production.

What profiles or operations is the LJMJ-450 designed for?

Cuts aluminium-profile corner connectors.

What is the working range of the LJMJ-450?

Cutting length: 3-100 mm; Cutting width / height: 120 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the LJMJ-450?

Power supply: 380 V / 50 Hz; Input power: 2.2 kW; Working air pressure: 0.4-0.6 MPa. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the LJMJ-450?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
