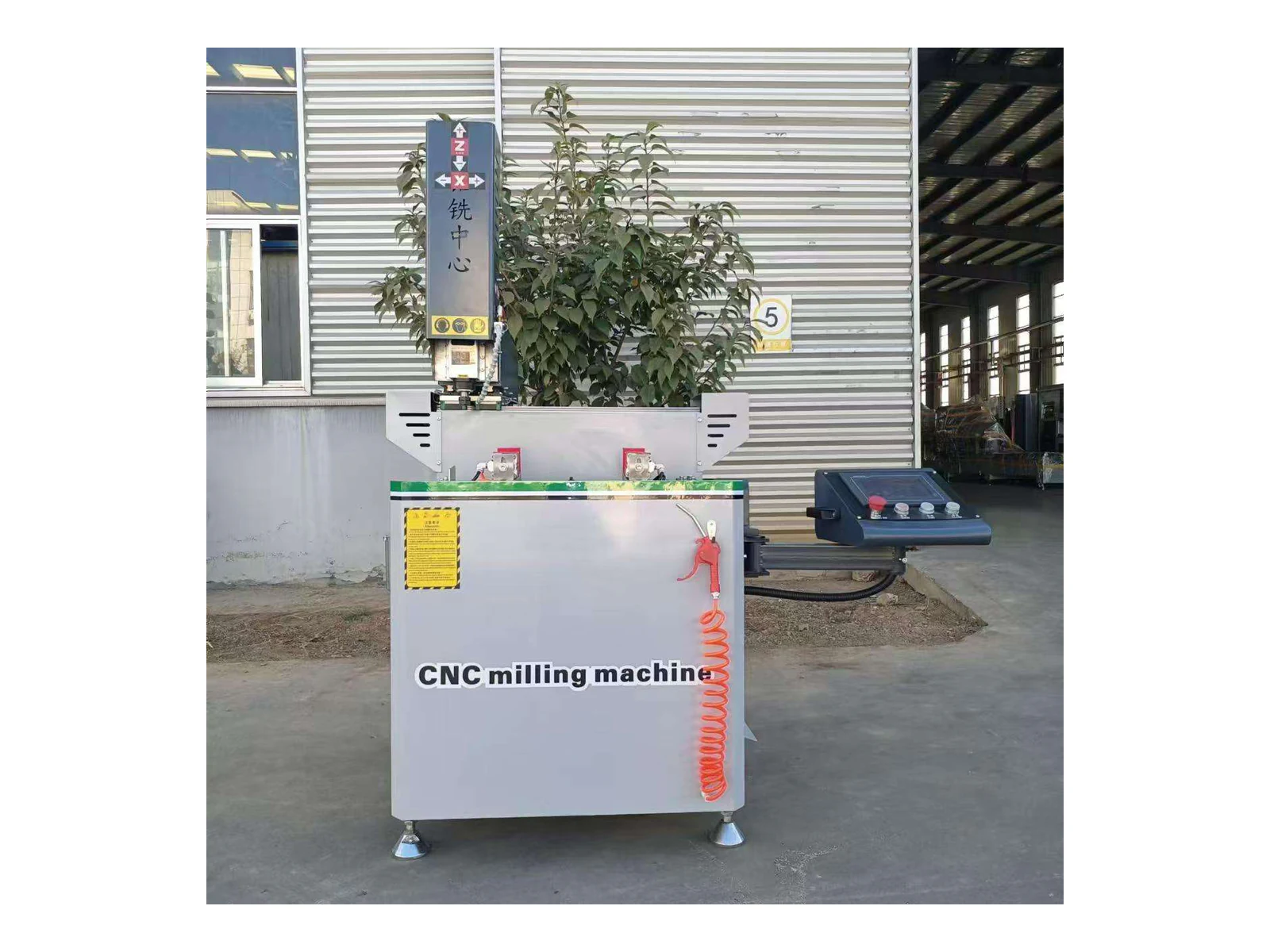

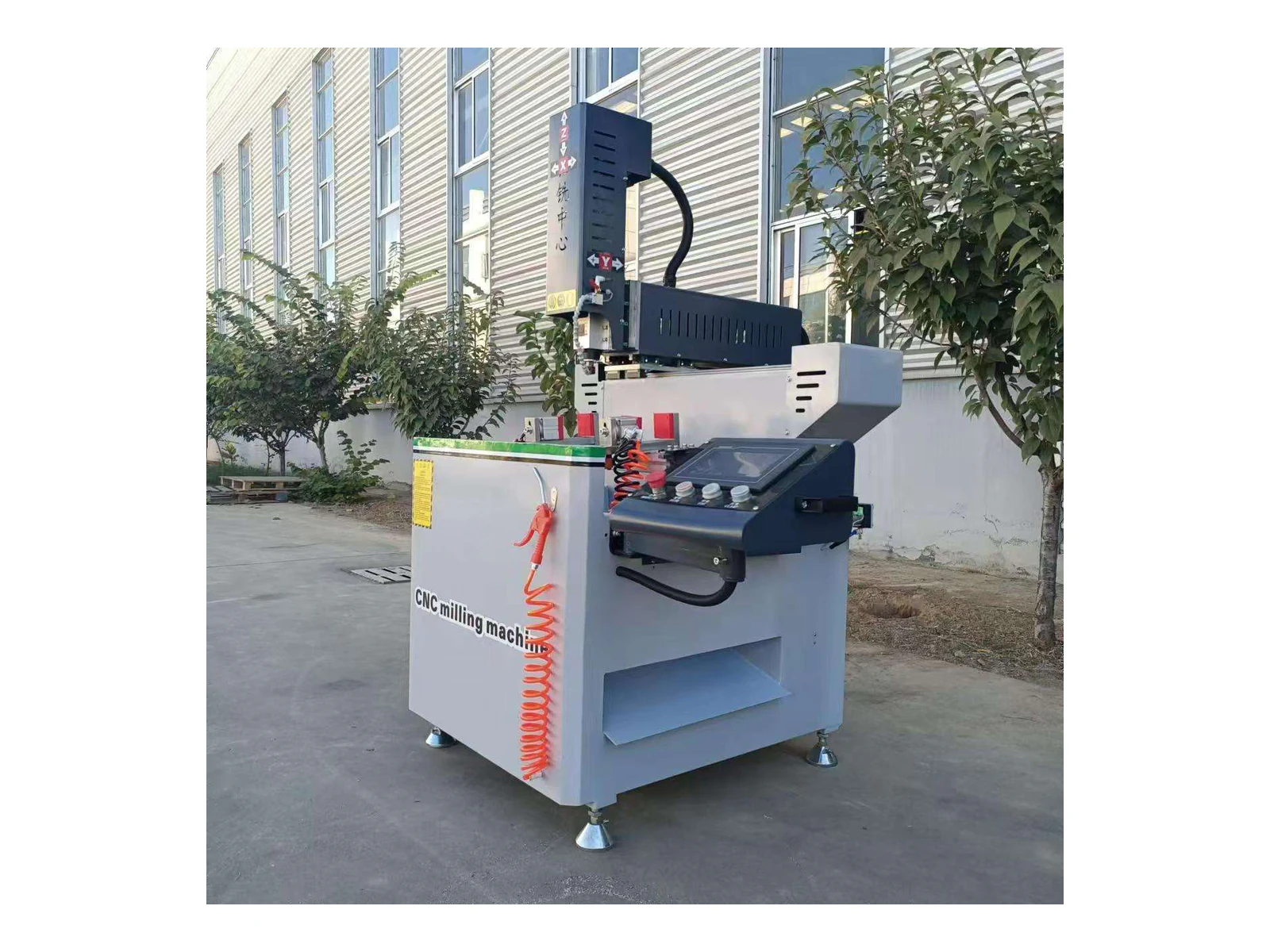

TM-CNC-1200

CNC Aluminium Milling Machine

Description

Compact CNC aluminium-profile milling machine with a 1,200 mm X-axis range for drilling and multi-face groove machining.

Processes holes and grooves in aluminium alloy profiles.
High-precision guide, screw and rack components support stable movement.
A rotary table supports three-surface drilling and milling from one clamping.
The CNC interface supports programmed machining and stored jobs.

Specifications

Spindle power2 x 4.5 kW

Power supply380 V / 50 Hz

Working air pressure0.5-0.8 MPa

X-axis travel1,200 mm

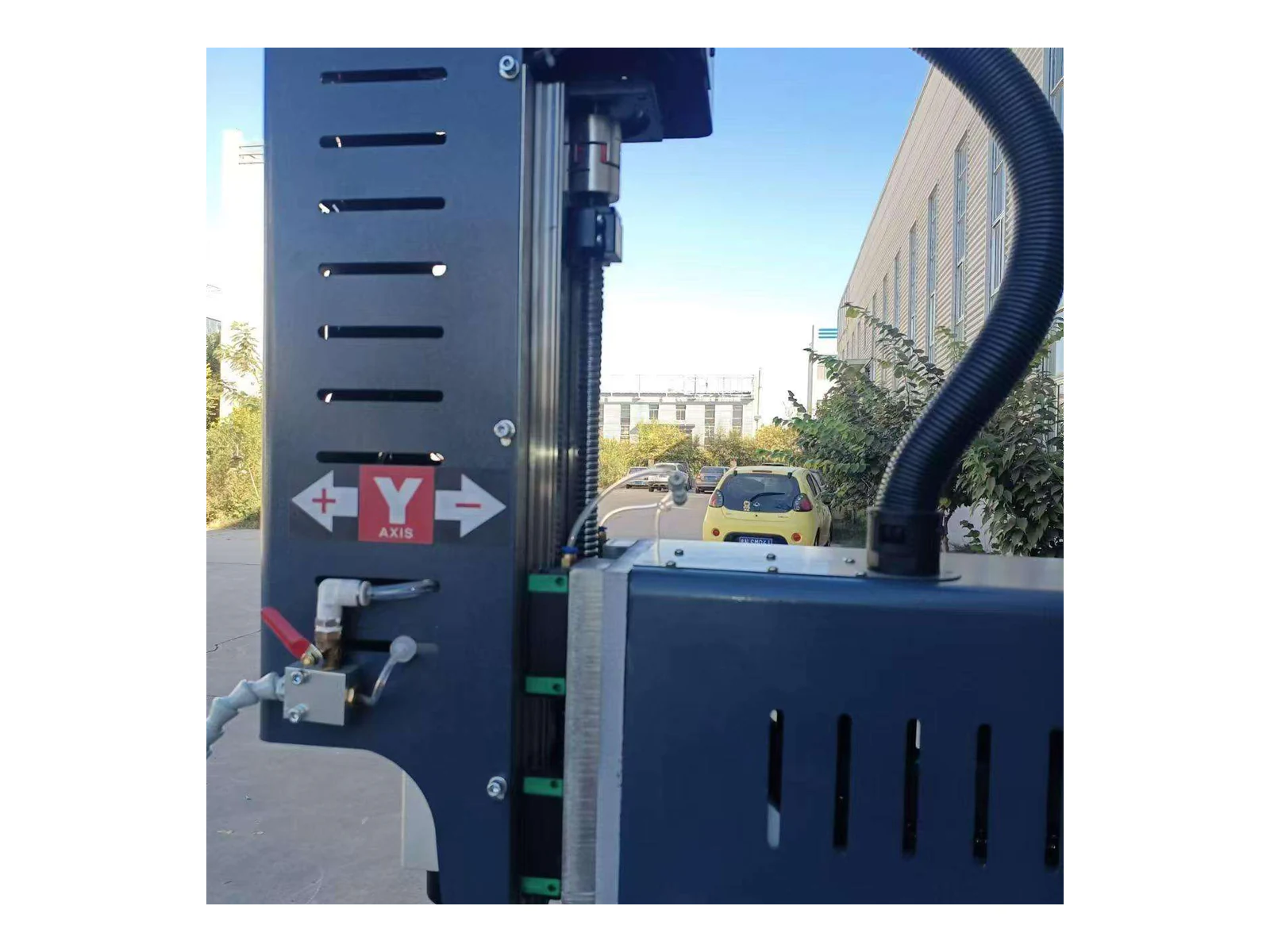

Y-axis travel400 mm

Z-axis travel400 mm

Maximum clamping diameter320 mm

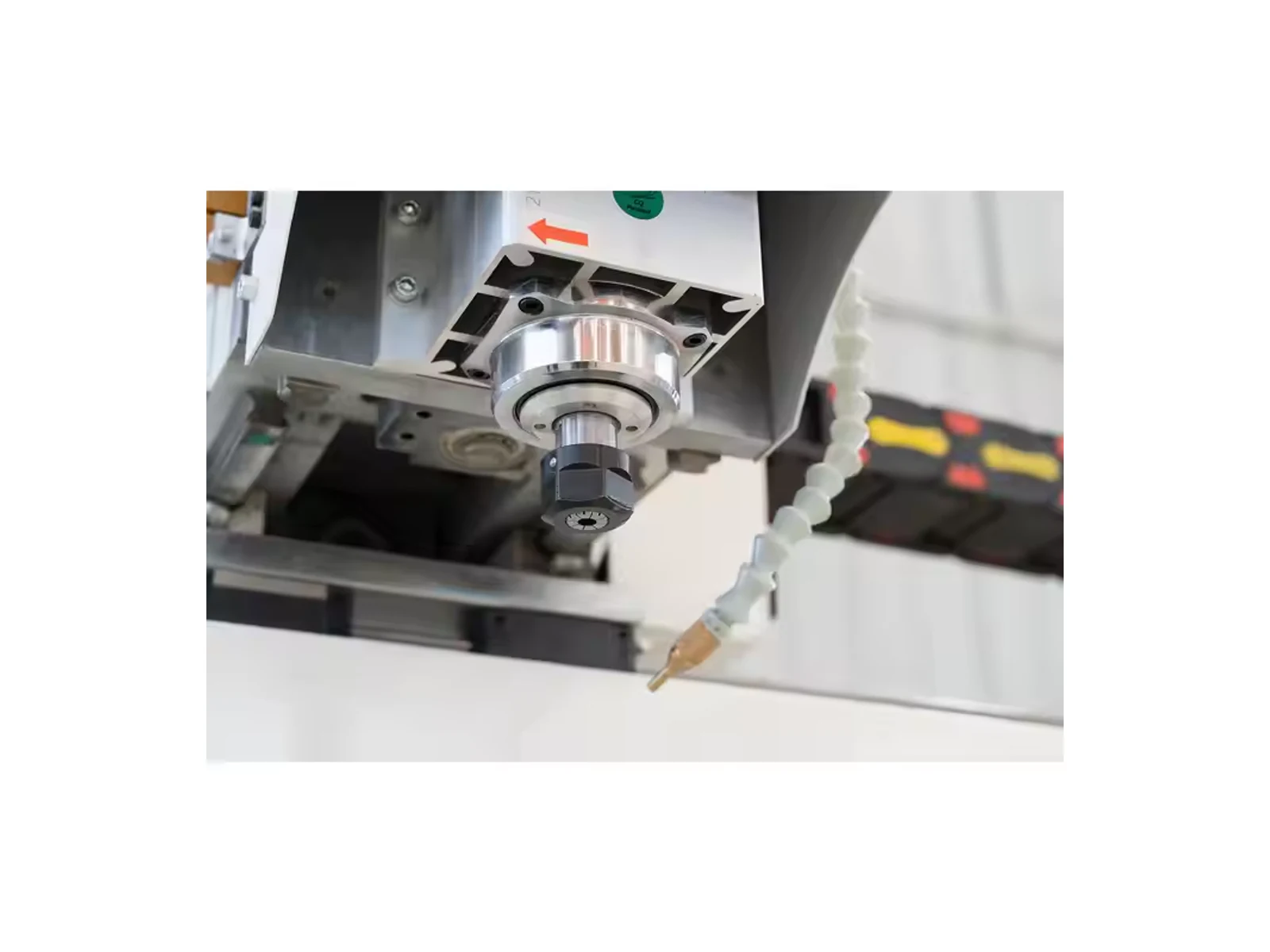

Main spindle speed0-18,000 r/min

Overall dimensions1,900 x 1,700 x 2,100 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the TM-CNC-1200 aluminium milling & routing machine?

The TM-CNC-1200 is an aluminium milling & routing machine. It is catalogued as a compact CNC aluminium-profile milling machine with a 1,200 mm X-axis range for drilling and multi-face groove machining.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

TM-CNC-1200 FAQs

What is the TM-CNC-1200 aluminium milling & routing machine?

What profiles or operations is the TM-CNC-1200 designed for?

Processes holes and grooves in aluminium alloy profiles.

What is the working range of the TM-CNC-1200?

X-axis travel: 1,200 mm; Y-axis travel: 400 mm; Z-axis travel: 400 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the TM-CNC-1200?

Power supply: 380 V / 50 Hz; Working air pressure: 0.5-0.8 MPa. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the TM-CNC-1200?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
