SJZ2GC-140x3500

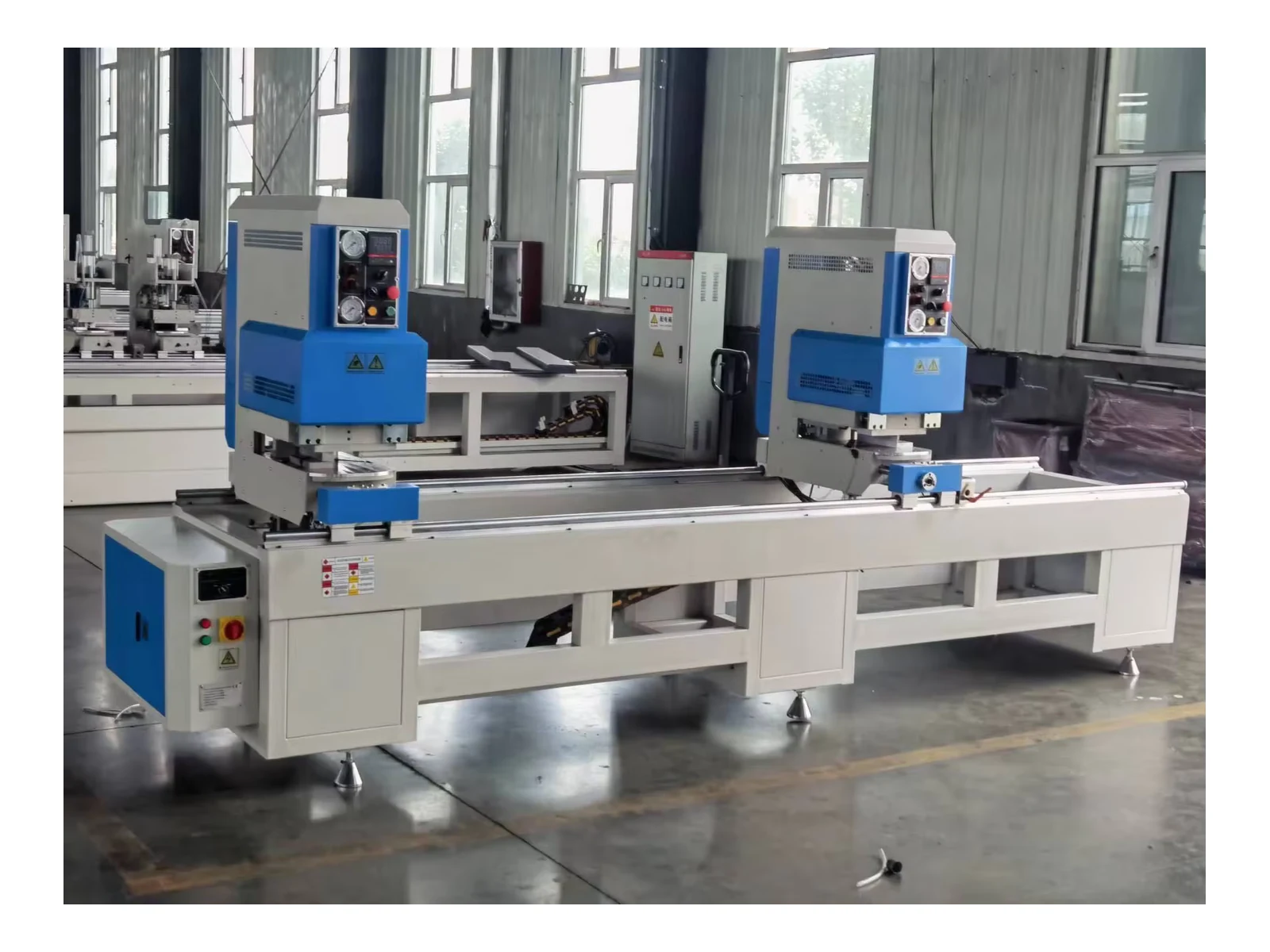

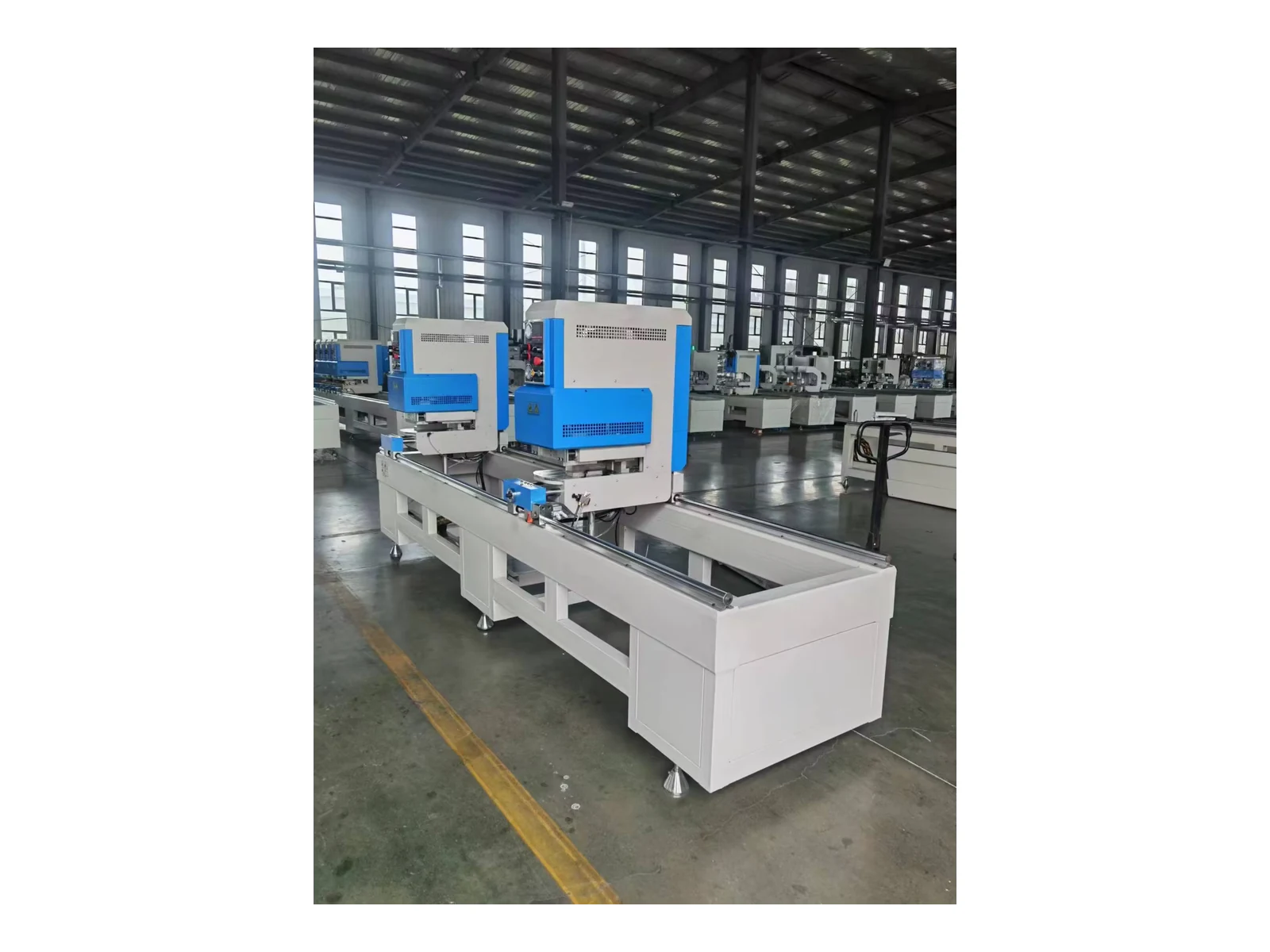

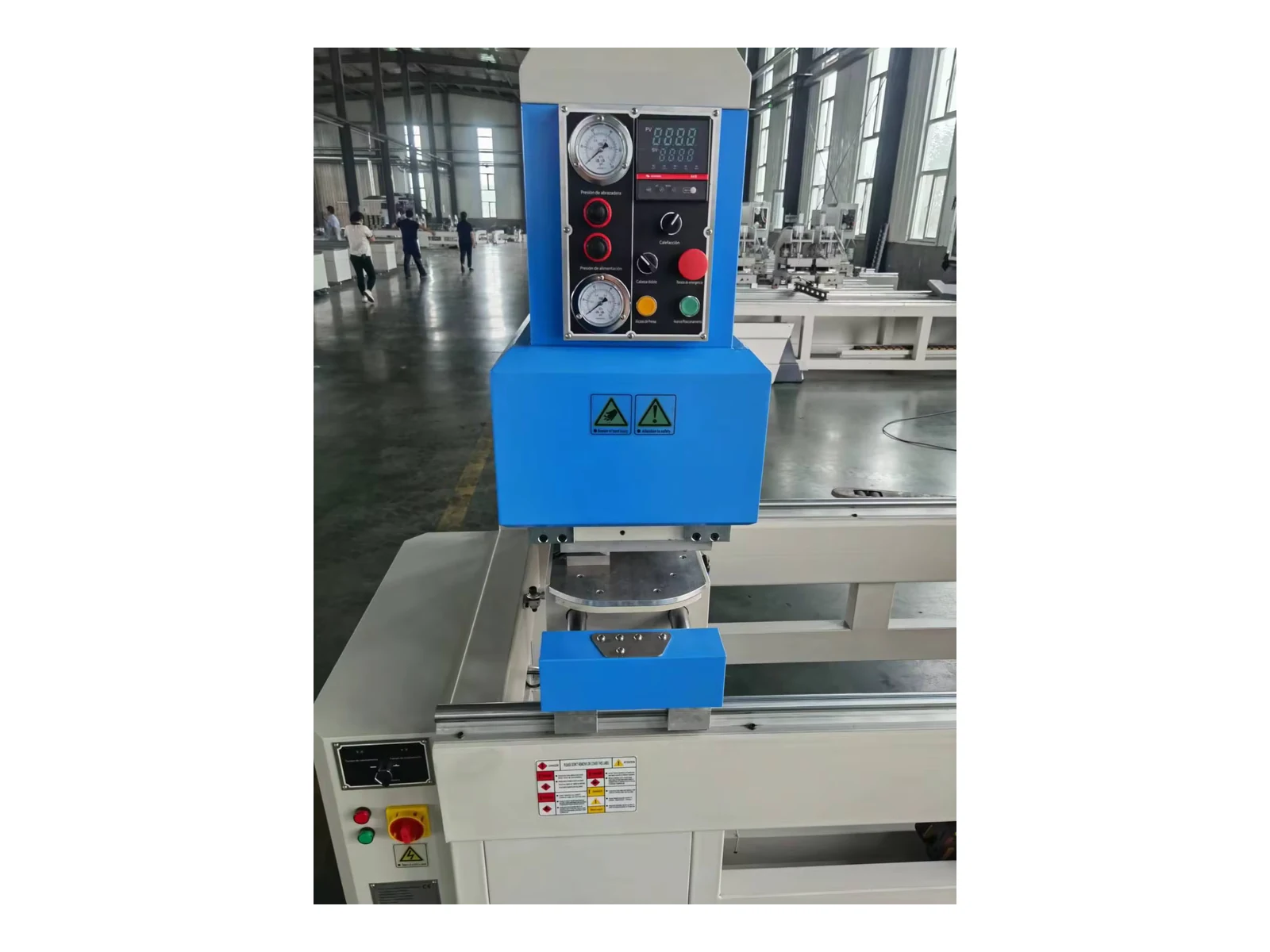

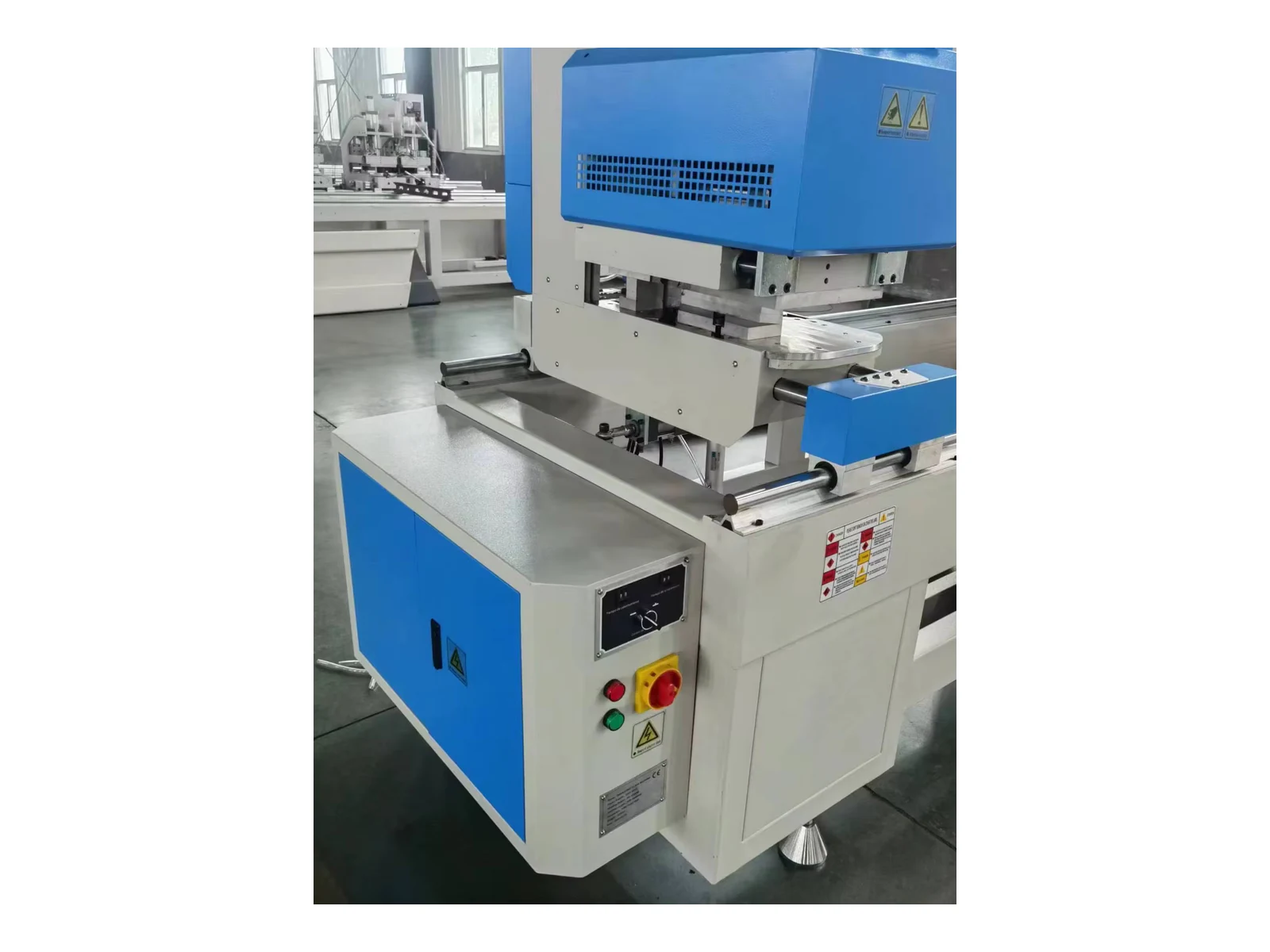

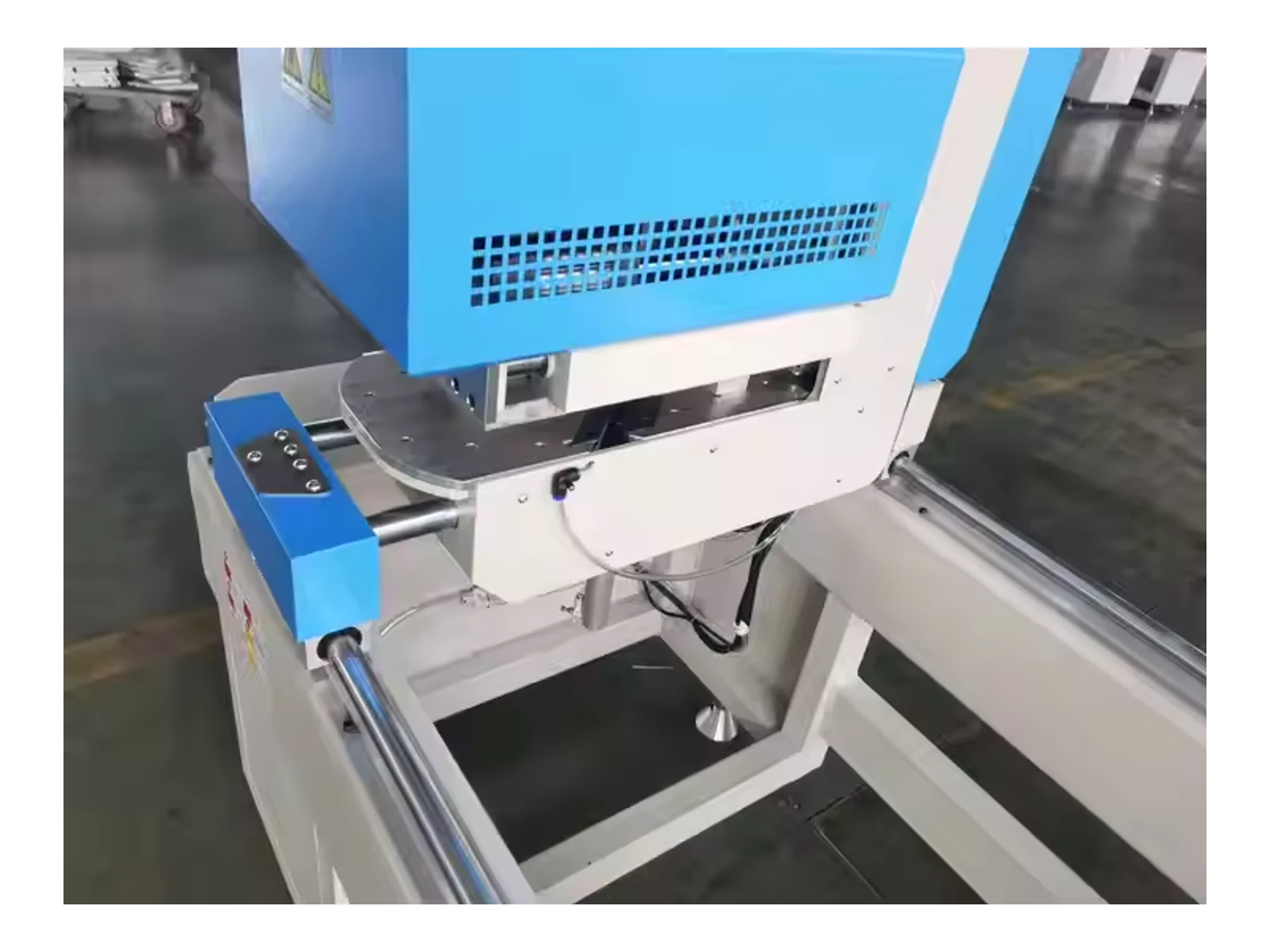

Heavy-Duty Two-Position Double-Sided Seamless Welding Machine

Description

Heavy-duty two-position seamless welding machine for colored uPVC door and window profiles, with simultaneous upper and lower flash cleaning.

Welds colored uPVC door and window profiles and cleans upper and lower surface flash in the same cycle.
Automatic seam and seamless conversion supports different welding processes.
Integral upper clamps and linear-rail support are designed for stable, repeatable feed.
Standardized co-extrusion cutters support interchangeability.

Specifications

Power supply220 V / 50 Hz

Total power2.5 kW

Working air pressure0.6-0.8 MPa

Air consumption160 L/min

Welded profile width120 mm

Welded profile height25-140 mm

Welding range435-3,500 mm

Overall dimensions4,260 x 980 x 1,760 mm

Weight950 kg

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Video

Direct answer

What is the SJZ2GC-140x3500 uPVC welding machine?

The SJZ2GC-140x3500 is an uPVC welding machine. It is catalogued as a heavy-duty two-position seamless welding machine for colored uPVC door and window profiles, with simultaneous upper and lower flash cleaning.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

SJZ2GC-140x3500 FAQs

What is the SJZ2GC-140x3500 uPVC welding machine?

What profiles or operations is the SJZ2GC-140x3500 designed for?

Welds colored uPVC door and window profiles and cleans upper and lower surface flash in the same cycle.

What is the working range of the SJZ2GC-140x3500?

Welded profile width: 120 mm; Welded profile height: 25-140 mm. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the SJZ2GC-140x3500?

Power supply: 220 V / 50 Hz; Working air pressure: 0.6-0.8 MPa; Air consumption: 160 L/min. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the SJZ2GC-140x3500?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
