CLWZ-2000

Automatic Spacer Bending Machine

Description

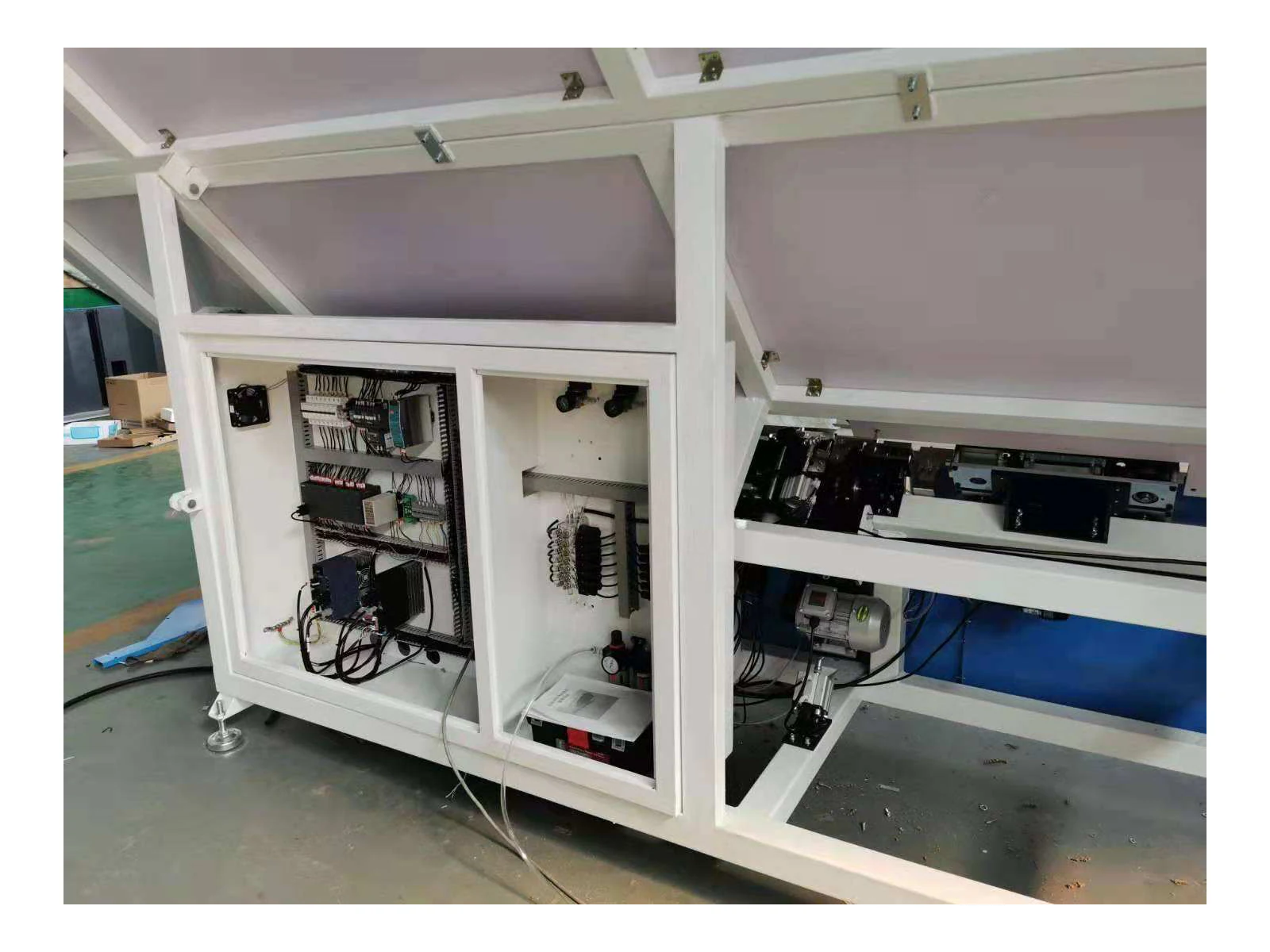

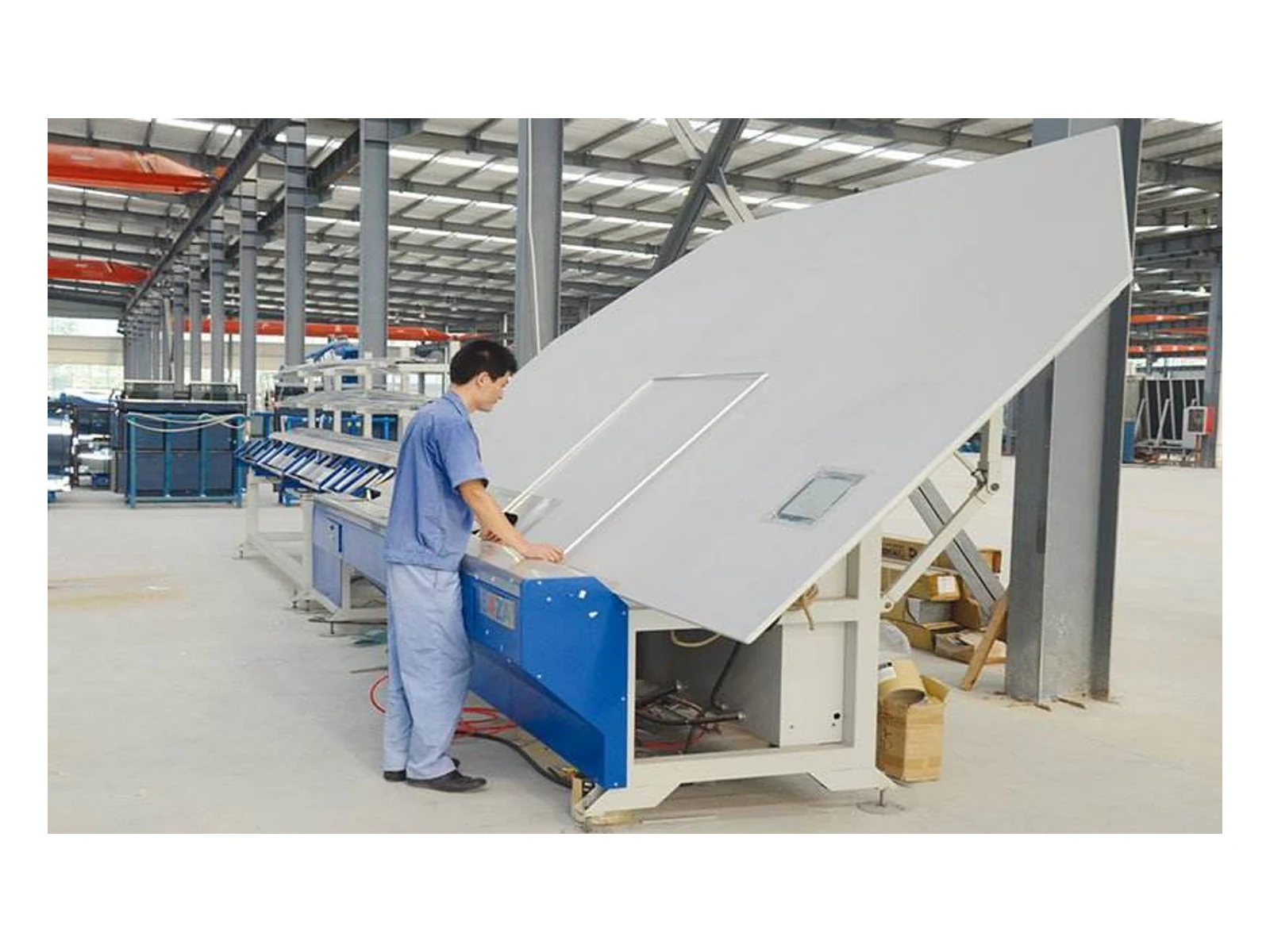

PLC-controlled automatic machine for feeding, bending and cutting aluminium spacer frames for insulating glass units.

PLC and touchscreen control support programmed operation.
Servo feeding and CNC angle control manage spacer bending.
Four storage channels hold different spacer specifications.
The machine can form triangles, rectangles, regular polygons and rounded shapes.

Specifications

Electric power380 V / 50 Hz, 4 kW

Working air pressure0.7 MPa

Spacer width6-27 mm

Feeding speed90 m/min

Bending-angle error±0.3 degrees

Aluminium frame dimensionsMinimum 200 x 250 mm; maximum 2,500 x 2,500 mm

Overall dimensions10,000 x 2,200 x 2,600 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Direct answer

What is the CLWZ-2000 IGU spacer processing machine?

The CLWZ-2000 is an IGU spacer processing machine. It is catalogued as a pLC-controlled automatic machine for feeding, bending and cutting aluminium spacer frames for insulating glass units.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

CLWZ-2000 FAQs

What is the CLWZ-2000 IGU spacer processing machine?

The CLWZ-2000 is an IGU spacer processing machine. It is catalogued as a pLC-controlled automatic machine for feeding, bending and cutting aluminium spacer frames for insulating glass units.

What profiles or operations is the CLWZ-2000 designed for?

PLC and touchscreen control support programmed operation.

What is the working range of the CLWZ-2000?

Bending-angle error: ±0.3 degrees. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the CLWZ-2000?

Working air pressure: 0.7 MPa. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the CLWZ-2000?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
