JT04

Butyl Extruder Machine

Description

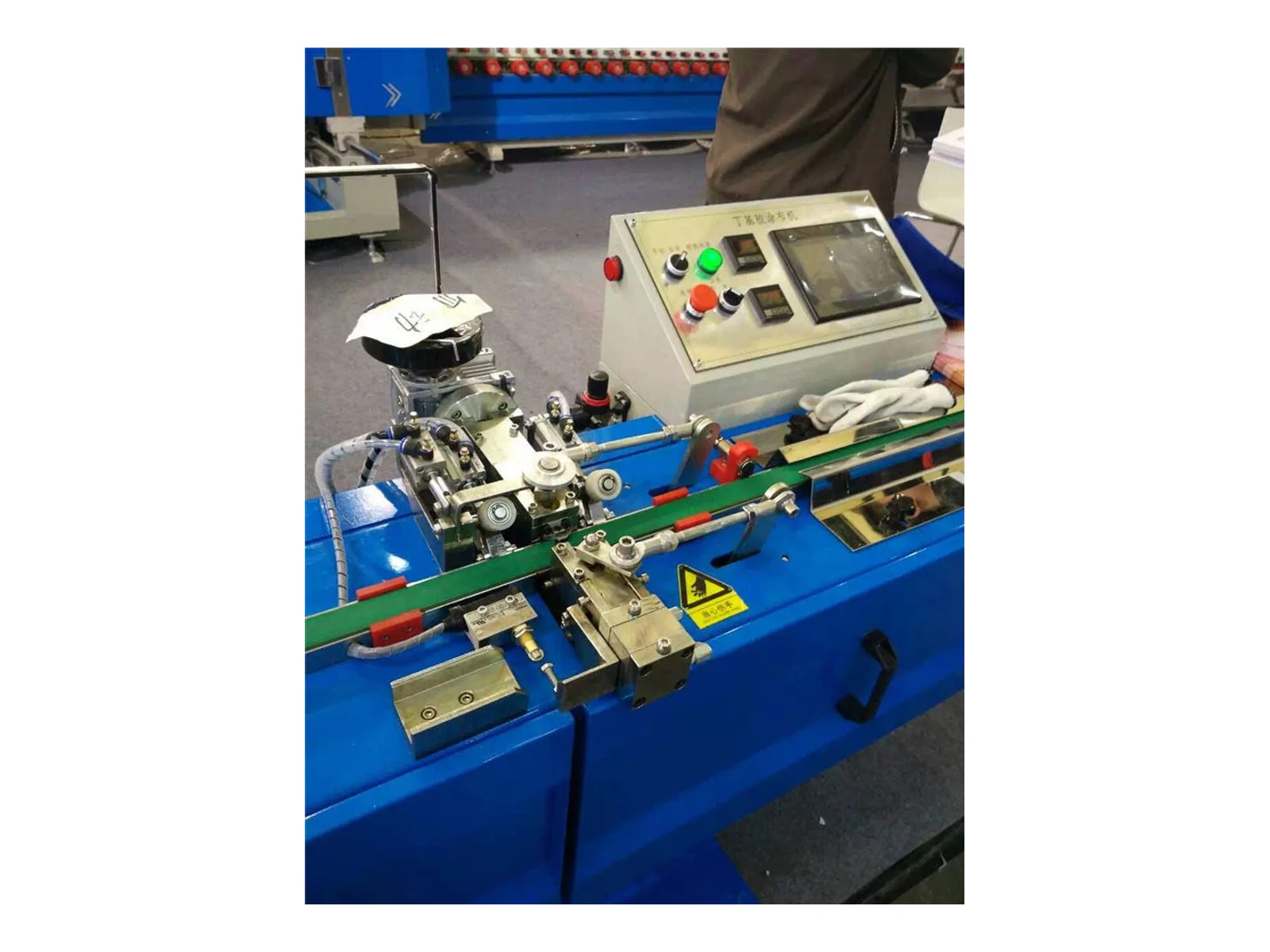

Primary-seal butyl extruder with touchscreen control and variable working speed for insulating glass spacer frames.

A pneumatic pump system supplies extrusion pressure.

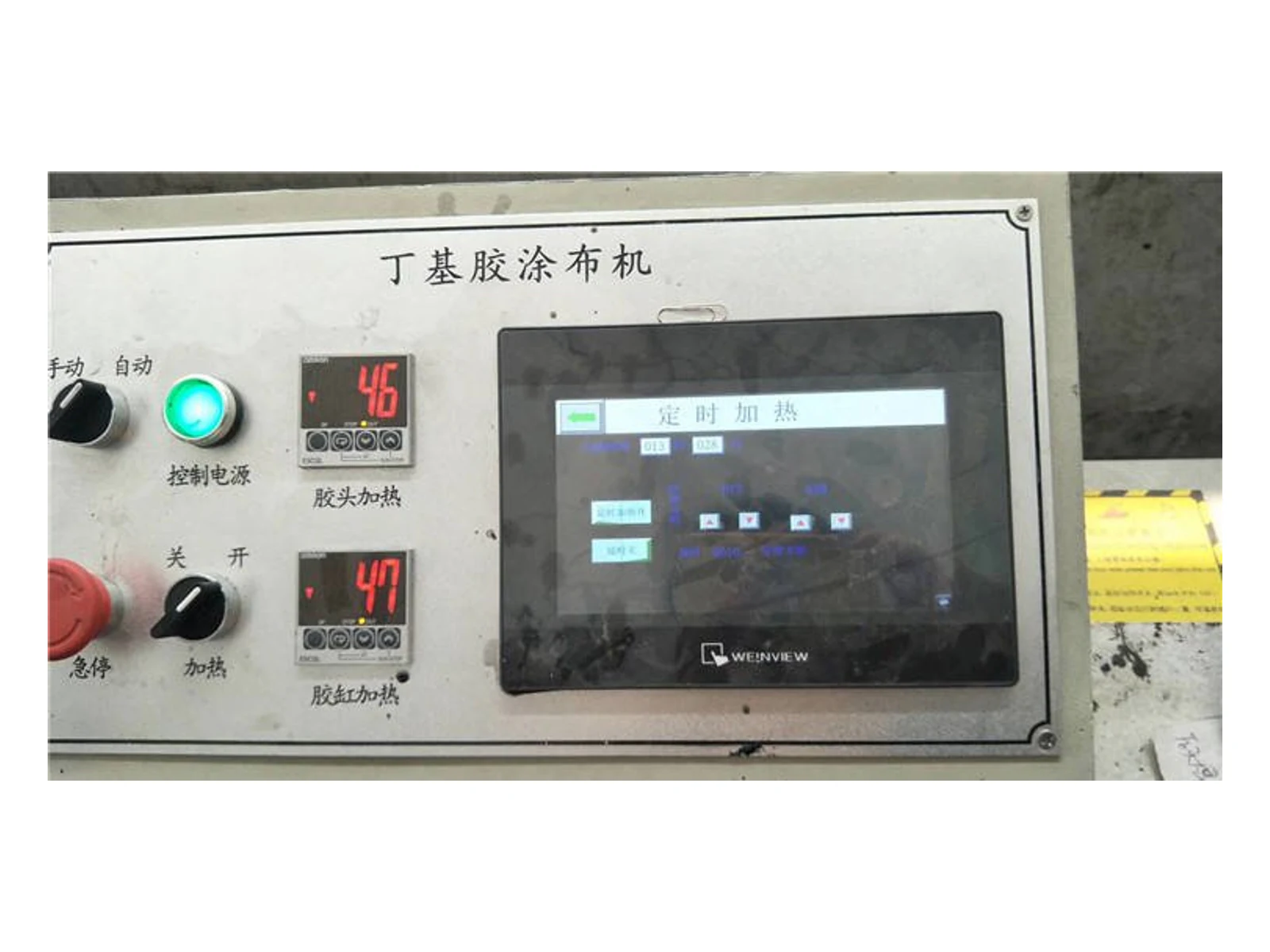

Touchscreen control provides operating settings.
Variable-frequency drive adjusts working speed from 15 to 30 m/min.

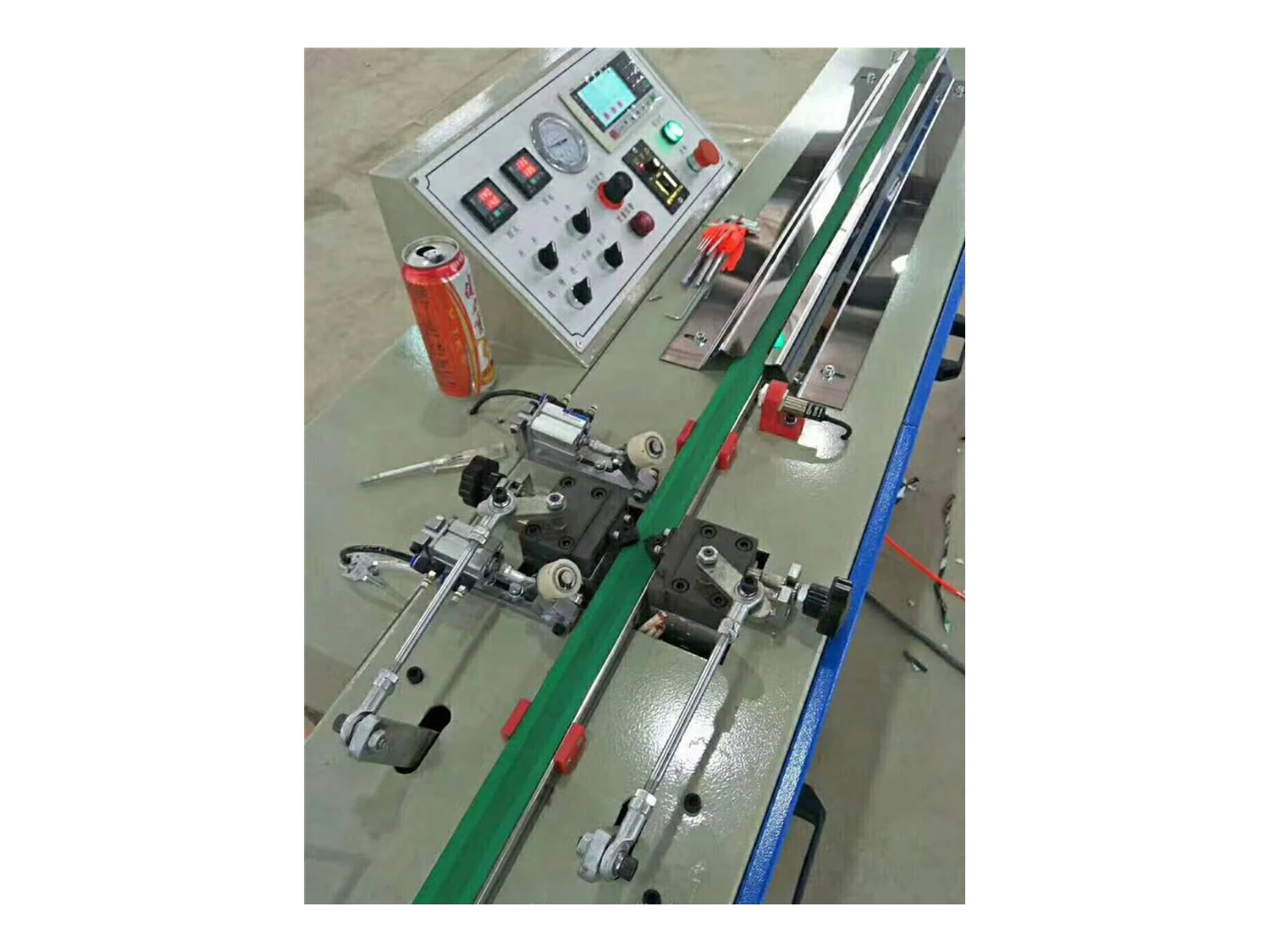

Spacer-width adjustment covers 6-18.5 mm and the glue cylinder holds up to 14 kg.

Specifications

Input voltage380 V / 50 Hz

Total power3.75 kW

Extrusion pressure10-20 MPa

Working speed15-30 m/min

Working air pressure0.5-0.8 MPa

Overall dimensions3,000 x 620 x 1,102 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Direct answer

What is the JT04 IGU sealant equipment?

The JT04 is an IGU sealant equipment. It is catalogued as a primary-seal butyl extruder with touchscreen control and variable working speed for insulating glass spacer frames.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

JT04 FAQs

What is the JT04 IGU sealant equipment?

The JT04 is an IGU sealant equipment. It is catalogued as a primary-seal butyl extruder with touchscreen control and variable working speed for insulating glass spacer frames.

What profiles or operations is the JT04 designed for?

A pneumatic pump system supplies extrusion pressure.

What is the working range of the JT04?

Input voltage: 380 V / 50 Hz; Total power: 3.75 kW; Extrusion pressure: 10-20 MPa. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the JT04?

Input voltage: 380 V / 50 Hz; Working air pressure: 0.5-0.8 MPa. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the JT04?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
