BST08

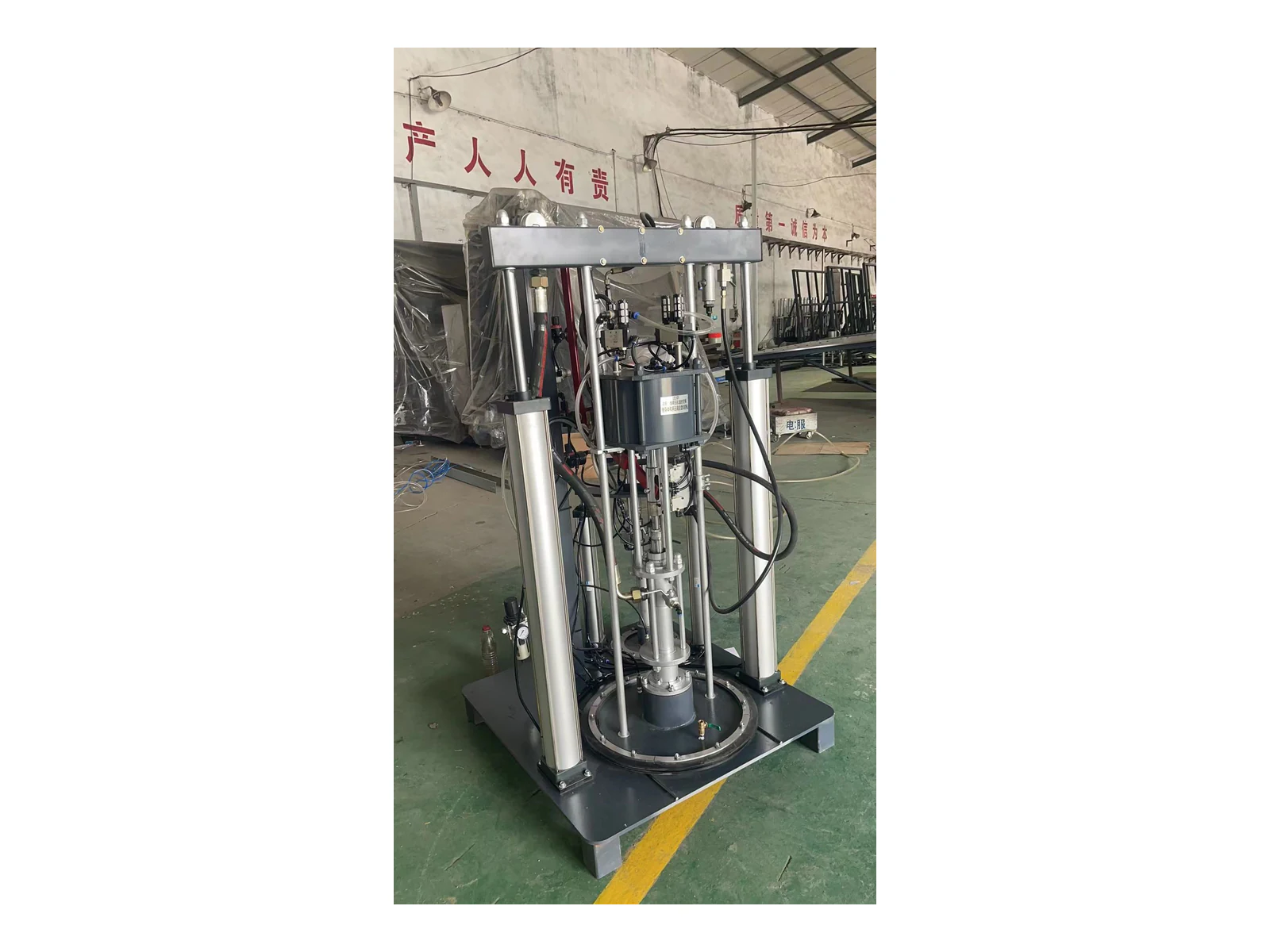

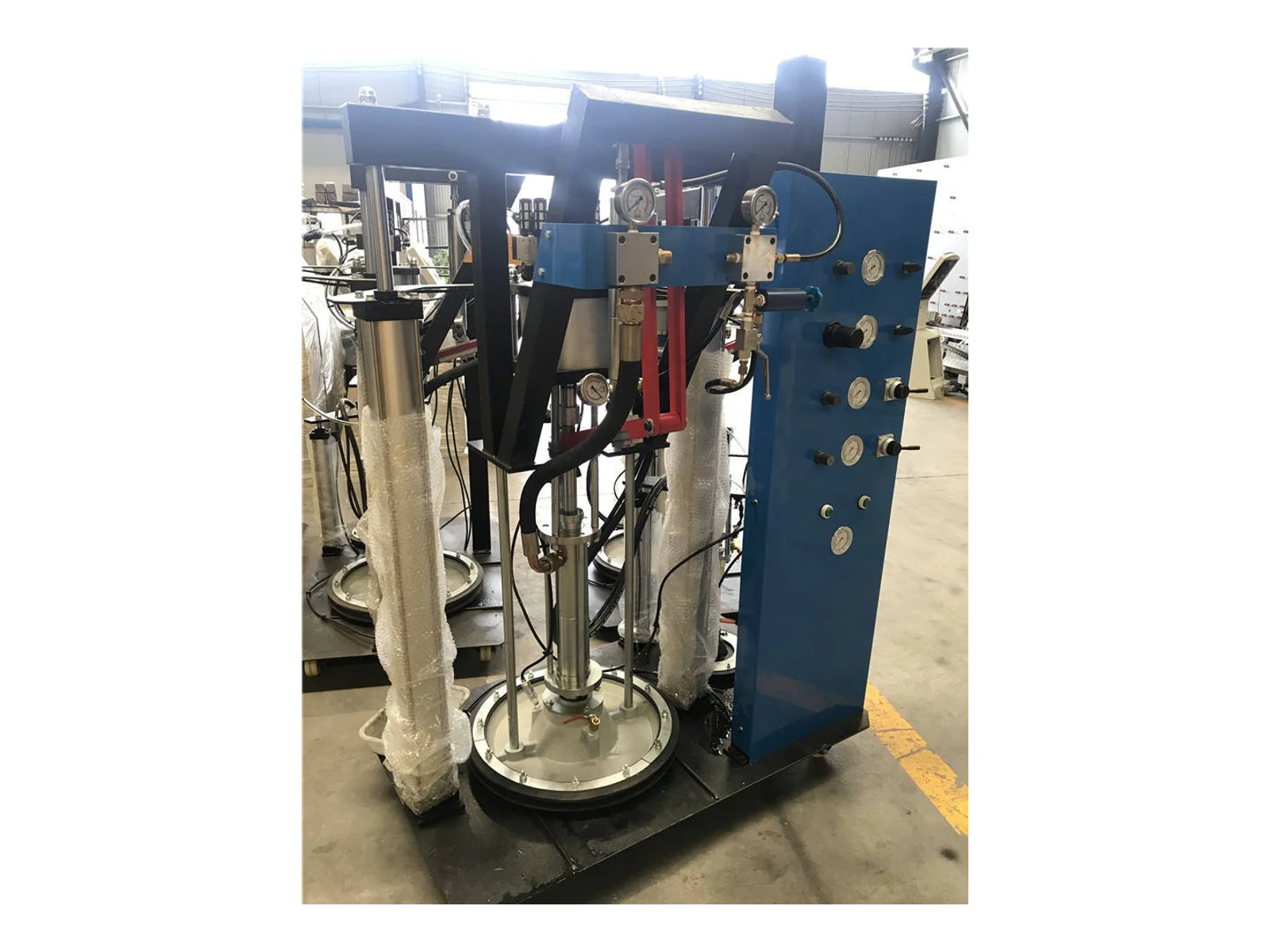

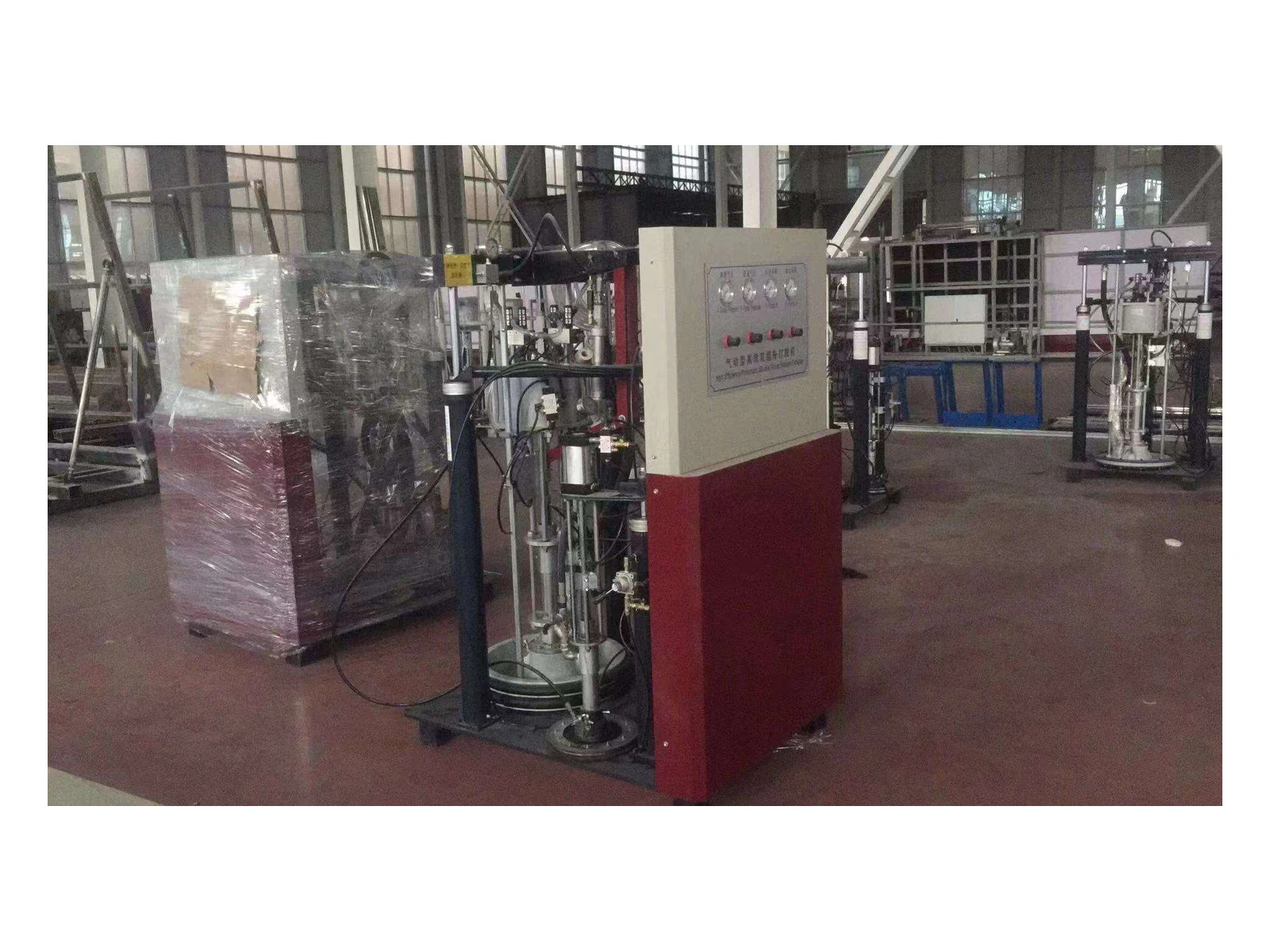

Pneumatic Two-Component Sealant Coating Machine

Description

Pneumatic two-component coating machine for metering and applying secondary sealant in insulating glass production.

Meters base material and curing agent for two-component sealing.
Supports adjustable mixing ratios within the catalogued range.
Uses 200-litre base-material and 20-litre curing-agent containers.

Specifications

Working air pressure0.5-0.8 MPa

Air consumption1.0 m³/min

Mixing ratio6:1 to 14:1

Base-material container200 L

Curing-agent container20 L

Maximum extrusion pressure25 MPa

Overall dimensions1,200 x 950 x 1,600 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Direct answer

What is the BST08 IGU sealant equipment?

The BST08 is an IGU sealant equipment. It is catalogued as a pneumatic two-component coating machine for metering and applying secondary sealant in insulating glass production.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

BST08 FAQs

What is the BST08 IGU sealant equipment?

The BST08 is an IGU sealant equipment. It is catalogued as a pneumatic two-component coating machine for metering and applying secondary sealant in insulating glass production.

What profiles or operations is the BST08 designed for?

Meters base material and curing agent for two-component sealing.

What is the working range of the BST08?

Working air pressure: 0.5-0.8 MPa; Air consumption: 1.0 m³/min; Mixing ratio: 6:1 to 14:1. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the BST08?

Working air pressure: 0.5-0.8 MPa; Air consumption: 1.0 m³/min. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the BST08?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
