BST09

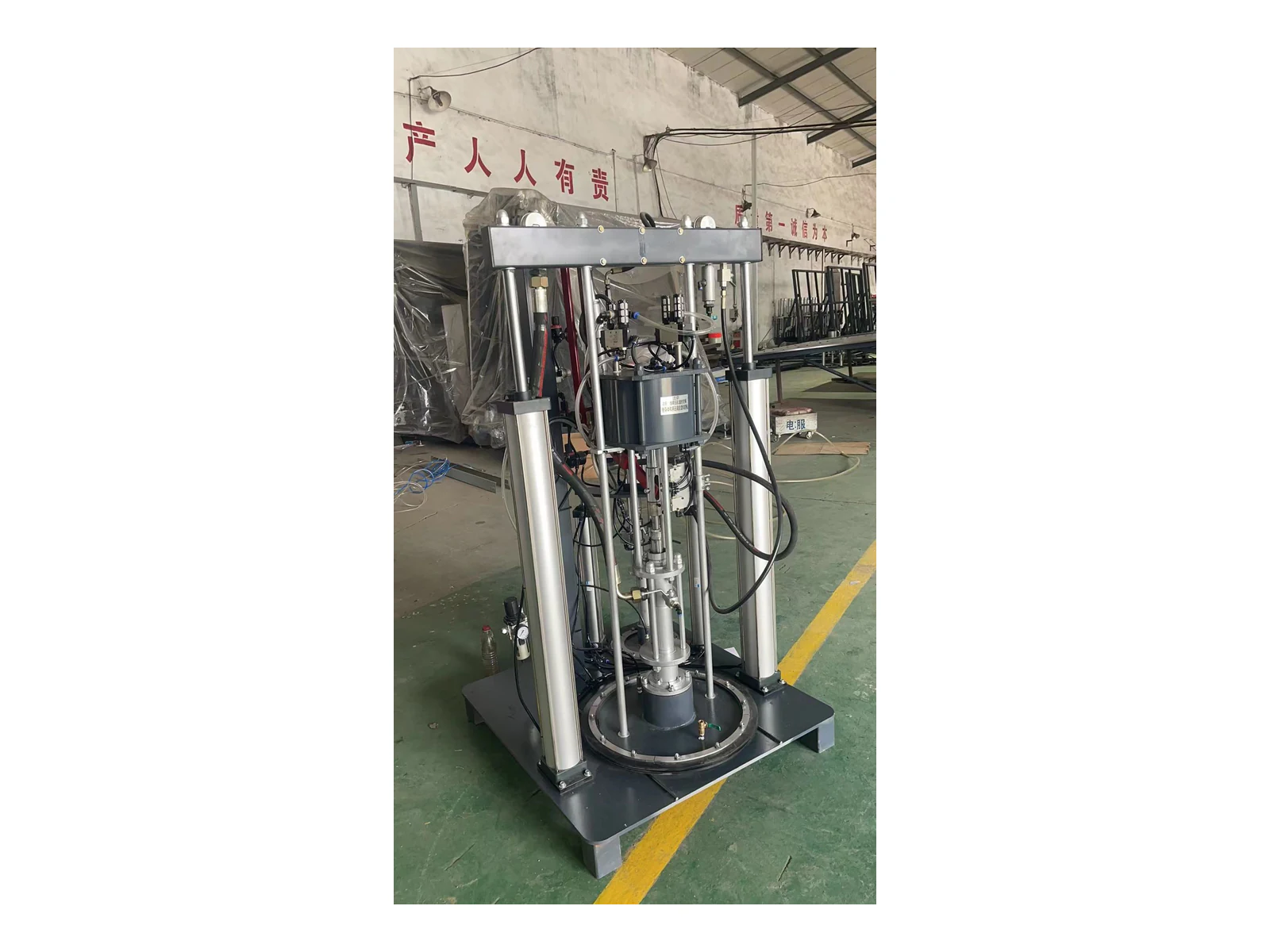

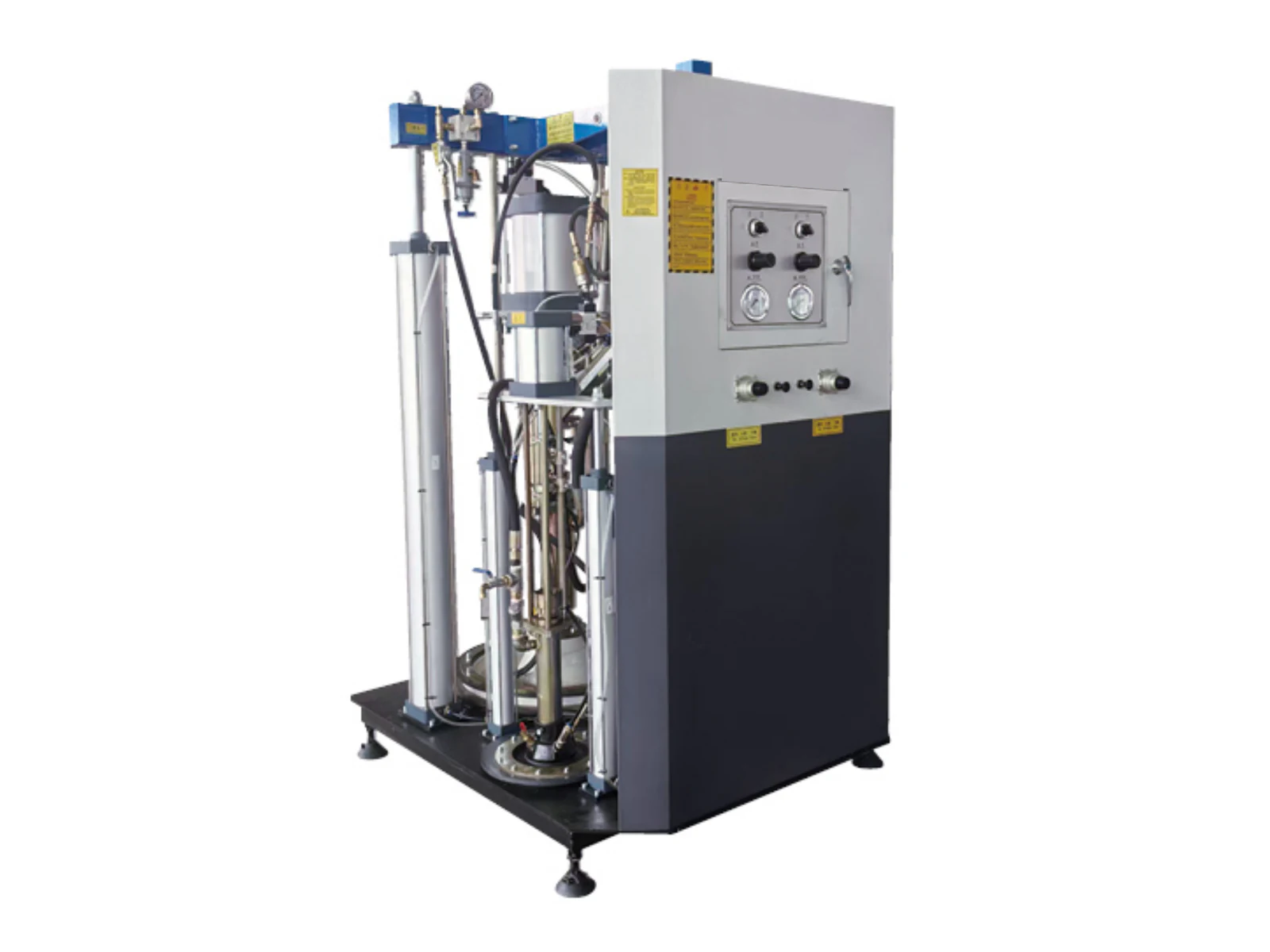

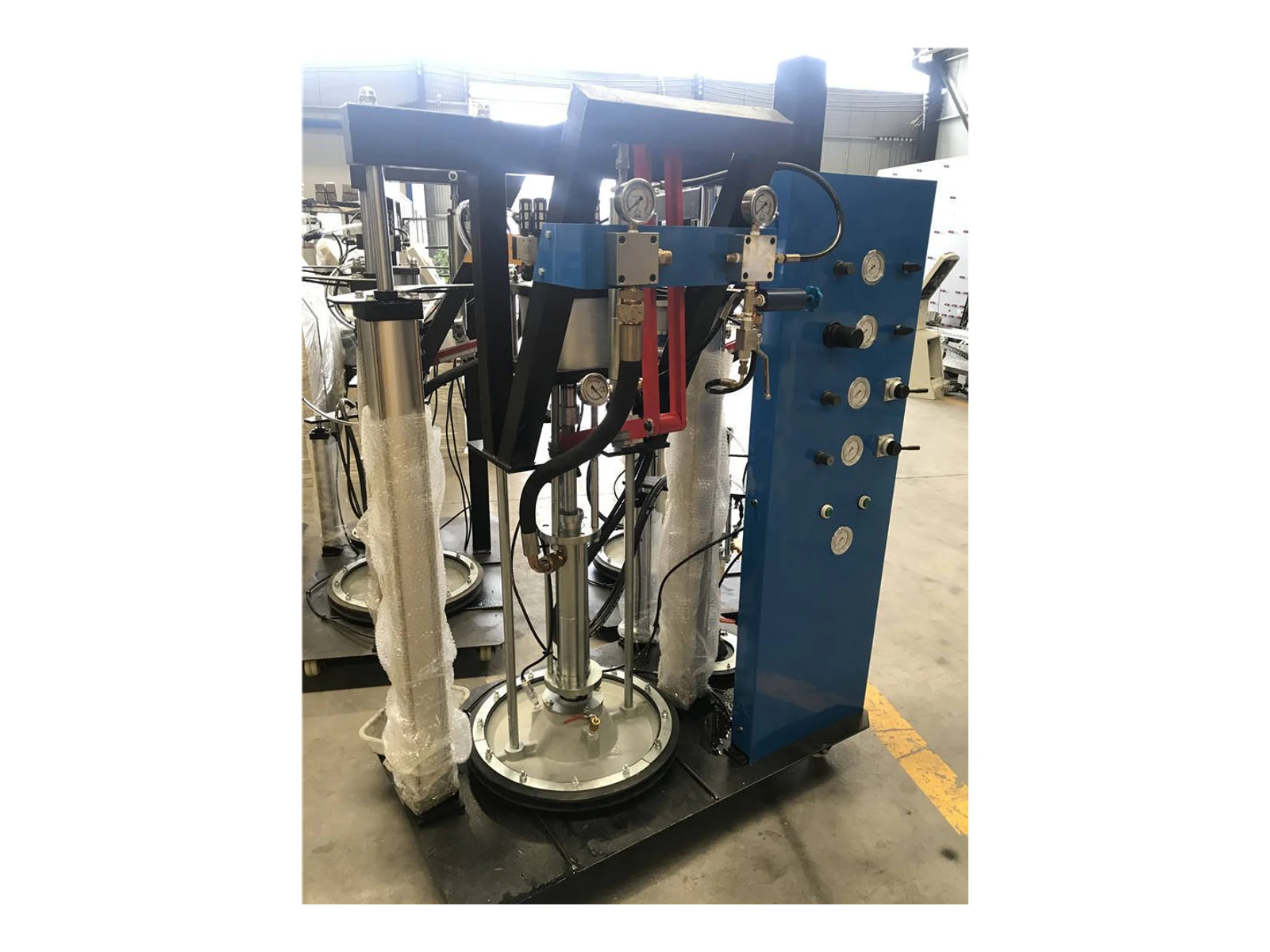

Pneumatic Two-Component Sealant Coating Machine

Description

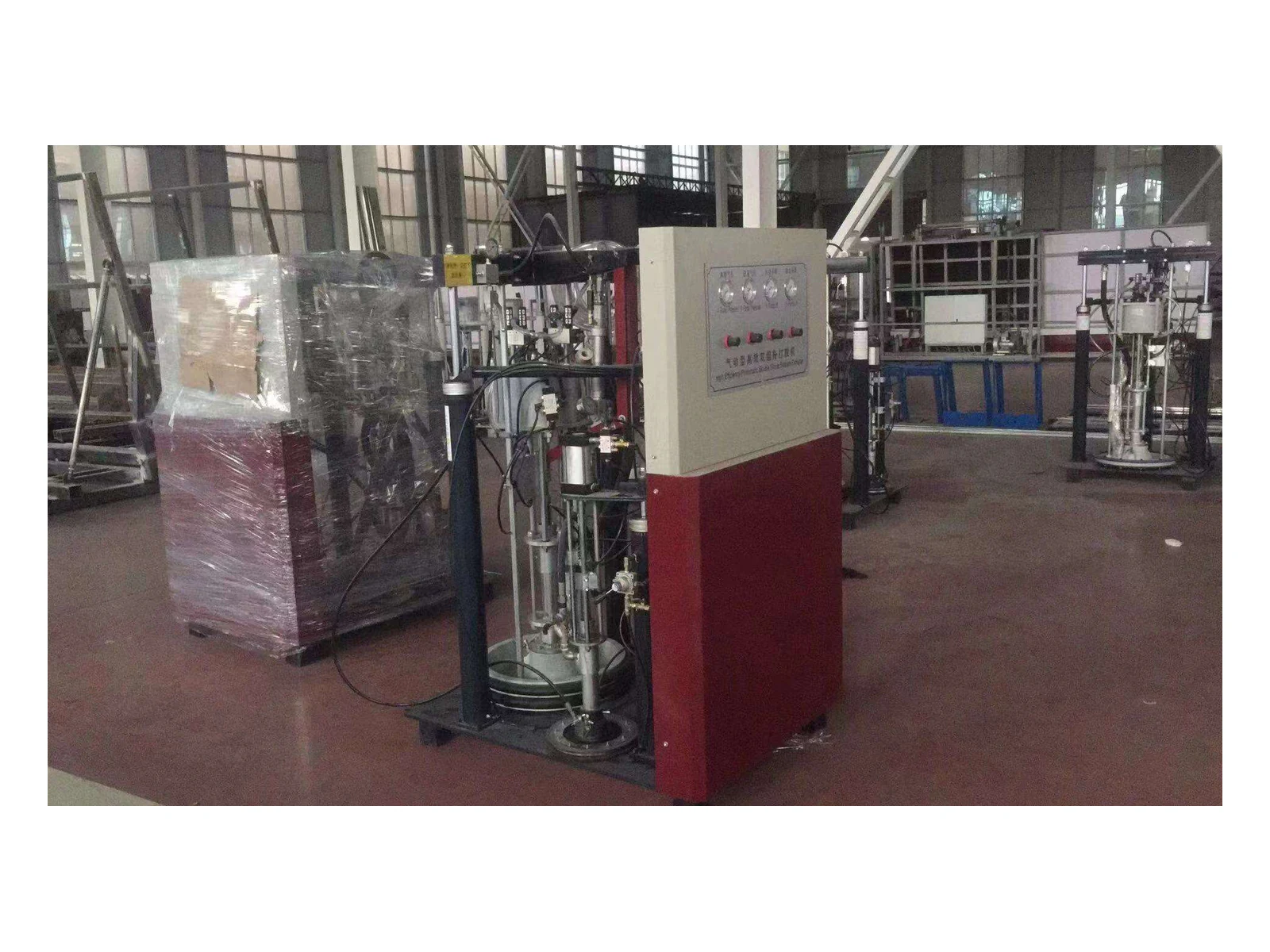

Cabinet-format pneumatic two-component sealant machine for insulating glass secondary-seal application.

Meters two-component insulating-glass sealant.
Supports adjustable base-to-curing-agent ratios.
Uses standard catalogued material containers and pneumatic extrusion.

Specifications

Working air pressure0.5-0.8 MPa

Air consumption1.0 m³/min

Mixing ratio6:1 to 14:1

Base-material container200 L

Curing-agent container20 L

Maximum extrusion pressure25 MPa

Overall dimensions1,200 x 950 x 1,600 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Direct answer

What is the BST09 IGU sealant equipment?

The BST09 is an IGU sealant equipment. It is catalogued as a cabinet-format pneumatic two-component sealant machine for insulating glass secondary-seal application.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

BST09 FAQs

What is the BST09 IGU sealant equipment?

The BST09 is an IGU sealant equipment. It is catalogued as a cabinet-format pneumatic two-component sealant machine for insulating glass secondary-seal application.

What profiles or operations is the BST09 designed for?

Meters two-component insulating-glass sealant.

What is the working range of the BST09?

Working air pressure: 0.5-0.8 MPa; Air consumption: 1.0 m³/min; Mixing ratio: 6:1 to 14:1. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the BST09?

Working air pressure: 0.5-0.8 MPa; Air consumption: 1.0 m³/min. Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the BST09?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
