WBX1600

Insulating Glass Washing and Drying Machine

Description

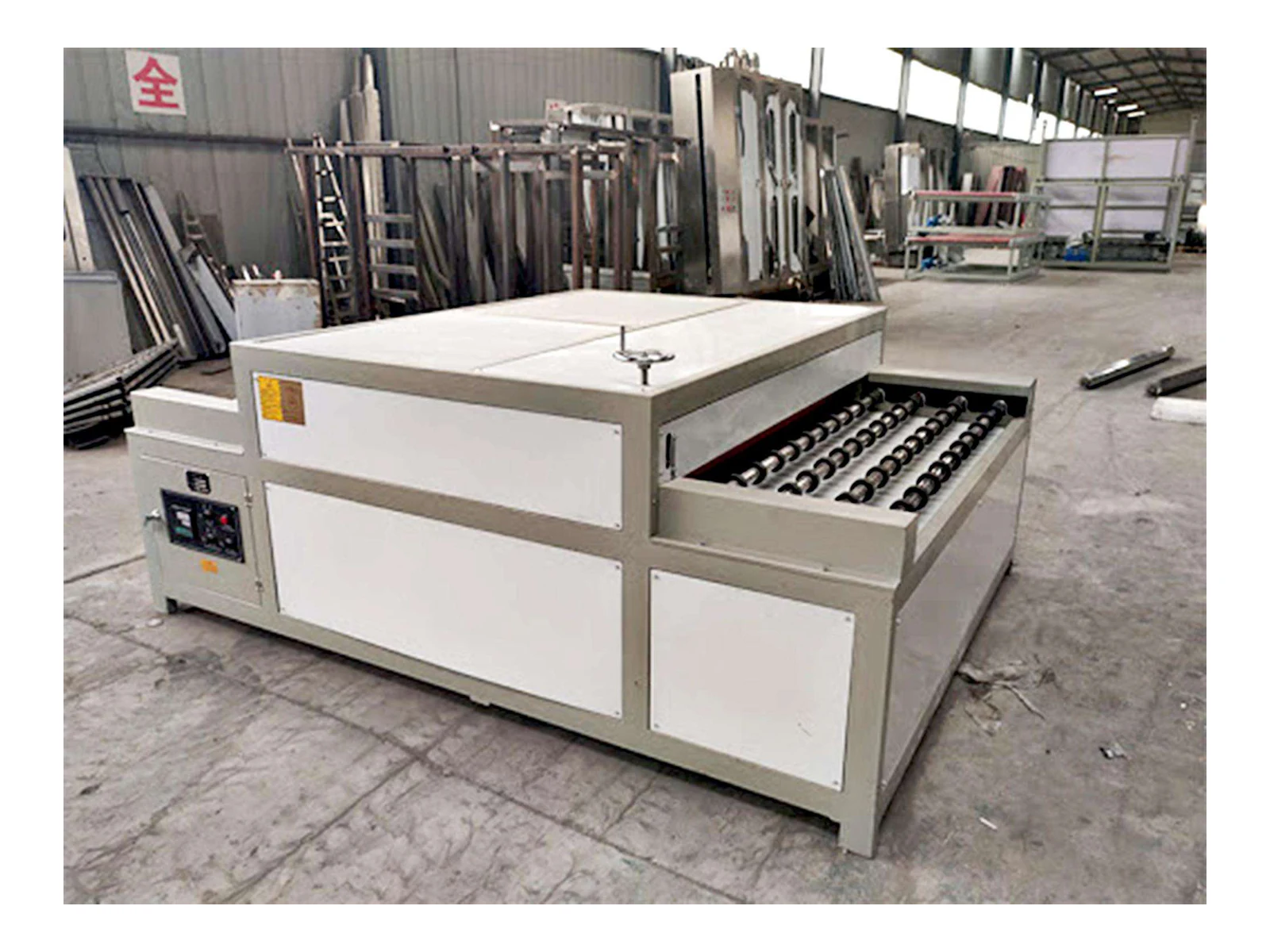

Horizontal machine for washing and drying glass panes before insulating glass assembly.

Washes and dries panes for the downstream IGU process.
Handles the glass size and thickness range stated in the catalog.
Horizontal roller transfer supports line operation.

Specifications

Total power8.43 kW

Voltage380 V / 50 Hz

Working speed1.2-5.0 m/min

Maximum insulating-glass thickness40 mm

Minimum glass size400 x 400 mm

Maximum glass size1,500 x 2,000 mm

Specifications are transcribed from the current catalog. Confirm voltage, configuration and final technical scope in the quotation before ordering.

Direct answer

What is the WBX1600 industrial glass washing machine?

The WBX1600 is an industrial glass washing machine. It is catalogued as a horizontal machine for washing and drying glass panes before insulating glass assembly.

Information to prepare before requesting a quote

Profile drawings, material and product system.
Required cuts, angles, holes, slots or milling paths.
Workpiece dimensions, target output and local utilities.

WBX1600 FAQs

What is the WBX1600 industrial glass washing machine?

The WBX1600 is an industrial glass washing machine. It is catalogued as a horizontal machine for washing and drying glass panes before insulating glass assembly.

What profiles or operations is the WBX1600 designed for?

Washes and dries panes for the downstream IGU process.

What is the working range of the WBX1600?

Total power: 8.43 kW; Voltage: 380 V / 50 Hz; Working speed: 1.2-5.0 m/min. Confirm the required profile sections and finished-part dimensions against the final machine configuration.

Which utilities should be checked for the WBX1600?

Confirm the site voltage, frequency, compressed-air supply and final installed load in the quotation before preparing the factory connection.

What should a buyer provide when requesting a quotation for the WBX1600?

Provide profile drawings and material, required operations and angles, minimum and maximum workpiece sizes, target output, local power supply, compressed-air details and any loading, coding or extraction requirements.
